Overview:
► MPQ55 quick release mode. New quick release section. Quick switch between the equipment
► Adapt to quick release plate of Pineta Pro monopod. Switch from Pineta Pro Monopod to other equipment without screwing. easy and fast
► Two-finger Press to Release. One step to reposition. Press the button with two fingers to remove the quick release plate upwards to avoid damage caused by misuse of the operation.
► Install the quick release plate with just one press, greatly improves the safety of operation.
► Safety lock to further enhance afety. Turn the safety lock to the lock position to prevent. Pressing the quick release button and accidental access.
► Further Safety. Design of pressing spring structure, 1/4, 3/8 screws are adaptable for equipment installation. Anti-rotation screws on the bottom of the quick release plate to strengthen the stability of installation

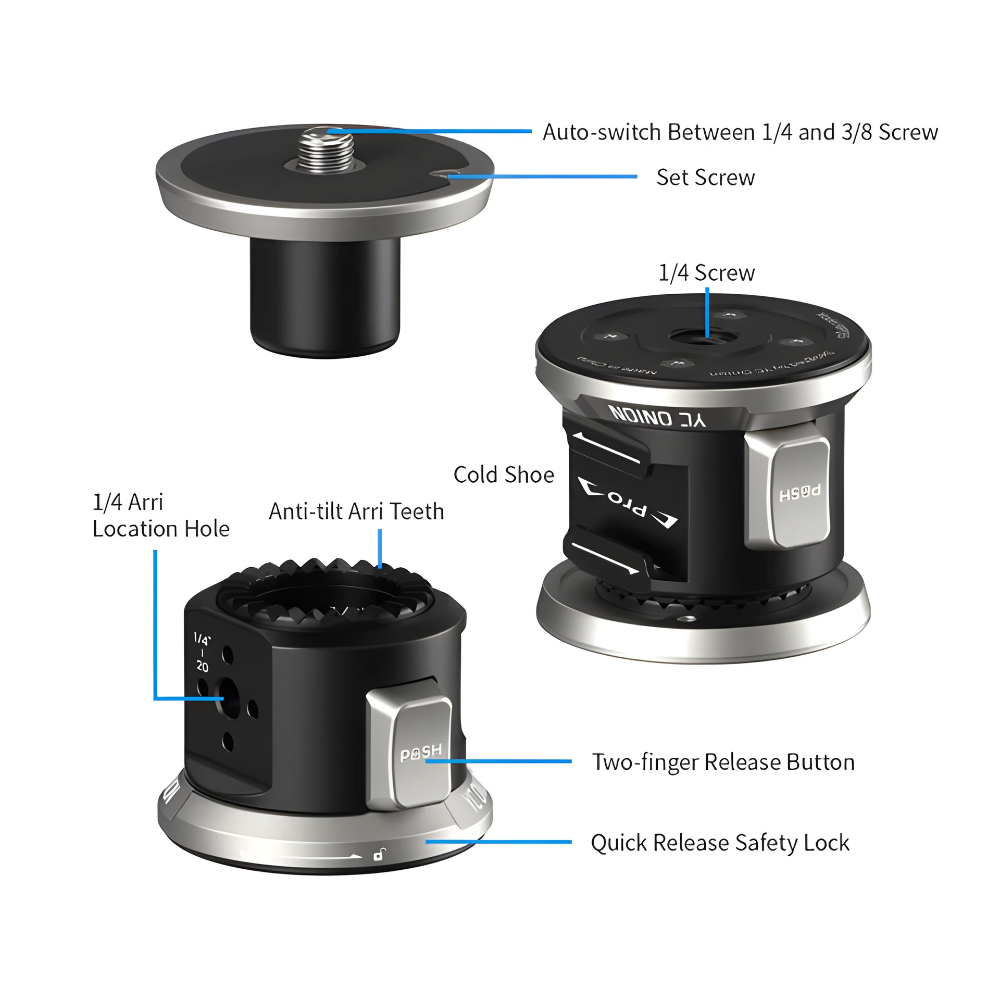

► Detail shows the quality. The quick release mode is equipped with a 1/4 screw hole, along with a cold shoe notch on the side, which facilitates expanding other accessories. Satisfy more professional shooting with a arri positioning hole provided.

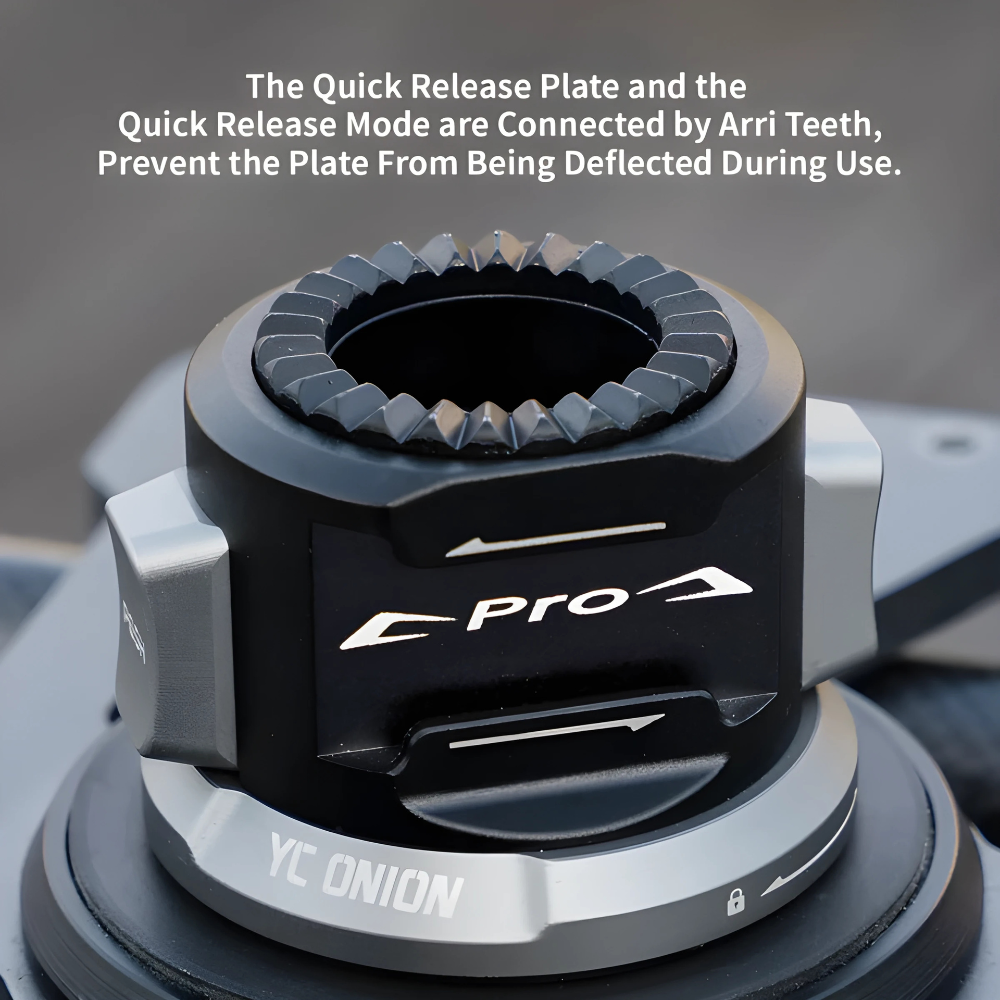

► The quick release plate and the quick release mode are connected by arri teeth, prevent the plate from being deflected during use.

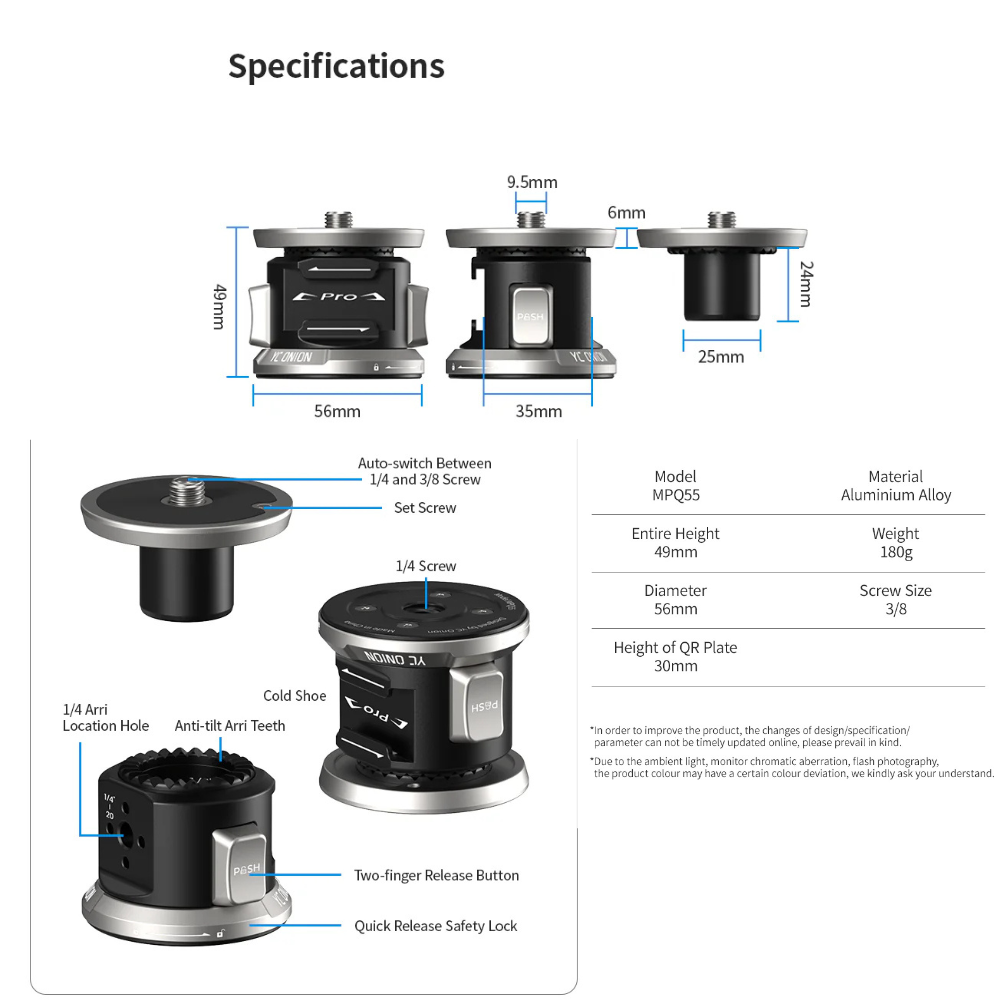

Specifications:
• Brand: YC Onion
• Model: MPQ55
• Product Type: Quick Release System
• Material: Aluminium Alloy
• Entire Height: 49mm
• Weight: 180g
• Diameter: 56mm
• Screw Size: 3/8
• Height of QR Plate: 30mm
• Height (total): 49mm
• Diameter (base): 56mm
• Diameter (top/plate): 35mm
• Plate thickness: 9.5mm
• Mount height: 24mm
• Base width: 25mm
• Plate width: 6mm
WHAT'S IN THE BOX?
• 1x Quick Release Knob
