Features:
► Simultaneous Cross-Platform Streaming
► Encoder, Monitor, Switcher & Recorder
► Up to UHD 4K Video, ISO Recording

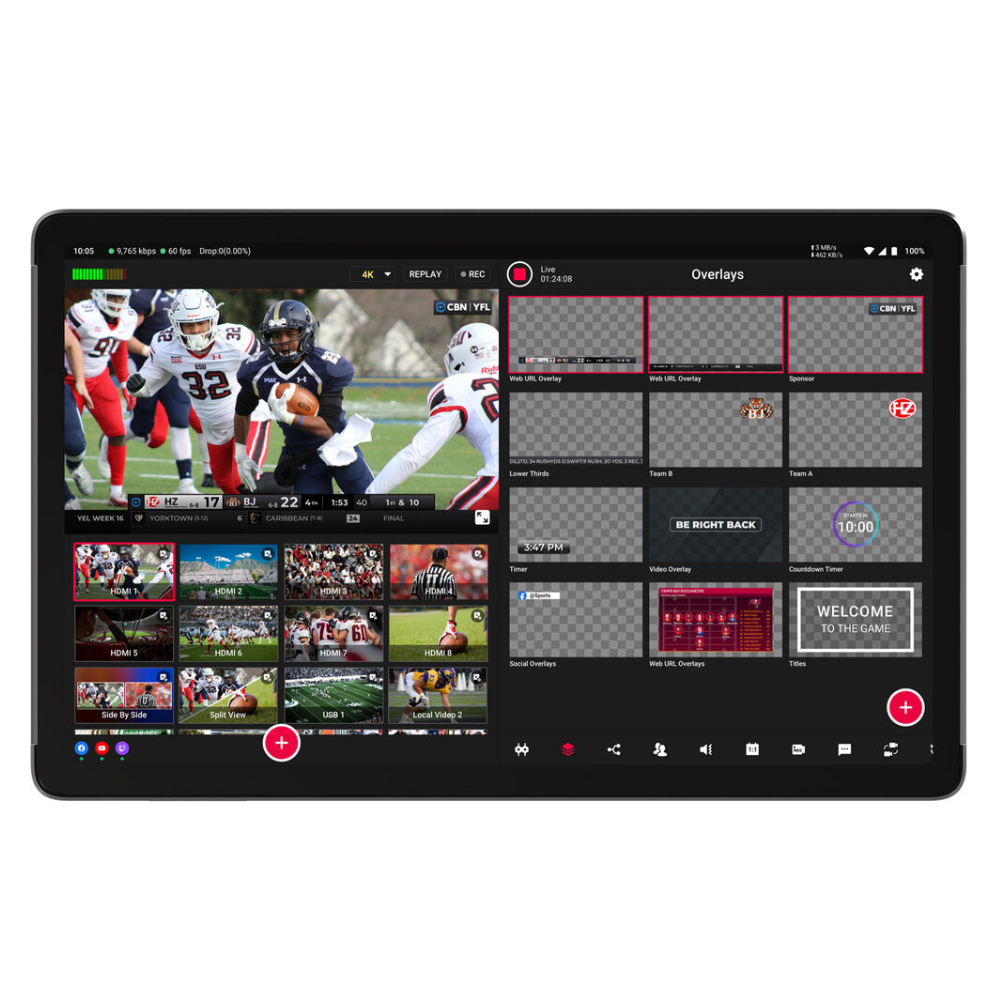

► 11.2" OLED Touchscreen, External Antenna
► HDMI, NDI, USB-C & USB-A Inputs

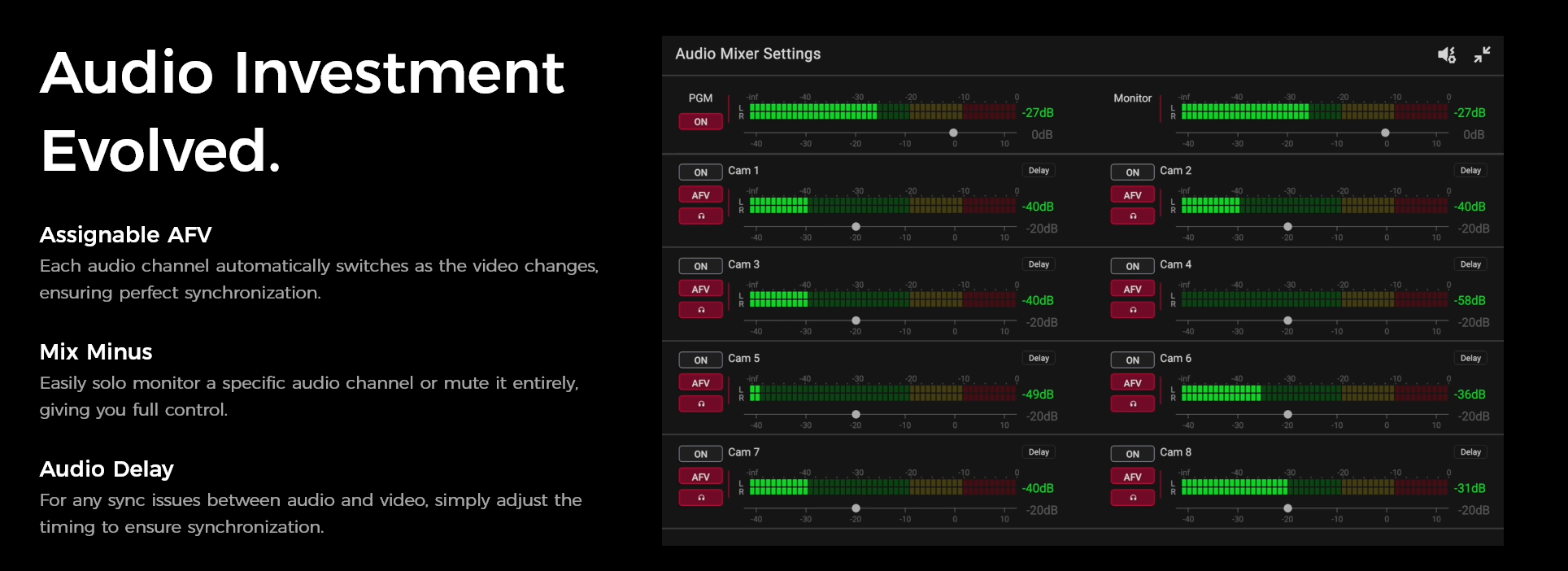

► Built-In Audio Mixing
► SD Card Slot, Nano SIM Card Slot
► Stream via Ethernet, Wi-Fi 7, 4G Network

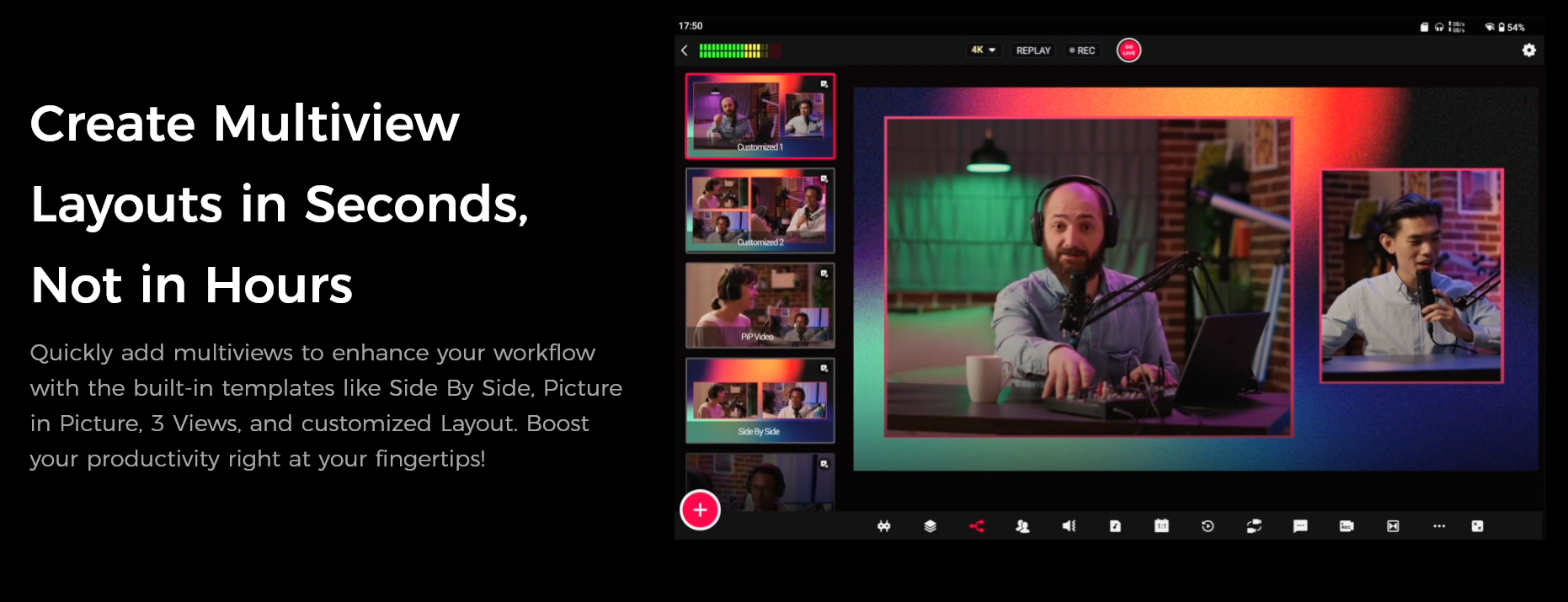

► Live Switch Between 20 Sources
► 10-Hour Battery Life
Specifications:
● Brand: YOLOLIV

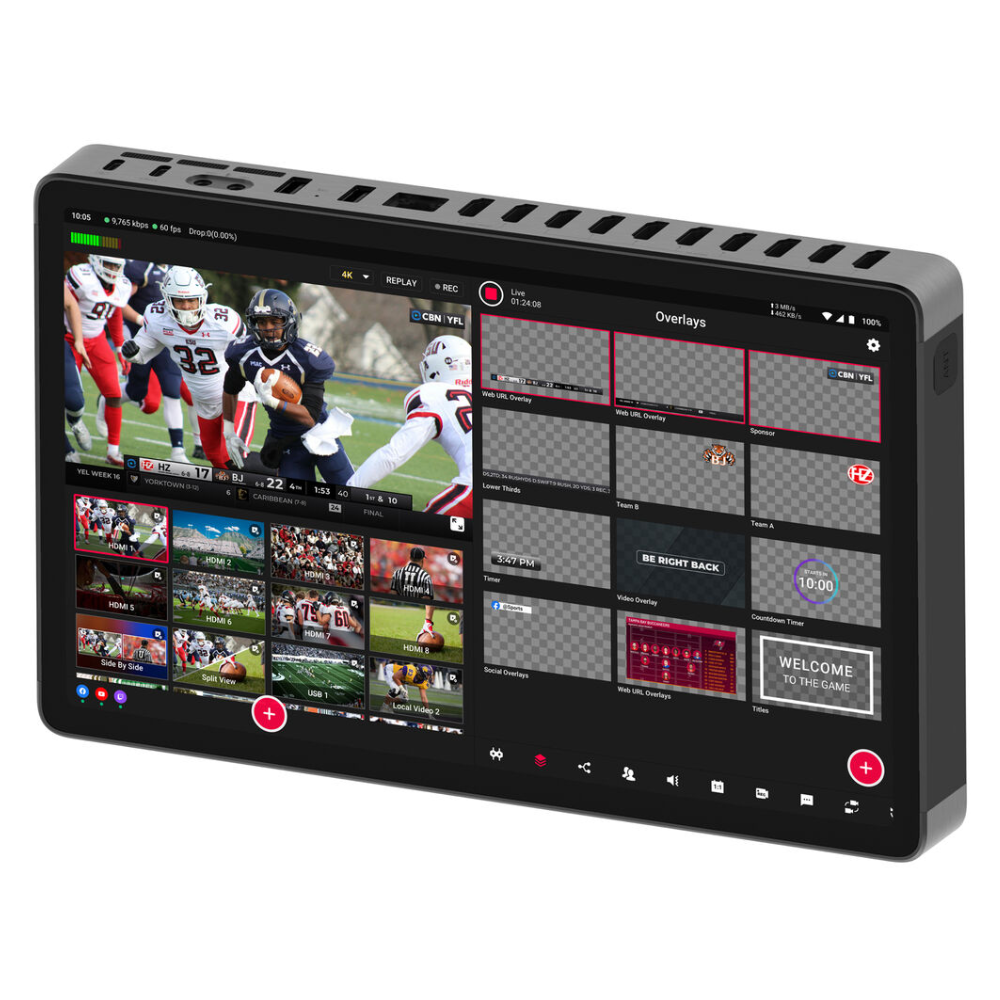

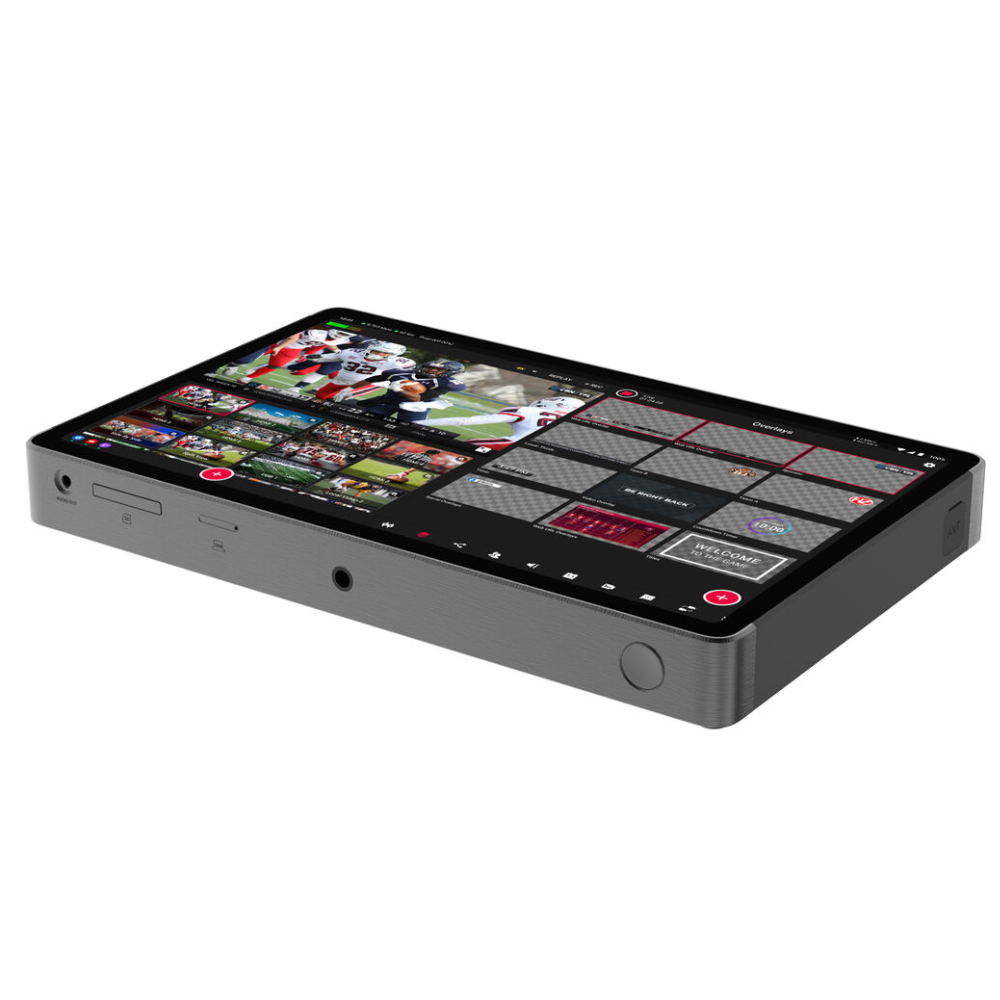

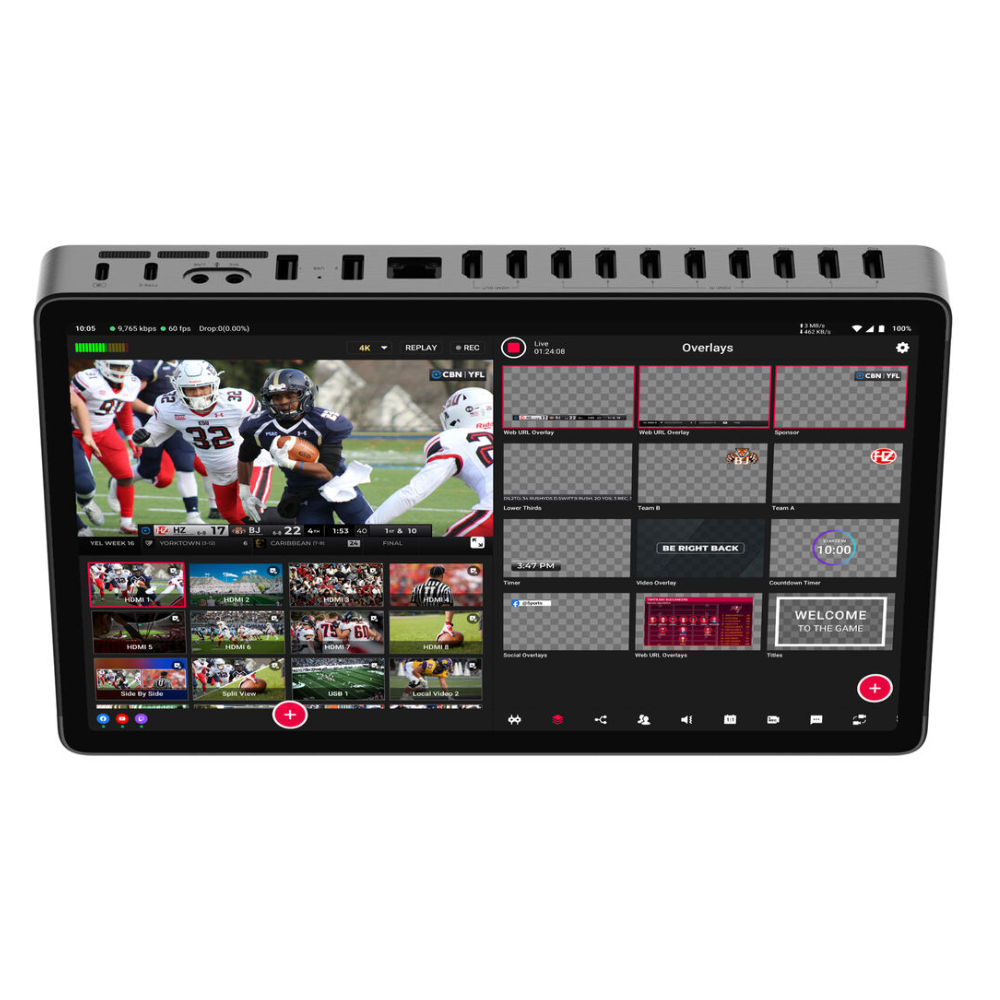

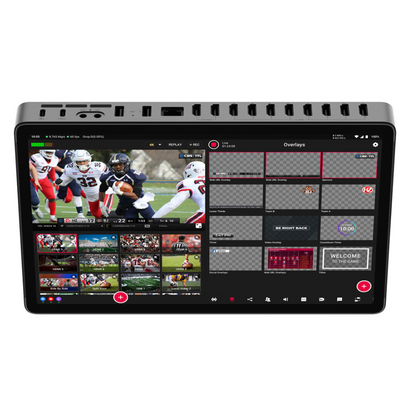

● Model: Yolobox Extreme
● Type: Multi Camera Livestream and Switching System
● Input Power: 9V / 12V / 15V⎓3A
● Power Consumption: 45W
● Power Supply: USB Type-C
● USB Rated Output: USB-A:5V/1A
● Battery Capacity: 10000mAh

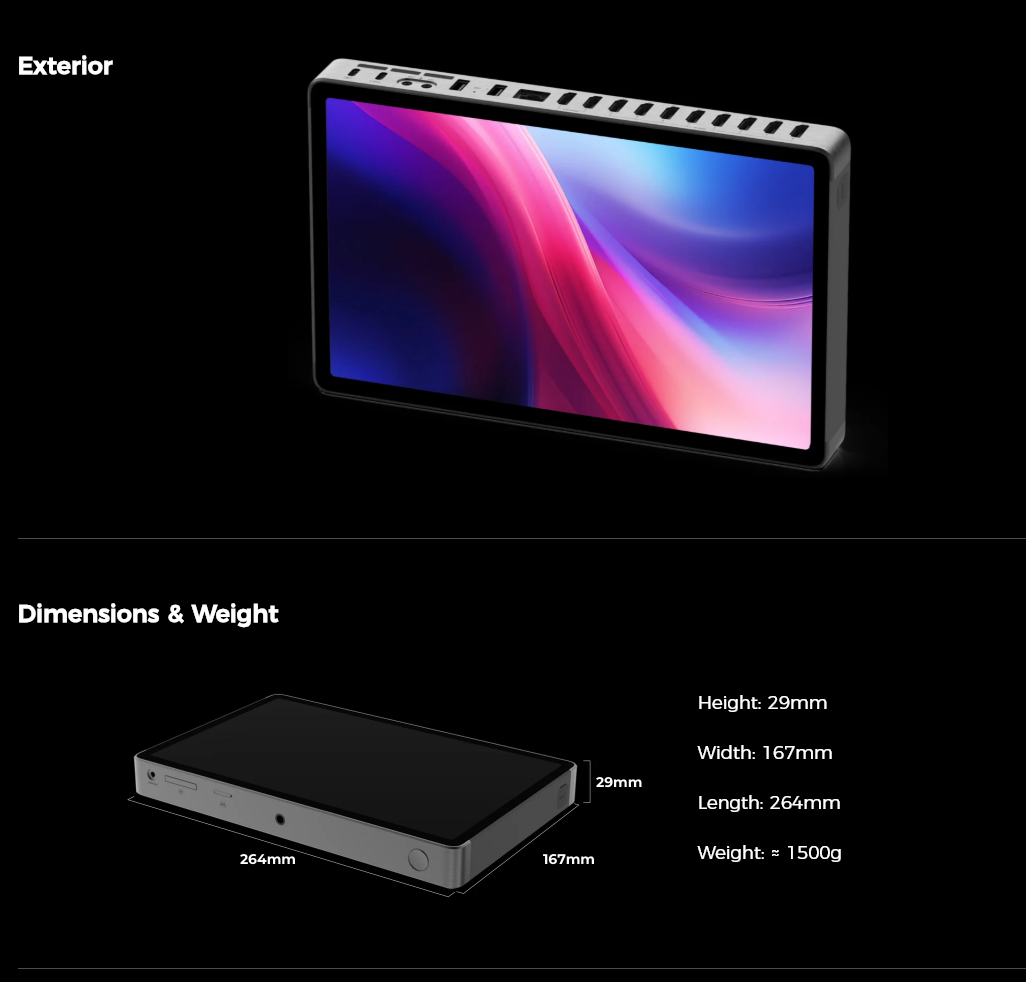

● Dimensions: 264*167*29mm
● Power Consumption: <45W
● Monitor Screen Size:
- 11.2" 2K OLED; Resolution: 2560x1530;
- Brightness: 450nits ( ≈ LCD 800-1000nits);
- Frequency: Fre =120Hz; Contrast ratio (1500:1);
- Viewing Angle (full viewing Angle); NTSC 108%

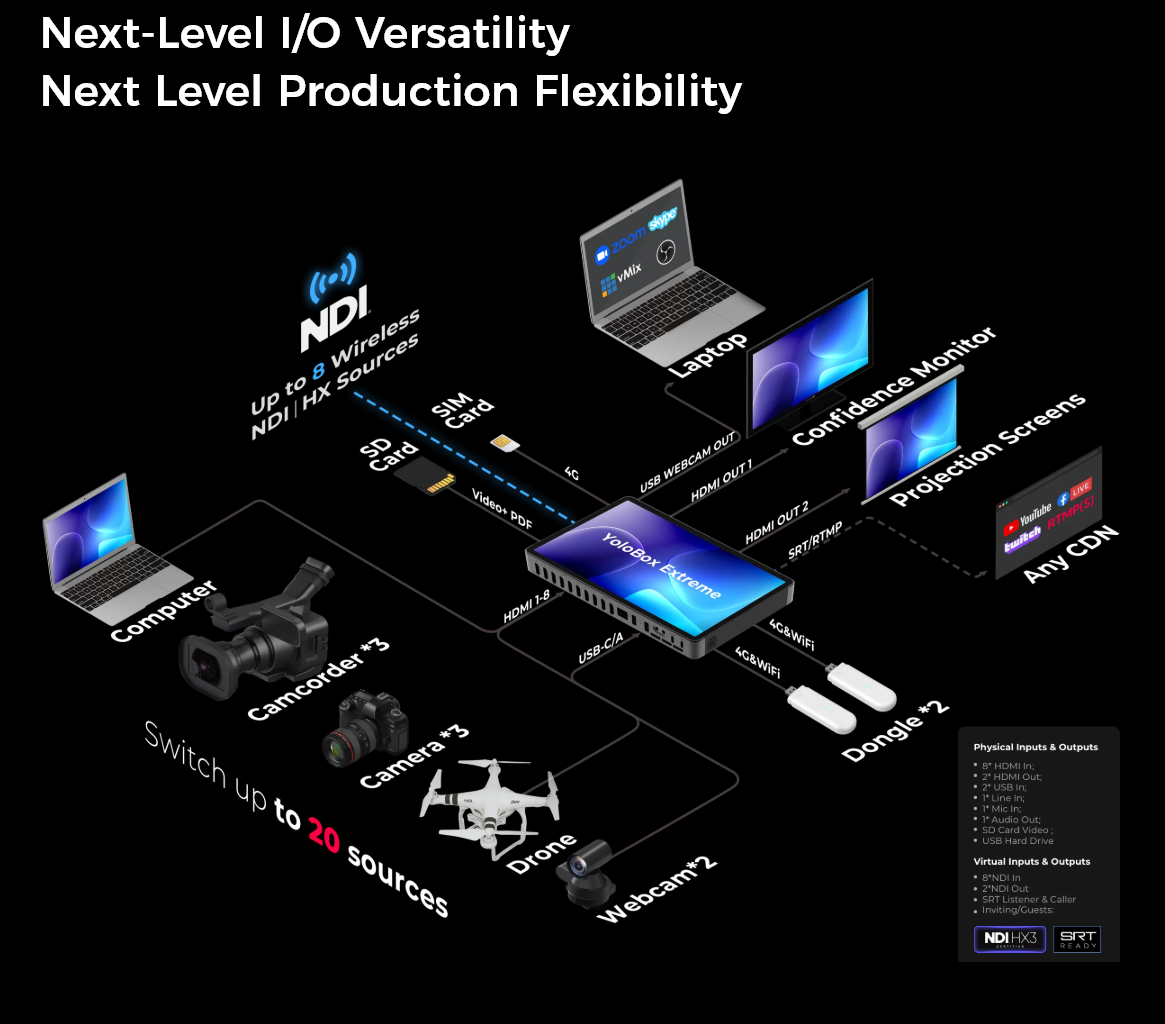

● Local Video Inputs: HDMI USB-A
● Video Over Ethernet: RTMP/RTMPS/SRT/NDI/RTSP
● Video Input Connectors: HDMI, USB-A, RJ-45, USB Type-C
● Video Input Aspect Ratios: 16:9, 4:3, 1:1
● Video Input Deinterlacing: No
● Live Broadcast Video Input Resolution: 480p/720p/1080p(up to 60fps)/4Kp60
● Video Encoded Format: H.264 H.265
● Video Processing Bitrate Control: CQ, VBR, CBR
● Hardware-accelerated Video Encoding: Optional
● Video Output Signal Types: FLV-RTMP, HDMI, UVC
● Video Output Connectors: HDMI OUT, USB-C
● Video Output Streaming Protocols: RTMP, RTMPS, MJPEG, SRT
● Live Broadcast Video Output Resolution: 480p/720p/1080p(Up to 60fps)/4Kp60
● Analog Audio Input Connectors: Line In; Mic In; 3.5mm
● Digital Audio Outputs:
- USB; HDMI; RTMP (From internet);
- Local video (From SD card)
● Digital Audio Input Connectors: USB-A, HDMI, USB-C
● Audio Input Mute: Yes
● Audio Input Format: 32KHZ/44.1KHZ/48KHZ :16bit
● Audio Encoded Format: (AAC)44.1K/48KHZ 2Ch 16bit
● Analog Audio Output: 3.5mm Headphone Jack
● Digital Audio Outputs: HDMI Audio (Embedded); USB Audio (Embedded)
● Record Formats: MP4
● Wi-Fi: 2.4G/ 5G (Support WiFi6/WiFi7)
● USB Communication Standard: USB 2.0 and USB 3.0
● Ethernet Data Rate: 10/100/1000m, Half/full Duplex With Autodetect
● SD Card Format: FAT32(Under 128G); NTFS; EX-FAT
● SIM Card Size: Nano-SIM Card

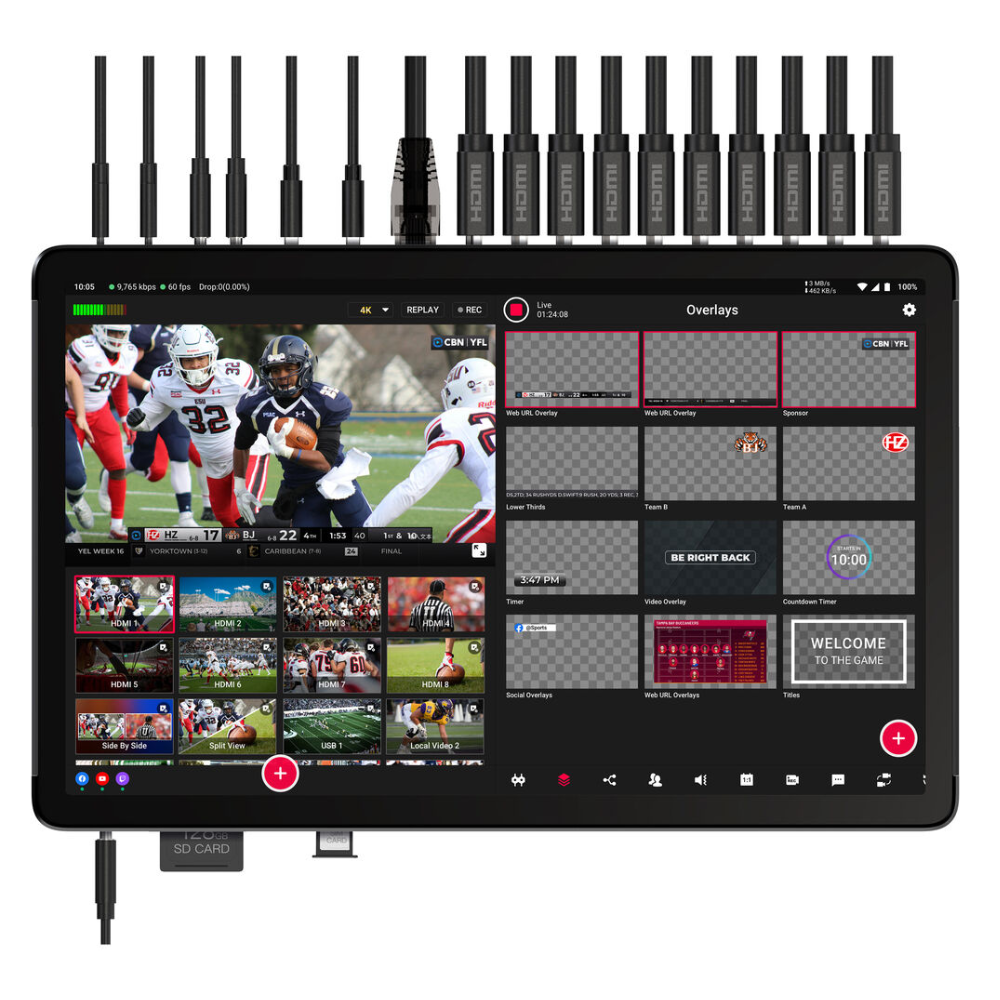

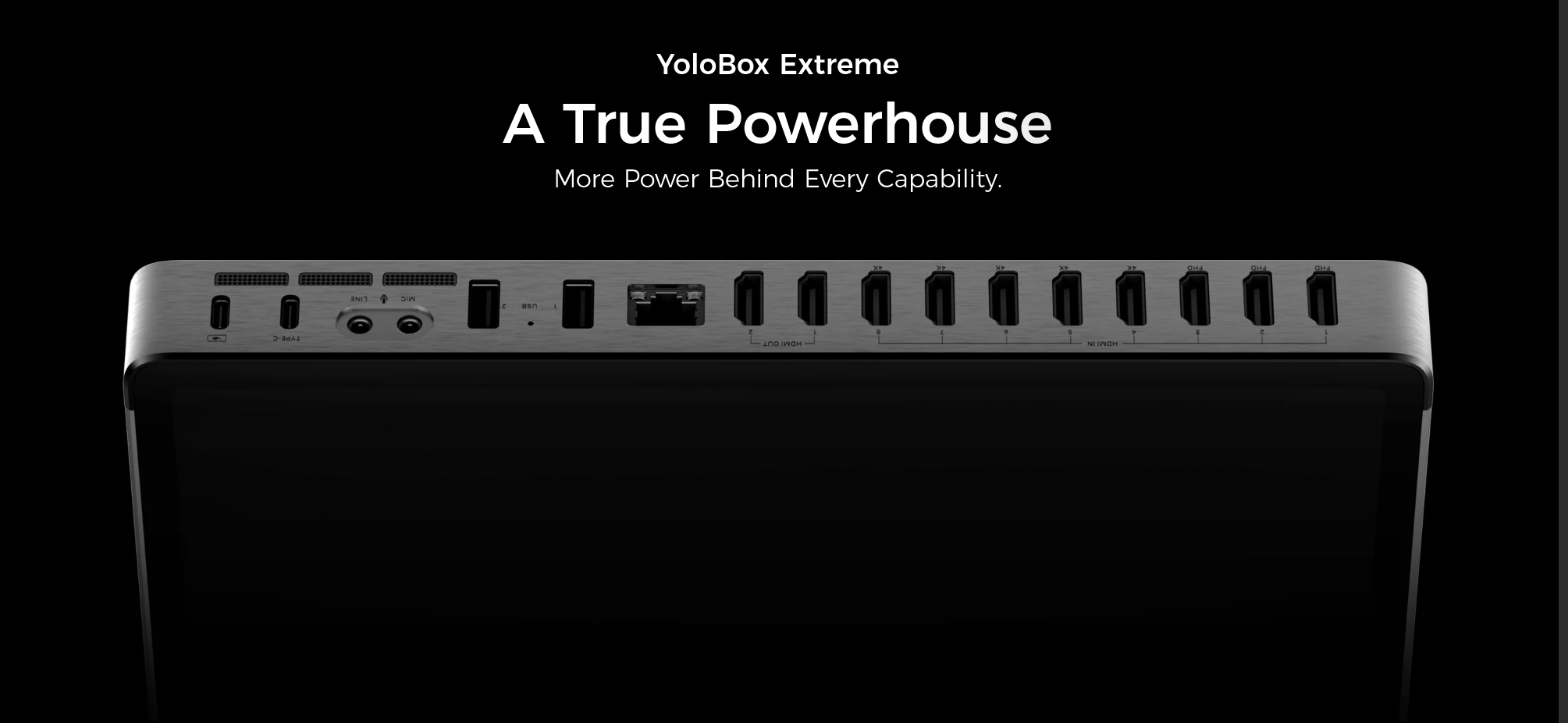

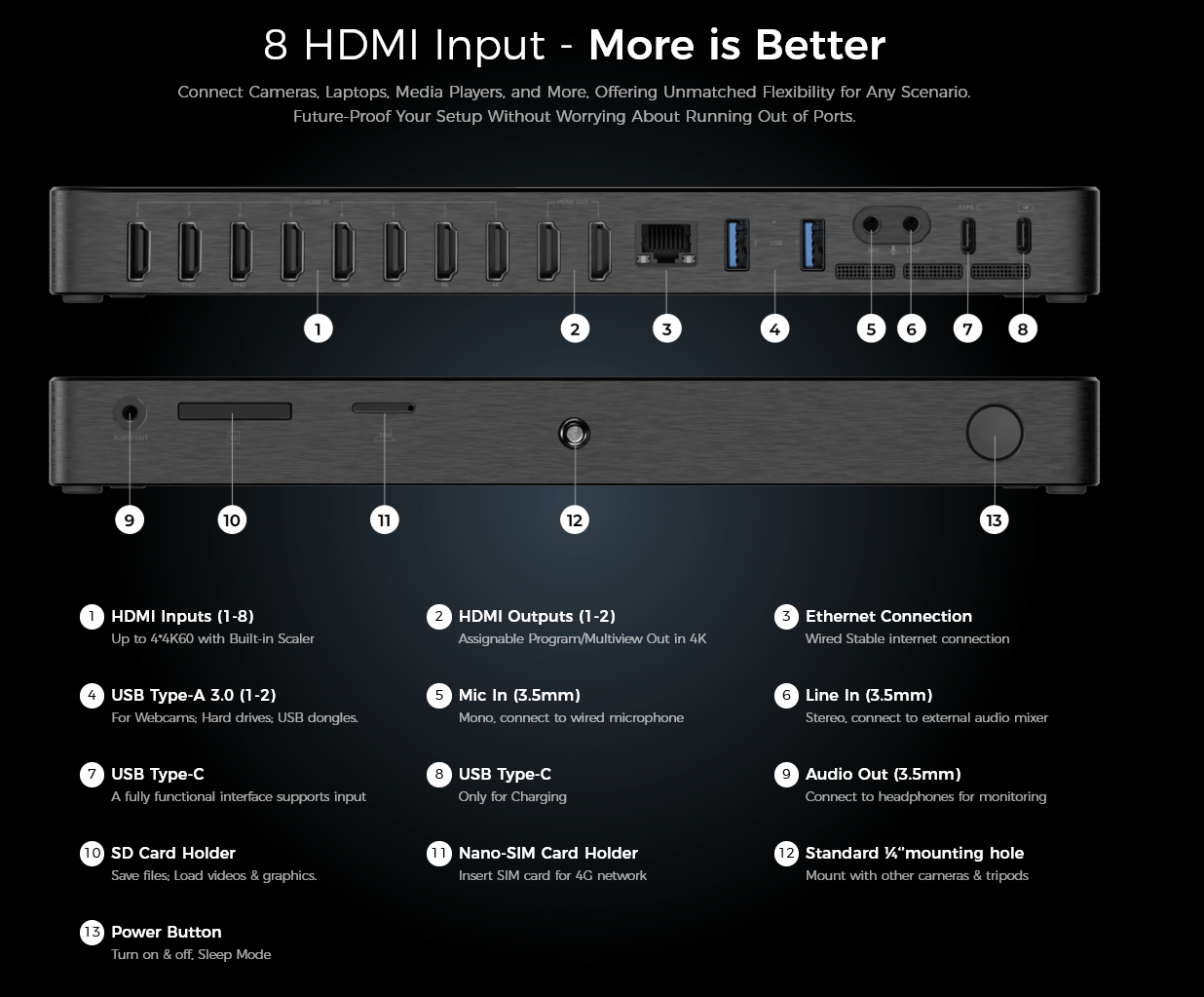

Ports
● HDMI Inputs (1-8): Up to 4*4K60 with Built-in Scaler

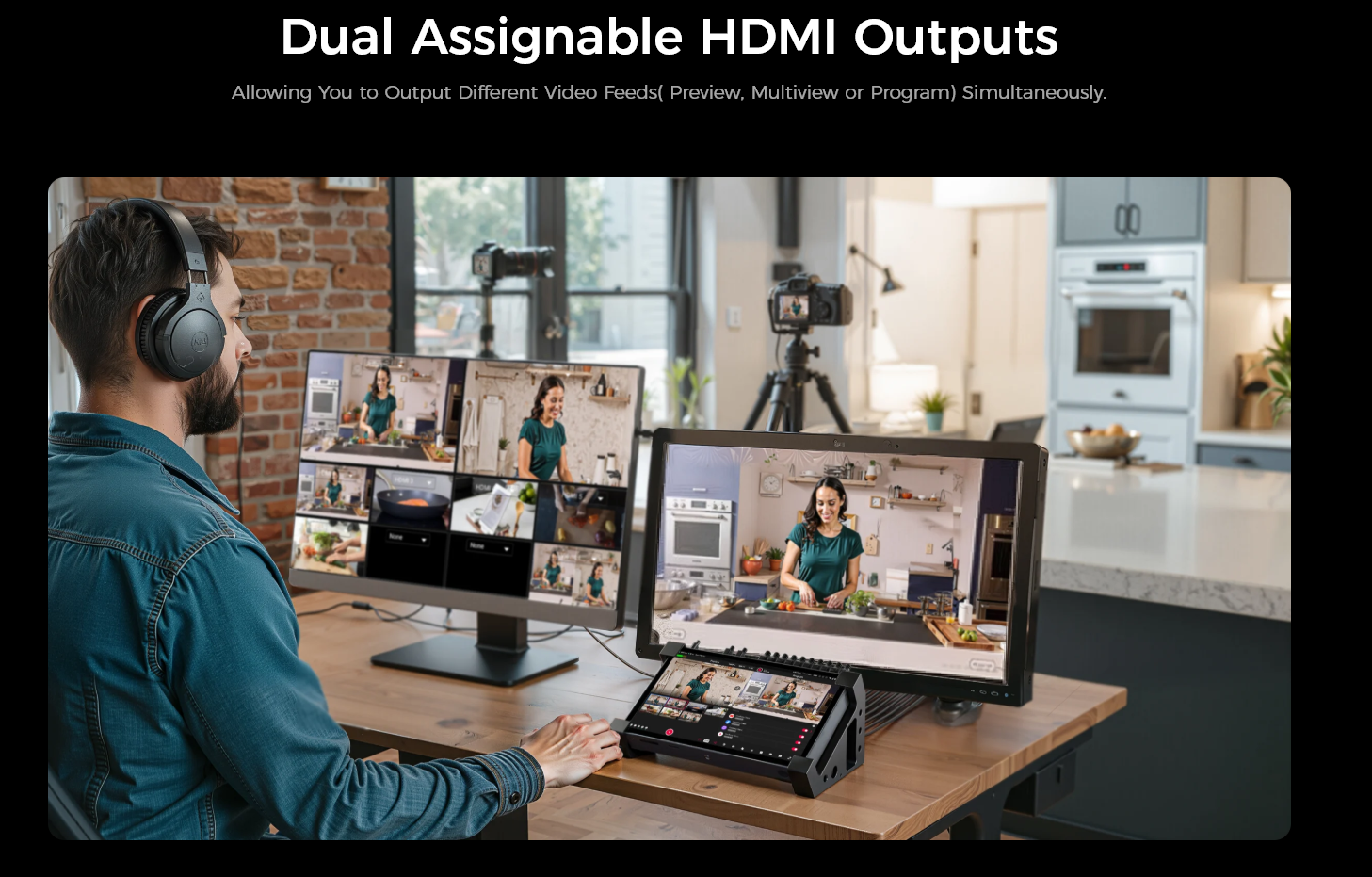

● HDMI Outputs (1-2): Assignable Program/Multiview Out in 4K
● Ethernet Connection: Wired Stable internet connection
● USB Type-A 3.0 (1-2): For Webcams; Hard drives; USB dongles
● Mic In (3.5mm): Mono, connect to wired microphone
● Line In (3.5mm): Stereo, connect to external audio mixer
● USB Type-C: A fully functional interface supports input
● USB Type-C: Only for Charging
● Audio Out (3.5mm): Connect to headphones for monitoring
● SD Card Holder: Save files; Load videos & graphics
● Nano-SIM Card Holder: Insert SIM card for 4G network
● 1/4'' Screw Hole: Mount with other cameras & tripods
● Power Button: Turn on & off, Sleep Mode
4G Network:
4G Network Countries & Frequency Band For
► Users: [Variant for North Americao (US/Canada/Mexico)]
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71 Notes: Mexico B4 For Non-US/Canada/Mexico
► Users: (EU:Variant for EMEA/India/Korea/Taiwan/South
Asia/Latin/America/Australia/New Zealand)
► Users:B1//B3/B7/(B8) Notes:Thailand B1/B3
► Users: (EU:Variant for EMEA/India/Korea/Taiwan/South Asia/Latin/America/Australia/New Zealand)
► Users:B1//B3/B7/(B8) Notes:Thailand B1/B3
