Specifications:

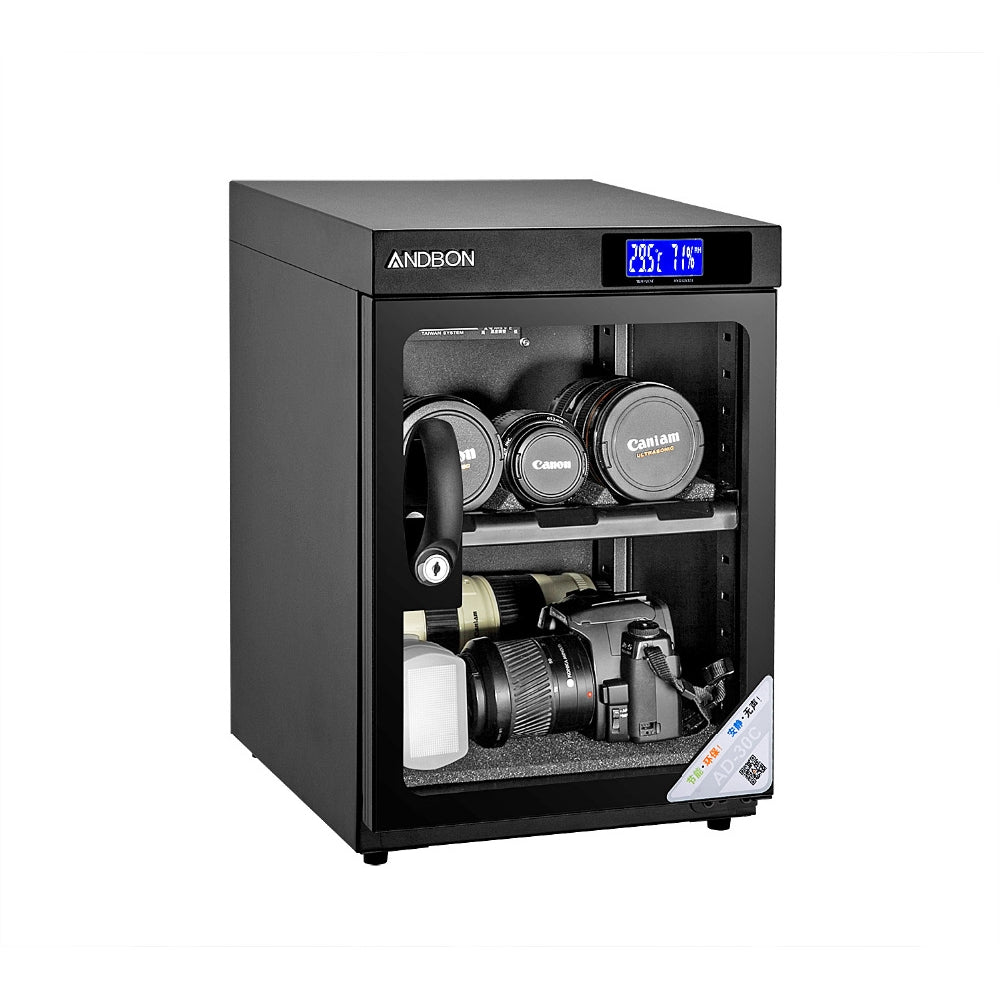

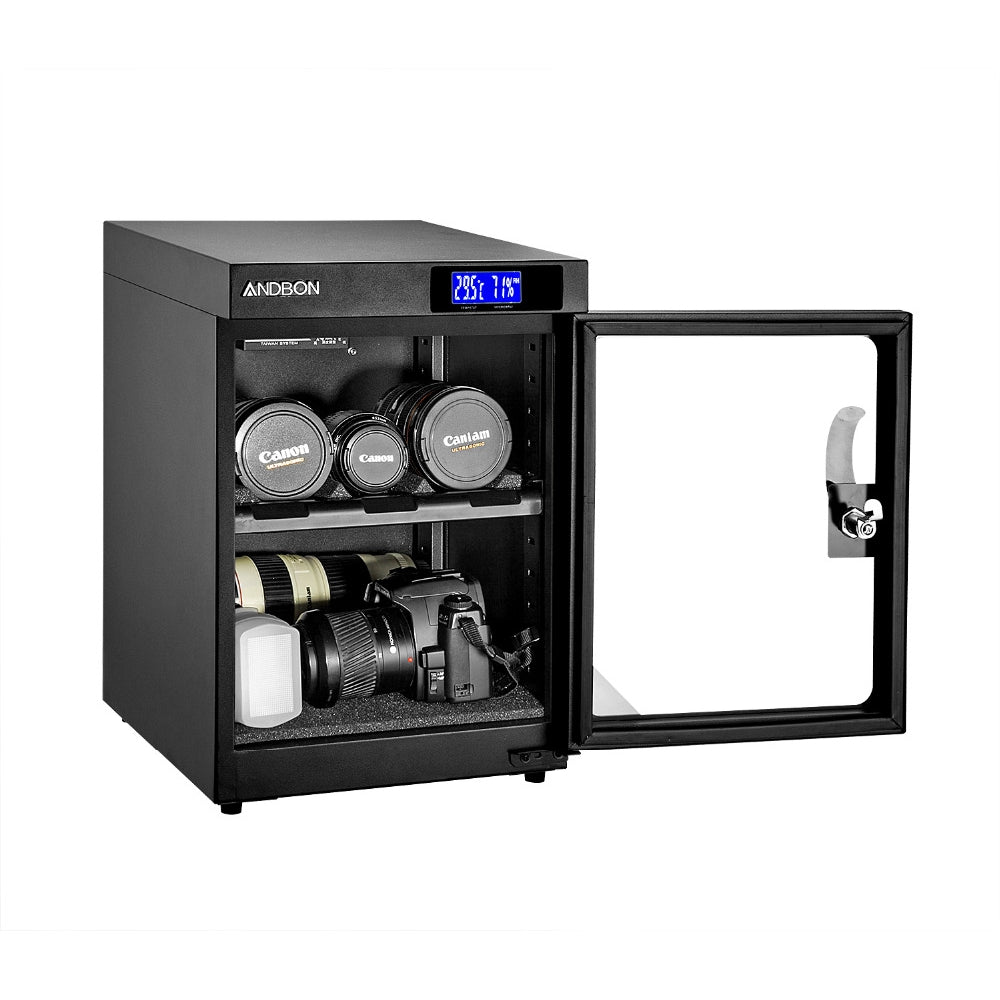

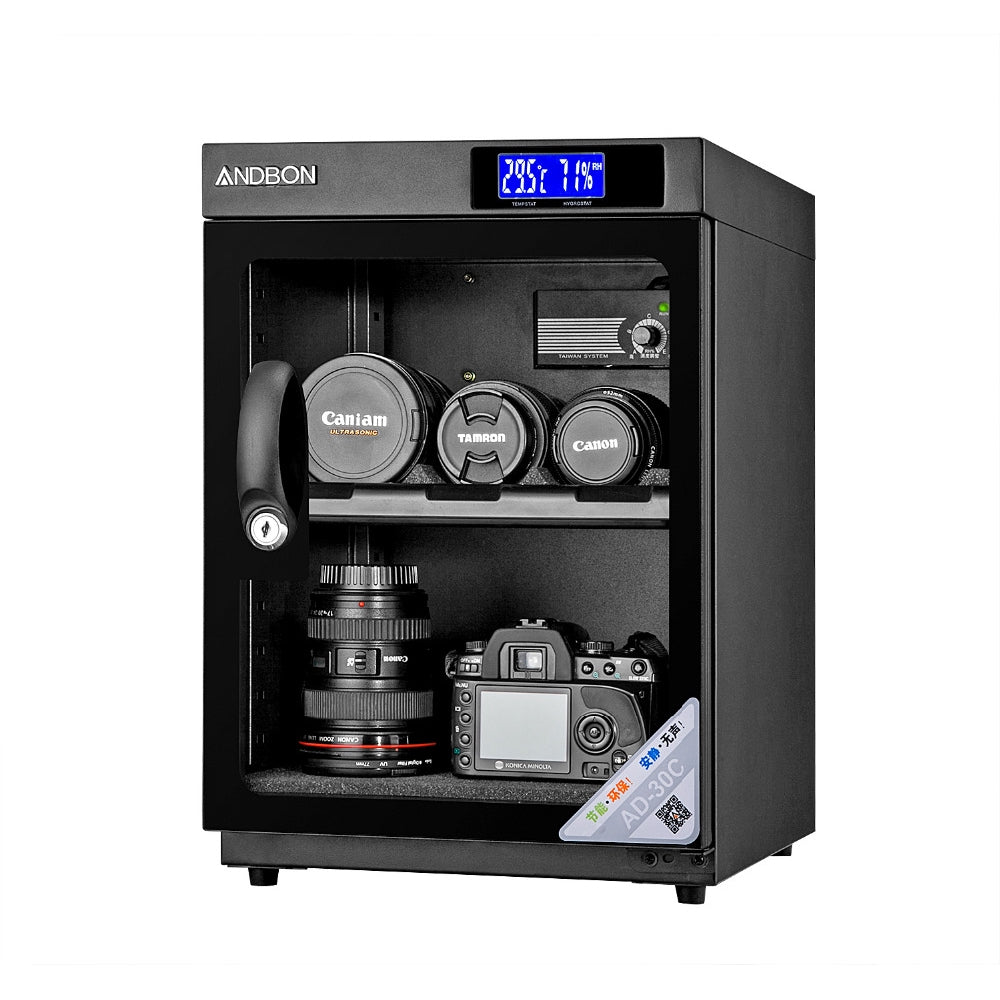

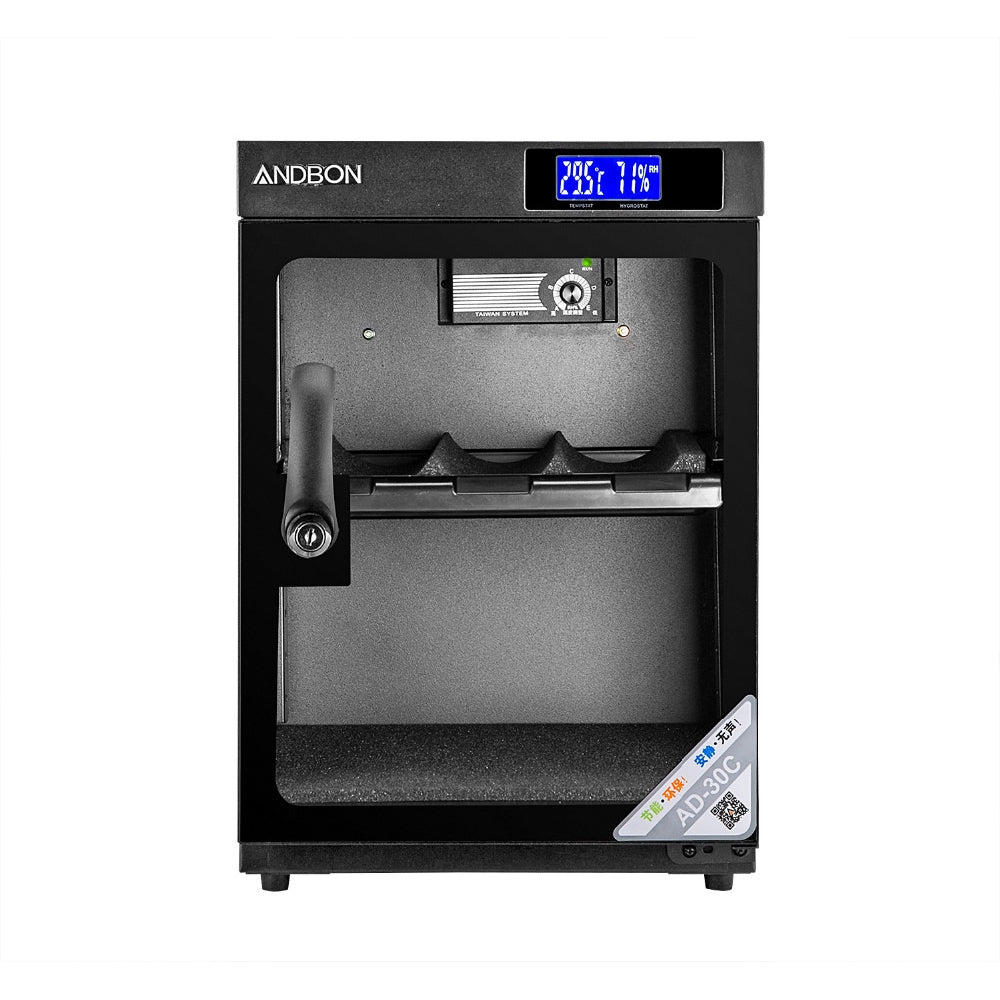

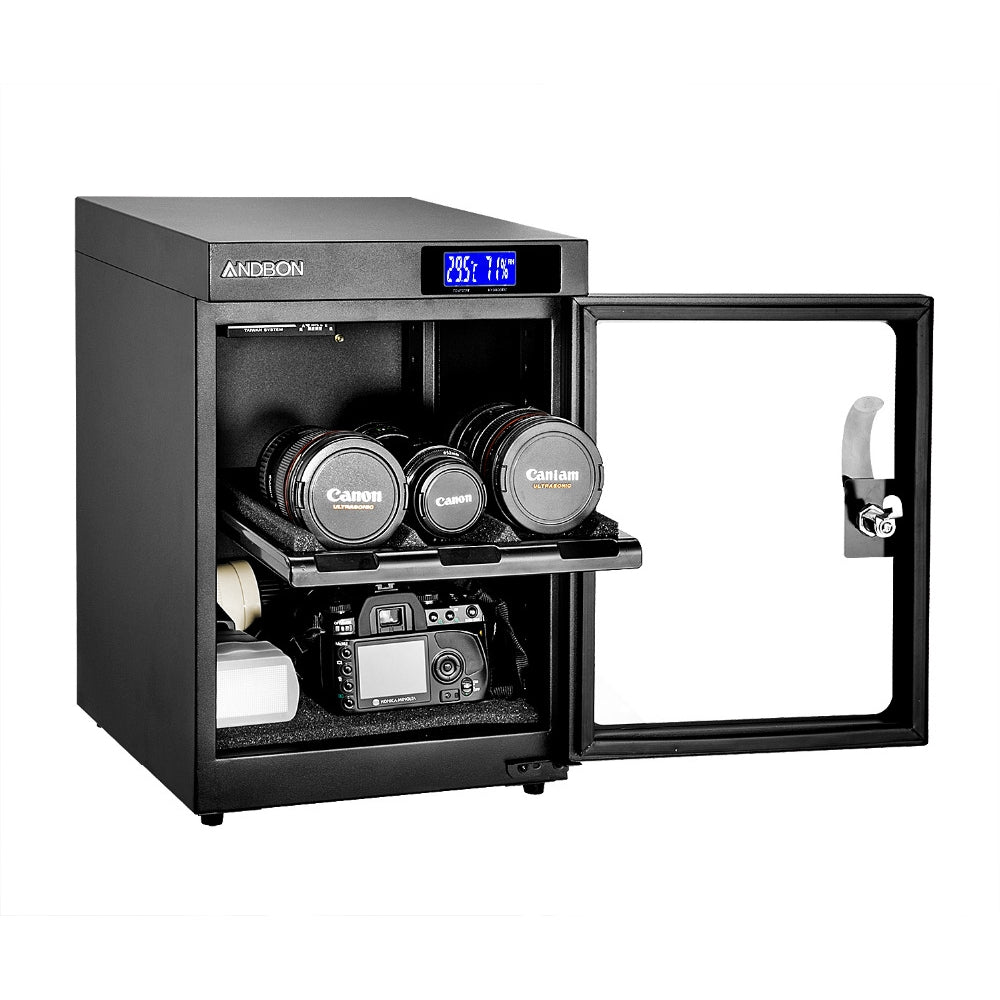

- Product Model: AB-30C Digital Display Cabinet
- Capacity: 30 Litres
- Adapter : Input AC 110-220V Output : DC 5V 2A
- Power consumption: 3.5 W/h
- Moisture control range: 25%-60% RH
- Moisture control: Mechanical - rotary knob 5 stepless adjustment (A\B\C\D\E)
- Display mode: LED LCD dual display (temperature and humidity)
- Laminate: ABS plastic black, drawer type, height position can be adjusted, the number of 1PC
- Door Material: Aluminum alloy door + 4mm toughened glass
- Product size: 290 mm x 320 mm x 420 mm
- Internal dimensions: 288 mm x 289 mm x 365 mm
- Packing size: 350 mm x 380 mm x 485 mm
Features:
- This case for anti-oxidation, anti-deterioration, anti-corrossion, anti-fungus and anti-aging.
- Digital display with adjustable humidity 25~55%RH.
- Suitable for cameras, lenses, memory cards, video cameras, telescopes, photographs, slides, CDs, DVDs, etc.
- with 2pcs. Keys
| Type number | AD-30C |
| Capacity (L) | 30 |
| input voltage | 110-220V AC/ 3.5V 2A DC |
| Power | 3.5W/H |
| controler number (PC) | 1 |
| humidity control mode | mechanical with knob |
| dehumidity range | 25%-60% |
| disply mode | LCD/dual disply |
| shelf material and number | Plastic / 1 |
| adjustable foot number | N/A |
| inner size W*D*H(mm) | 288*289*365 |
| out sizeW*D*H(mm) | 290*320*420 |
| packing carton size W*D*H(mm) |
350*380*485 |
| N.G.: (kg) | 6.5 |
| G.W.: (kg) | 7.6 |
Optimal Preservation Parameter Table:
| Relative Humidity RH% | Optimal preserved articles |
Adjusttable Gear
|
| 50%-60% | Books ,antiques,cultural relic,calligraphy and painting,coin,CD,engineering drawingFax paper,printing paper | A to B area |
| 40%-50% | lens,cameras,video cameras,telescope,microscope,disk,tape,photo,negative,slide,fiche,audio tape,instrument,oil painting,stamp,fur,cigarette,tea,coffee,pharmaceutical. | B to C area |
| 35%-40% | Measuring apparatus,electrical appliances,measuring implement,precision mould,semiconductor,Battery,circuit board,electron parts,wafer,IC | C to D area |
| 25%-35% | Reagent sample,filter disc,standard sample,seed,pollen,dry pollen and spice,dessert,dry food, | D to E area |
Parts name:
Dehumidification principle:
