Features:
-
Support 3D video format;
-
Support for 4K (input) resolution 2K (output)（Down scaler）;
-
Support 2 HDMI audio outputs, 3.5mm earphone jack and optical output at same time;
-
4 HDMI inputs switch and split to 2 HDMI displays (HDMX4X2N-V2.0);
-
2 HDMI inputs switch and split to 4 HDMI displays (HDMX2X4-V2.0);
-
Support LPCM/Dolby/DTS 5.1 channel;
Specifications:
-
Brand: ArgoX
-

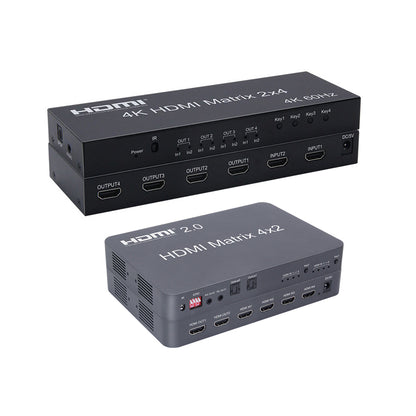

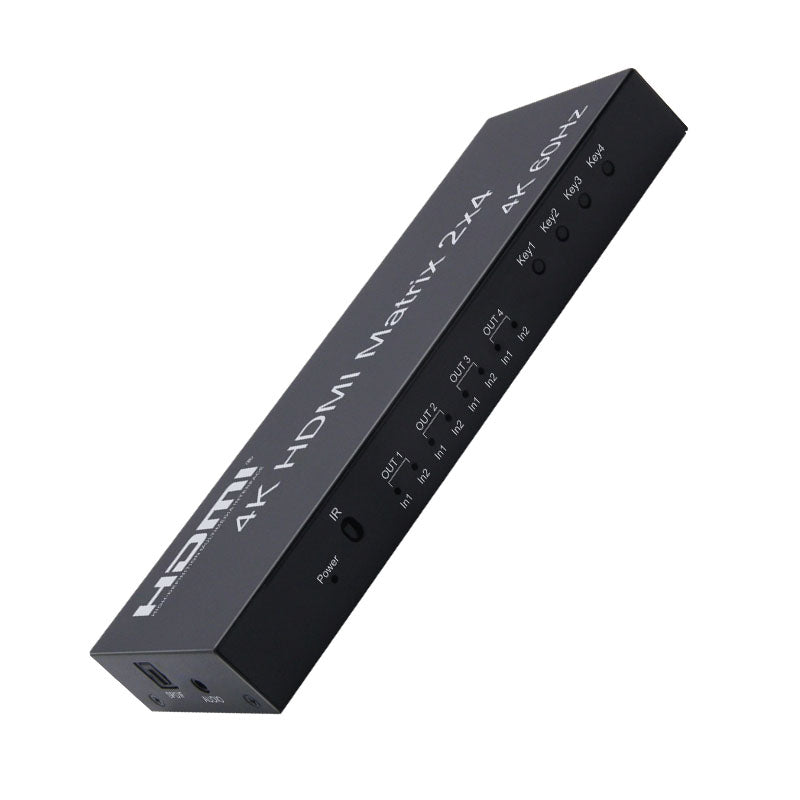

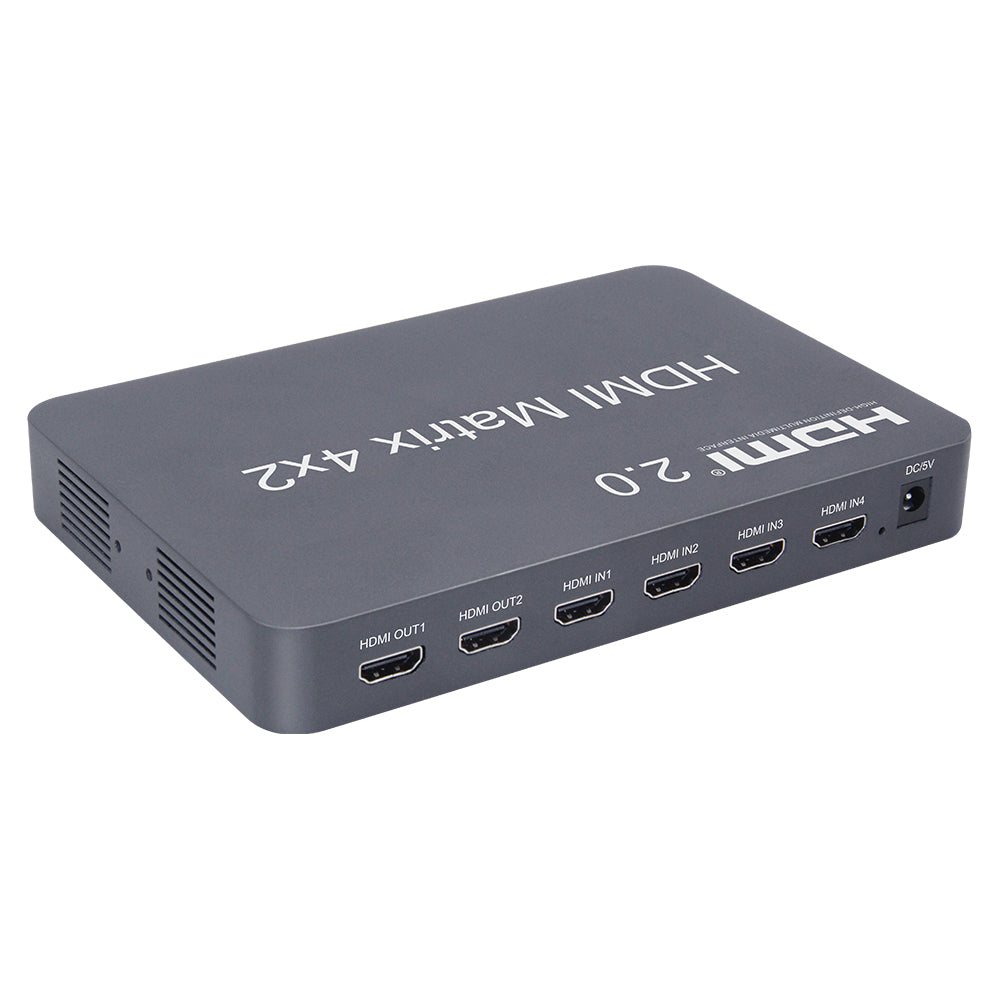

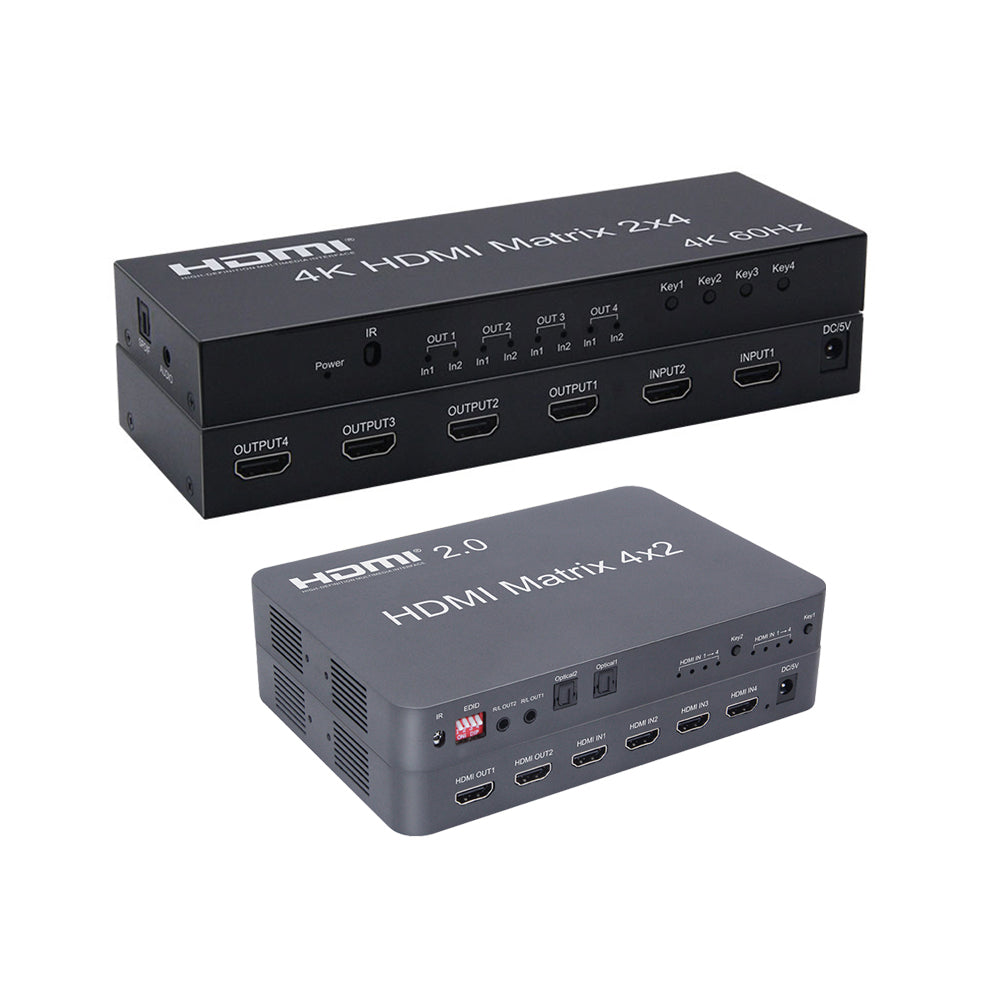

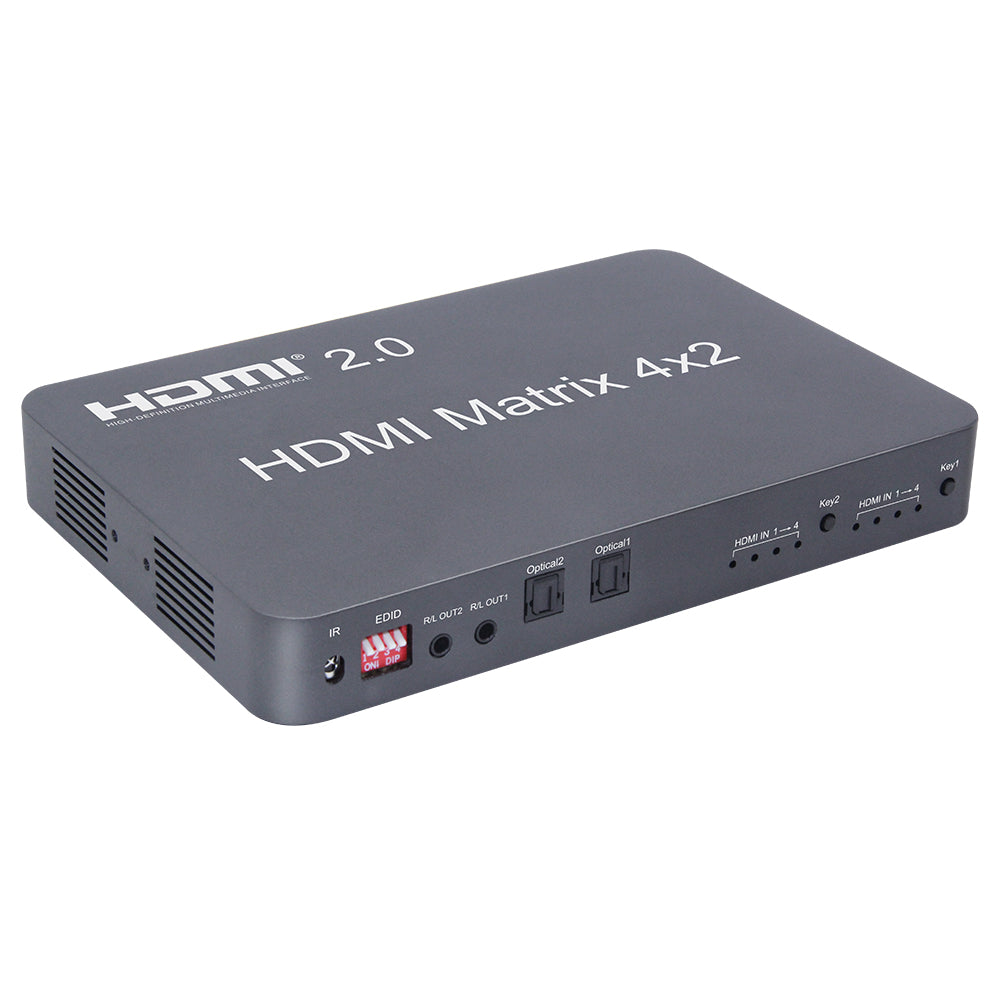

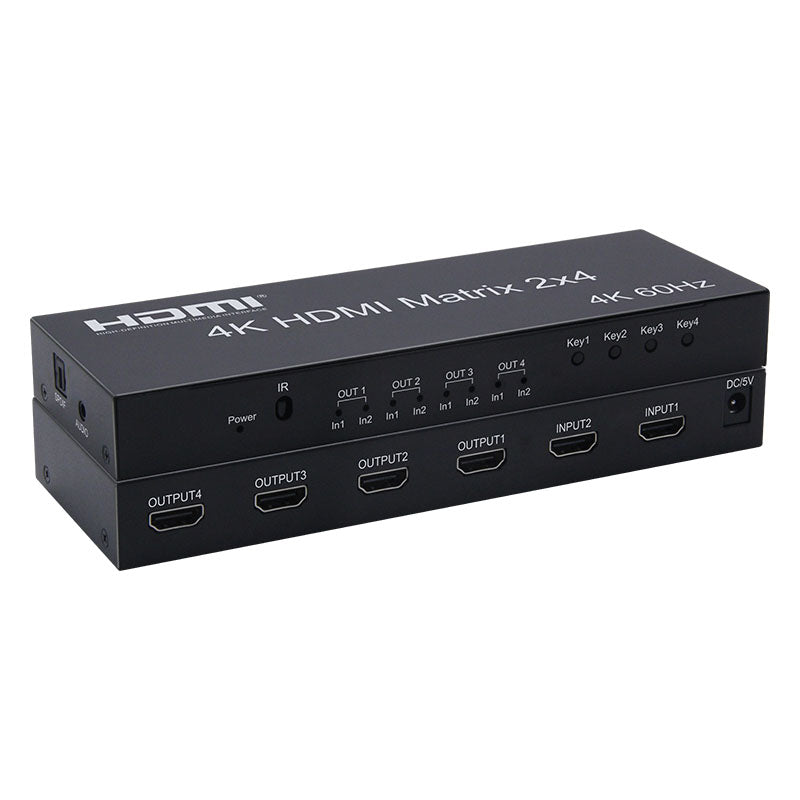

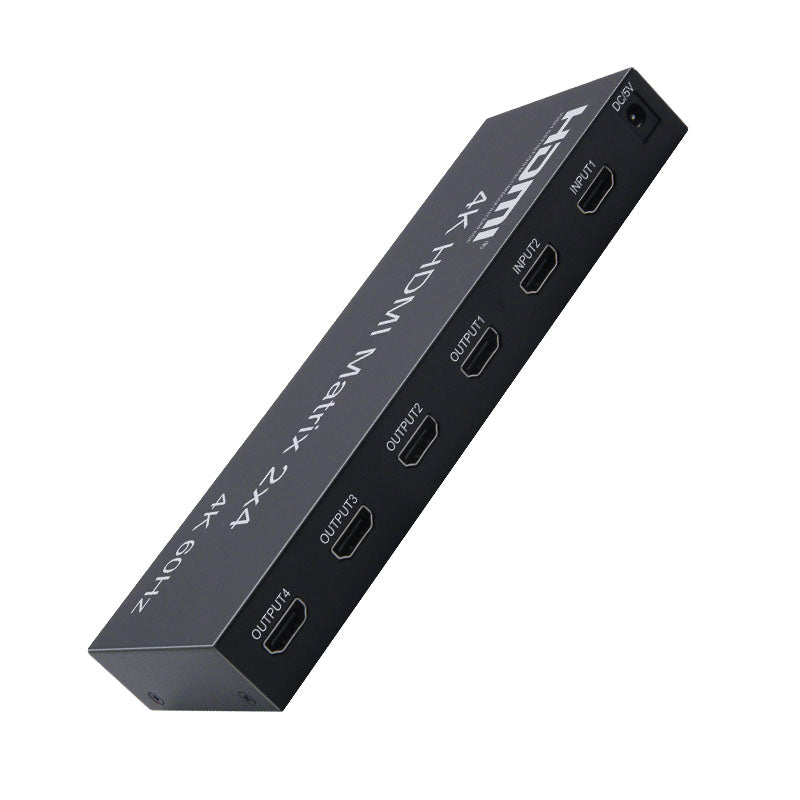

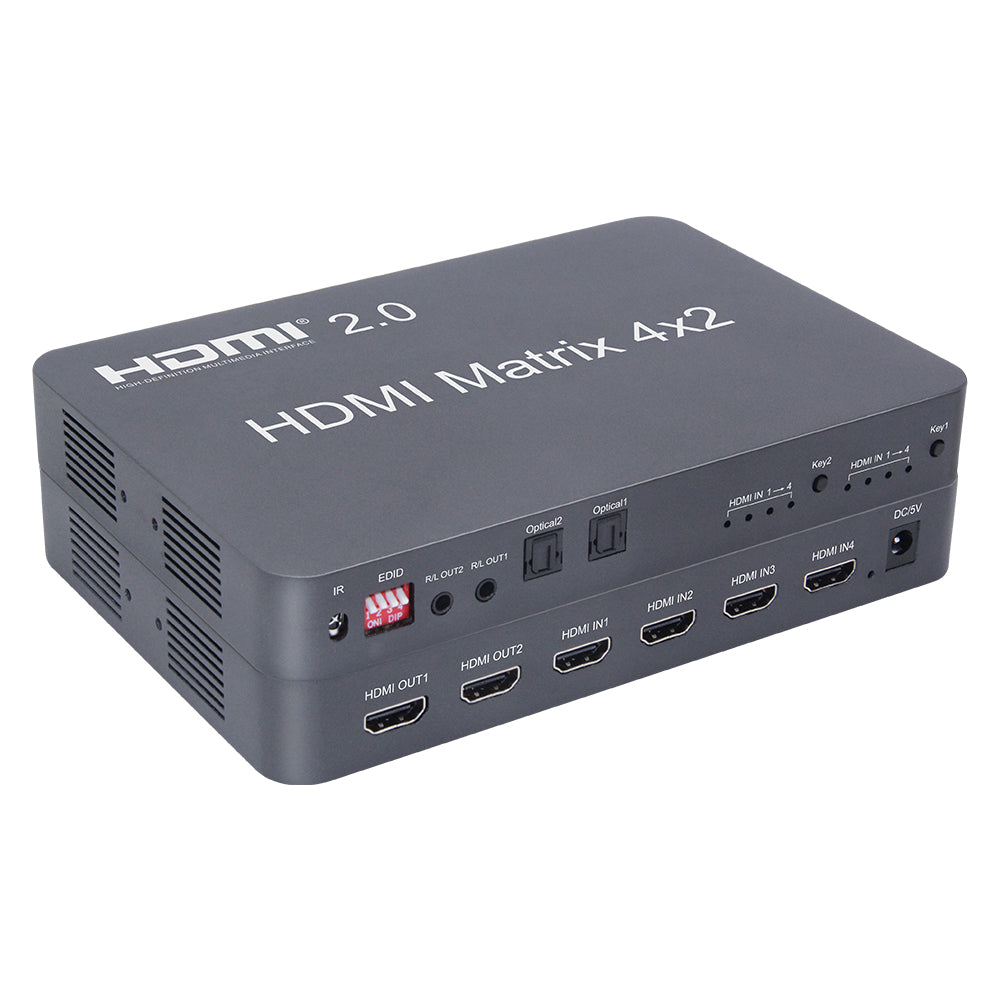

Model(s): HDMX4X2N-V2.0, HDMX2X4-V2.0
-
HDMI Version: HDMI 2.0
-
HDMI Resolution: up to 3840*2160/60Hz
-
Support Video Format: 8/10/12 bit deep color
-
Support Audio Format: LPCM/DTS/Dolby-AC3
-
Max Bandwidth: 600MHz
-
Max Baud Rate: 3x6Gbps
-
Input Cable Distance: 4K/30Hz ≤15M AWG26 HDMI standard cable / 4K/60Hz ≤5M HDMI 2.0 standard cable
-
Output Cable Distance: 4K/30Hz ≤15M AWG26 HDMI standard cable / 4K/60Hz ≤5M HDMI 2.0 standard cable
-
HDMI Input (HDMX4X2N-V2.0): 4
-
HDMI Output (HDMX4X2N-V2.0): 2
-
HDMI Input (HDMX2X4-V2.0): 2
-
HDMI Output (HDMX2X4-V2.0): 4
-
Max Working Current: 600mA
-
Power Adapter Format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
-
Operating Temperature Range: (-15 to +45℃)
-
Operating Humidity Range: 5 to 90%RH (No Condensation)
-
Dimension (L x W x H): 188x128x25 (mm) / 199x70x27 (mm)
-
Weight: 332g / 300g
