Features:
- Support HDMI 1.4b Version
- Support 3D Video Format
- Support High Resolution up to 3840x2160/30Hz
- Support Highest Rate of 3.4G and TMDS clock can be up to 340MHz
- Support 8/10/12 Bit Deep Color
- Support AWG26 HDMI Standard Cable
- 1. When the Resolution is 1080p and below, Input up to 10 Meters, Output up to 15 Meters.
- 2. Whe the Resolution is 4K, Input up to 5 Meters, Output up to 10 Meters.
- Support One Single HDMI Source, accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top bot and etc.
- 5V Power Adapter
Specifications:
- Brand: ArgoX

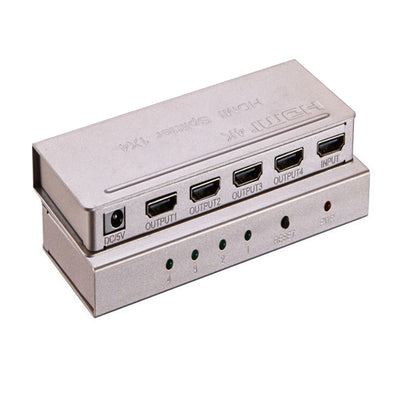

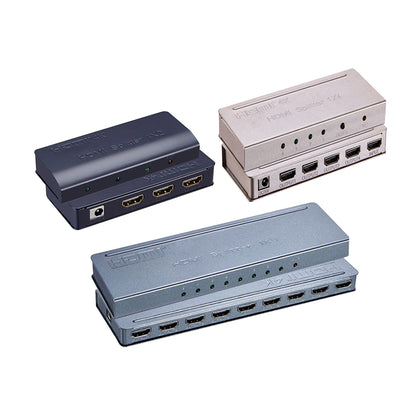

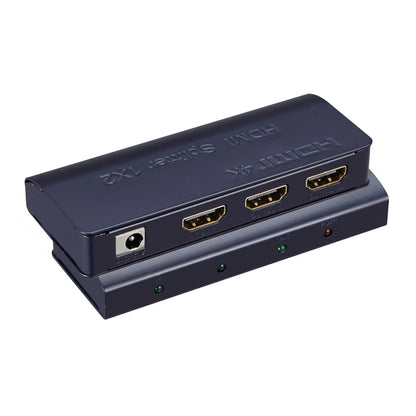

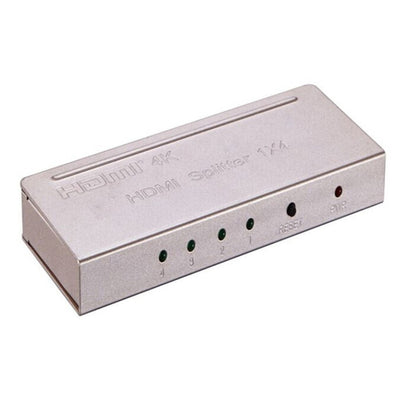

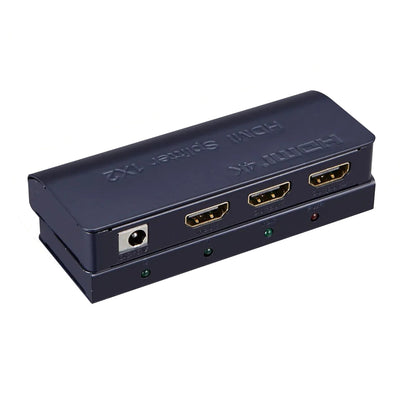

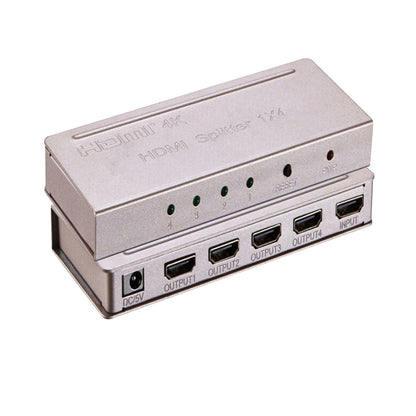

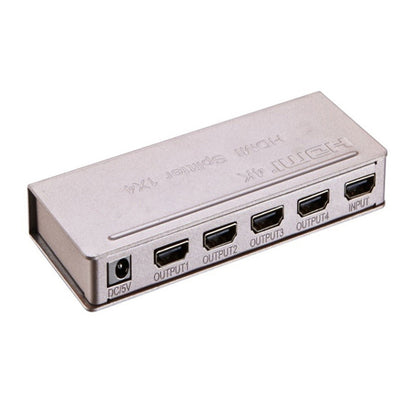

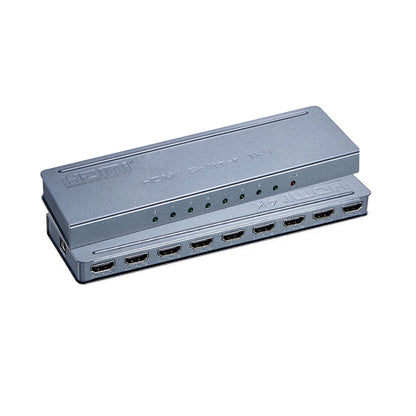

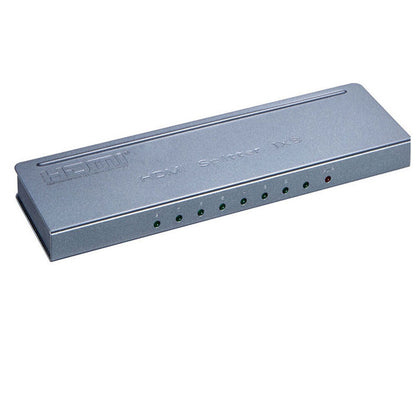

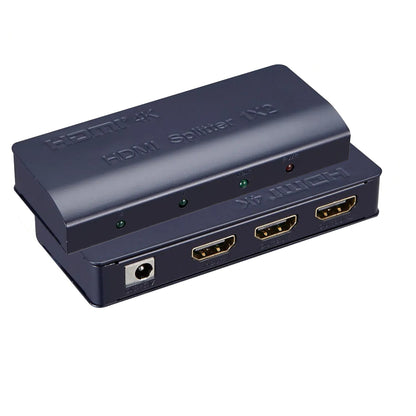

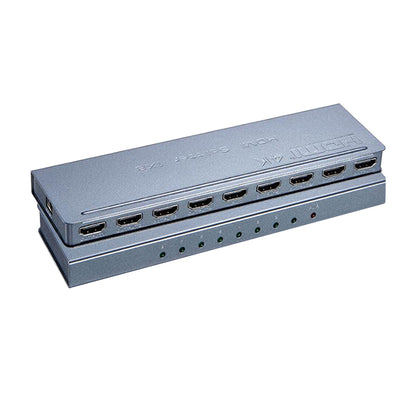

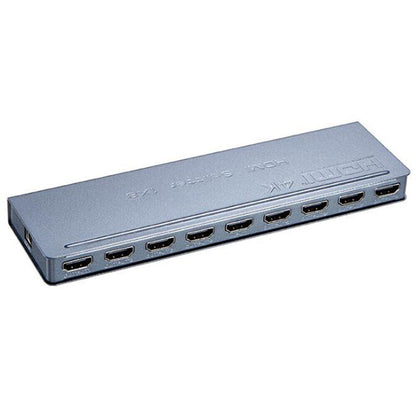

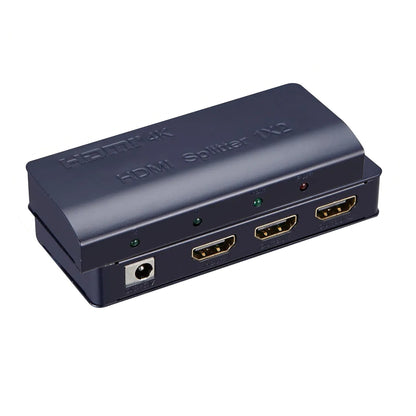

- Model(s): HDSP2-M, HDSP4-M, HDSP8-M
- HDMI resolution: up to 3840*2160/30Hz
- Support video format: 8/10/12bit deep color
- Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
- Max bandwidth: 340MHz
- Max baud rate: 3.4Gbps
- Input cable distance(HDSP2-M) (HDSP4-M): (1080p resolution) ≤10m, (4K resolution) ≤5m AWG26 HDMI standard cable
- Output cable distance(HDSP2-M) (HDSP4-M): (1080p resolution) ≤15m, (4K resolution) ≤10m AWG26 HDMI standard cable
- Input cable distance(HDSP8-M): (1080p resolution) ≤15m, (4K resolution)≤8m AWG26 HDMI standard cable
- Output cable distance(HDSP8-M): (1080p resolution) ≤15m, (4K resolution)≤8m AWG26 HDMI standard cable
- Max working current: 500mA, 600mA, 1200mA
- Power adapter format: input AC (50HZ, 60HZ) 100V-240V; output: DC5V
- Operating Temperature range: (-15℃to +55℃)
- Dimension (L x W x H): 250x62x20 (mm)
- Weight: 300g
