Features:
- Support HDMI 1.4b ,HDCP1.4
- Support 3D video format
- Support CEC (only output1)
- Support high resolution up to 3840X2160/30Hz
- Support highest rate of 3.4G and TMDS clock can be up to 340 MHz
- Support 8/10/12 bit deep color
- Support AWG26 HDMI standard cable, input up to 5 meters ,output up to 10 meters.
- Support one single HDMI source, accessing to multiple HDMI sinks, the source can be DVD
- player, A/V receiver, set top box and etc. Built-in IR extension function (via the IR-RX of HDMI repeater to control the HDMI sources)
- Support serial port online upgrade
- Support EDID Management
- 12V/2A Power Adapter
Specifications:
- Brand: ArgoX

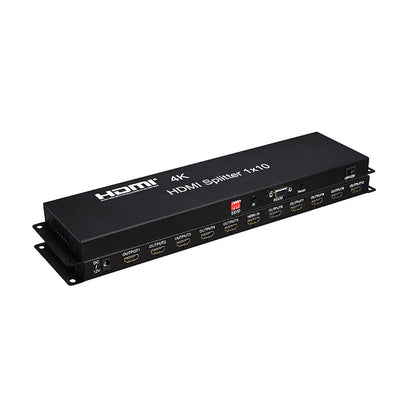

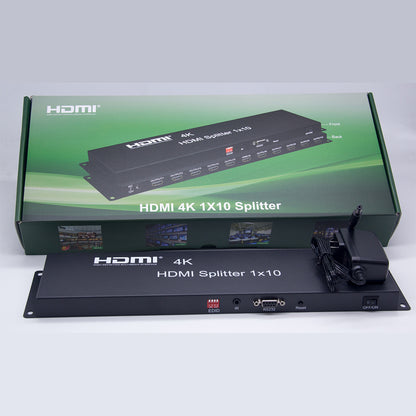

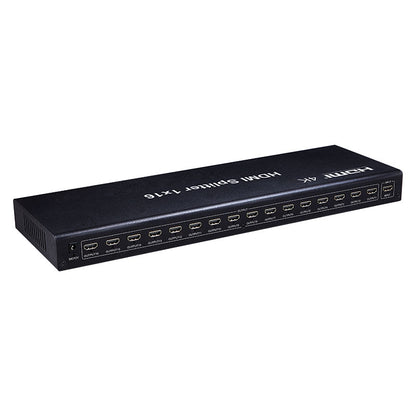

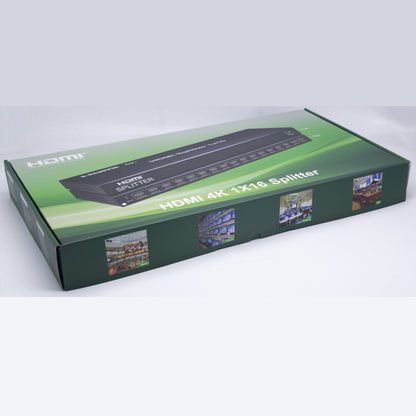

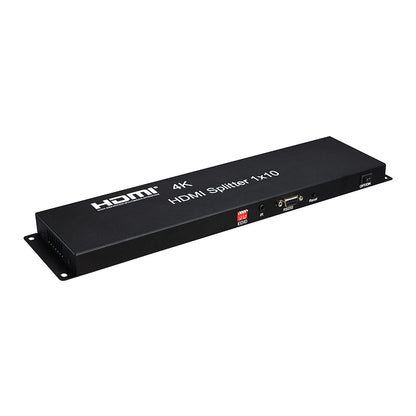

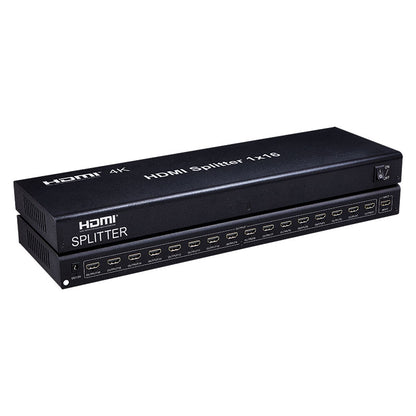

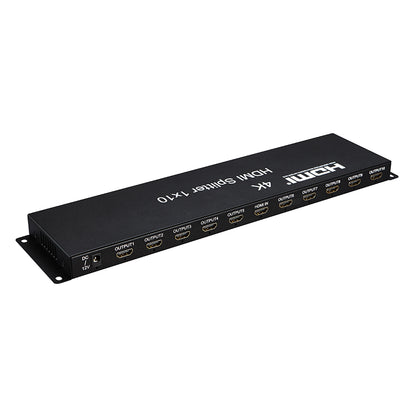

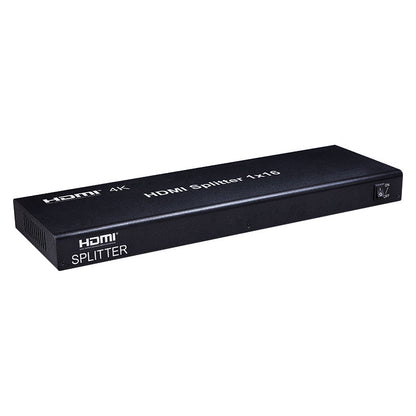

- Model(s): HDSP10-V1.4, HDSP16-V1.4
- HDMI version: HDMI 1.4b
- HDCP version: HDCP 1.4
- HDMI resolution: up to 3840x2160/30Hz
- Support video format: 8/10/12bit Deep color
- Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
- Max bandwidth: 340MHz
- Max baud rate: 3.4Gbps
- Input cable distance: ≤5m AWG26 HDMI standard cable
- Output cable distance: ≤10m AWG26 HDMI standard cable
- Max working current: 1.4 A
- Power adapter format: input AC (50HZ, 60HZ) 100V-240V; output: DC12V/2A
- Operating Temperature range: (-15℃ to +55℃)
- Dimension (L x W x H): 375x89x22(mm)
- Weight: 780g
