Features:
-

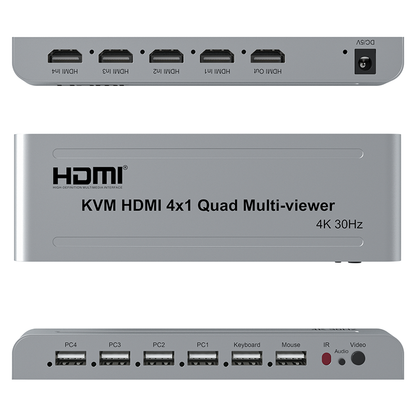

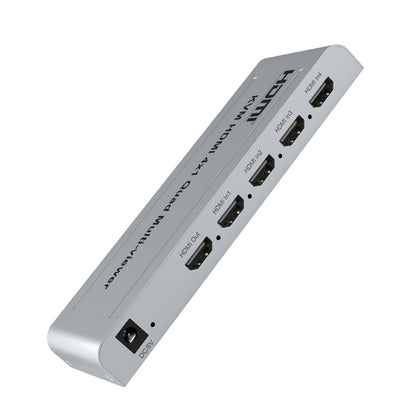

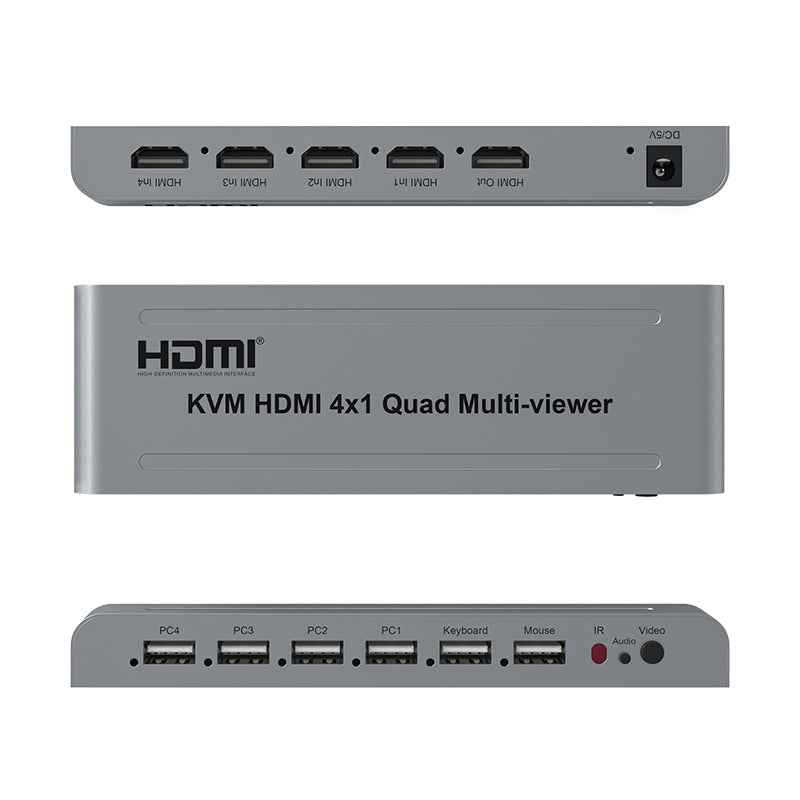

Support 4 HDMI inputs, 1 HDMI output;
-
Support 4 channels HDMI signal screen segmentation;
-
Support resolution 4K,1080P,720P,1024X768,1360X768,etc;
-
Support highest resolution up to 1080P@60Hz (for HDSW4-V2);
-
Support highest resolution up to 4K@30Hz (for HDSW4-V3);
-
Support IR control;
-
Support audio output format: PCM (for HDSW4-V3);
-
Support audio output format: PCM2.0 (for HDSW4-V2);
-

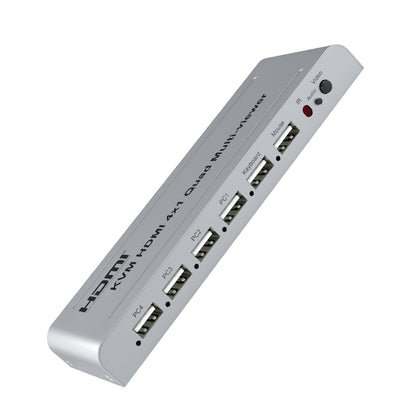

Supports 1 way mouse and keyboard to control 4 ways PC host;
-
USB supports Windows, Linux, MAC OS and Android operation system etc.; -Plug and play;
-
Support USB 1.1 Low speed(1.5Mb/s); Full speed(12Mb/s) (for HDSW4-V3);
-
Supports USB 2.0 Low speed(1.5Mb/s); Full speed(12Mb/s); Compatible -with USB2.0 Full/Low speed (for HDSW4-V2);
Specifications:
-
Brand: ArgoX
-

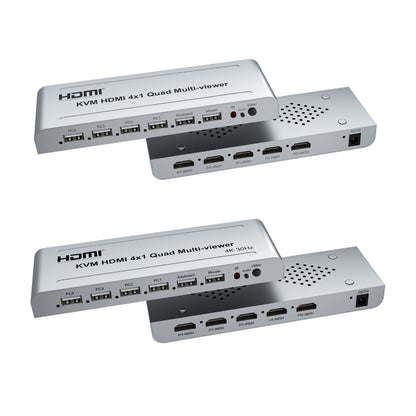

Model(s): HDSW4-V2 / HDSW4-V3
-
HDMI resolution: up to 1080P/60Hz or 4K/30Hz
-
Audio format: PCM / PCM2.0
-
8 modes for switching:
-
Input cable distance: 1080P/60Hz ≤15M AWG26 HDMI standard cable / 4K/30Hz ≤10M AWG26 HDMI standard cable
-
Output cable distance:1080P/60Hz ≤15M AWG26 HDMI standard cable / 4K/30Hz ≤10M AWG26 HDMI standard cable
-
Max bandwidth: 150MHz / 340MHz
-
Max baud rate: 1.5x3Gbps / 3.4x3Gbps
-
Maximum working current: 900 / 950 mA
-
Power adapter format: Input AC (50 hz, 60 hz) 100V to 240V; Output: DC 5V 1.5A
-
Operating Temperature range: (-10 ~ + 45 ℃)
-
Dimension: 177x58x20(mm)
-
Weight: 224g
