Features:
-
Support HDMI 2.0 Version
-
Support 3D video format
-
Support high resolution up to: 3840x2160/60Hz
-
Support highest rate of 6 G and TMDS clock can be up to 600 MHz
-
Support 8/10/12 bit deep color
-

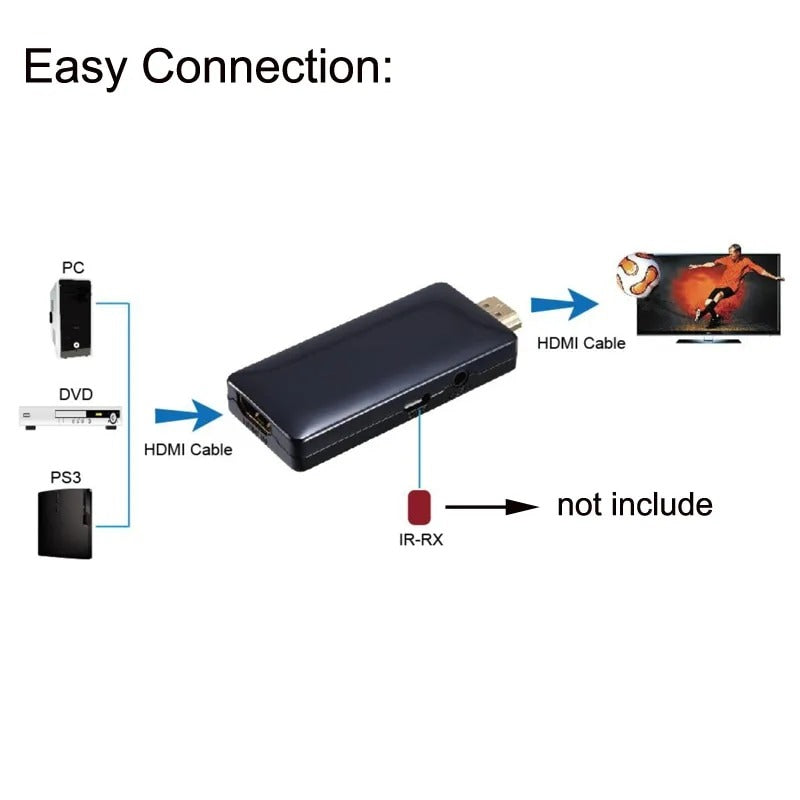

Built-in IR-RX extension function, (via the IR-TX of HDMI splitter to receive
-
the IR command)
-
Support AWG26 HDMI standard cable: When resolution is
-
3840x2160/30Hz, input distance up to 30 meters.
-
5V power supply. (Normally, the product does not require power supply)
Specifications:
- Brand: ArgoX
-
Model(s): HDRE1-V2.0
-
HDMI Version: HDMI 2.0
-
HDMI Resolution: up to 3840*2160/60Hz
-
Support Video Format: 8/10/12bit Deep color
-
Support Audio Format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
-
Max Bandwidth: 600MHz
-
Max Baud Rate: 6Gbps
-
Input Cable Distance: (3840x2160/30Hz) ≤30m,AWG26 HDMI Standard Cable
-
Max Working Current: 300mA
-
Operating Temperature Range: (-15℃ to +55℃)
-
Operating Humidity Range: 5%to 90%RH (No Condensation)
-
Dimension (L x W x H): 80x33x13 (mm)
-
Weight: 22g
