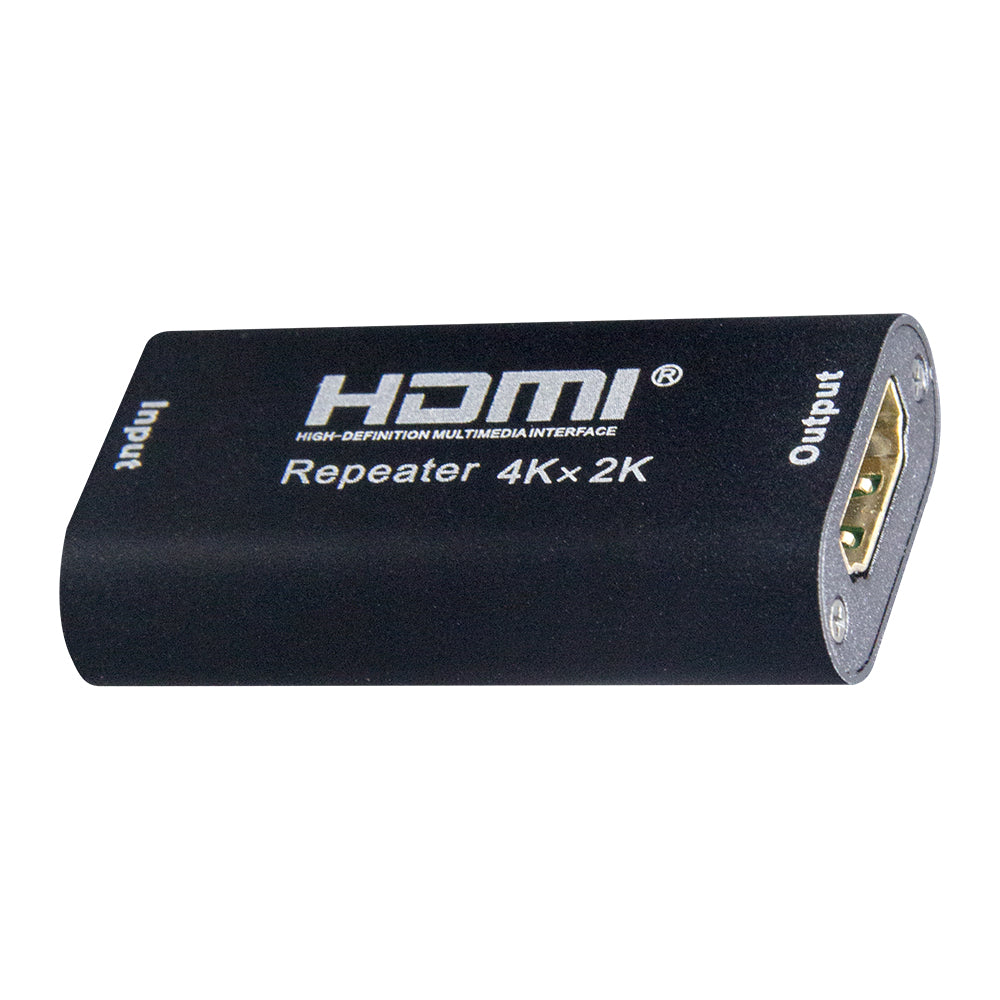

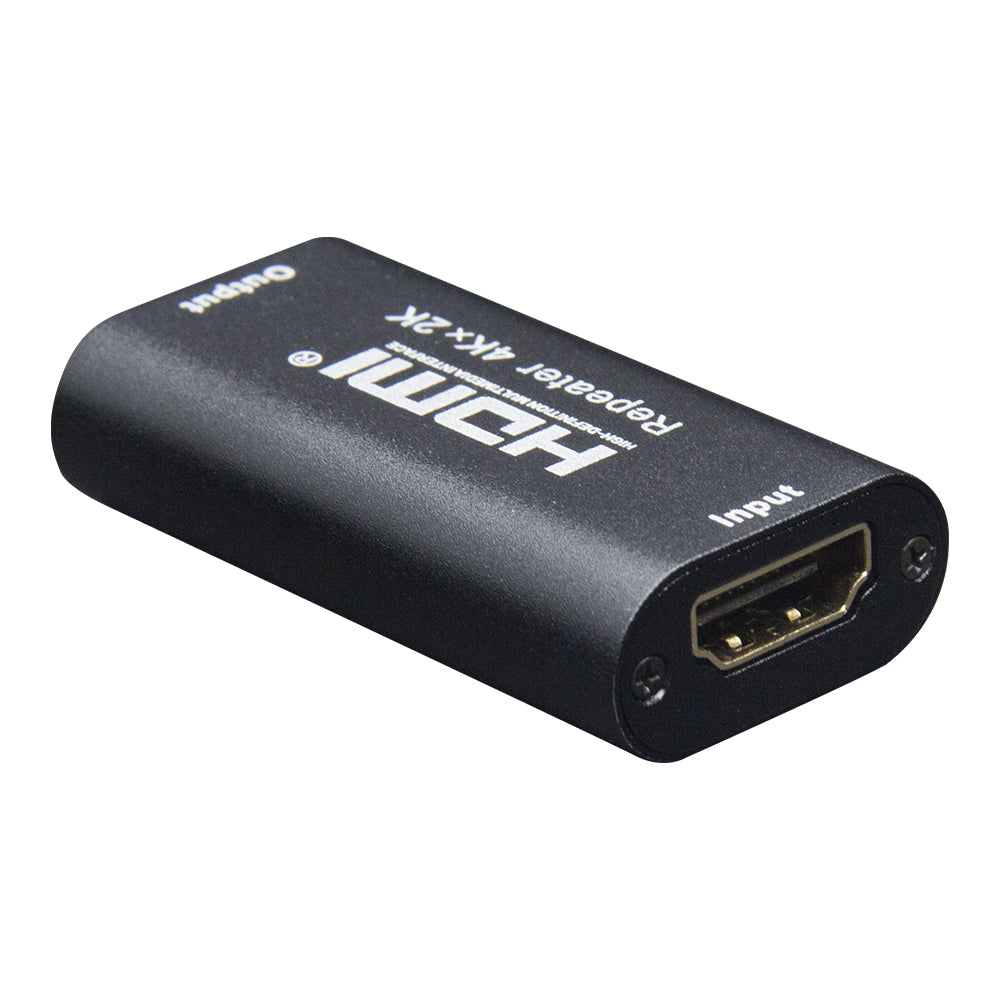

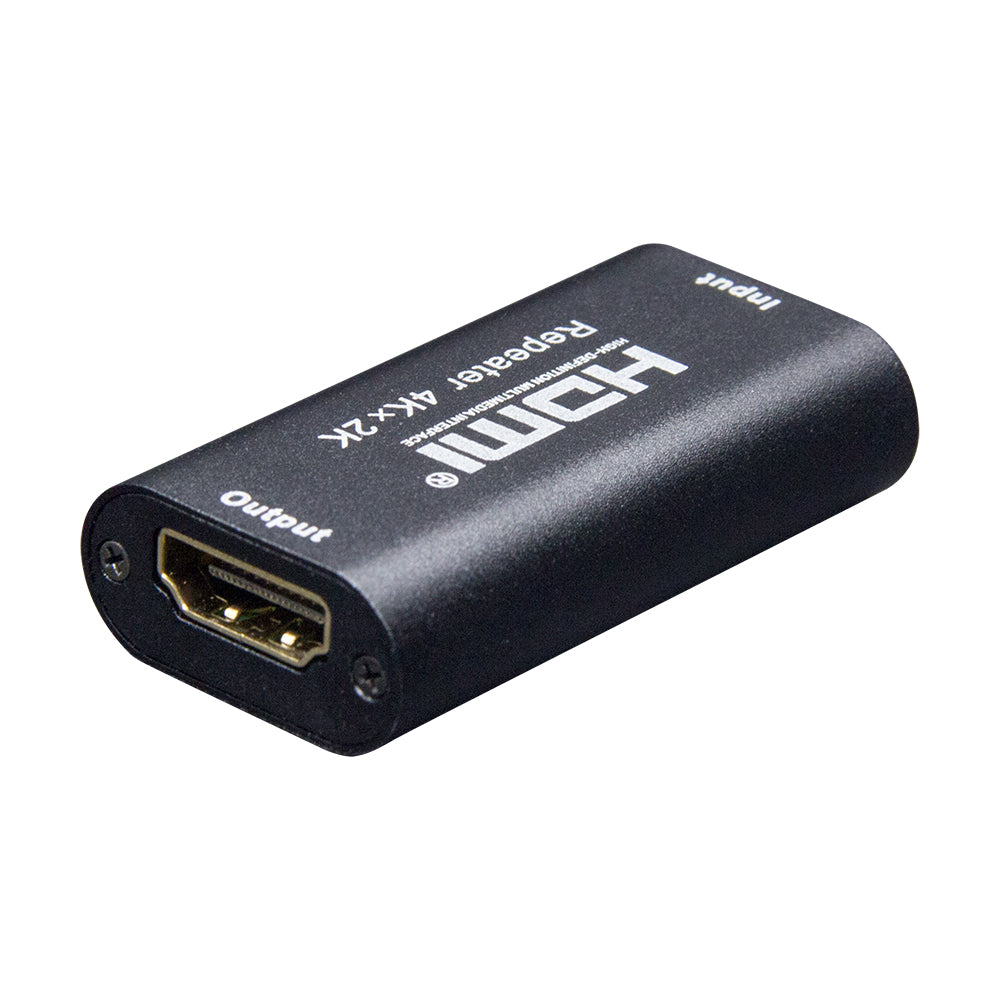

Features: (HDRE1-V1.4)
-
Support HDMI 1.4b
-
Support 3D
-
Compliant with HDCP 1.4
-
Extends 3840x2160P up to 20 meter transmission distance(lower resolution signal can be transmitted longer).
-
No power, Plug and play,
-
easy to install.

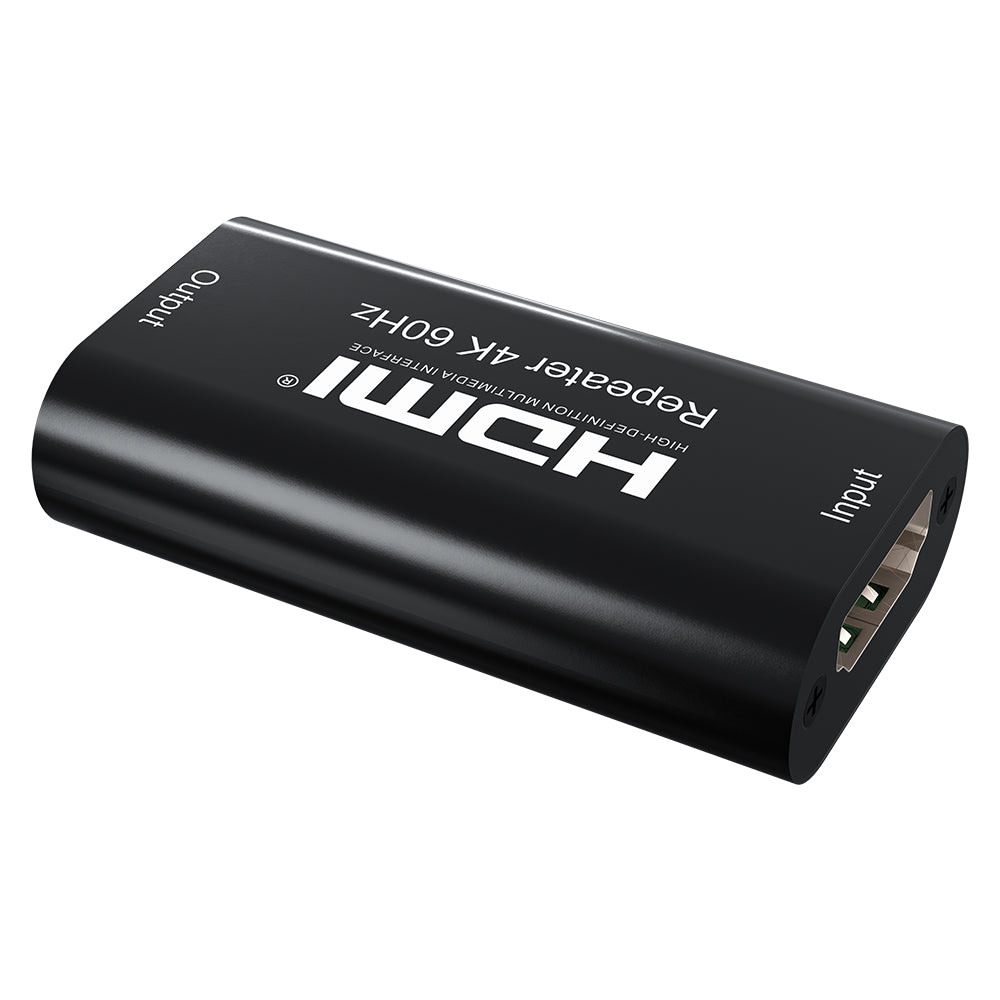

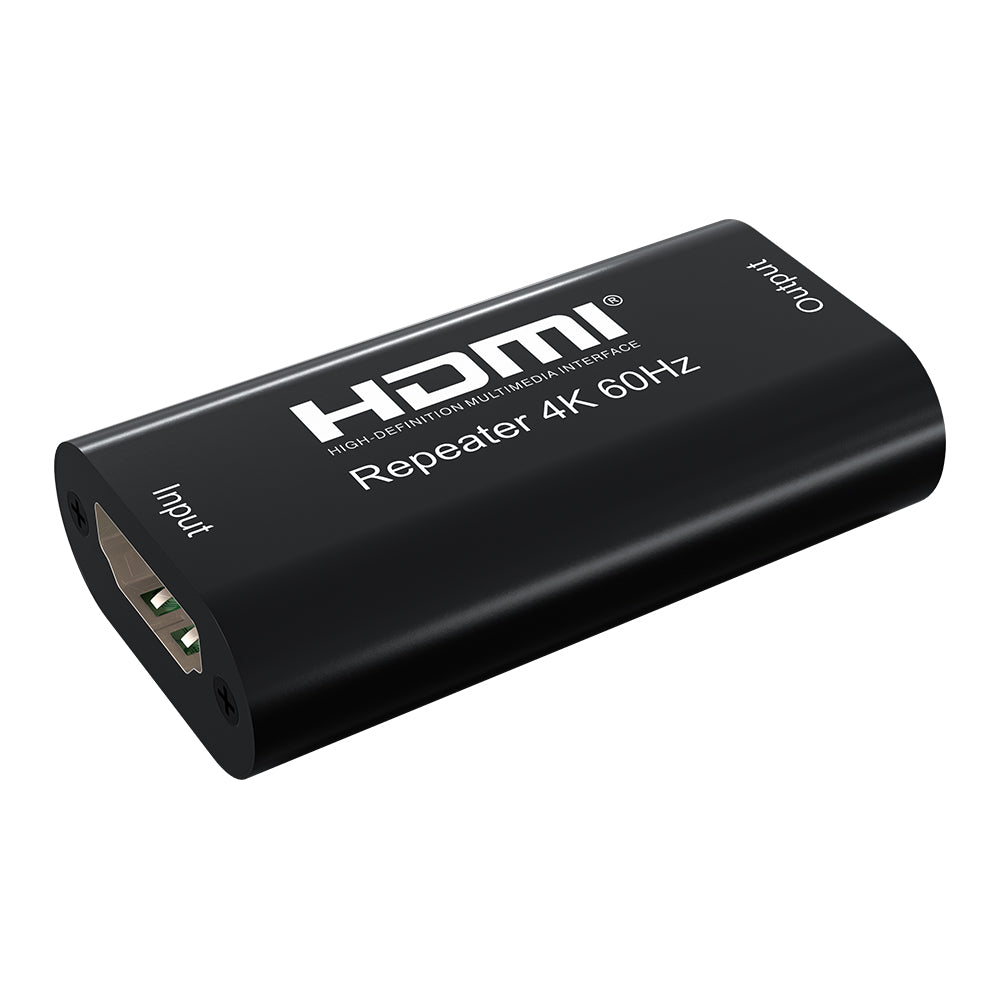

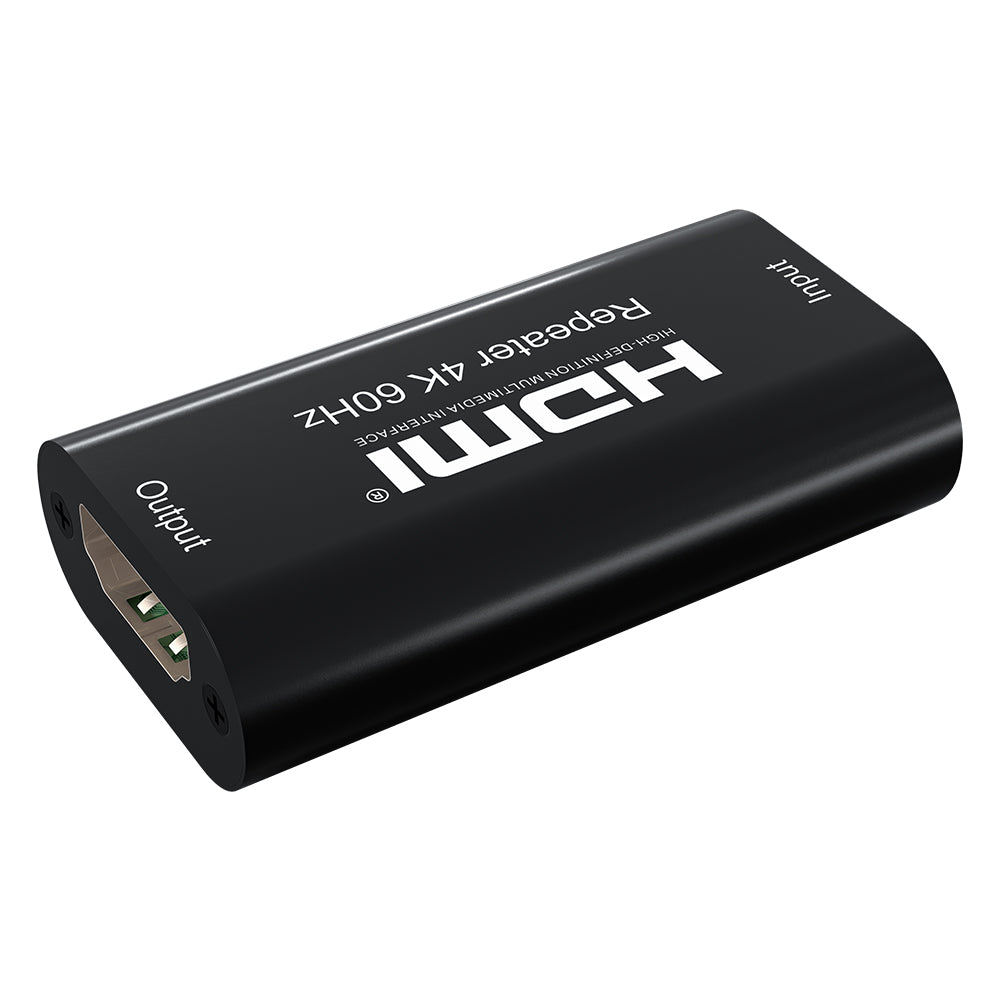

Features: (HDRE2)
-
Support HDMI 4K 60Hz
-
Support 3D Video Format
-
Support High Resolution up to: 3840*2160/60Hz
-
Support Highest Rate of 18G and TMDS clock can be up to 600MHz
-
Support 8/10/12/16 Bit Deep Color
-
When the Standard AWG26 Cable is used, the input transmission distance can reach 40m (3840*2160 / 30Hz)

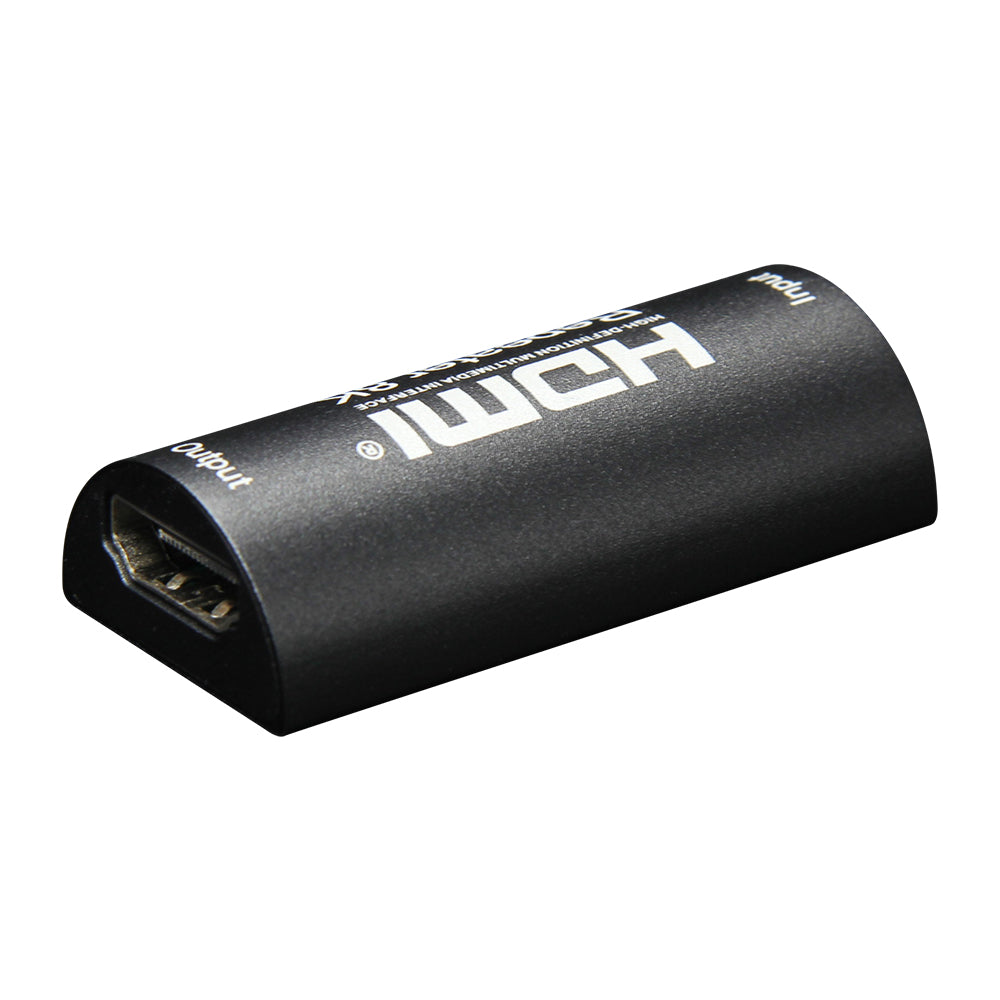

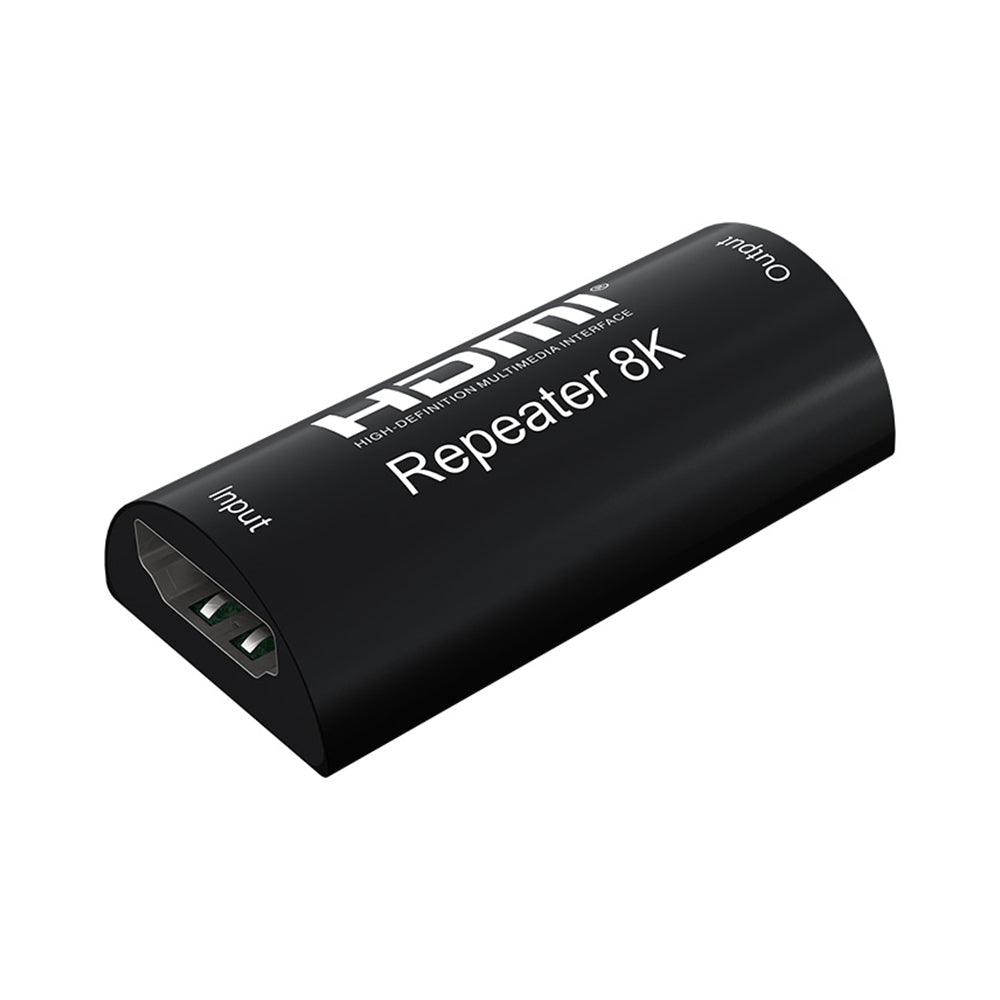

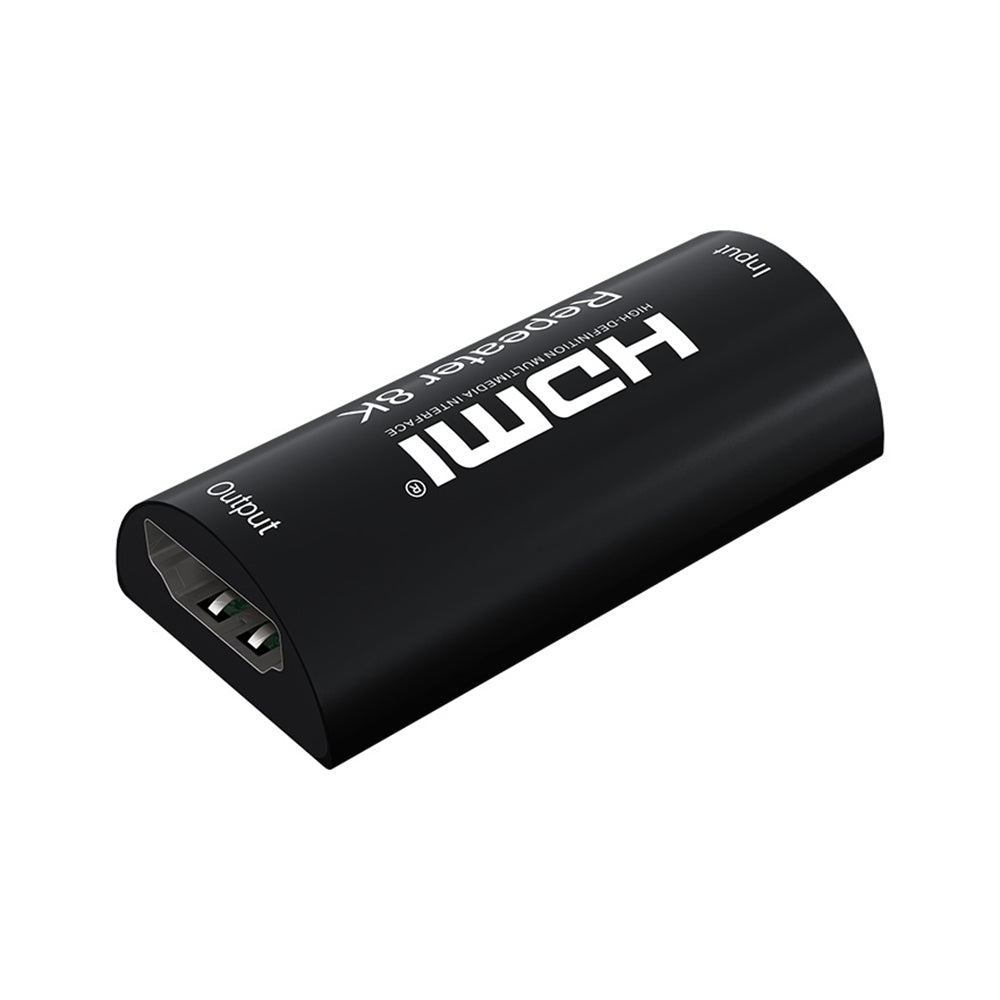

Features: (HDRE3)
-
Support CEC;
-
Support 3D video format;
-
Support repeater up to 7680x4320/60Hz;
-
Product shape is small and beautiful.
Specifications:
-
Brand: ArgoX
-

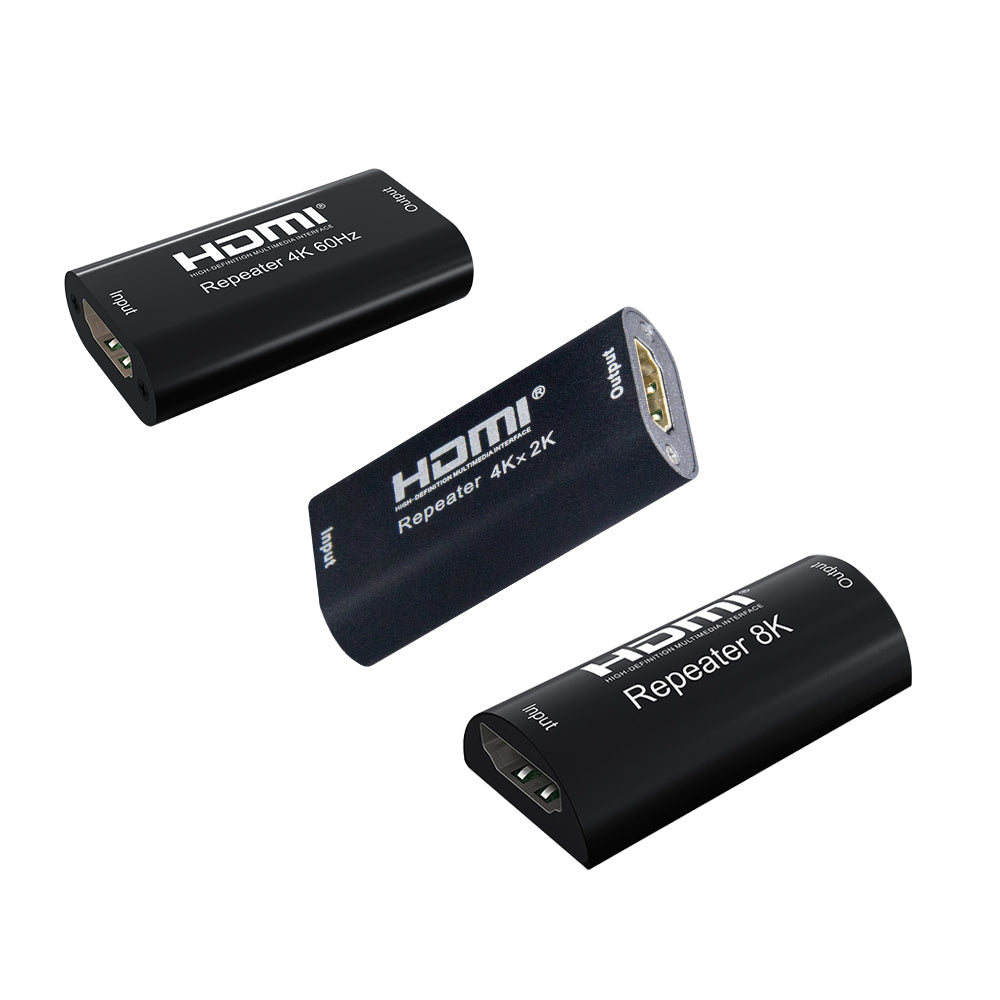

Model(s): (HDRE1-V1.4), (HDRE2), (HDRE3)
-
HDMI Resolution: up to 4Kx2K@30Hz; 3840*2160/60Hz; 8K/60Hz;
-
Support Video Format: 8/10/12/16 Bit Deep Color
-
Support Audio Format: DTS-HD/Dolby-TrueHD/DTS/Dolby-AC3/DSD
-
Max Bandwidth: 600MHz
-
Max Baud Rate: 3x6Gbps, 3.4Gbps (Single Link), 4x12Gbps
-
Input Cable Distance (HDRE2): Input 5m, Output 5m (4K60Hz), Input 20m, Output2 20m (4K 30Hz / 1080p)
-
Input cable distance (HDRE3): ≤15M AWG24 HDMI standard cable
-
Output cable distance (HDRE3): ≤10M AWG24 HDMI standard cable
-
Max Working Current: 300mA
-
Operating Temperature Range: (-15°C to +55°C)
-
Operating Humidity Range: 5% to 90%RH (No Condensation)
