Features:
-
Support HDMI Resolution up to 3840*2160*/60Hz;
-
Support 3D Video Format;
-

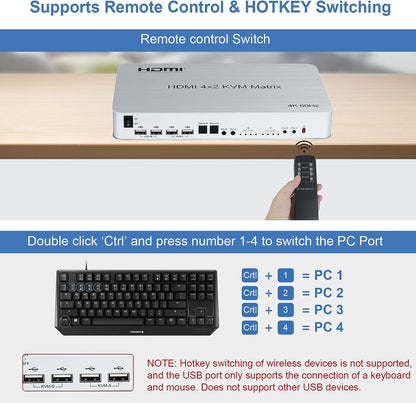

Support 3 switching modes: IR Remote Control, Button, Keyboard Hotkeys;
-
Support 4K (Input) resolution turn to 2K (Output) (Down Scaler);
-
Support 2 HDMI Audio Extraction, 3.5mm earphone jack and optical fiber interface output at same time;
-

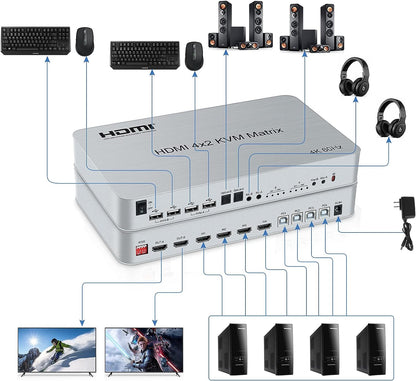

4 HDMI Inputs switch and split to 2 HDMI Displays;
-
Support LPCM/Dolby/DTS 5.1 Channel;
Specifications:
-
Brand: ArgoX
-
Model(s): HDMX4X2-KVM
-
HDMI Resolution: up to 3840*2160*/60Hz
-
Support Video Format: 8/10/12 Bit Deep Color
-
Support Audio Format: LPCM/DTS/Dolby-AC3
-
Max Bandwidth: 600Mhz
-
Max Baud Rate: 3x6Gbps
-
Input Cable Distance: 4K/30Hz ≤15M AWG26 HDMI standard cable / 4K/60Hz ≤5M HDMI 2.0 standard cable
-
Output Cable Distance: 4K/30Hz ≤15M AWG26 HDMI standard cable / 4K/60Hz ≤5M HDMI 2.0 standard cable
-
Cable Length: Standard USB 2.0 A male to B male cable≤ 2m
-
HDMI Input: 4
-
HDMI Output: 2
-
Max Working Current: 800mA
-
Power Adapter Format: Input：AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1.5A
-
Operating Temperature Range: (-15 to +45℃)
-
Operating Humidity Range: 5 to 90%RH (No Condensation)
-
Dimension (L x W x H): 256x153x33 (mm)
-
Weight: 1208g
