Support 8 HDMI inputs, Two HDMI output.
-
Support the dynamic display of subtitles, Pop-up mode is from left to right or top to bottom, the subtitles can be scaled.
-
Support PIP function, mode from left to right or top to bottom, scalable.
-
Support seamless switching.
-
Support stereo 3.5 headphone output and optical fiber audio output.
-
Support 4 control modes: button, remote , RS232 and network port control.

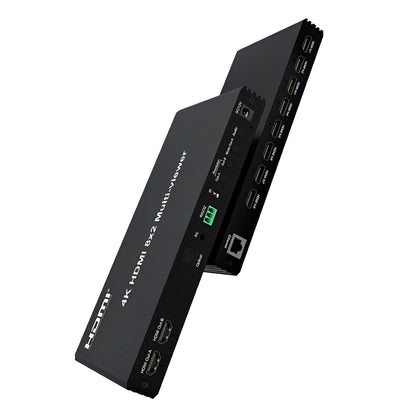

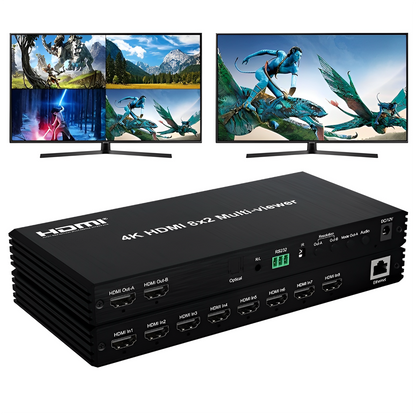

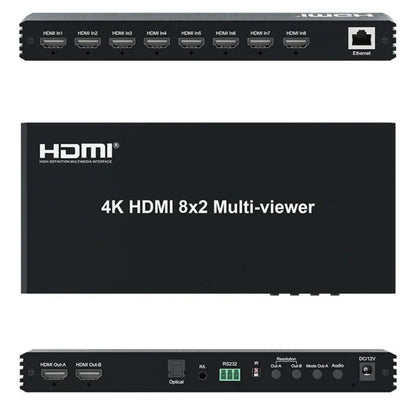

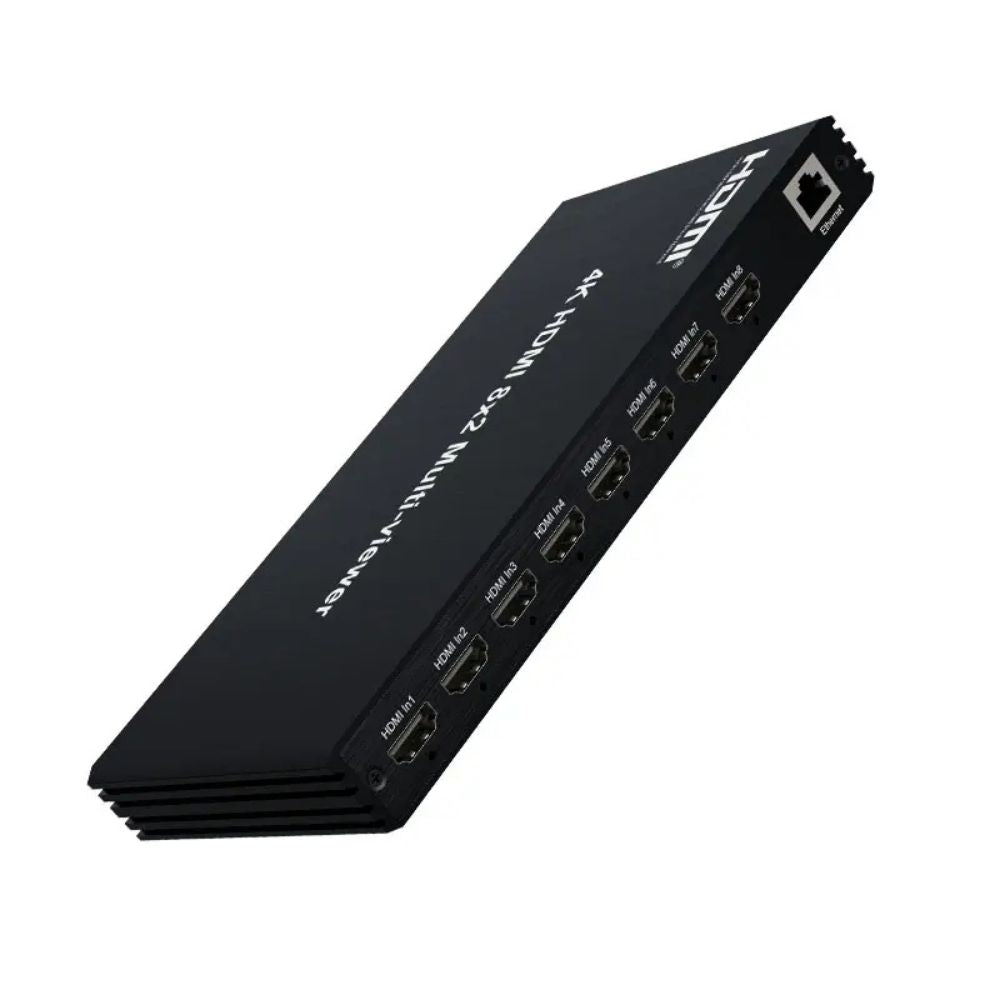

ArgoX 8-In 2-Out HDMI Switcher Multi-Viewer Control Box
with Video Matrix, PIP Function, Optical Fiber & 3.5mm Stereo Audio Extractor for Televisions, Screen Displays, Monitors, Computers & Laptops
This unit is multi-viewer with matrix function, It support the subtitle display function and has a variety of video segmenttation, seamless switching 8 HD input signal synchronously, Supports up to 6 HDMI signal source input and the maximum output of 4K@60Hz. Plug and play and simple to operate, often used in conference rooms, teaching games and other HDMI signal source display places.
Features:
Specifications:
-
Input resolution: the highest support 1080P/60Hz
-
Output resolution: the highest support 4K/60Hz
-
Audio format: Stereo
-
Input and output cable distance: 1080P/60Hz≤15M AWG26 HDMI standard cable
-
Max bandwidth: 600MHz
-
Max baud rate: 6x3Gbps
-
Max working current: 800mA
-
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A
-
Operating temperature range: (-15℃to +55℃)
-
Dimension: (L x W x H) 226x113x25 (mm)
-
Weight: 520g
What’s in the box?
1x 4K HDMI 8x2 Multi-Viewer
1x Power Adapter
1x Remote Control
1x User Manual
1x Power Adapter
1x Remote Control
1x User Manual
