• HDMI resolution : Max input can be 4K
• Support video format : 8/10/12bit Deep color
• Video output format : YUV,JPEG
• Video output resolution : Max output can be 1080P
• Support audio format : L-PCM
• Input cable distance : ≤15m,AWG26 HDMI standard cable
• Max working current : 0.7A/5VDC
• Operating Temperature range : (-10 to +55℃)
• Dimension (L x W x H) : 59x56x19 (mm)
• Weight : 56g

* Support HDMI loop out;
* Support microphone audio input ,3.5 stereo output; (Select Model Only)
* Support microphone audio and HDMI audio superimpose capture; (Select Model Only)
* Support input max resolution 4K;
* Support output max resolution 1080P;
* Support 8/10/12bit deep color;
* Support AWG26 HDMI standard cable: input up to 15 meters,
(1080P and below resolution);
* Support most acquisition software, such as VLC,OBS ,Amcap, etc;
* Support Windows, Android and MacOS;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Compact and portable.
* USB Power Supply not included.

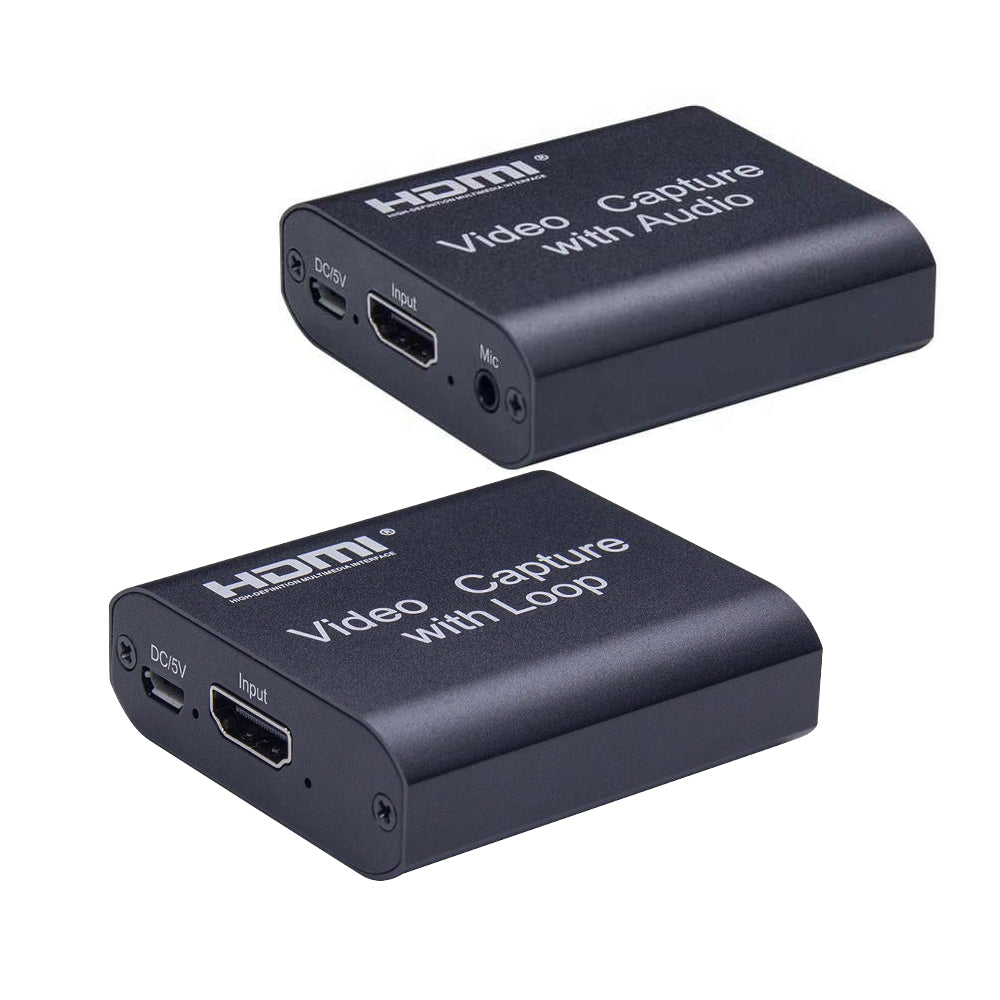

HDMI Video Game Capture Card USB2.0 HD 1080p Live Streaming Device

【HDMI Game Capture】 Based on the high speed USB 2.0 technology, It can capture one signal channel HD HDMI video signal. Suitable for devices with HDMI output such as blu-ray player, PS3/4, Xbox one , Wii U, Nintendo Switch, DVD, camera, ZOSI security camera, DSLR and set top box etc. DON'T work for HDCP2.2 devices
【Plug-&-Play Capture Card】 No driver or external power supply required, a Low latency game, meeting, live streaming. Share to youtube, facebook and twitter. Not support Mic-in for commentary; Record HDMI signal source directly, No HDMI splitter needed anymore. Compatible with Windows, Mac OS X
【1080P With 30FPS,Support HDCP】 The HD video capture card can support HDCP 1080P with 30FPS, it is very suitable to use it for game live streaming.
【ZERO Latency HDMI Loopout】 There is no latency when you use the HDMI loopout port, the HDMI loopout port is very usefully when you are making a game live streaming.
【Screen Share for Meeting】 A fast, familiar, and affordable way to share content in the conference room and into online meetings. Connect to present, no software required, Simply connect a laptop or tablet via HDMI to start sharing

INTRODUCTION

The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition recording, teaching recording, medical imaging, etc.

System requirements

• CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
• Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
• Memory: 4G RAM
