Introduction:
- This 2x2 HDMI 2.0 Switcher/Splitter can connect two HD signal sources with two HD display terminals, it allows two HDMI signals to be split or switched to two HDMI compatible monitors or projectors. And it can amplify your HDMI signals at the same time. This two signal sources can be switched freely via button or remote control. The HDMI Switcher/Splitter 2x2 can support full HD video format, highest resolution 3840x2160/60Hz.
Features:
- Downscaling (can output 4K and 1080p at the same time)
- High Definition, it can support 4K/60Hz RGB/YUV 4:4:4

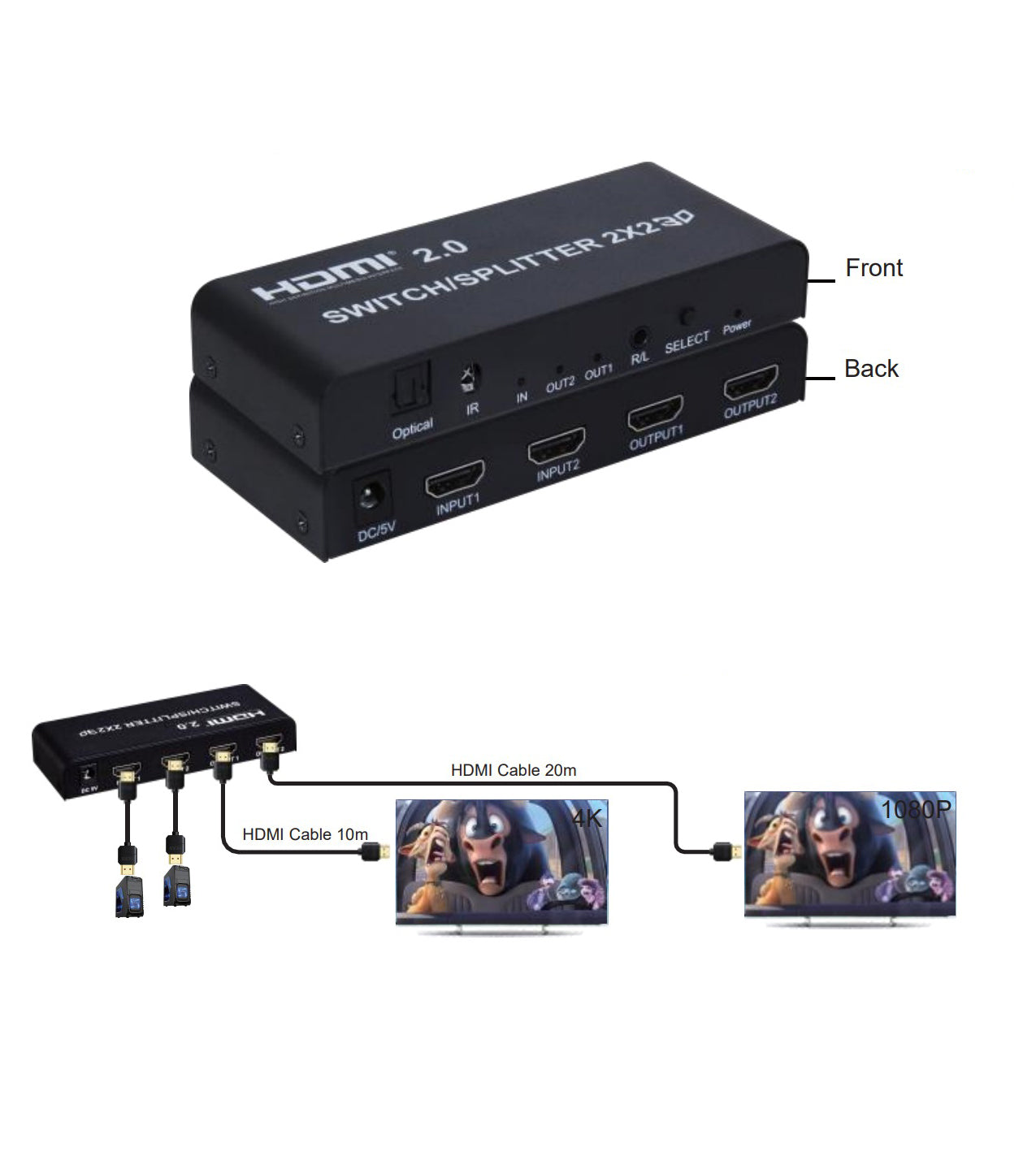

- Transmission long distance,4K/60Hz up to 10meters,1080p up to 20meters
Specifications:
- Brand: ArgoX
- Model(s): HDSS2-2-V2.0
- HDMI Version: HDMI 2.0a
- HDMI 2.0a HDMI Resolution: Up to 3840x2160/60Hz
- Support Video Format: 8/10/12 bit deep color
- Support Audio Format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
- Max Bandwidth: 600MHz
- Max Baud Rate: 6Gbps
- Input Cable Distance: (1080p resolution)≤20m, (4Kresolution) ≤10m AWG26 HDMI standard cable
- Output Cable Distance: (1080p resolution)≤20m, (4Kresolution)≤10m AWG26 HDMI standard cable
- HDMI Input Port: 2
- HDMI Output Port: 2
- Max Working Current: 300mA
- Power Adapter Format: Input:AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A
- Operating Temperature Range: (-15℃ to+55℃)
- Operating Humidity Range: 5 to 90%RH (No Condensation)
- Dimension (L x W x H): 128x53x20(mm)
- Weight: 140g
