ArgoX 8-Out 2-In 4K HDMI Switcher/Splitter Multi-Screen Display Control Box with 3D Video Support for Televisions, Screen Displays, Monitors, Computers & Laptops

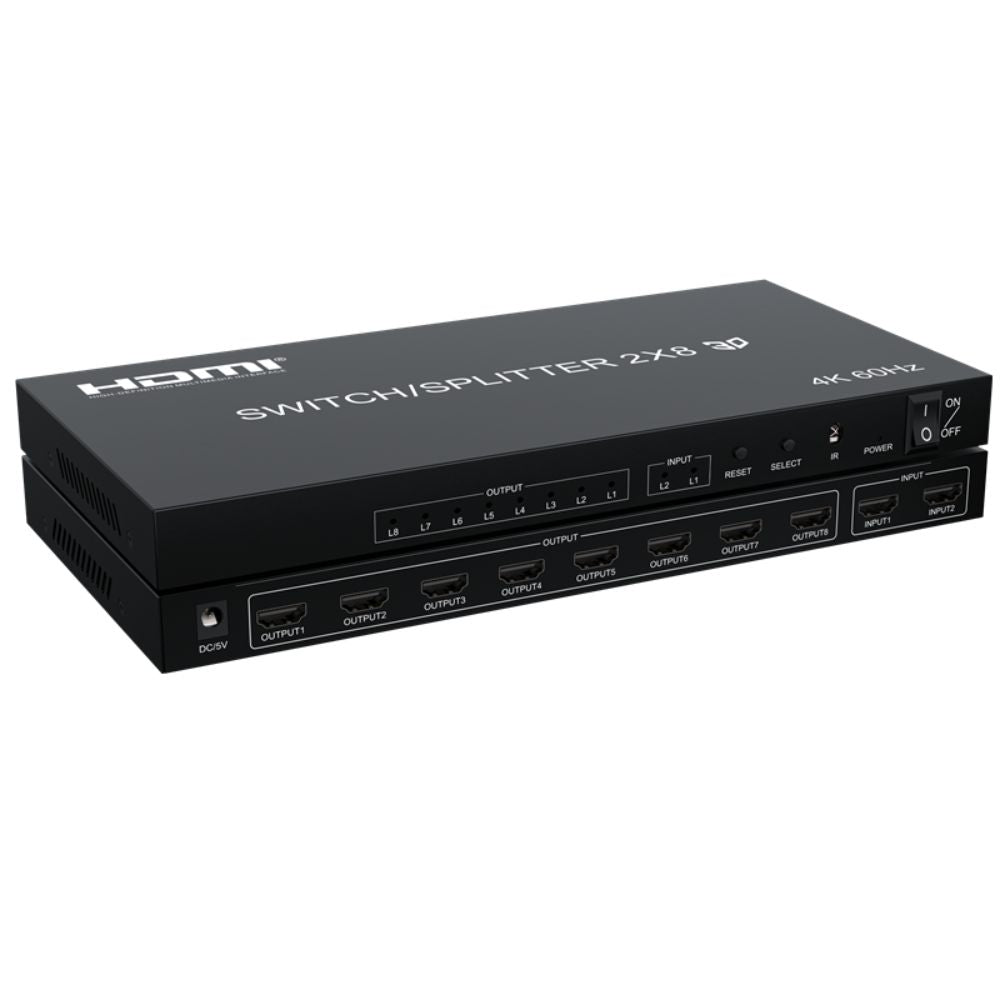

ArgoX 8-Out 2-In 4K HDMI Switcher/Splitter Multi-Screen Display Control Box

with 3D Video Support for Televisions, Screen Displays, Monitors, Computers & Laptops

18Gbps 600Mhz (V.2)

Features:

• Support 3D
• Support highest video resolution 3840x2160/60Hz
• Support 18Gbps data rate for tmds clock up to 600Mhz
• Support 8/10/12 bit deep color

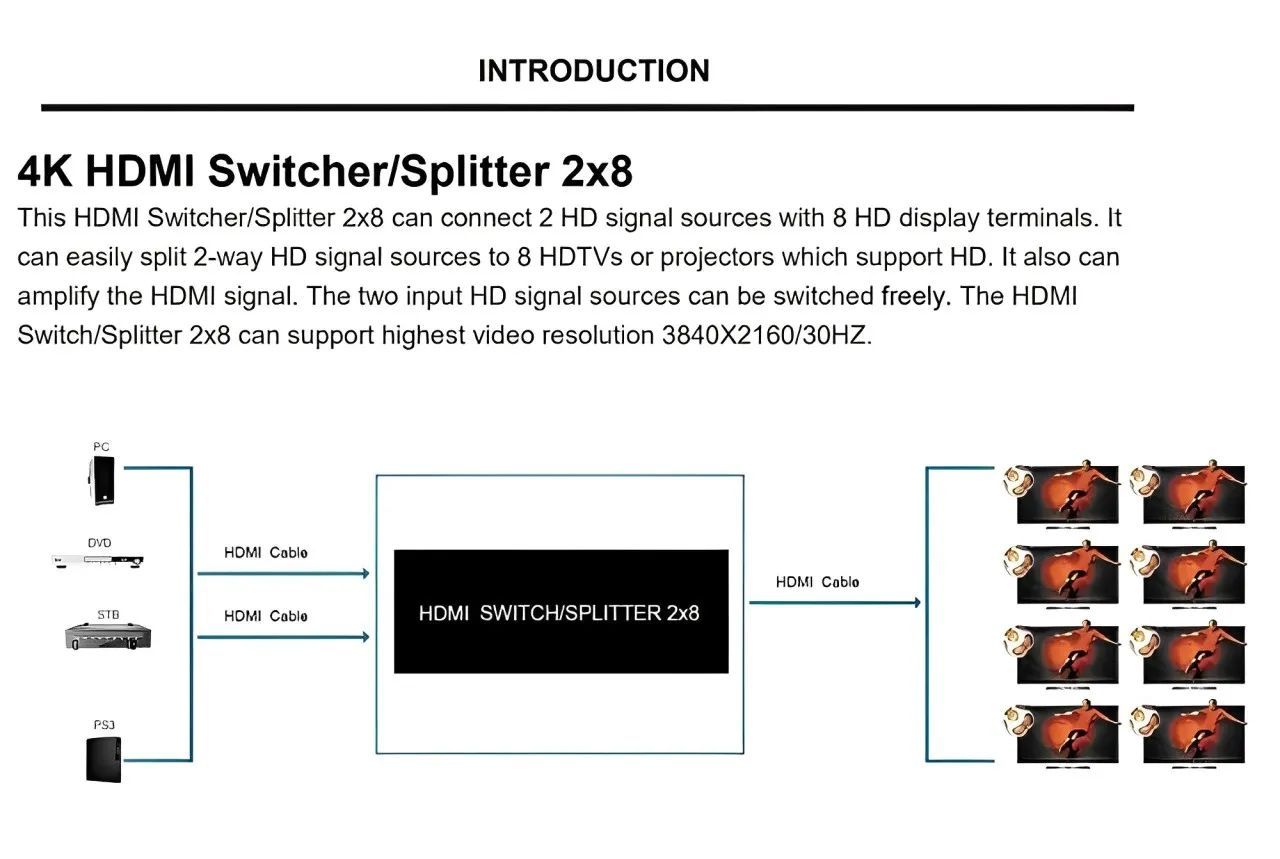

• Support 2-channel HDMI signal input, multi-channel HDMI signal output to the display, the input source can be DVD player, A/V receiver, set-top box
• Support IR remote control

3Gbps 300Mhz (V.1)

Features:

• Support HDMI 1.4b

• Support 3D
• Support highest video resolution 3840X2160/30HZ
• Support 3 Gbps data rate for tmds clock up to 300Mhz
• Support 8/10/12 bit deep color
• Support standard AWG26 cable: When the resolution is 1080p and below, input up to 10 Meters , output up to 15 Meters; When the resolution is 4K, input up to 5 Meters , output up to 10 Meters
• Support single high definition display and multiple output HD signal sources, such as DVD
• Players, A/V Receivers and set-top box.
• Need DC 5V/3A power supply

Specifications:

• Brand: ArgoX
• Model(s): HDSS2-8-V1.4 | HDSS2-8-V2
• HDMI Resolution: 4K/1080p/1080i/720p/576p/576i/480p/480i
• Support Video Format: 8/10/12bit deep color
• Support Audio Format: LPCM
• Max Bandwidth: 300MHz | 600MHz
• Max Baud Rate: 3Gbps | 8Gbps
• Input Cable Distance: (1080p resolution) ≤10m,(4K resolution)≤5m AWG26 HDMI standard cable
• Output Cable Distance: (1080p resolution) ≤15m,(4K resolution)≤10m AWG26 HDMI standard cable
• HDMI Input Port: 2
• HDMI Output Port: 8
• Max Working Current: 1.35 A | 2.7 A
• Power Adapter Format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A
• Operating Temperature Range: (-15 to +55℃)
• Operating Humidity Range: 5 to 90%RH (No Condensation)
• Dimension (L x W x H): 278x136x24 (mm)
• Weight: 640g
