Description:

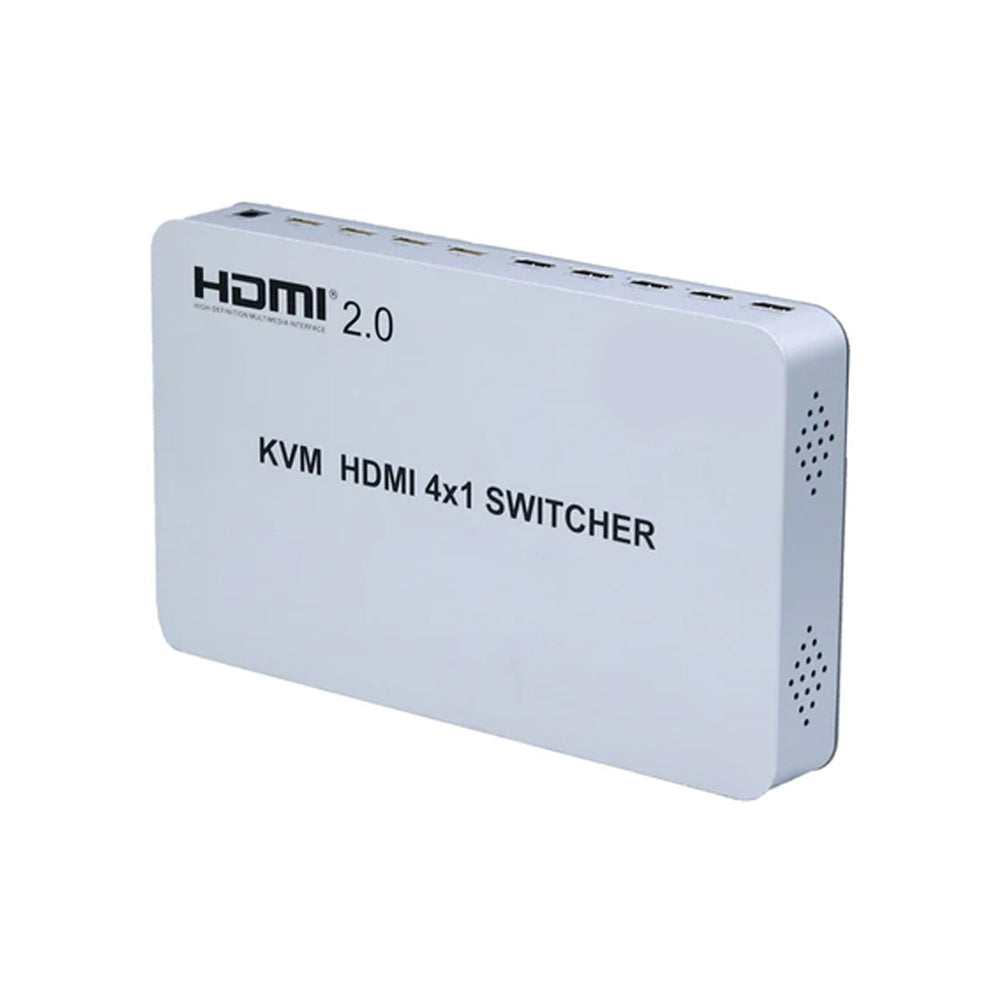

The 4x1 HDMI switch allows 4 PC and HDMI ports to be switched to a single display terminal via
remote control or buttons on unit. The HDMI switcher can support all hd formats including 720p, 1080i,
1080p, 4K/30Hz，4K/60Hz multichannel audio. It can be used in office, meeting room and teaching, etc.
Features:
-
Support HDMI 2.0b
-

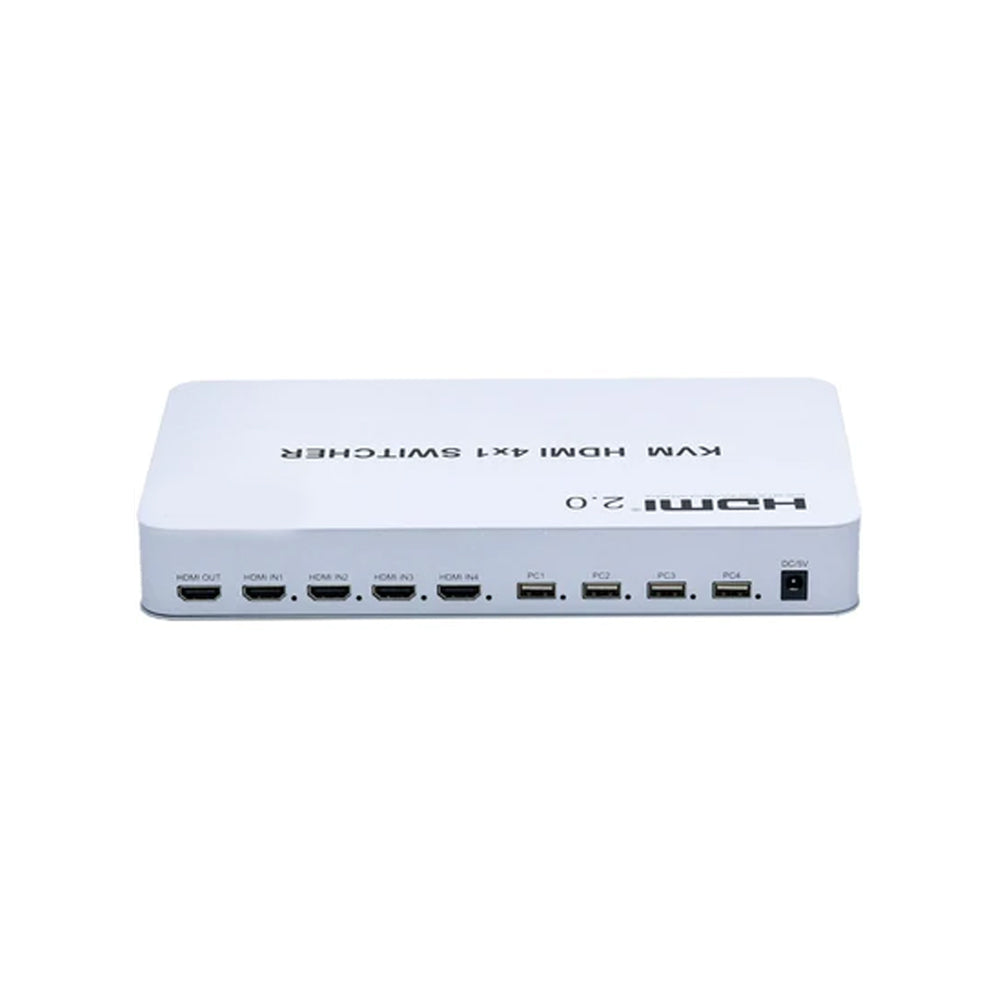

Supports 4 HDMI input, 1 HDMI output
-
Support 3D
-
Support highest video resolution 4K/60Hz
-
Support 6Gbps data rate for tmds clock up to 600MHz
-
Support 24/30/36 bit deep color
-
Can automatically switch HDMI input port (in 4 ports, the last one is priority)
-
Support standard AWG26 cable, input up to 8 metres ,output up to 8 metres （ 4K/30Hz or lower）
-
Support standard HDMI 2.0 cable, input up to 3 metres ,output up to 5 metres(4K/60Hz)
-
Supports USB 2.0
-

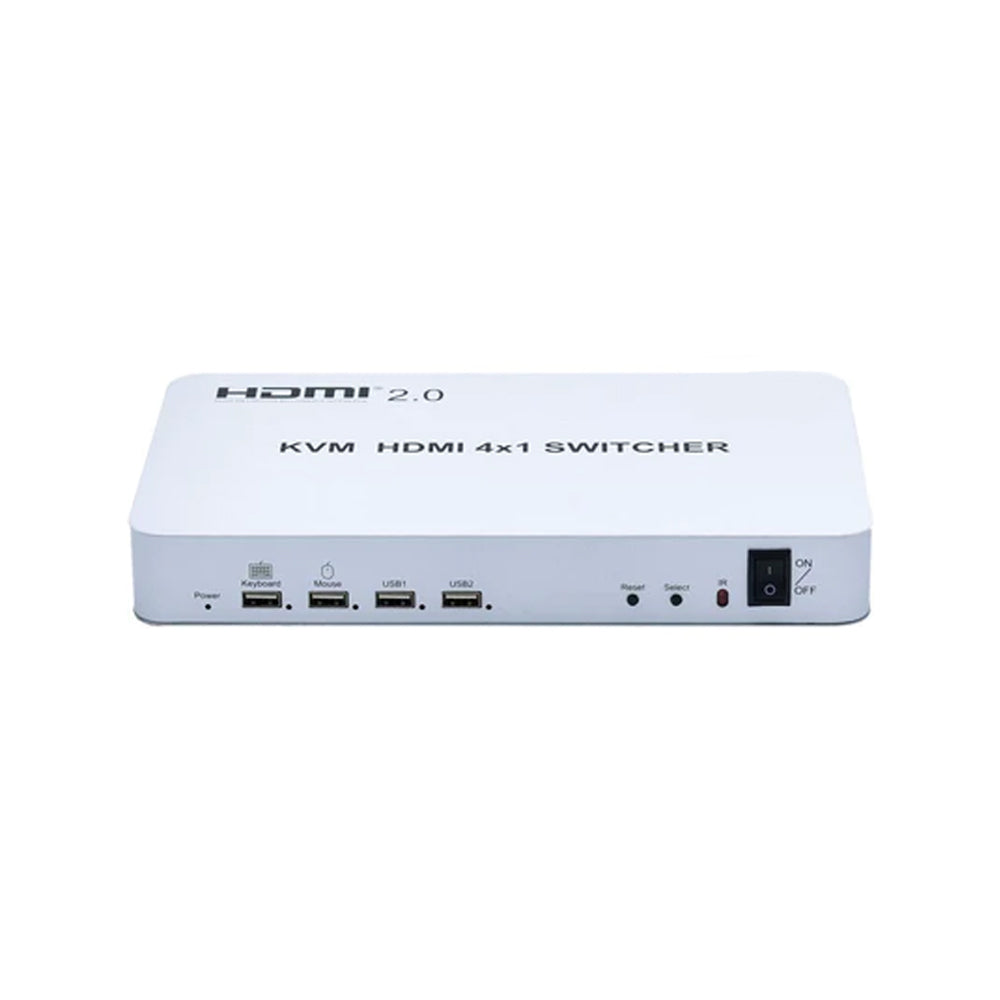

Supports 4 USB host (PC), 4 USB device (mouse/keyboard)
-
Supports wireless mouse and keyboard
-
Supports Windows, Linux, MAC OS and Android operation system, etc.
-
Plug and play, no need to install any driving program
Specifications:
- HDMI version - HDMI 2.0b
- USB version - compatible with USB 2.0 Full/Low speed
- HDMI resolution - 4K/60Hz
- USBrate - Low speed(1.5Mb/s)；Full speed(12Mb/s)
- Support video format - 3D
- Support video color format - 24/30/36 bit deep color
- Support audio format - DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
- Max bandwidth - 600MHz
- Max baud rate - 6Gbps
- Input cable distance - ≤8m AWG26 HDMI standard cable(4K/30HZ);
- ≤3m 2.0 HDMI standard cable(4K/60HZ);
- Output cable distance - ≤8m AWG26 HDMI standard cable(4K/30HZ);
- ≤5m 2.0 HDMI standard cable(4K/60HZ);
- USB cable length - Standard USB 2.0 cable ≤ 2m
- Max working current - 900mA
- Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
- Operating Temperature range (-10 to +55℃)
Package Inclusion:
- HDMI Switch
- IR Remote Control
- 5V/1.5A Power adapter
- User Manual
- USB 2.0 A Male cable 4PCS
