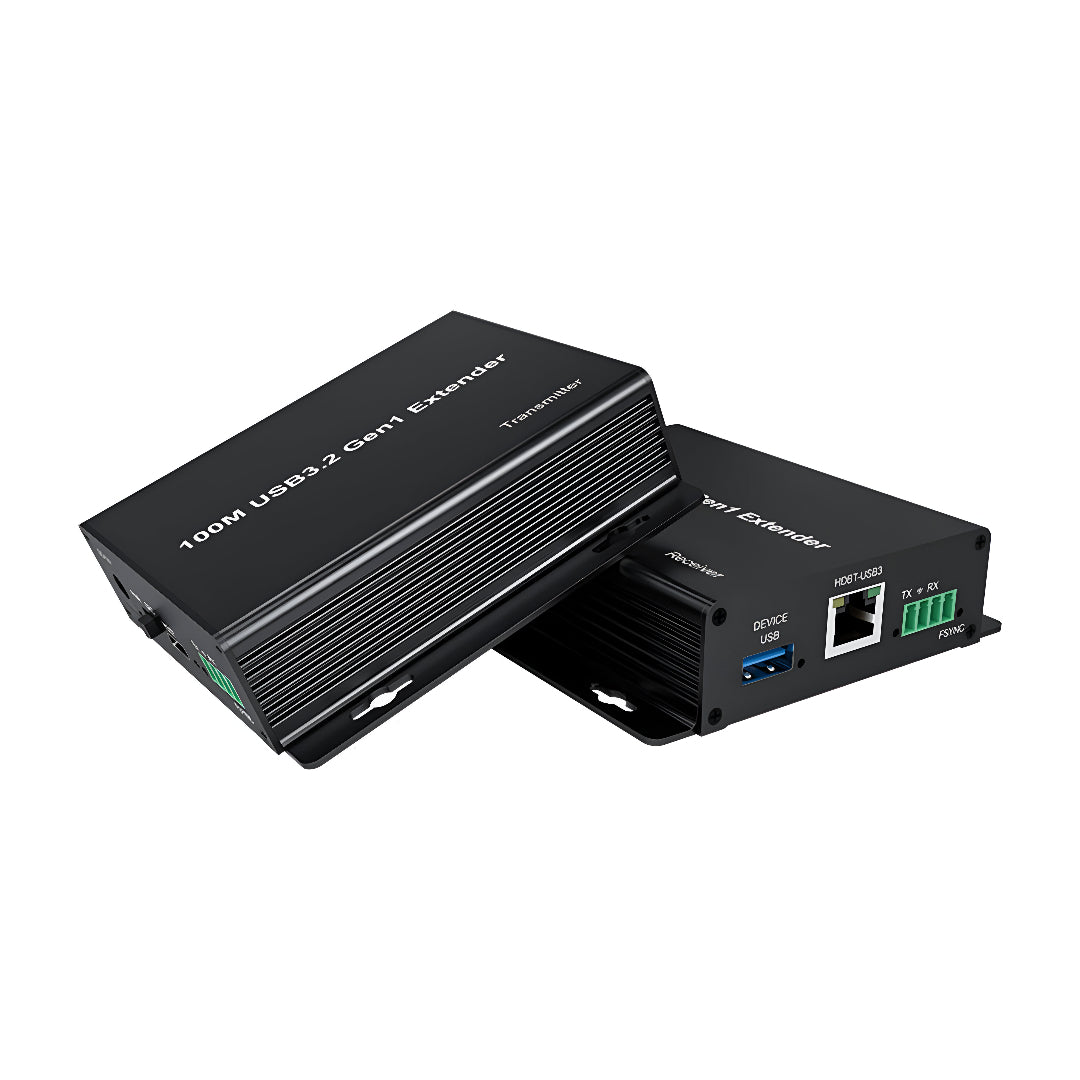

USB3.2 Gen1 EXTENDER (100M)
This product is the extender of USB3.0 protocol, the receiver with four USB3.0 interfaces, It's compatible with USB2.0 and 1.1 protocol equipment. And suitable for USB printer, U disk, mobile hard disk, USB Somatosensory, camera, touch screen, Keyboard and mouse, USB to video / audio converter and other devices, using a double-shielded network cable CAT6A to extend the distance up to 100 meters.
Features:
- USB 3.0 data rate up to 5 Gbps;
- Receiver with 4 USB 3.0 interfaces, Support for all USB 3.0, 2.0, 1.1 device;
- The current of each USB port of the receiver is up to 1.5A (7.5W), and the maximum current of 4 USB ports does not exceed 21W.;

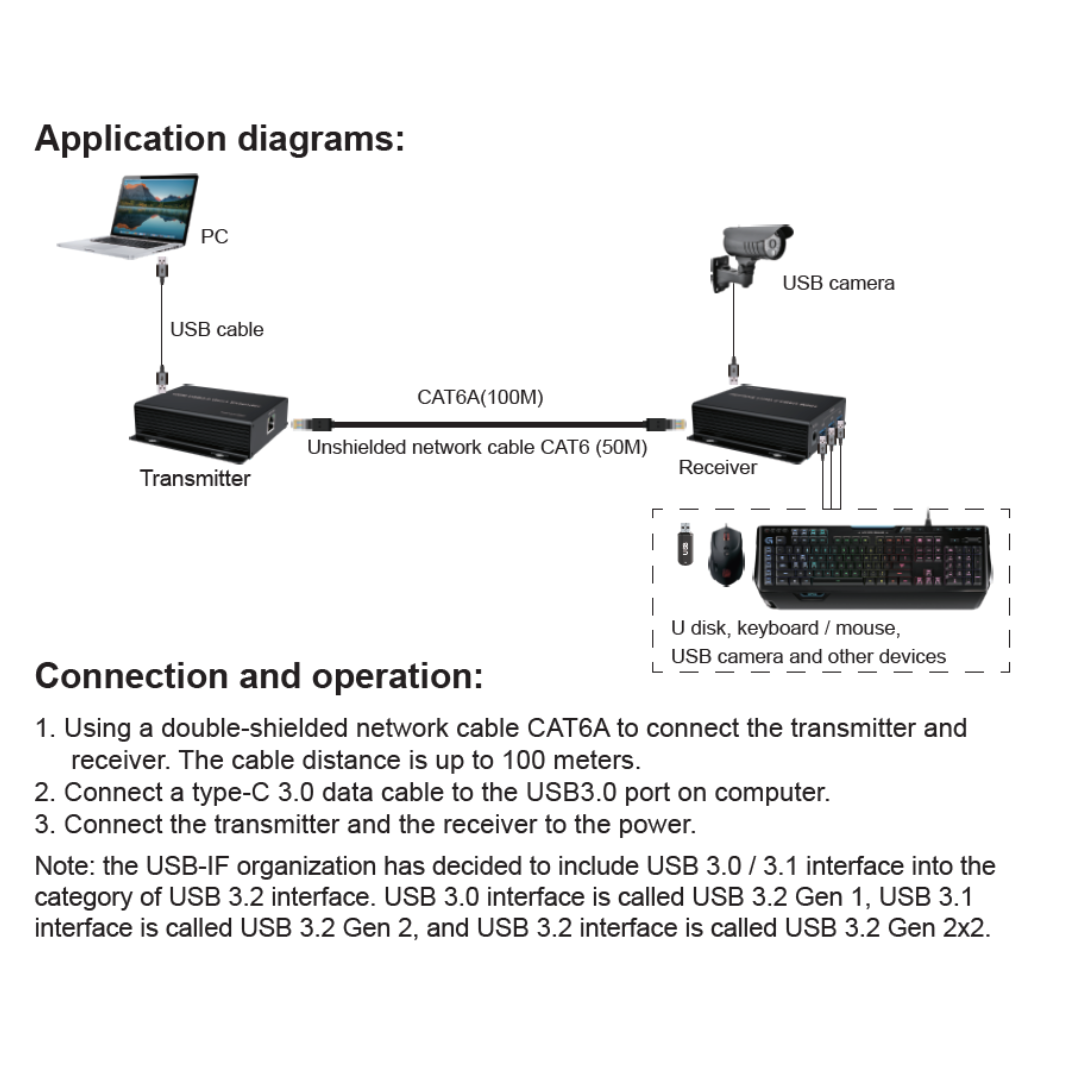

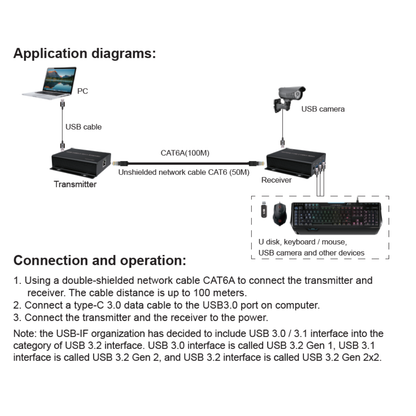

- Using a double-shielded network cable CAT6A to extend the distance up to 100 meters;
- Point-to-point connection;
- Real plug and play, No software driver;
Mainstream operating systems: Windows, MAC OS, Linux and Chrome OS.
Specifications:
The CAT6A cable between the transmitter and the receiver 100M
The unshielded network cable CAT 6 (23 AWG)between the TX and the RX 50M
Max Baud Rate 5Gbps
Operating Humidity Range 5 to 90% RH (no condensation)
Dimension (L x W x H) 104x103x28 (mm)X2
TX Weight 171g
RX Weight 177g

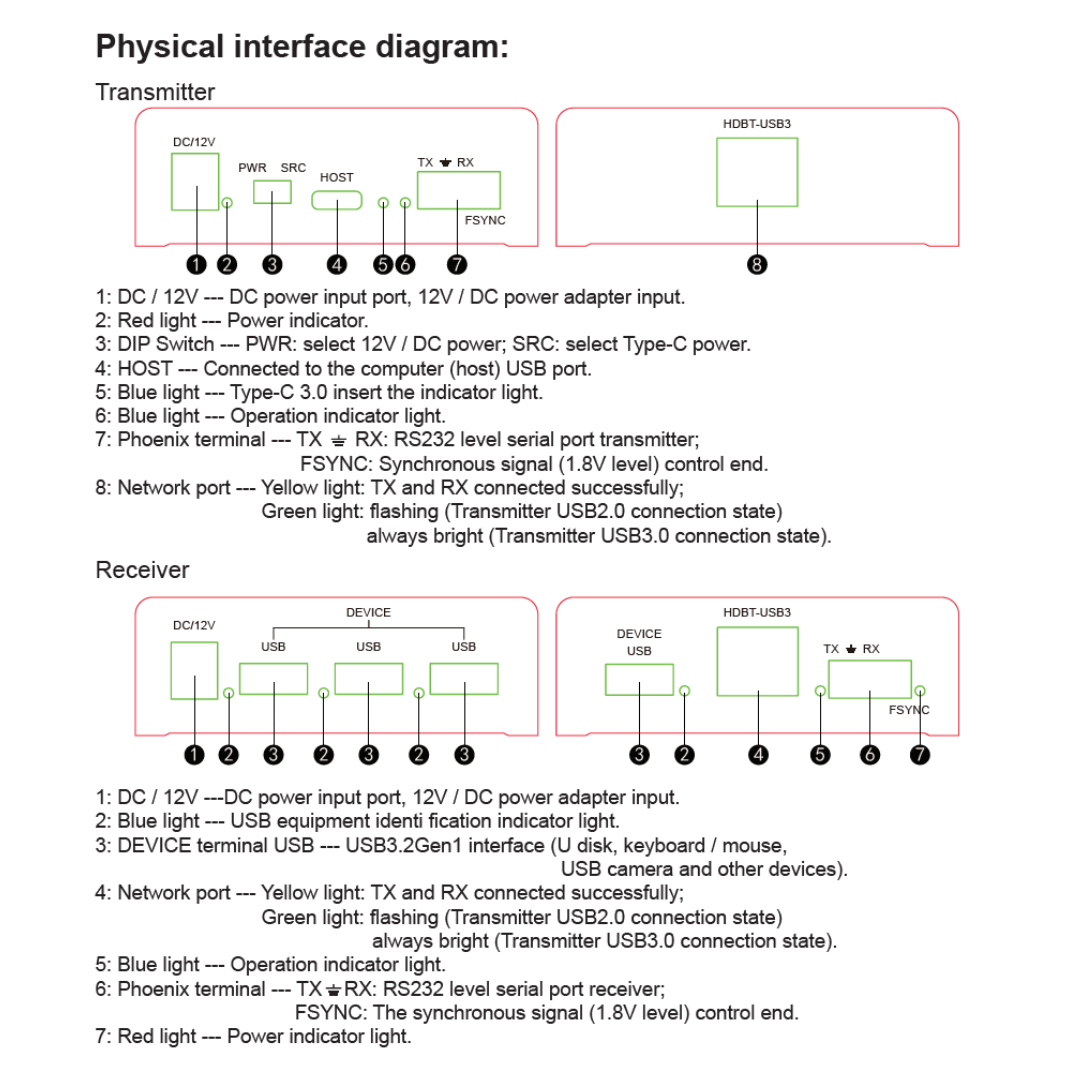

Transmitter
RJ45 Ethernet 100 / 1000 port
Power Adapter Specification Input AC (50Hz, 60Hz) 100V-240V; output: DC12V/2A
Current 0.2A
Receiver
USB 3.0 Class A Port 4 * USB 3.0
RJ45 Ethernet 100 / 1000 port
Effective Current Each USB port is up to 1.5A
Power Adapter Input AC (50Hz, 60Hz) 100V-240V; output: DC12V/2A
Maximum Operating Current 300mA (no USB device connected)
What's inside the box?
1x Transmitter
1x Receiver
1x USB Type-C to USB A 3.0 Data Cable
1x User Manual
2x DC / 12V 2A Power Adapter
