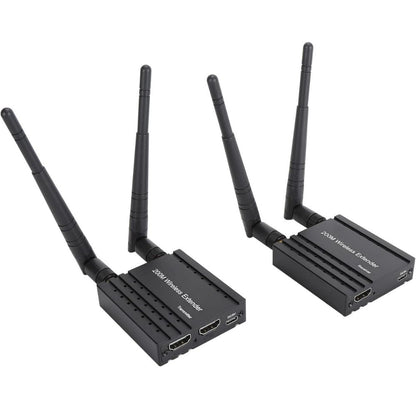

WIRELESS HDMI EXTENDER
TRANSMITTER & RECEIVER
The 200M Wireless HDMI Extender offers high-quality, wireless HDMI transmission with HDCP 1.3 support. It supports 1080p resolution and data rates up to 1.485 Gbps, operating over 2.4 GHz/5 GHz bands for reliable performance. With a range of up to 200 meters in open spaces (40 meters through walls), it’s ideal for home theaters, conferences, and more.
Features:
• Supports HDCP 1.3.
• Supports one-to-one and one-to-four transmission modes.
• Supports a maximum rate of 1.485 Gbps and TMDS clock up to 148.5 MHz.
• Operates in 2.4 GHz/5 GHz frequency bands, resistant to wireless signal interference.
• Maximum distance: 200 meters in open spaces (no barriers), or up to 40 meters through walls.
Specifications:
• HDMI Resolution: Up to 1920 x 1080p/60Hz
• Audio Format: Stereo audio
• Max Bandwidth: 148.5 MHz
• Max Data Rate: 1.485 Gbps
• Input Cable Distance: ≤8 meters (1080p resolution, AWG26 HDMI standard cable)
• Output Cable Distance: ≤8 meters (1080p resolution, AWG26 HDMI standard cable)
• Transmitter Max Working Current: 1.2 A
• Receiver Max Working Current: 800 mA
• Operating Temperature Range: -15°C to +55°C
• Dimensions (L x W x H): 80 x 63 x 16 mm
• Weight: 123 g x 2

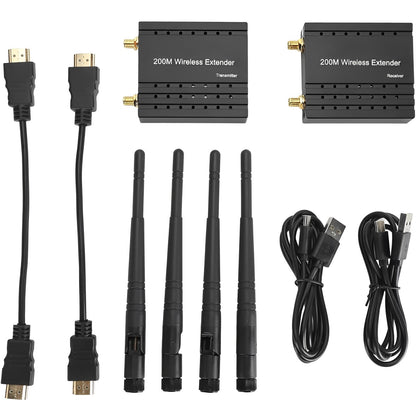

What's inside the box?
-
1x 200M Wireless Extender Transmitter
-
1x 200M Wireless Extender Receiver
-
4x Antena
-
2x HDMI Cable
-
2x Type-C cable
-
1x User Manual
