Key Features
- Up to 50 Mbps high-bandwidth Transfer
- Built-in NDI (Optional) encoding and decoding , up to 4K30
- 4K60 HDMI input and HDMI output
- Zero-Latency 4K HDR Passthrough
- USB capture and LAN streaming
- Flexible audio mixing
- USB disk & SD card recording
- PTZ camera control
- Clear tally indication
- DC 12V & PoE, DC Out, flexible power options
Specifications
- Brand: AVMatrix
- Model: DE20-4K
- Type: HDMI Video Encoder & Decoder

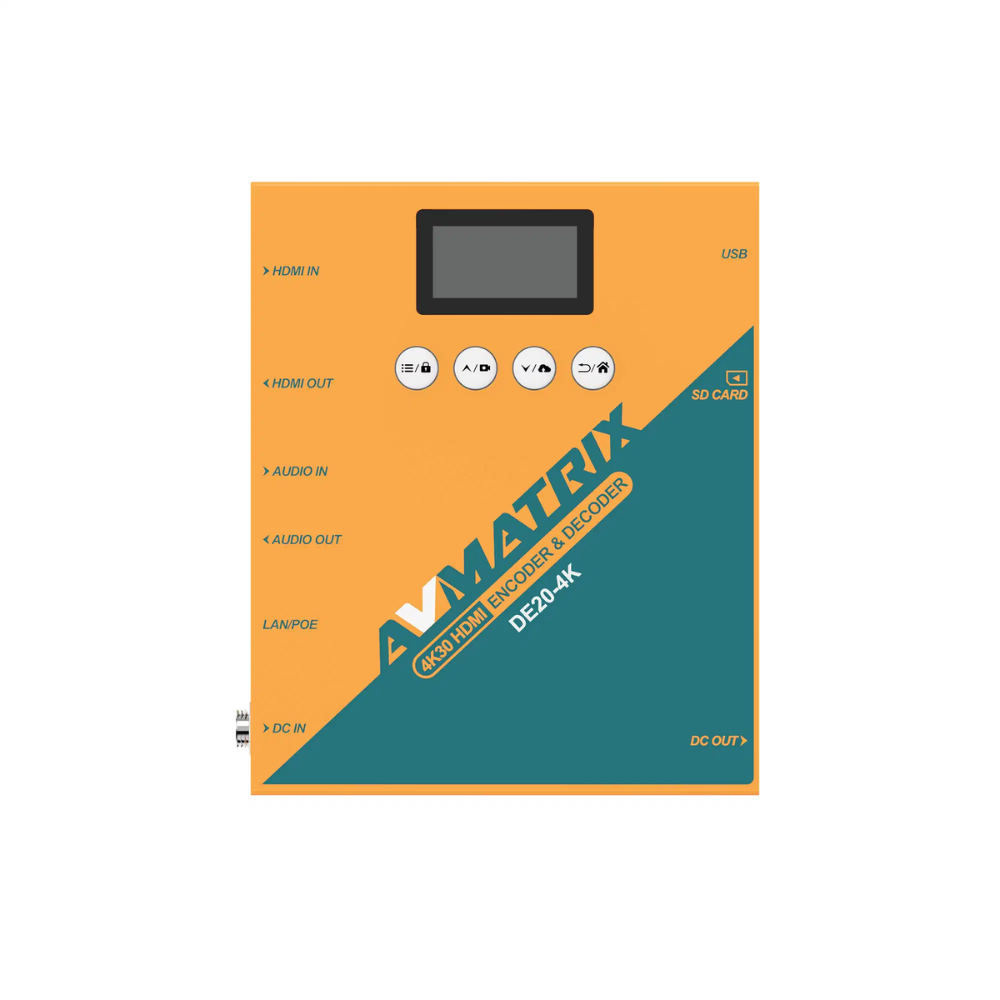

CONNECT

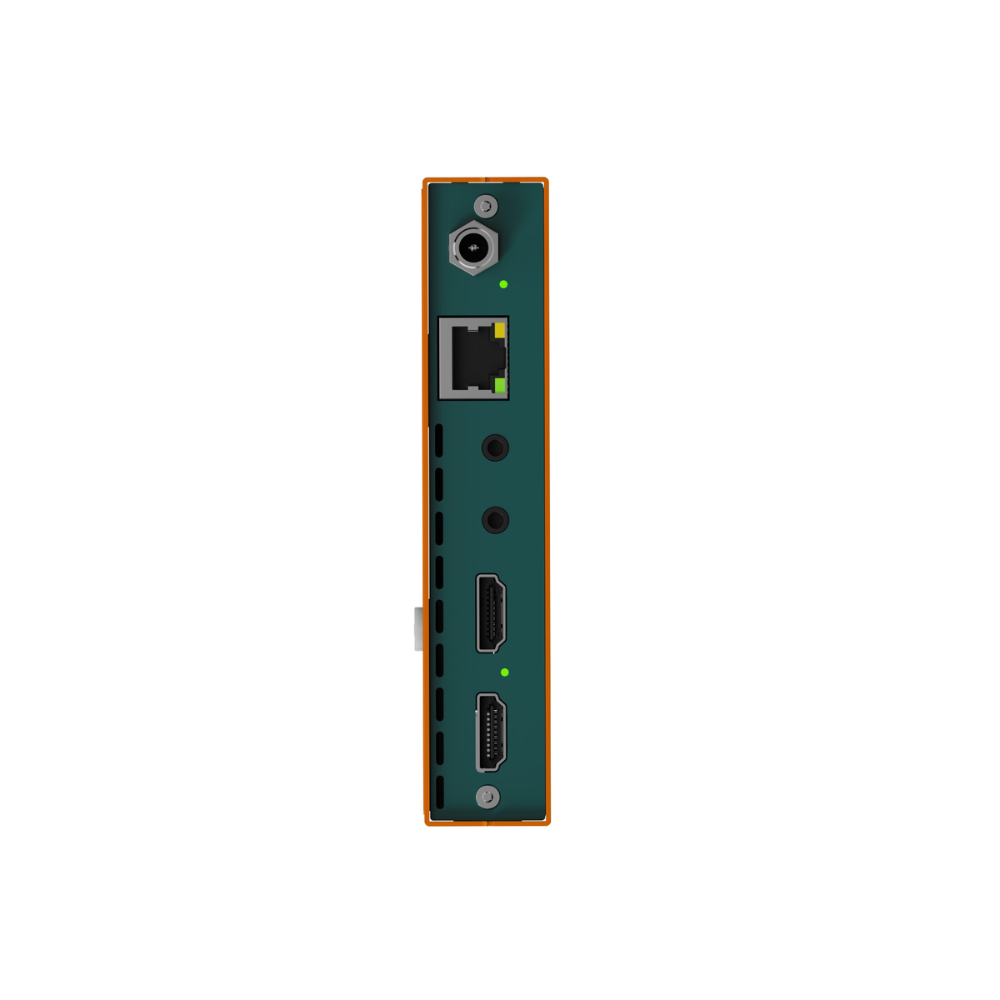

- Video: Encoder: HDMI In × 1, HDMI Loop × 1; Decoder: HDMI Out × 1
- Audio: 3.5mm Audio In & Out × 1
- Network: LAN (POE) × 1

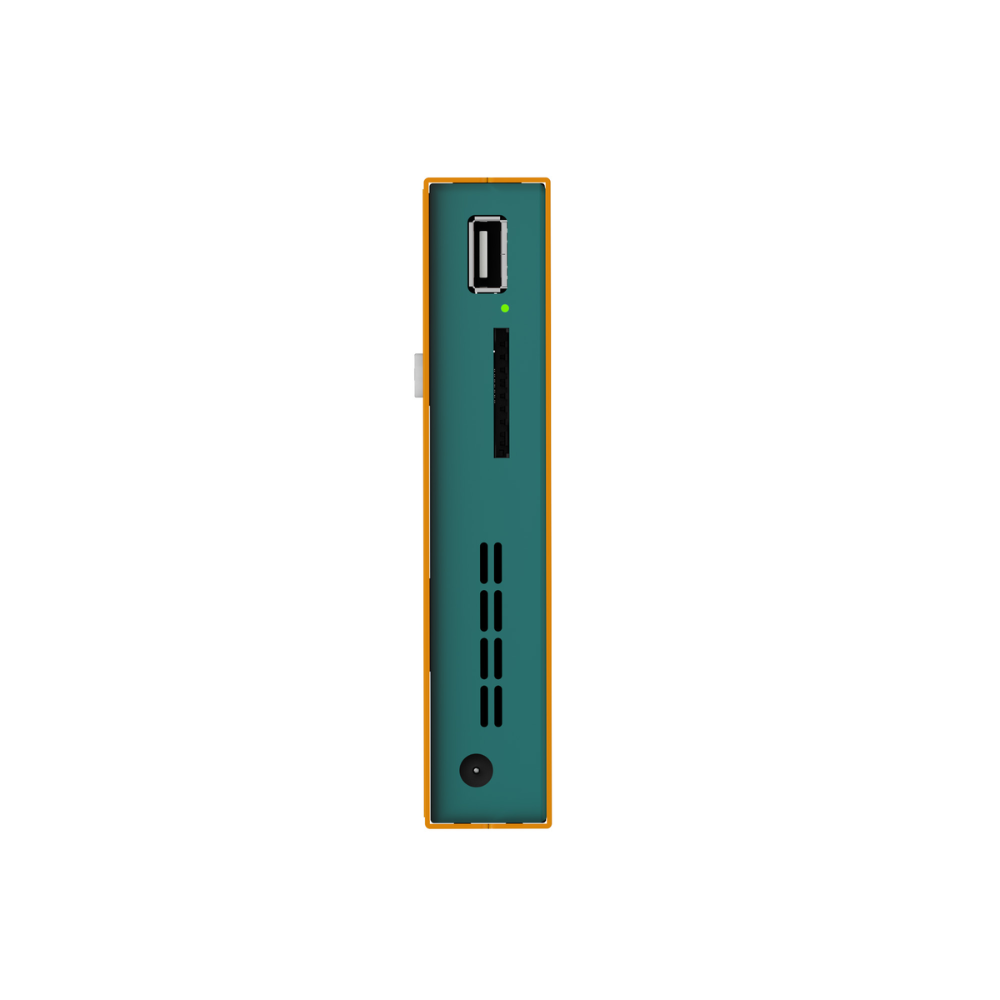

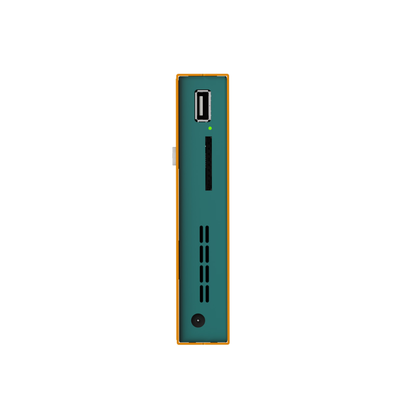

- USB: USB Type-A × 1
- Record: SD Card, USB Disk, NAS
FORMATS
- HDMI In & Loop: Encoder: Up to 2160p60
- HDMI Out: Decoder: Up to 2160p30
- Encoder Format:
- 2160p30/25/24
- 1080p60/50/30/25/24, 1080i60/50
- 720p60/50
- Decoder Format:
- 2160p30/25/24
- 1080p60/50/30/25/24, 1080i60/50
- 720p60/50
IP STREAM
- Stream Protocols:
- Encoder: RTSP / RTMP / RTMPS / SRT / NDI*
- Decoder: RTSP / RTMP / RTMPS / SRT / NDI*
- NDI function is optional, supporting NDI|HX / HX2 / HX3
- Bit Rate: Up to 50Mbps
FUNCTION
- REC SD Card Format: FAT32 / exFAT
- REC USB Disk Format: FAT32 / exFAT
- PTZ Control Protocol: Pelco D/P, VISCA
- USB Host: USB Record / USB Audio Input
- USB: USB Video to IP Stream & HDMI Out, USB PTZ Camera Control
- USB Device: UVC Capture
OTHER
- Power:
- DC In: 6–20V, PoE: PoE+(802.3at)
- DC Out: 6–20V (Max 1A), USB Out: 5V 1A
- Consumption: ≤8W
- Dimension (LWD): 104 × 125.5 × 24.5mm
- Weight: Net: 501g; Gross: 820g
- Temperature: Operating: -20°C–60°C; Storage: -30°C–70°C
