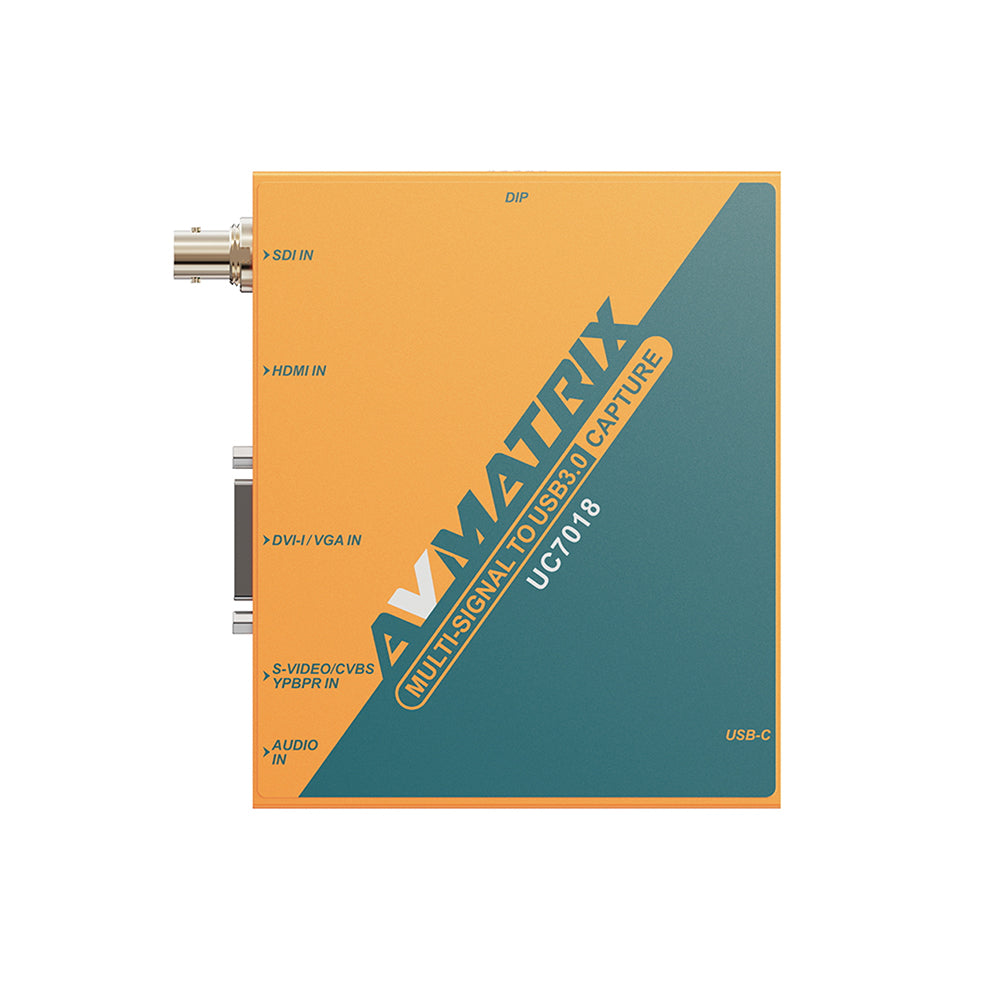

The UC7018 Multi-Signal to USB 3.0 Capture Box from AVMATRIX features SDI, HDMI, DVI-I, VGA, CVBS, S-Video, and YPbPr input connectivity, a USB-C port for capture, power, and firmware upgrades, and a 3.5mm analog audio input that can be embedded into your output signal. The unit offers uncompressed A/V capture and is UVC and UAC compliant. It does not require any drivers for functionality, and power is supplied via the USB-C port using the included USB-C to USB-A cable with an optional USB power connector. Integrated LED indicators provide video and power signal status.cables
Features:

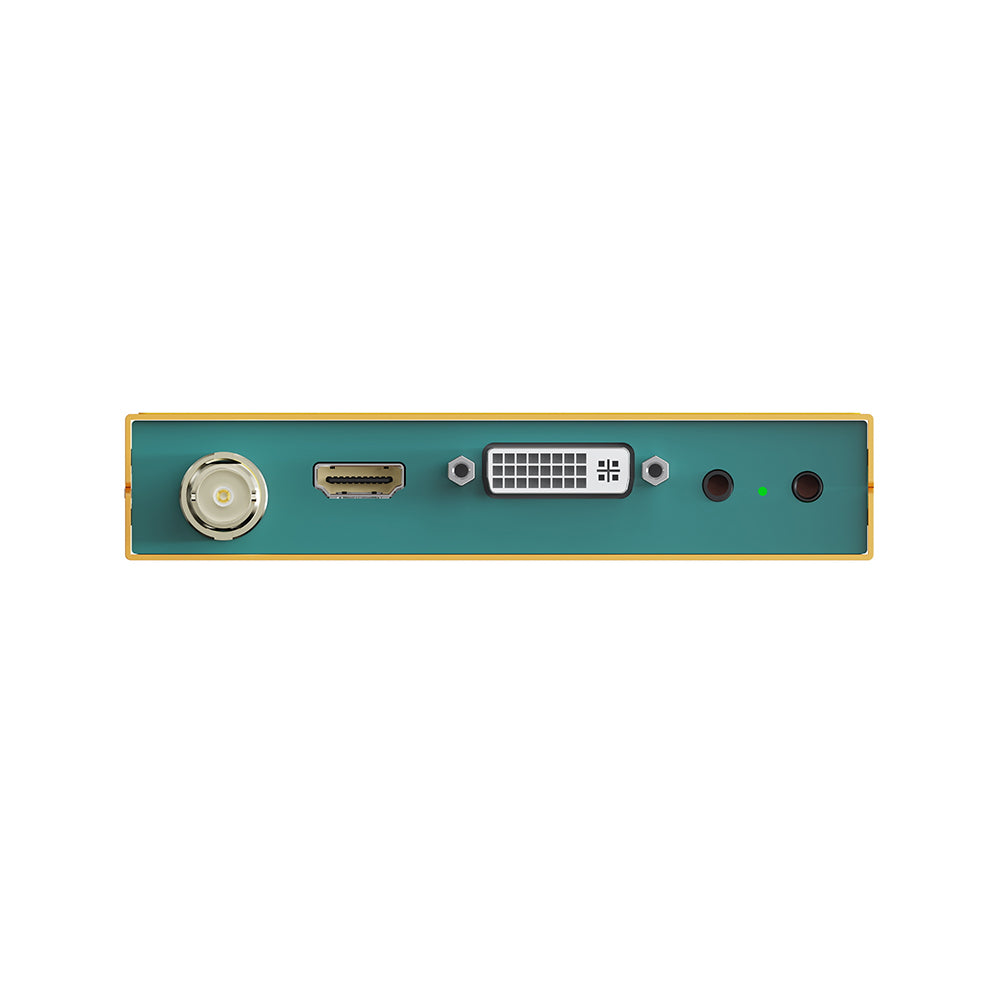

● SDI/HDMI/DVI-I/VGA/CVBS/S-Video Inputs
● Supports up to 1080p60 Resolution
● USB-C Port for Capture, Power & Upgrades
● Analog Audio Embedding
● Uncompressed A/V Capture
● UVC & UAC Compliant
● Video & Power Signal LED Indicators

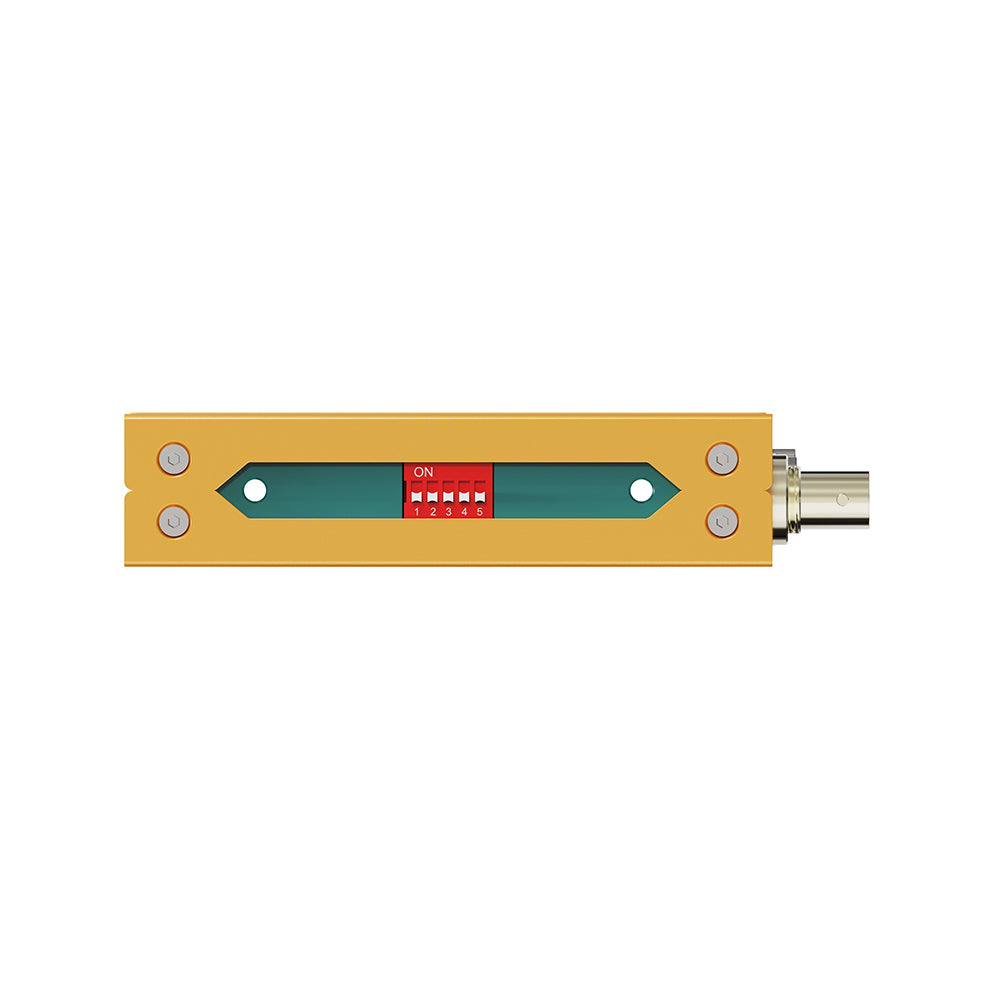

● DIP Switches & Computer Software
● No Drivers or Power Supply Required
● Compatible with Windows, Linux & macOS
Specifications:
Video Inputs SDI, HDMI, DVI-I, VGA, CVBS, S-Video, YPbPr
Audio Input 1 × 3.5mm analog audio (embeds into video output)
Capture Output USB-C (USB 3.0 – UVC/UAC compliant)
Max Resolution Up to 1080p60
Video Formats RGB32, YUY2, NV12 (uncompressed video)
Power Supply Powered via USB-C (USB-C to USB-A cable included)
Driver Requirement None (plug-and-play)
Compatibility Works with Windows, macOS, Linux – OBS, Zoom, Teams, etc.

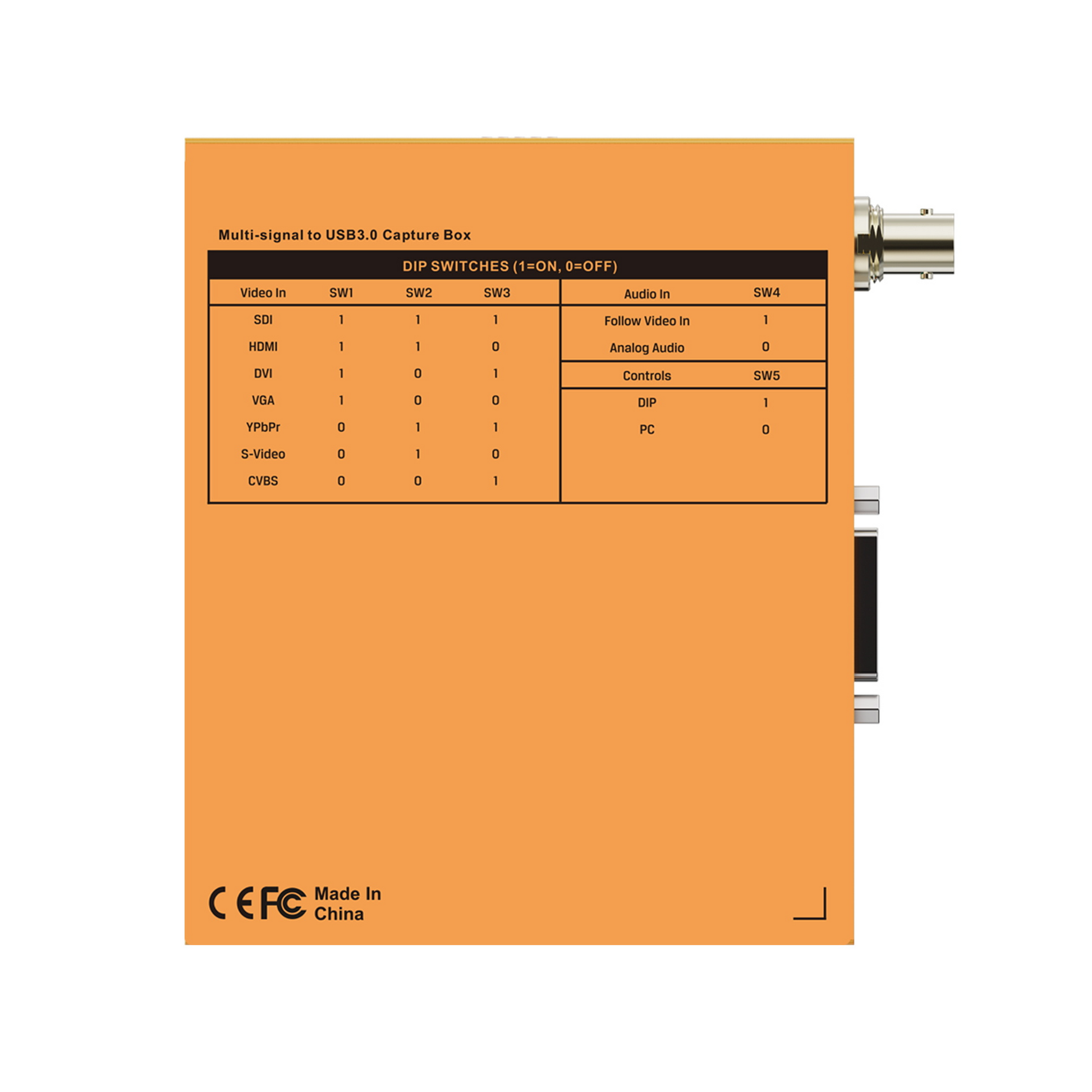

Control DIP switches + PC software
Indicators LED status lights for video signal and power
Firmware Updates Supported via USB-C
Use Cases Live streaming, video conferencing, recording, capture from legacy sources
What's inside the box?
1x Multi-Signal to USB 3.0 Capture
1x USB 3.0 Cable (USB-A to USB-C)
1x DVI to VGA Adapter
1x 3-in-1 Multi-Interface Connector
