The AVMATRIX Portable 6-Channel Streaming Switcher combines 4 SDI and 2 HDMI inputs, supporting up to 1080p60 video. It’s ideal for live productions like sports, events, and education. You can switch between sources, mix audio, and apply transitions, with all output scaled to 1080p60 or 1080i60.
It also has a USB-C output that lets you use it like a webcam on Windows, Mac, or Linux, making it easy to stream to platforms like OBS, Zoom, YouTube, or Facebook.

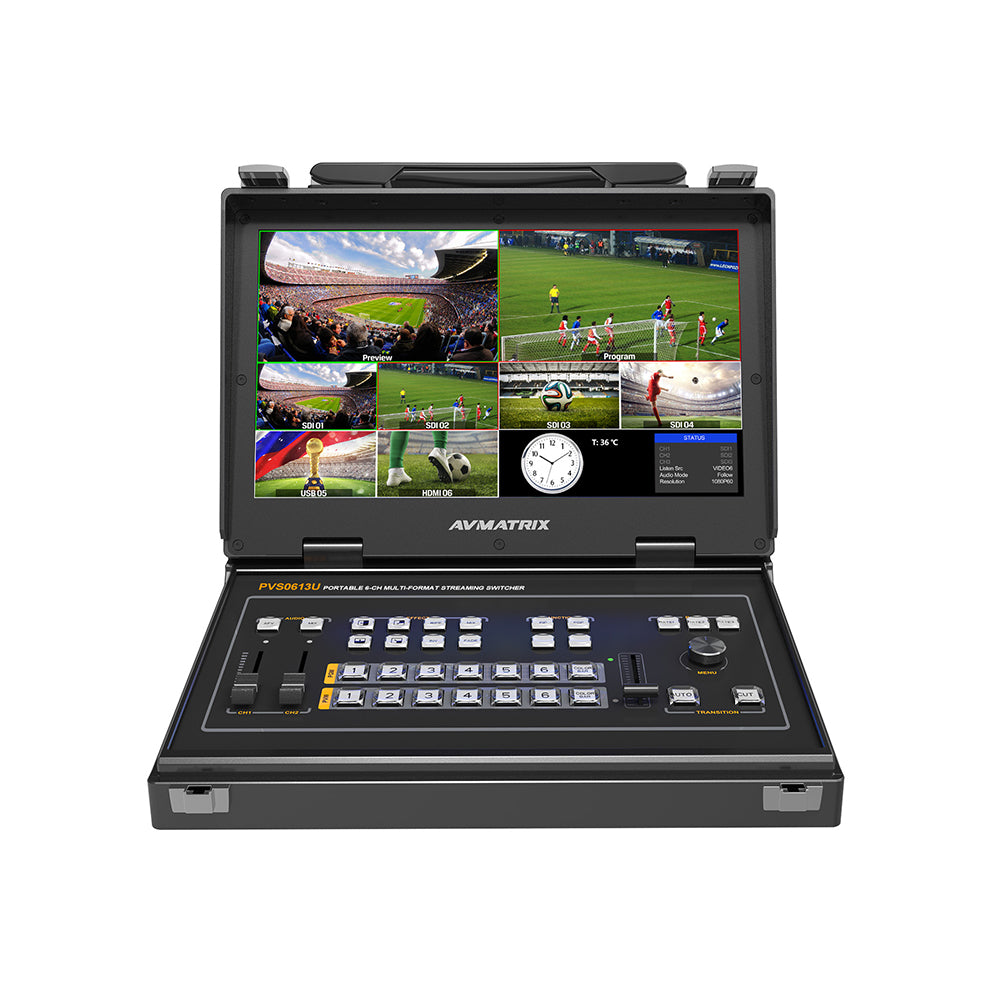

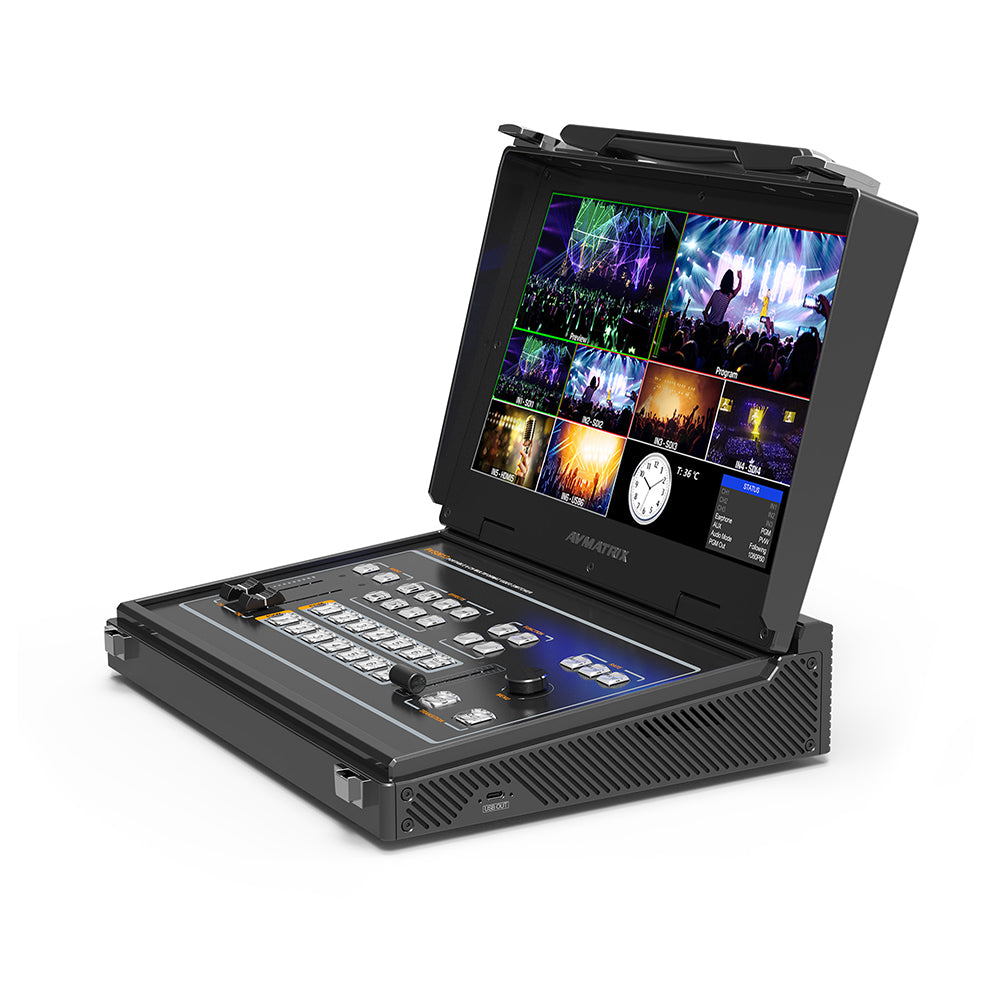

Built into a sturdy metal case, it features a 13.3" Full HD screen for multiview monitoring of all sources, preview, and program output. It includes a T-bar for smooth transitions, audio meters, and a built-in clock and menu display.
Features:
● Multiview output fixed at 1080p60; PGM scaled output selectable via a knob

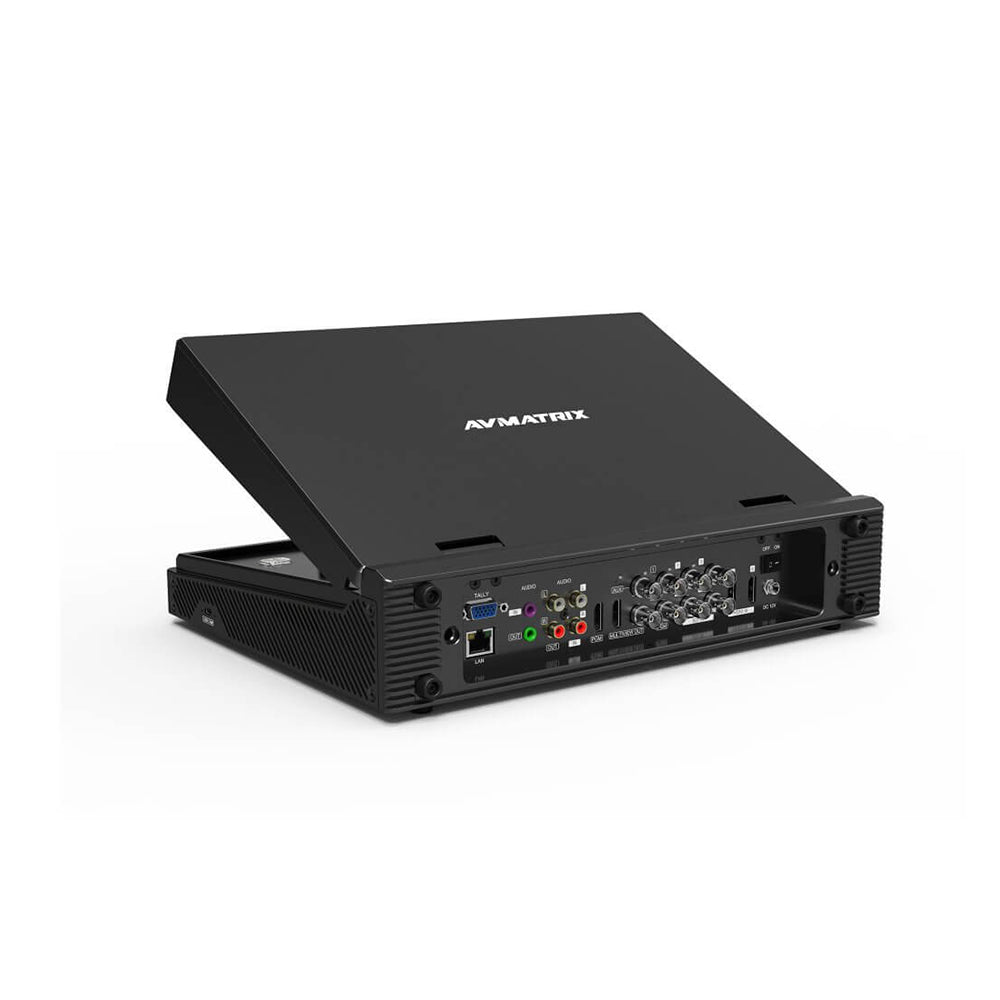

● Two HDMI and four SDI inputs
● One HDMI and two SDI PGM outputs
● One HDMI and one SDI multiview outputs
● SDI AUX output can be selected as PGM or PVW
● UVC livestreaming via USB-C 3.0 connection
● One 3.5mm stereo audio input; one RCA (L/R) input
● One 3.5mm stereo audio output; one RCA (L/R) output
● RJ45 LAN interface (for updates; synchronize local time)
● GPIO tally
● T-Bar/Auto/Cut transitions
● Mix/Fade/Wipe transition effects
● PiP mode with adjustable size and position
● FTB (fade to black) emergency button
Specifications:
Inputs: 4×3G‑SDI + 2×HDMI
Input Format: Up to 1080p60, interlaced, PsF, etc.
Outputs: 2×SDI PGM, 1×HDMI PGM, 1×SDI/AUX, USB‑C
Multiview: 1×HDMI + 1×SDI @1080p60
USB Streaming: UVC/UAC webcam, variety of resolutions
Display: 13.3″ FHD IPS LCD
Transitions: T‑bar, Cut/Auto; Mix, Fade, Wipe; FTB
Audio I/O: Stereo TRS + RCA, mixing + AFV
Power: 12 V DC via barrel, ~25 W
Size / Weight: ~330×243.5×67 mm, ~4 kg
What's inside the box?
1x Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3"" Display
1x 12 VDC, 3A Power Supply
1x USB-C 3.0 to USB-A Cable
