SD1141

1×4 SDI Reclocking Distribution Amplifier

 Specifications

• - Video inputs: 1x 3G/HD/SD-SDI
• - Video outputs: 4x 3G/HD/SD-SDI (output 2 & 4 support DVB-ASI)
• - SDI input format:
• SDI Input (10/12-Bit 4:4:4/4:2:2 RGB, YUV);
• DCI 2K: 23.98/24/25/29.97/30 fps;
• DCI 2KPsF: 23.98/24/25/29.97/30 fps;
• 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps;
• 1080PsF: 23.98/24/25/29.97/30 fps;
• 1080i: 50/59.94/60 fps; 720p: 50/59.94/60 fps;
• PAL: 50 fps; NTSC: 59.94 fps
• - SDI Video Rate: SD/HD/3G-SDI
• - SDI Compliance: SMPTE 259M/292M/296M/372M/424M/425M
• - ASI Compliance: DVB-ASI
• - SDI Auto Switching: Auto selects SD, HD, and 3G-SDI on input
• - Color Space: RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10it/12bit, XYZ 4:4:4 12bit
• - Power Connector: Micro USB, Threaded locking connector
• - Voltage Range: USB 5V, DC 5~17V
• - Power Consumption: 1W
• - OperatingTemperature: -20°C~60°C
• - StorageTemperature: -30°C~70°C
• - Relative Humidity: 0%~90% Non-condensing
• - Dimension: 125.5 x 104 x 24.5mm
• - Net Weight: 512g

Automatically Detects SD, HD and 3G-SDI; 4 Buffered and Re-clocked Outputs; 3G/HD/SD-SDI Multi-rate Signal Processing

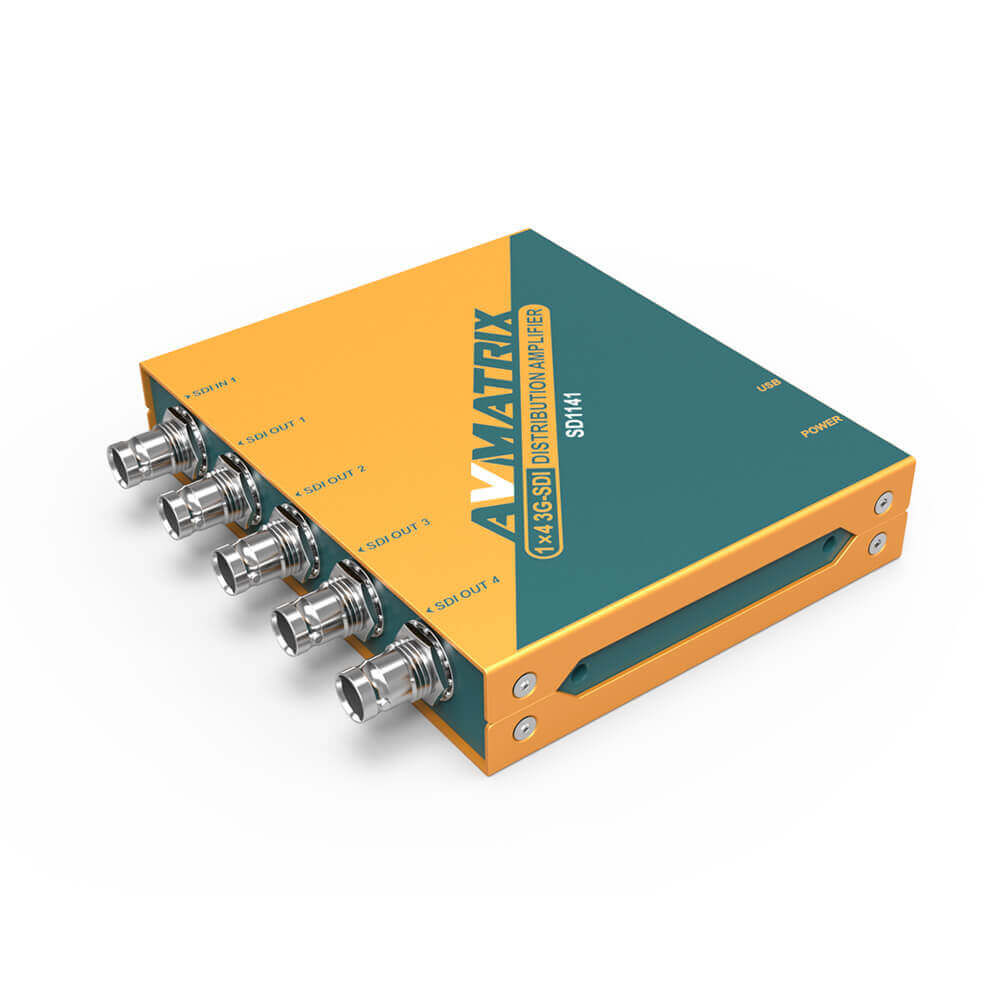

The SD1141 is a miniature, low-cost 1×4 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier. Featuring four separately buffered SDI outputs, the SD1141 provides automatic input detection, re-clocking and cable equalization.
