AVMatrix

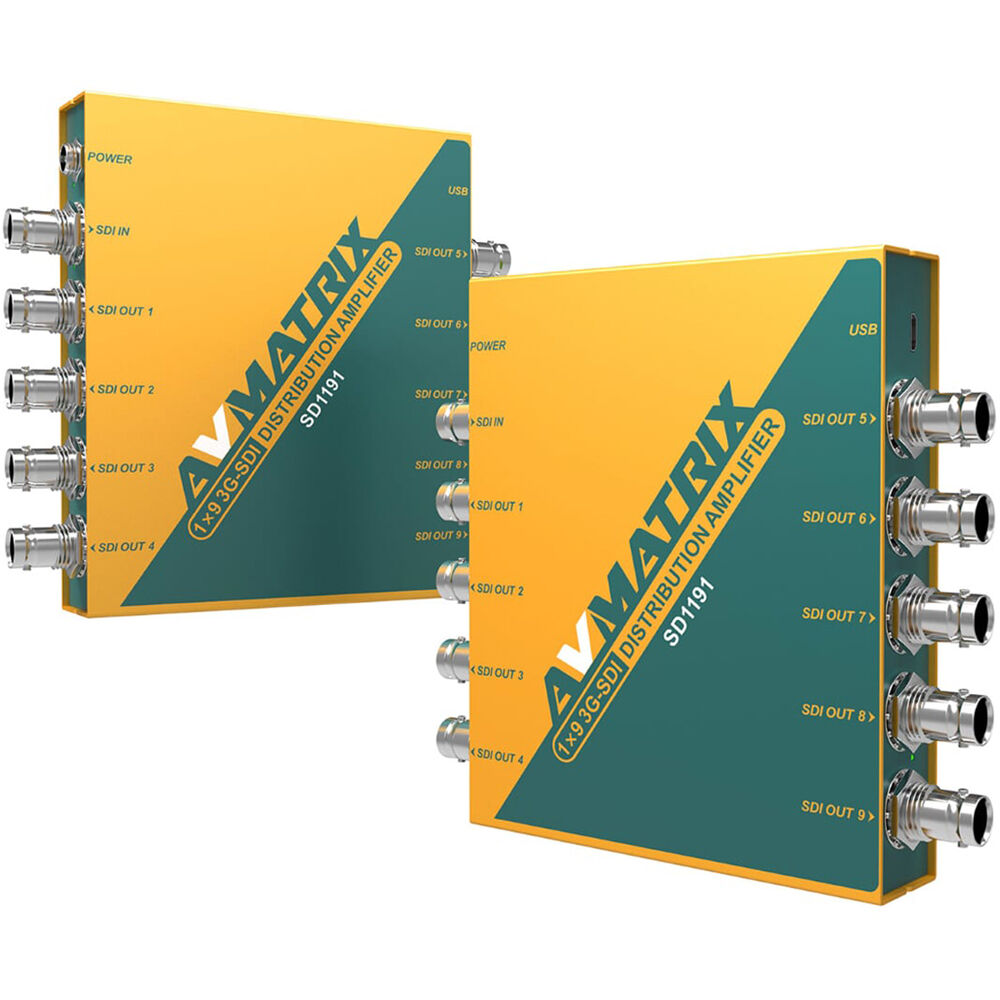

AVMatrix SD1191 1×9 SDI Reclocking Distribution Amplifier with 3G/HD/SD-SDI Multi-rate Signal Processing, 9 Buffered and Re-clocked Outputs, Support DVB-ASI Signals, LED Indicators, Locking Power Supply, and Mounting Ear

Name: AVMatrix SD1191 1×9 SDI Reclocking Distribution Amplifier with 3G/HD/SD-SDI Multi-rate Signal Processing, 9 Buffered and Re-clocked Outputs, Support DVB-ASI Signals, LED Indicators, Locking Power Supply, and Mounting Ear
Brand: AVMatrix
SKU: AVMATRIX SD1191
Price: 9464.0 PHP
Availability: InStock

₱9,464.00 PHP

~~₱13,813.00 PHP~~ ₱9,464.00 PHP

Sale Sold out

Tax included.

SKU:

Product variants

SD1191

1×9 SDI Reclocking Distribution Amplifier

The SD1191 is a miniature 1×9 3G/HD/3G-SDI re-clocking distribution amplifier. The SD/HD/3G-SDI input signal is automatically detected. It features cable equalization and re-clocking techniques that enable the SDI cable distance up to SD: 400m, HD: 200m, 3G: 120m. It is also an ASI distributor amplifier that all input and outputs are compatible with ASI signal.

Specifications

SDI Video Input: 1xSD/HD/3G-SDI(75Ω BNC)
SDI Video Output: 9xSD/HD/3G-SDI/ASI (75Ω BNC)
SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
Power Supply: Threaded locking DC connector
Voltage Range: DC 5V to 17V
Power Consumption: 5W
Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 70°C
Dimensions 4.94" x 4.09" x 0.96"
Weight: 1.32 pounds
