Overview

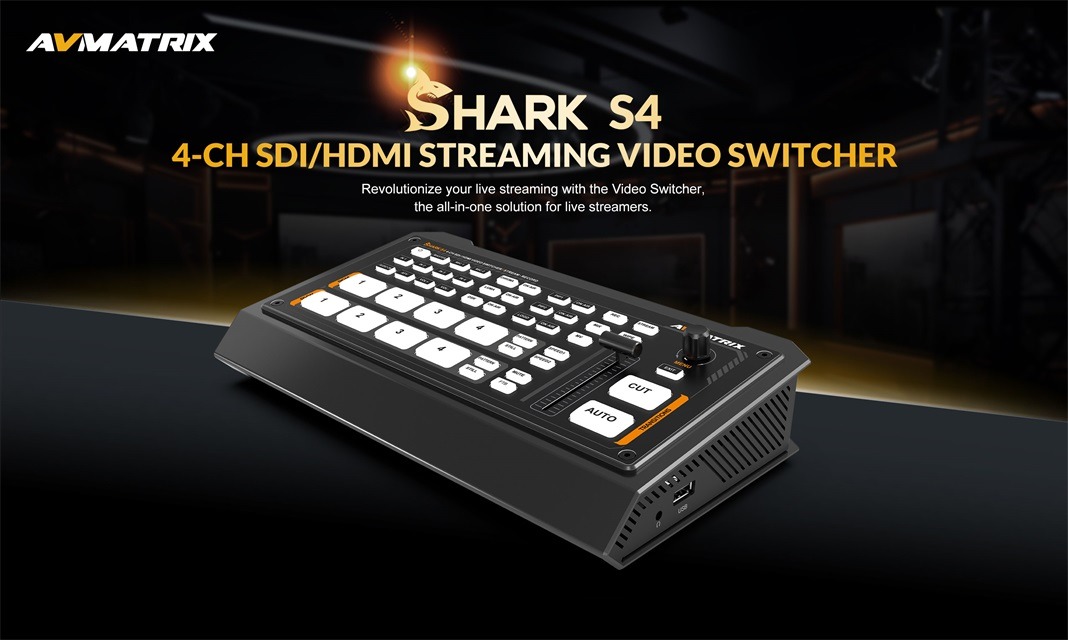

Switch up to two HDMI and two 3G-SDI video inputs while monitoring the program feed with the Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1" IPS Display from AVMATRIX. This model features a folding design with a 10.1" IPS LCD screen on the lid. Use the USB-C output together with your computer for capture and streaming. This compact switcher supports up to 1080p60 video input and output with embedded audio and offers audio mixing using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port.

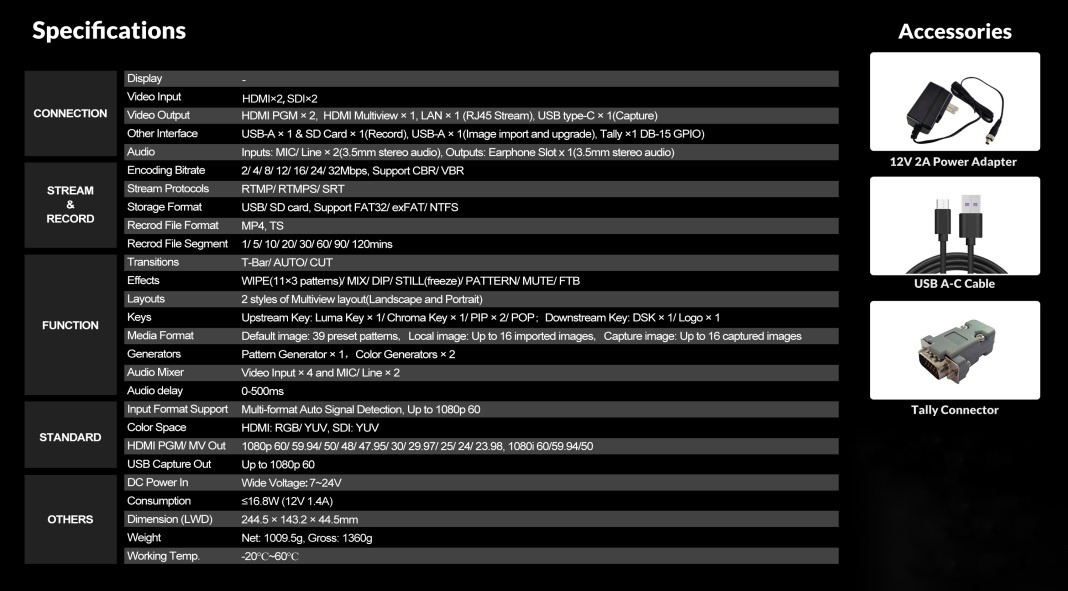

Specifications:

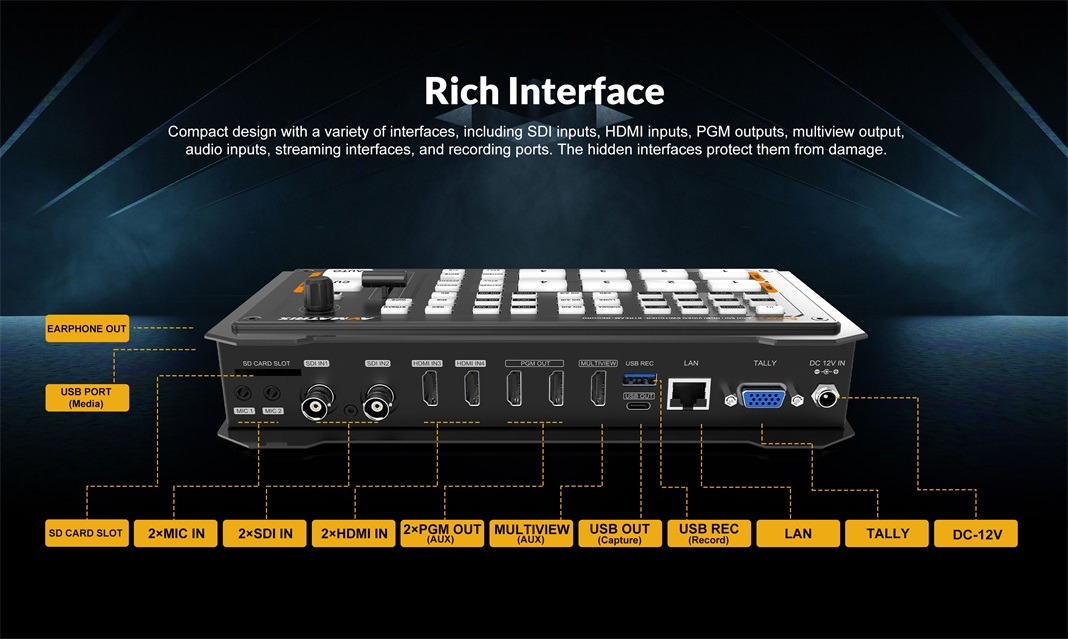

● Compact 4-Channel Video Switcher
● 2 x 3G-SDI & 2 x HDMI Inputs
● 1 x HDMI Multiview & 2 x HDMI PGM Out

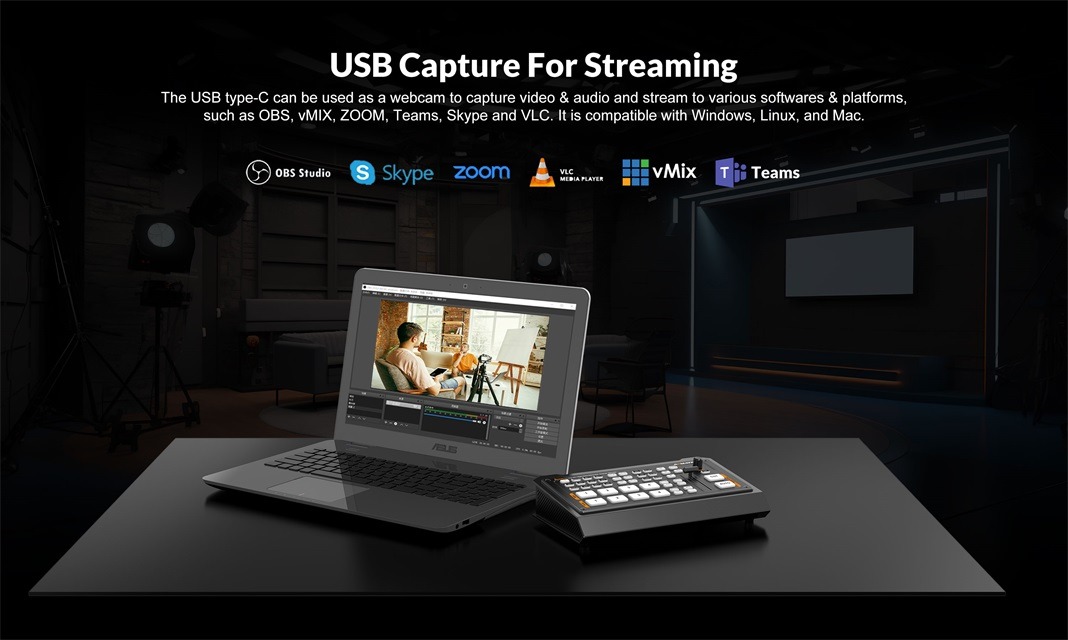

● 1 x USB-C Out for Capture & Streaming
● Supports up to 1080p60 Video In/Out

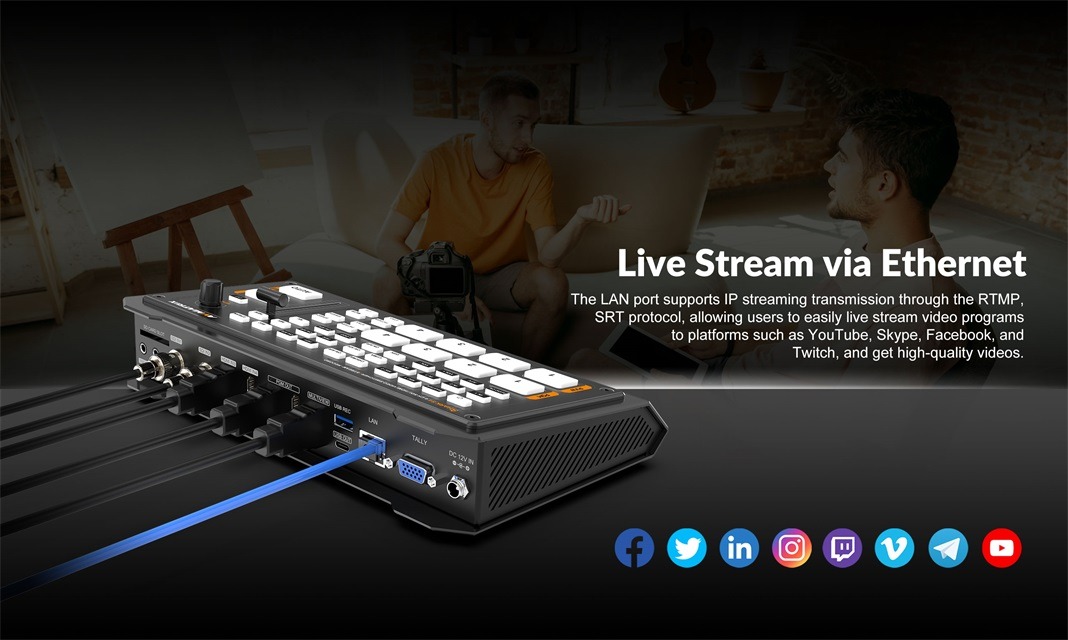

● 1 x LAN for Control Input & Streaming

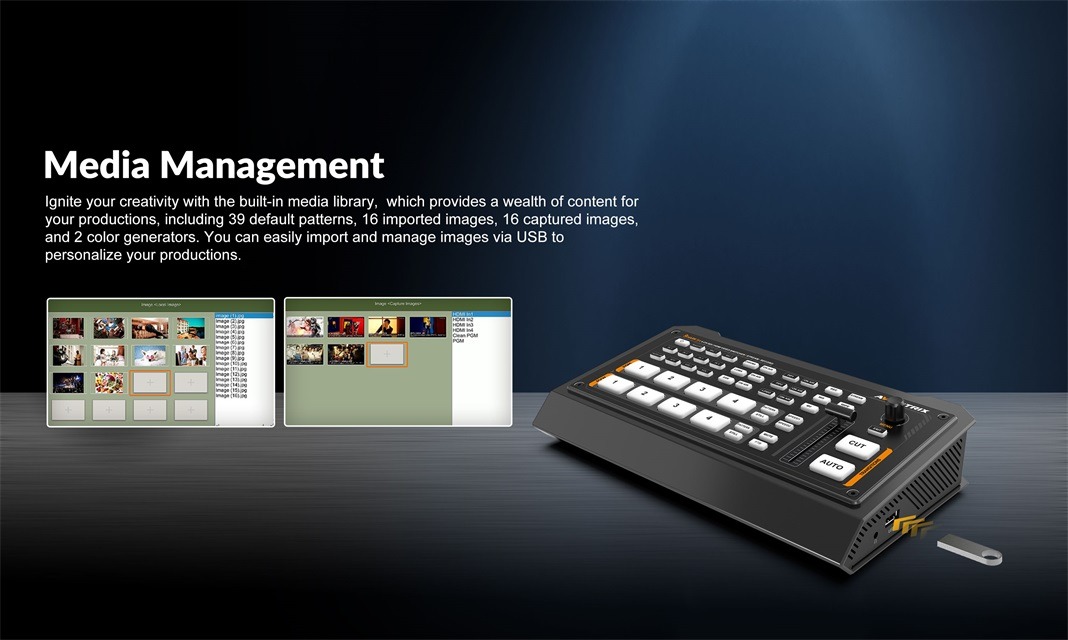

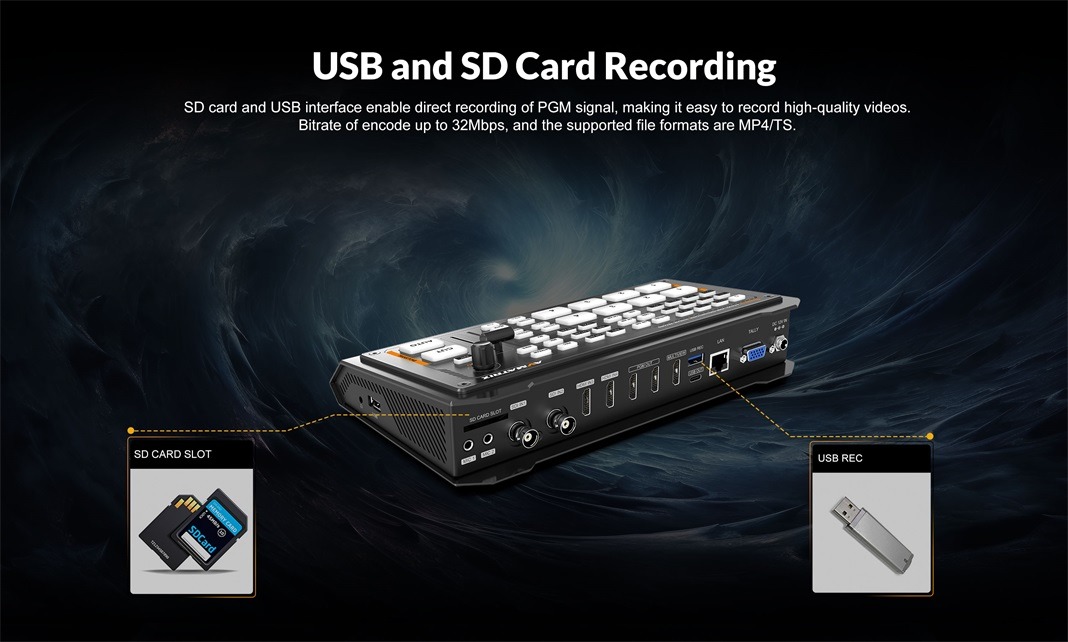

● SD Card/USB-A Recording, 2 x Mic Inputs
● T-Bar, Auto & Cut Transitions
● Audio Mixing, Multiview Output
● Adjustable PiP Size & Positioning
What's in a box

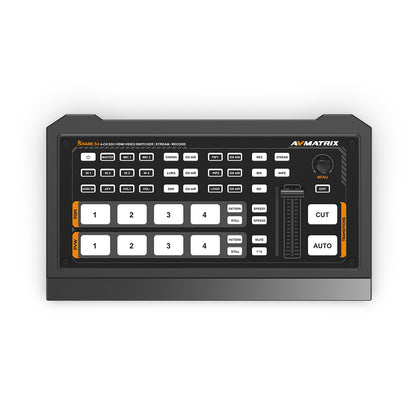

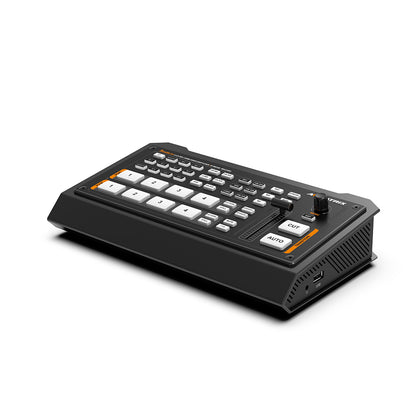

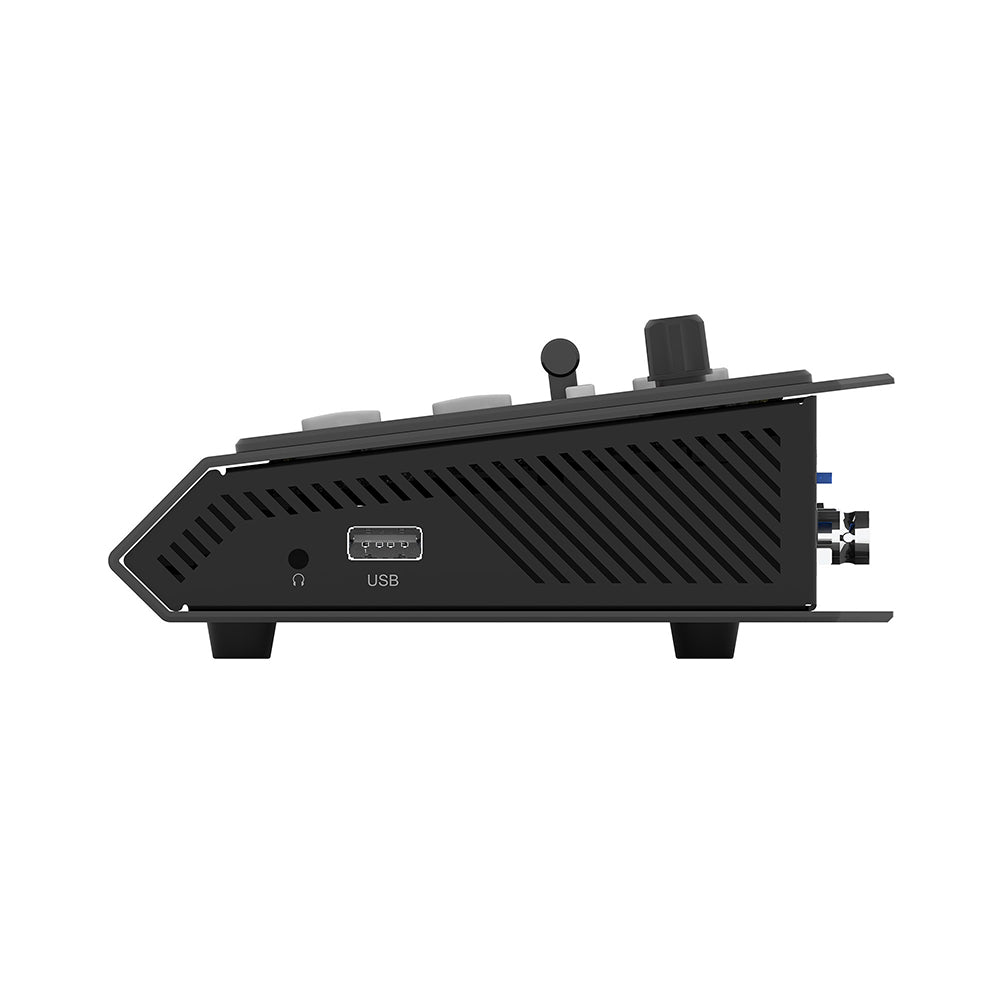

● 1x AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher
● 1x 12V Power Supply
● 1x USB-A to USB-C Cable
● 1x Tally Connector
