Description:

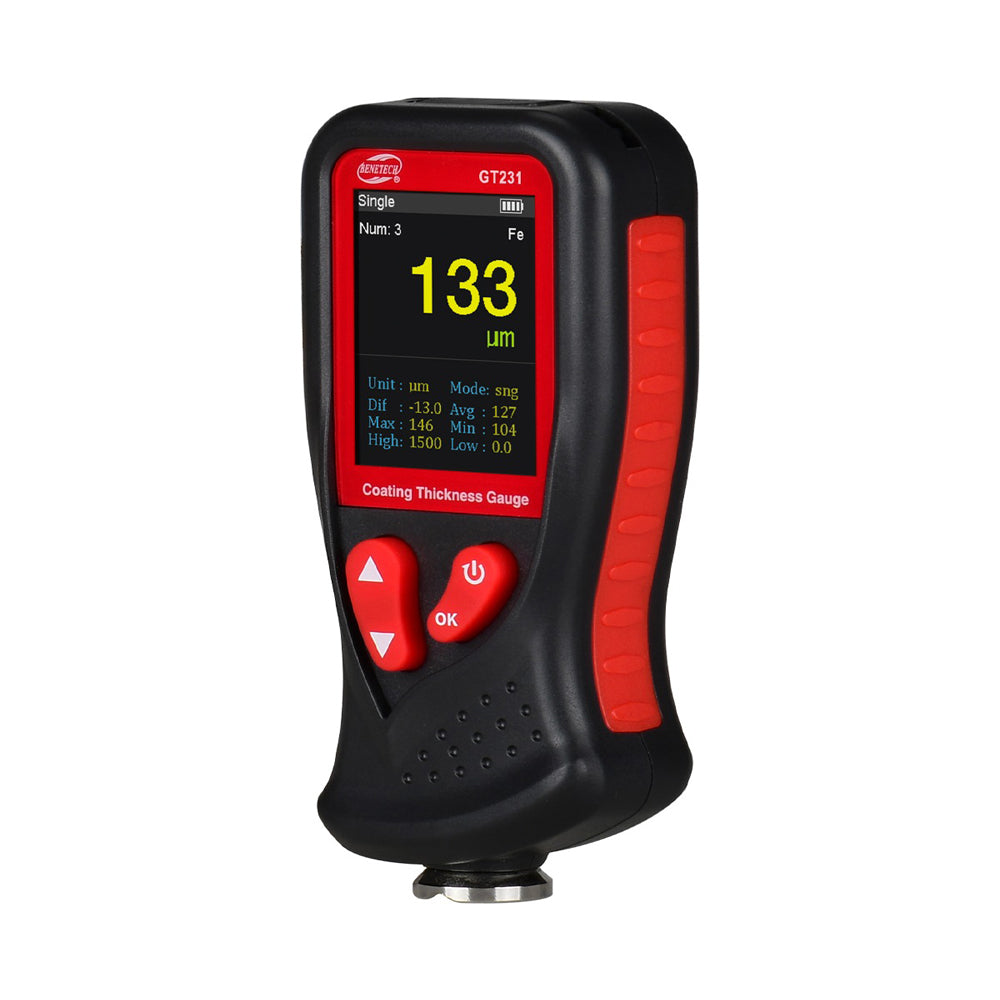

This product is a color-screen portable coating thickness gauge with highdefinition display, which can quickly, non-destructively and accurately me-asure non-magnetic coating thickness on magnetic metal substrates and non-metallic coating thickness measurement on non-magnetic metal sub-strates. At the same time it can automatically identify magnetic metal substrate and non-magnetic metal substrate, and is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing areas.
Features
This Coating Thickness Gauge thermometer possesses the following features:
- Menu operation and color-screen HD display.
- Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate.
- Two measurement methods: single measurement, continuous measurement.
- Basic calibration and Zero-point calibration available.
- Metric/imperial unit and storage function.
- Screen rotation, charge protection, multi-interface displays, screen brightness selection.
- Automatic shutdown.
Specifications:
-
BRAND: BENETECH
-
MODEL: GT230 (1300µm) / GT230 (1800µm) Coating Thickness Guage
-
Measurement range: 0 ~ 1300um/51mil
-
Resolution: ( 0.1μm(<100μm),1μm( ≥100μm))/0.1mil
-
Measurement error: ≤150μm ±5μm>150μm ±(3%H+1μm)
-
Minimum diameter of magnetic metal substrate: 12mm
-
Minimum thickness of magnetic metal substrate: 0.5mm
-
Minimum radius of curvature for magnetic convex substrate: 2mm
-
Minimum radius of curvature for magnetic concave substrate: 11mm
-
Minimum diameter of non-magnetic metal substrate: 50mm
-
Minimum thickness of non-magnetic metal substrate: 0.5mm
-
Working voltage: DC 3.7V (Lithium battery capacity 1000mAh)
-
Size: 52.9*26*117mm
-
Weight: 102.4g(including battery)
What's in the box:
- GT230 (1300µm) / GT230 (1800µm) Coating Thickness Guage x 1
