Description:
This instrument is controlled by intelligent microcontroller chip, with high accuracy and high reliability; it can be used to measure grounding resistance of various power facilities wiring, electrical equipment, lightning protection equipment and other grounding devices, and it can also measure ground voltage. (Note: This instrument is not suitable for harsh outdoor environmental conditions, such as raining, lightning, etc.)
Features:
- Digital Earth Resistance Tester possesses the following features:
- backlight and battery detection function.
- data holding.
- It can be used for precise three-wire measurement or simple
- two-wire measurement.
- When measuring ground resistance, if C or E end of test lead is
- not in good contact, "---- Ω" warning appears on LCD.
- "OL" stands for over range.
- Double insulation or reinforced insulation safety structure
Specifications:
-
BRAND: BENETECH
-

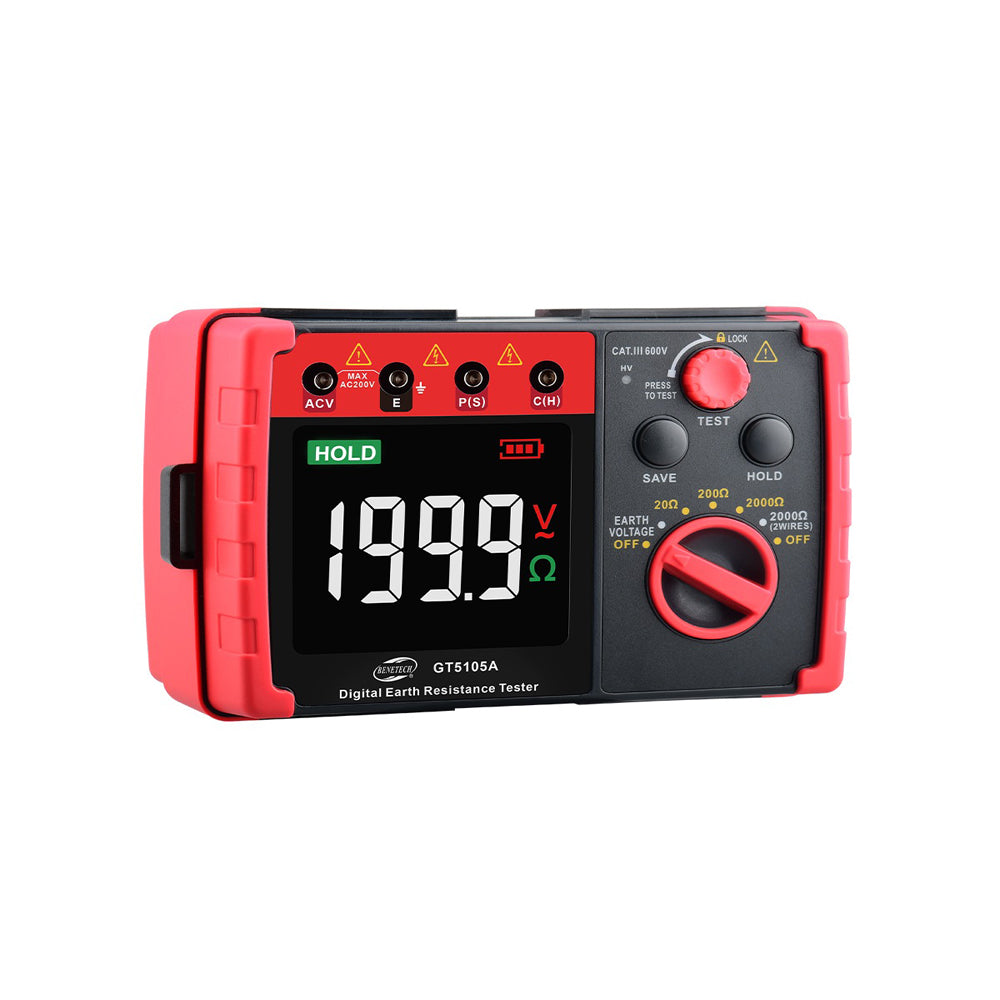

MODEL: GT5105A Ground Resistance Tester
-
1.1 Measurement range and measurement error
-
(under condition of 20℃±5℃and≤75%RH)
-
Basic Function Range Accuracy Resolution
-
Ground 20Ω ±(2%+10) 0.01Ω
-
resistance 200Ω ±(2%+3) 0.1Ω
-
2000Ω ±(2%+3) 1Ω
-
2000Ω(two wires) ±(2%+5) 1Ω
-
Ground voltage 200V ±(2%+5) 0.1V
-
1.2 Application standard:
-
IEC 61010-1 CAT.Ⅲ 600V Pollution degree 2
-
CAT.Ⅰ 5000V Pollution degree 2
-
IEC 61326-1 (EMC standard)
-
IEC 60529 (IP40)
-
1.3 measurement method:
-
(1) Ground voltage measurement: average response
-
(2) Ground resistance measurement: test signal frequency:
-
about 820Hz, current: 20Ω about 3.2mA
-
1.4 Working environment: temperature: 5℃~ 40℃; relative
-
humidity: ≤80 ~ RH (no fog) Altitude≤2000 meters
-
1.5 Storage conditions: temperature: -20 ~ 60 ℃; relative
-
humidity: ≤70% RH (no fog)
-
1.6 Power supply: 9V power supply [1.5V (No. 5 alkaline
-
battery) * 6]
-
1.7 Overload protection:
-
Ground resistance: 200V AC (10 seconds)
-
Ground voltage: 400V AC (30 seconds)
-
1.8 Insulation resistance: The insulation resistance between
-
measurement circuit and case is not less than 20MΩ
-
1.9 Dimensions: 176mm * 77mm * 110mm
What's in the box:
- GT5105A Ground Resistance Tester x 1
