Description:
This instrument applies DC voltage converter with low loss, high variation ratio, and inductive energy storage, which can convert 9V voltage to 250V/1000V DC voltage; it applies digital electric bridge to measure insulation resistance; it has functional characteristics of portability, wide measuring range, backlight display, and data holding; it can measure electric supply as well. When using straps, the operator can operate the instrument with both hands. The instrument has a fashionable appearance and stable performance. It is suitable for measuring electrical machinery, cable, electromechanical equipment, telecom equipment, electric power facilities and other insulation resistance.
Features:
- Insulation Resistance Measurement
- Alternating Current (AC) Measurement
- Direct Current (DC) Measurement
- Small Resistance Measurement
- Measured Data Holding
- Low Battery Indication
- Large LCD digital display
- External Direct Current (DC) power supply DC9V 1.5A
- Over-limit Alarm
- Red Alarm Light, Buzzer Alarm
- High Voltage Alarm
Specifications:
-
Brand: BENETECH
-

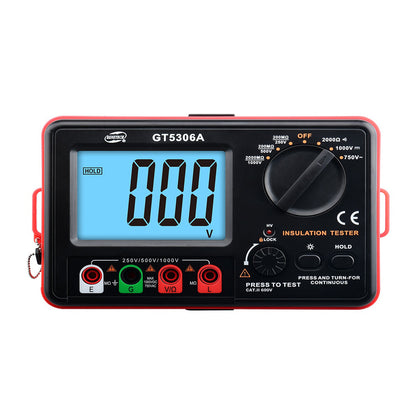

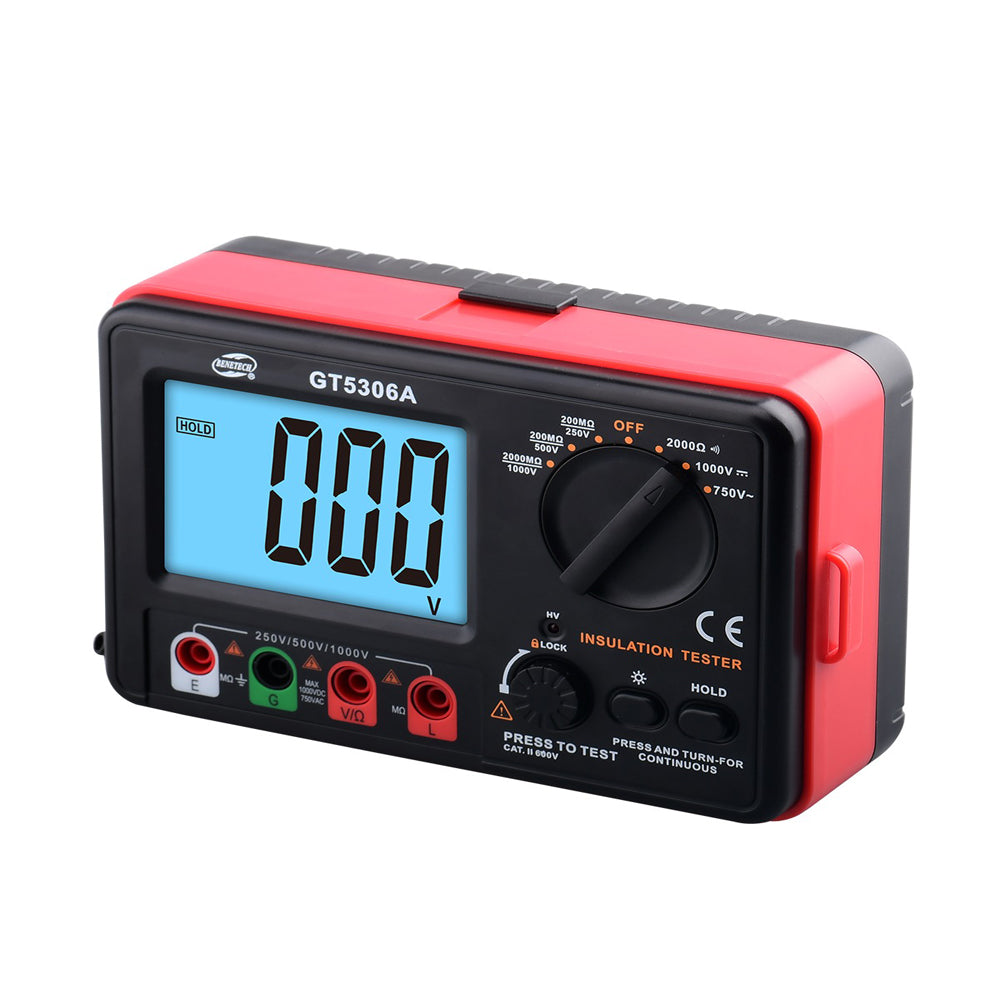

MODEL: GT5306A Insulation and Continuity Tester
-
(1)Accuracy:±(a%+least significant digit)
-
(2)Environment temperature to ensure accuracy: 23±5℃
-
(3)Relative humidity:＜75%
-
(4)Calibration guarantee period: 1 year since the manufacture date
-
(5)Voltage input impedance: 1MΩ
-
(6)AC voltage frequency response: 50~200Hz
-
Basic Function|Measuring Rage|Basic Accuracy
-
Output Voltage|250V/500V/1000V|±10%
-
Test Current|250V(R=250kΩ)1mA|500V(R=500kΩ)1mA,1000V(R=1MΩ),1mA|±10%
-
Insulation Resistance|250V:1MΩ~200MΩ.500V:1MΩ~200MΩ,1000V:10MΩ~2000MΩ|±(4%±2)
-
Short-circuit Current : ＜1.8mA
-
Median Resistance|250V/500V:100MΩ|1000V:1000MΩ
-
Resistance, Continuity Test|0Ω~2KΩ,<50Ω buzzer will make a sound,Test Current:1mA|±(0.8%±6)
-
DC Voltage Measurement|0V~1000V|±(0.5%±6)
-
AC Voltage Measurement|0V~750V|±(1%±6)
-
Jack PositionInsulation Resistance E and L Voltage,Resistance： V/Ω and G
- GT5306A Insulation and Continuity Tester X 1
