Overview and Features:

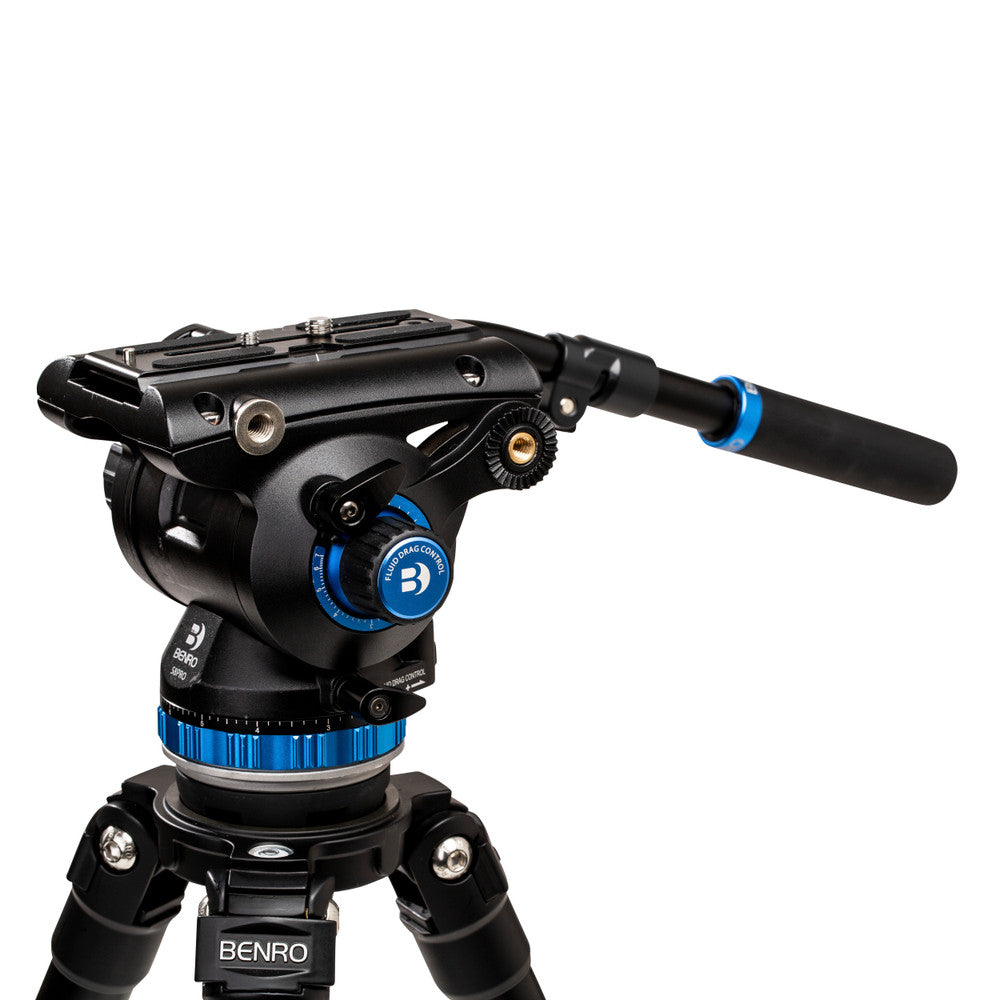

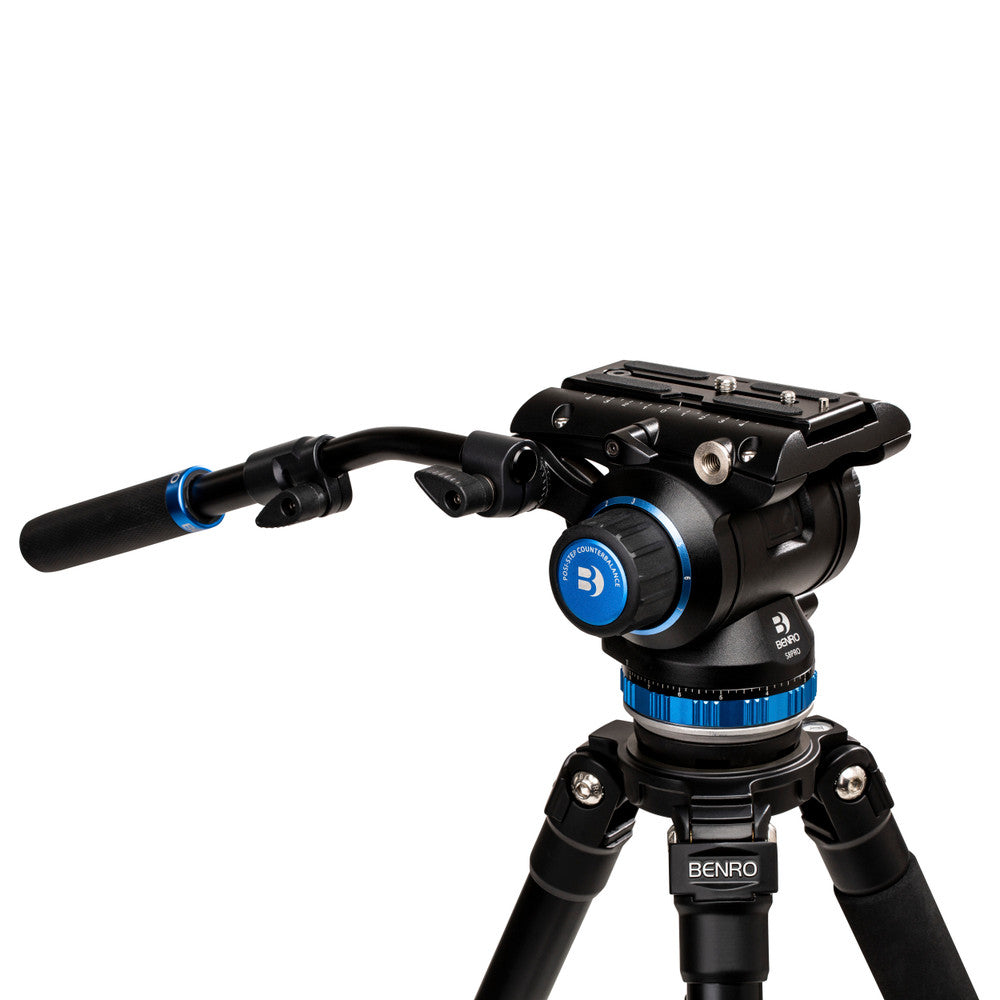

S8Pro Fluid Head

• 17.6 lb payload
• 75mm flat base with a 3/8"-16 thread
• Can also be mounted directly on most sliders, jibs, and monopods
• 7+0 steps of counterbalance
• Continuous pan and tilt drag
• Independent pan and tilt locks
• +90/-75° tilt range
• 360° pan range
• Made of magnesium and aluminum
• Rosette adapters on the left and right side for attaching the included pan bar
• Sliding camera plate with safety lock
• 1/4"-20 and 3/8"-16 camera screws included and can be stored in dedicated spaces on the top of the head, underneath the camera plate
• Two 3/8"-16 threaded holes for accessories

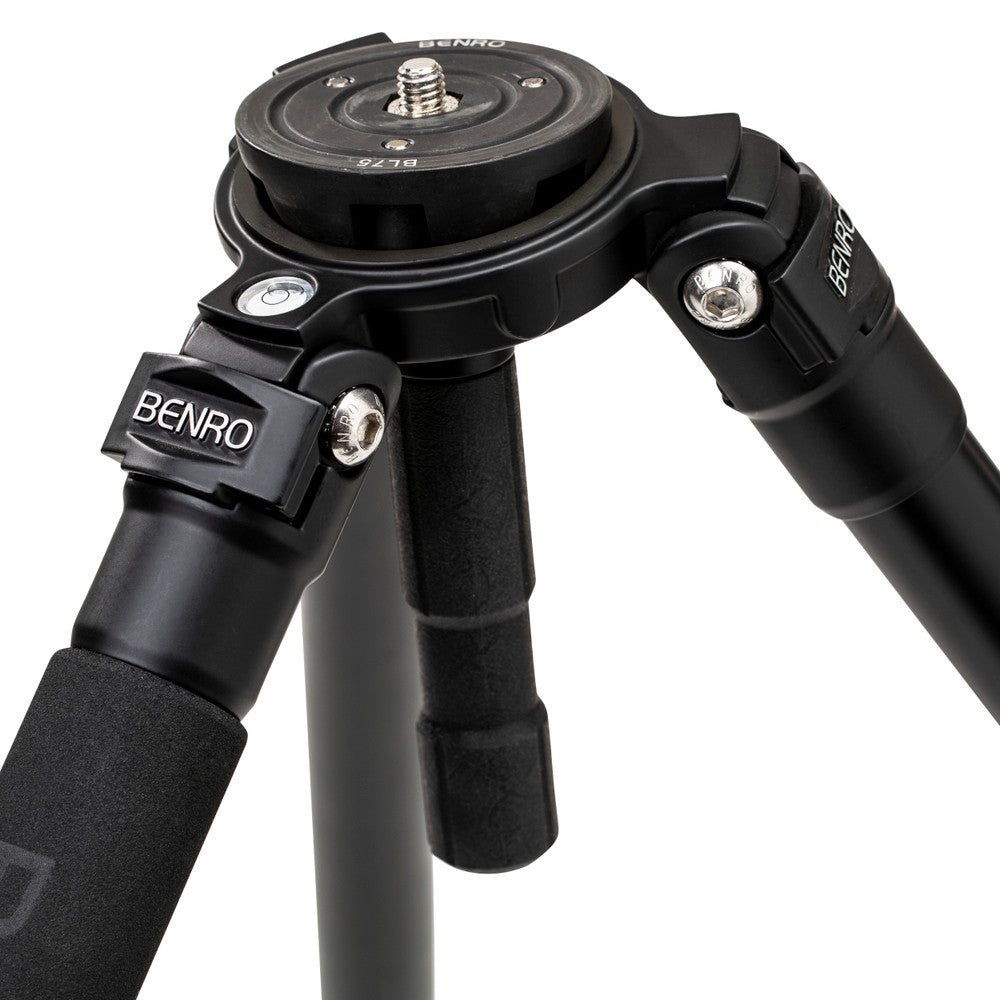

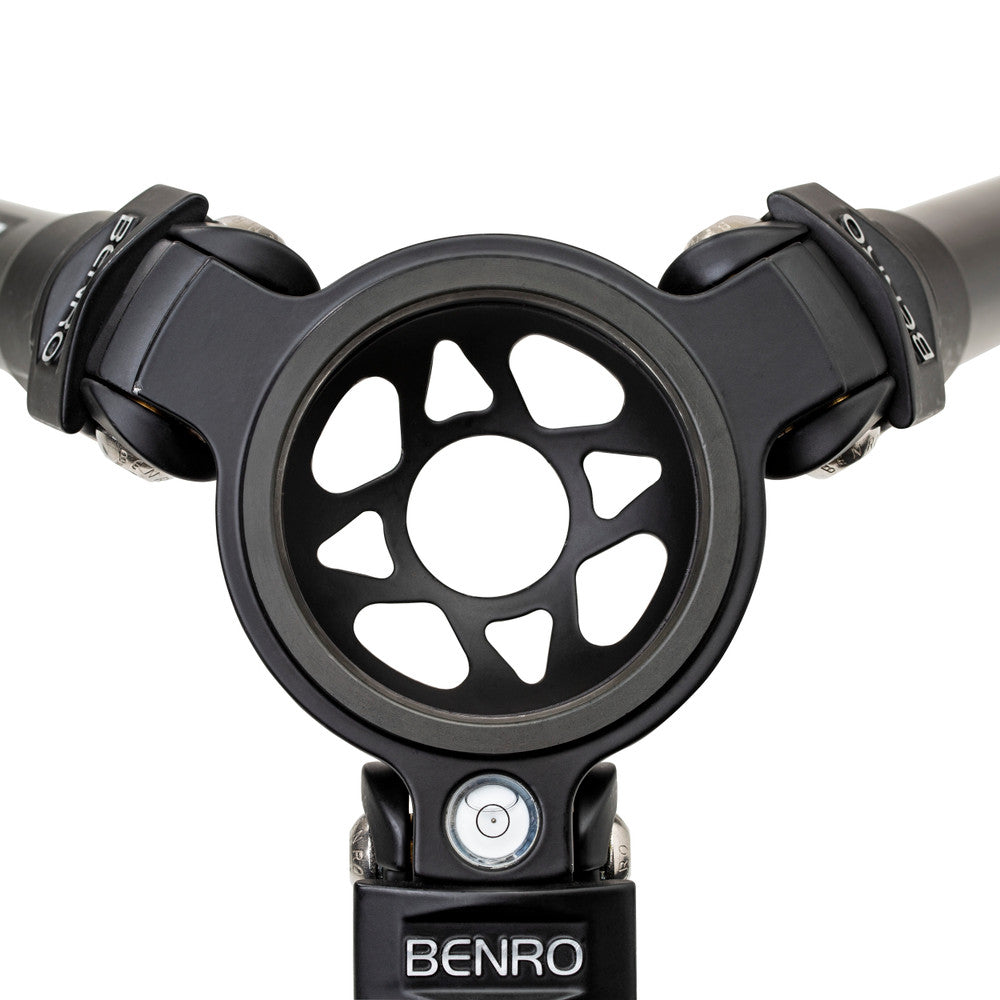

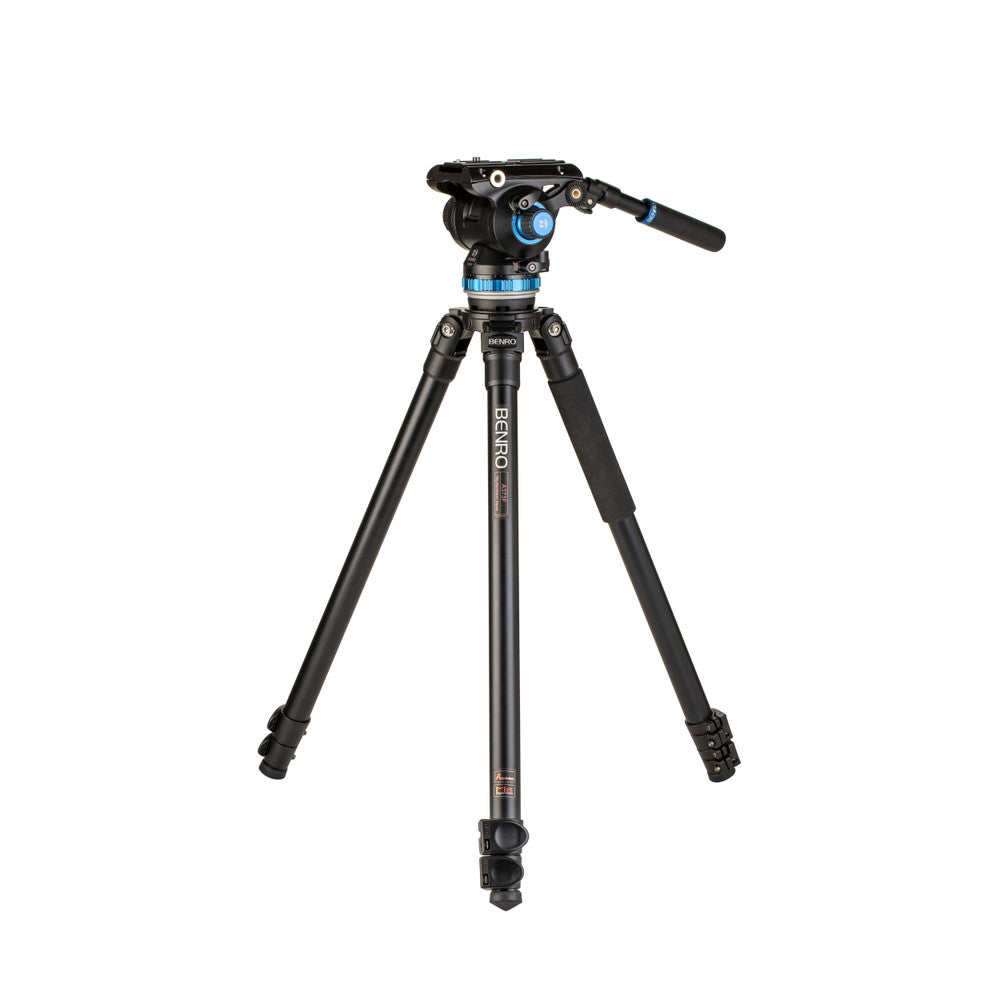

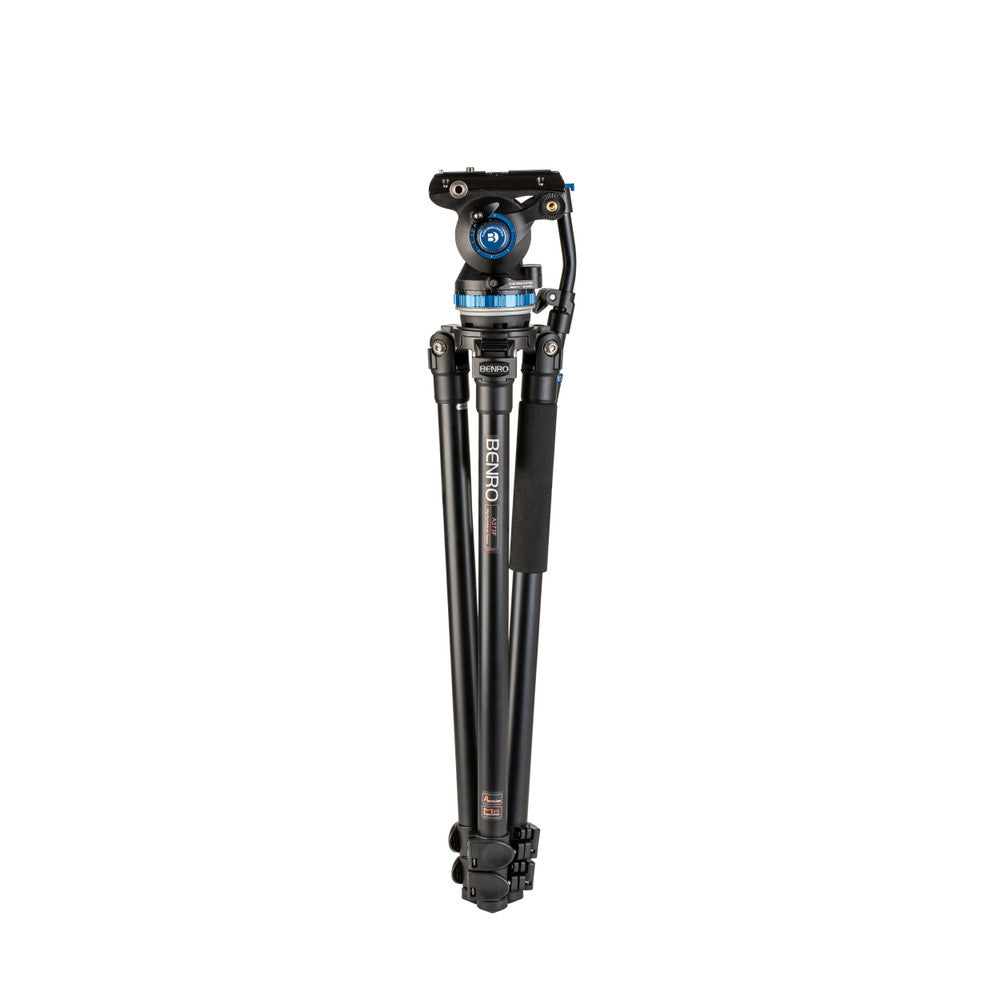

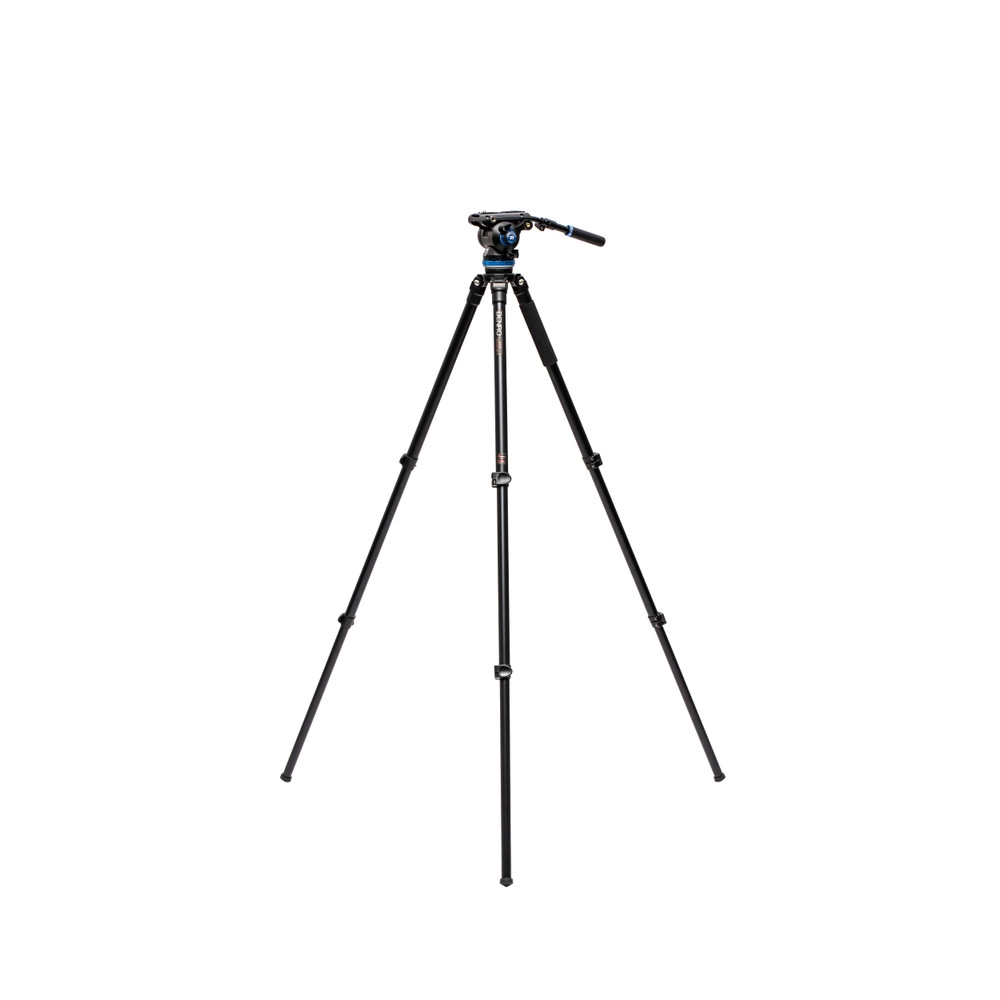

A373F Tripod

• 75mm bowl tripod with a 75mm half-ball adapter
• Maximum height of 64" with the S8Pro attached
• Low-angle minimum height of 12.8"
• Single-tube legs independently adjustable into three positions
• Spiked and rubber feet

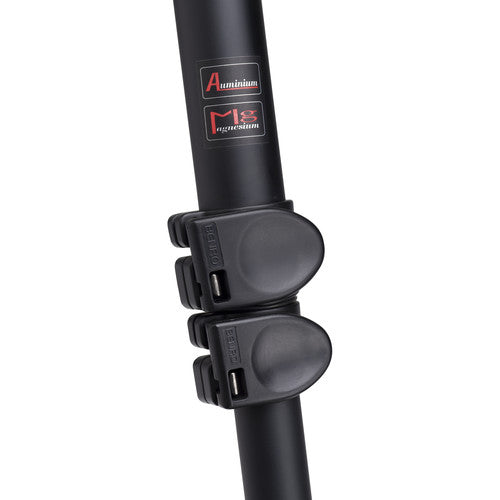

• Flip leg locks
• Aluminum construction



Specifications

• Back Tilt Range: 80°
• Bowl Size (mm): 75
• Bubble Level: Yes
• Closed Length (in/cm): 31.49in / 80.0cm
• Converts to Monopod: No
• Counterbalance: Steps
• Drag Control: Continuous
• Foot Mount: Yes
• Foot Size (mm): Φ39*40
• Foot Type: Q235+EPDM
• Forward Tilt Range: 90°
• Head Mount: 3/8"-16
• Head Type: Video Head
• Item Includes: Tripod, Video Head, Pan Arm, Camera Plate and Carrying Case
• Leg Diameter 1 (mm): 32.4
• Leg Diameter 2 (mm): 28.6
• Leg Diameter 3 (mm): 25.2
• Leg Lock Type: Flip Lock
• Leg Material: Aluminum
• Leg Sections: 3
• Maximum Height (in/cm): 64.37in / 163.5cm
• Maximum Payload Capacity (lb/kg): 17.6lb / 8.0kg
• Minimum Height (in/cm): 12.79in / 32.5cm
• Pan Drag: Continuous
• Pan Lock: 3.5Kg
• Panning Range: 360°
• Product Weight (lb/kg): 10.82lb / 4.91kg
• QR Plate - Length (in/cm): 5.16in / 13.1cm
• QR Plate - Width (in/cm): 1.97in / 5.01cm
• Quick Plate Safety Mechanism: Yes
• Quick Release Camera Thread Size: 1/4，3/8
• Quick Release Plate Lock: Yes
• Quick Release Type: QR8PRO
• Replaces (SKU): A373FBS8
• Separate Panning Lock: Yes
• Tilt Drag: Continuous
• Tilt Lock: 4.5Kg
