Brinno BCC2000 Plus Construction Time Lapse Camera Bundle



Overview



• We have bundled our bestselling BCC2000 with the Camera Extender Kit (AFB1000), as a result, creating our easiest and most efficient time lapse solution yet. Engineered to withstand the unpredictable construction environment, the Extender Kit’s 32ft (10m) long cable provides instant access to your camera through your laptop (Windows 64-bit OS)..





• Have full control of your camera settings while keeping your feet firmly on the ground. The BCC2000 Plus makes using a Brinno camera effortless and efficient. Complete all common camera functions instantly without needing to fumble with SD cards or a camera LCD screen.







Features



• Brinno Command Center (Windows 64-bit OS)
• Ladderfree Access to Camera
• Simultaneous Record & Download

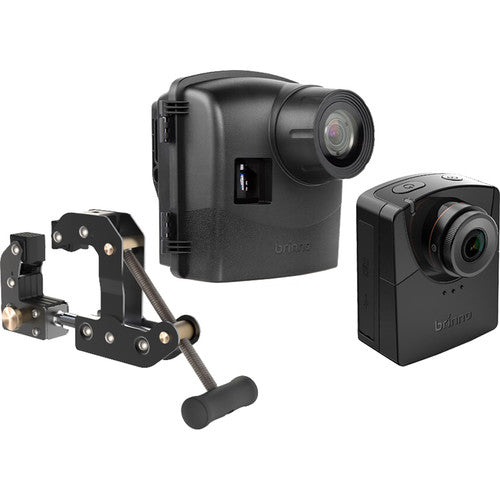

• Camera Extender Kit (AFB1000)
• Time Lapse Camera (TLC2000)
• Power Housing (ATH2000)
• Industrial-grade Clamp (ACC1000)





Specifications

• Brand: Brinno
• Color: Black

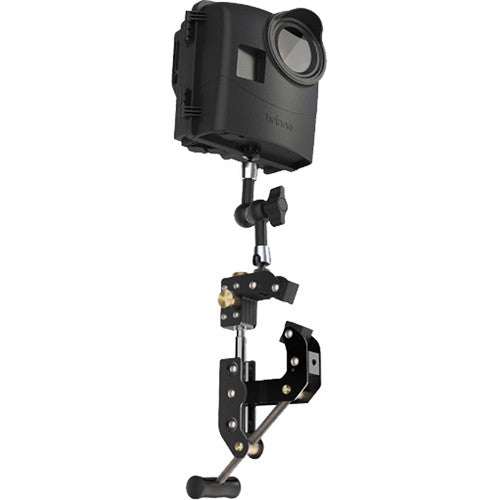

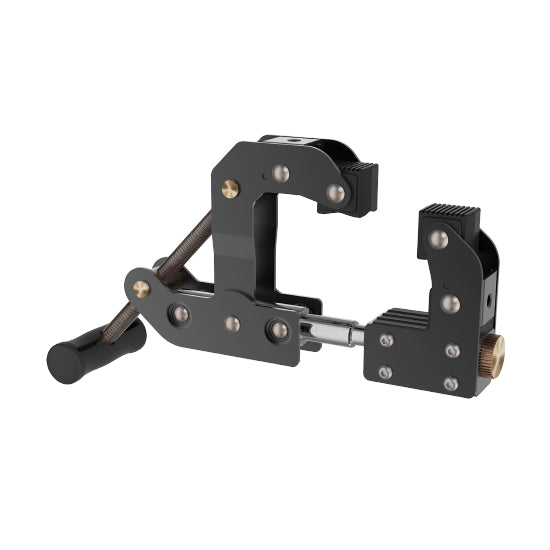

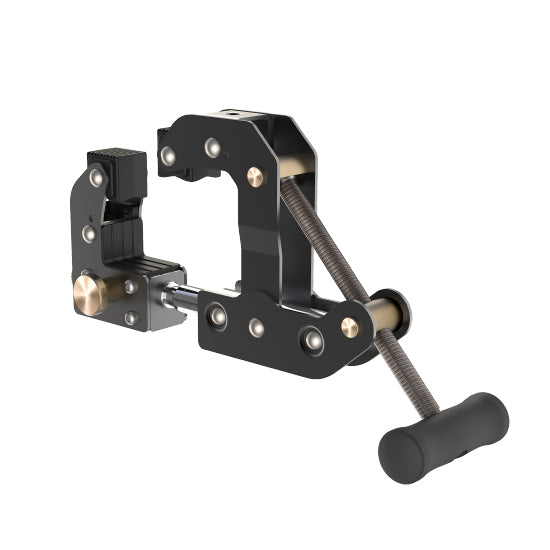

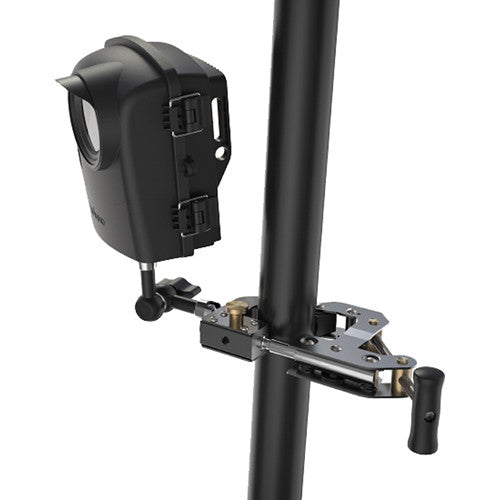

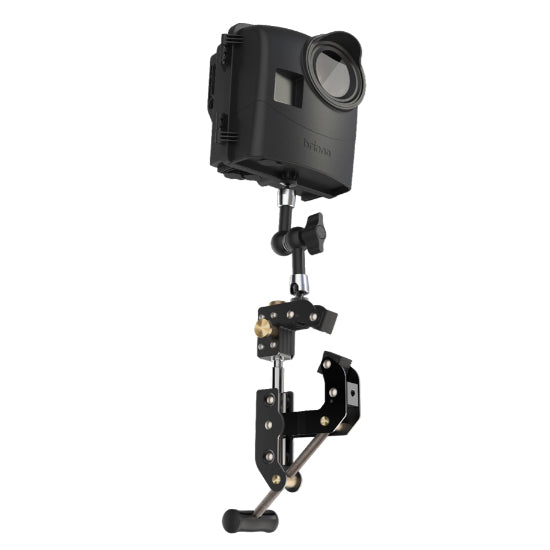

Clamp Mount Kit

• Contents: Camera Clamp; Magic Arm
• Camera Mount Screw: ¼”
• Clamping Range    Tube: 0.4- 3.5 in (10 - 90 mm) / Flat surface: 0.04- 3.5 in (1 -90 mm)
• Magic Arm Load Capacity: 6.6 lb (3 KG)
• Clamp Load Capacity: 110 lb (50 KG) (without extension pole)

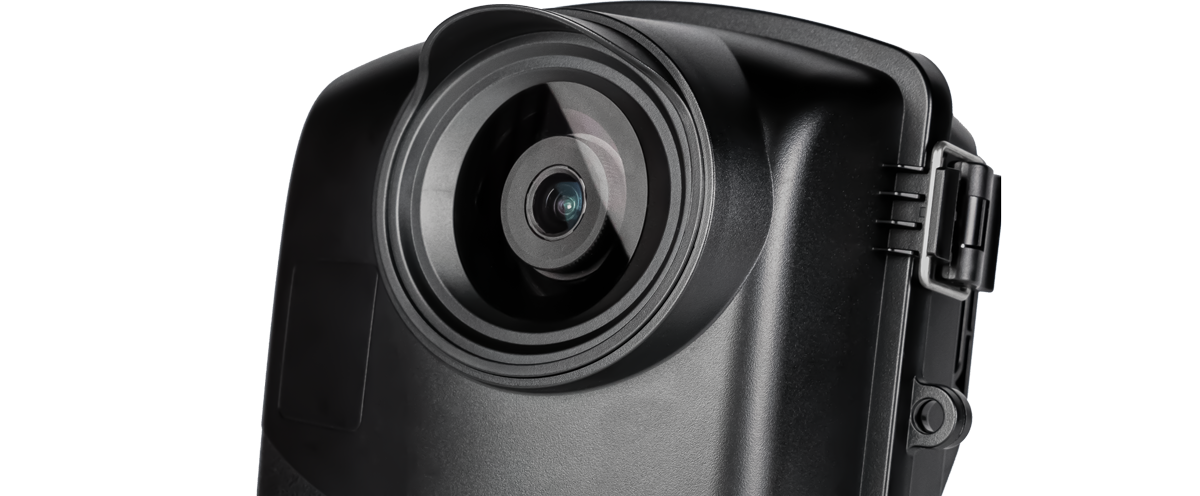

Time Lapse Camera

• Model NO.: TLC2000
• Resolution: 1080P
• Aperture: F2.0
• Field of View: 118°
• Capture Mode: Time Lapse, Step Video, Stop Motion, Still Photo
• LCD Screen: 2" TFT LCD
• Storage: microSD/ microSDHC/ microSDXC
• (up to 128 GB, recommend a minimum of Class 10)*1
• Power Source: 2 AA Batteries
• DC IN 5V 1A (USB-C connector)
• Operating Temperature: 32°F ∼ 113°F(0°C ∼ 45°C)

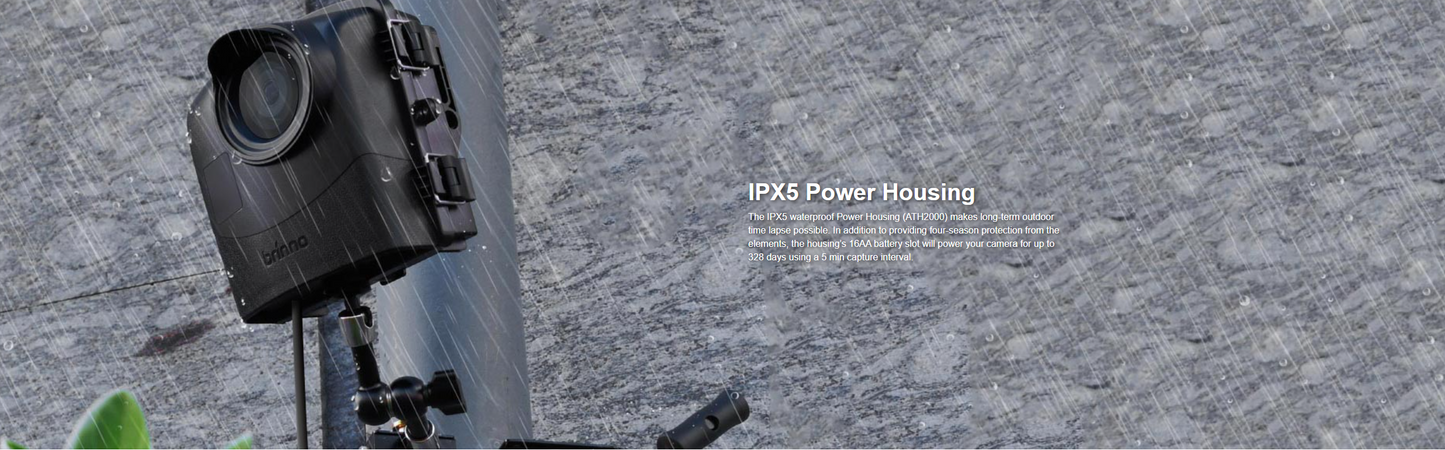

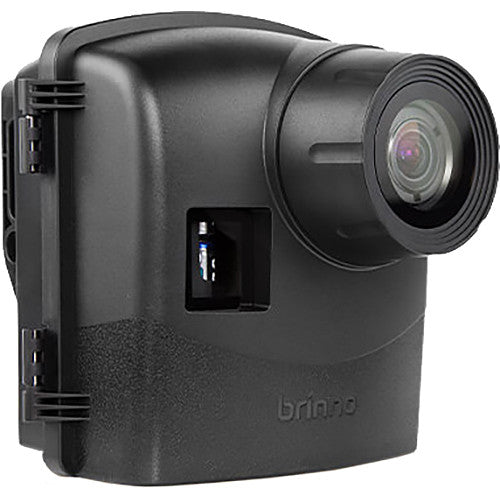

Construction Power Housing

• IP-Rating: IPX5 (weather resistant)
• Compatible Cameras: TLC200, TLC200Pro, TLC120, TLC130, TLC2000, TLC2020(Use with included battery cover adapter)
• Battery Slot: Room for up to 16 add'l AA batteries
• Micro USB connecter (output 5V 2A)
• Exchangeable Lens Covers: Kit lens cover / Extension lens cover (for Brinno BCS lens)



Camera Extender Kit

• Dongle Interface: Output: USB-C (to camera)
• Input: USB-C (for USB-C cable)
• micro USB (for ATH2000 power supplier)


USB-C Cable

• USB-A Male to USB-C Male
• Weatherproofing Cap and Seal
• UV Coating
• 32ft (10m)
• Supports USB 2.0 high speed data transferring at up to 200mbps
• Size (WxHxD): Multi-task dongle ACB1000 - 1.85 x 1.09 x 0.35 in (47.1 x 27.9 x 9 mm)
• USB-C cable - 32ft (10m)
• Mounting Adapter - 4.9 x 2.7 x 0. 6 in (126 x 69 x 14.7 mm)
