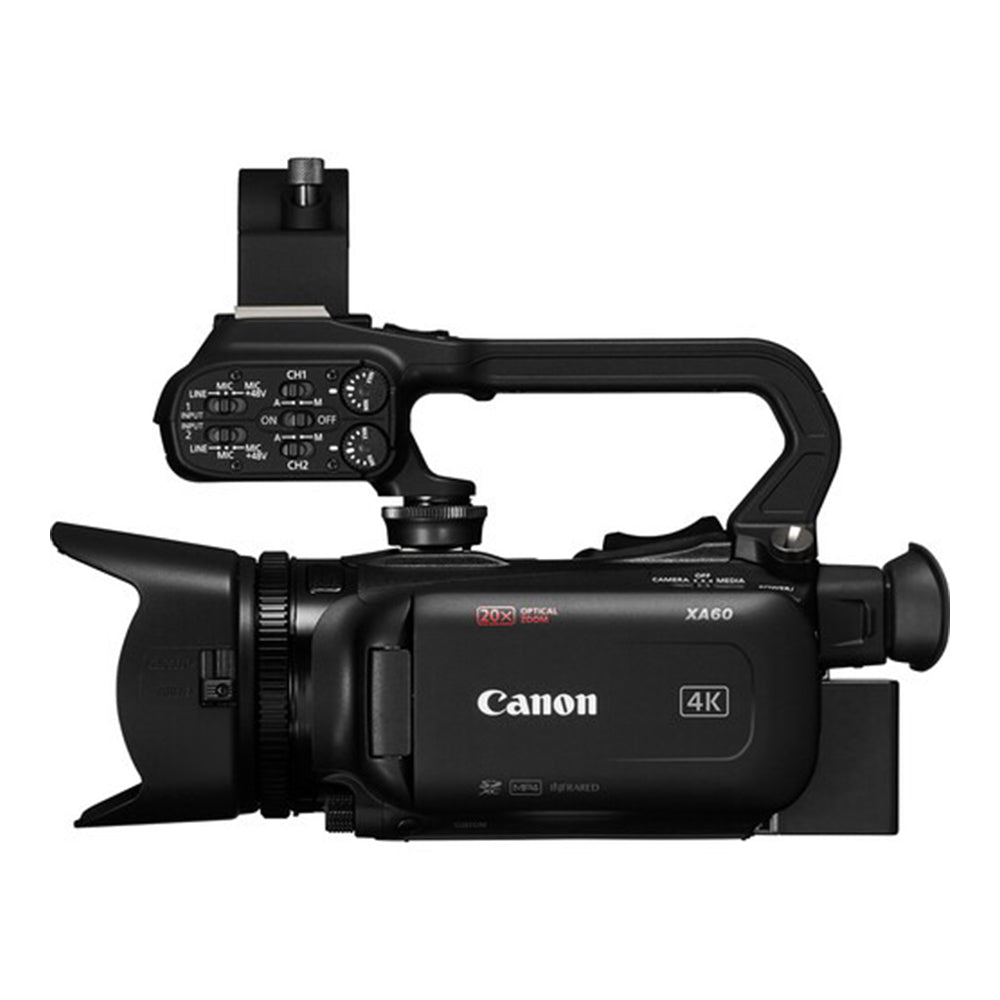

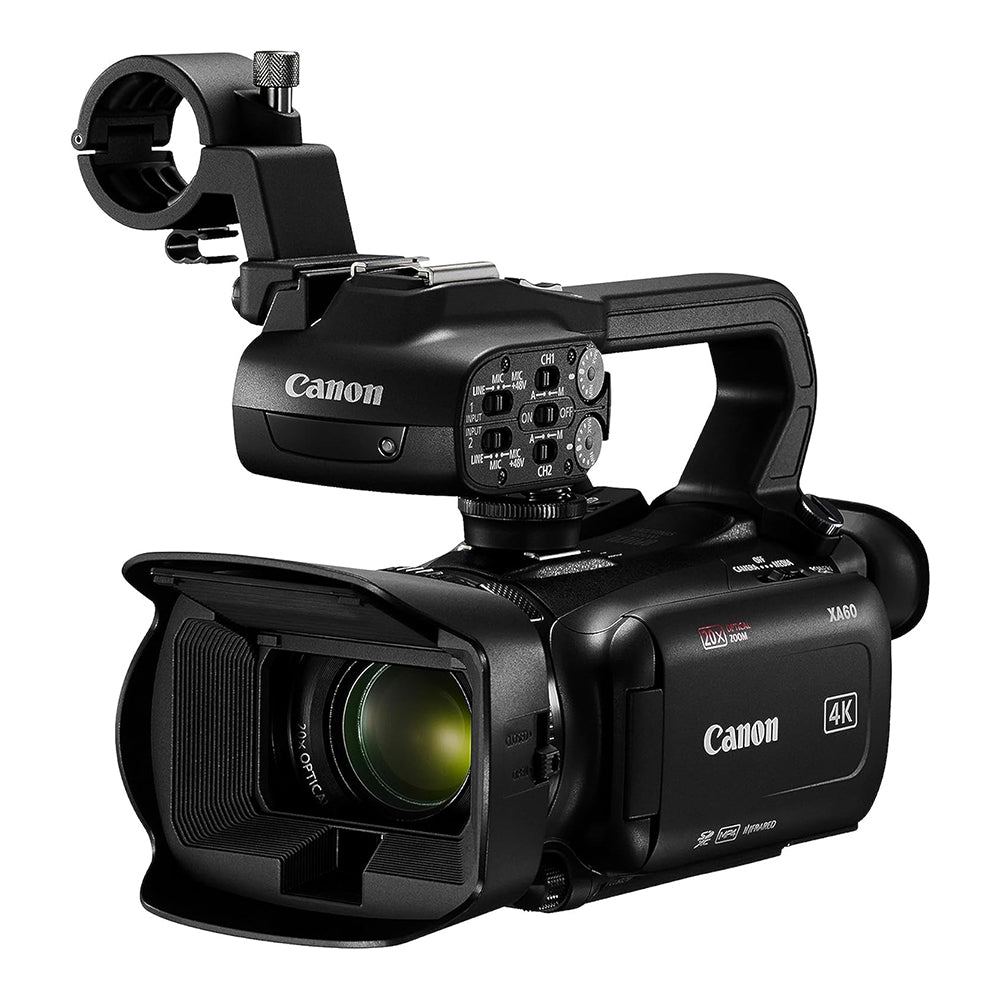

CANON XA60

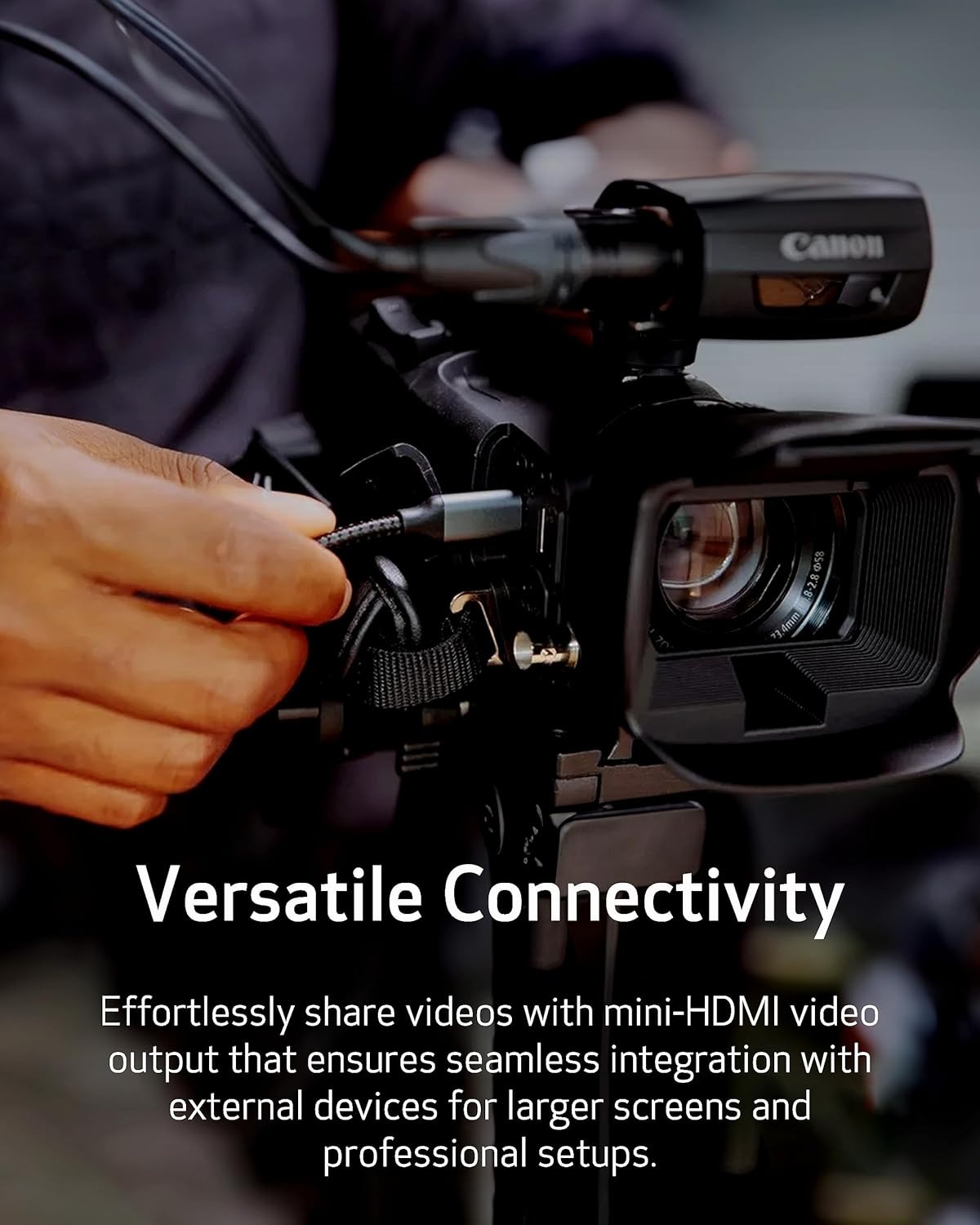

The Canon XA60 Professional UHD 4K Camcorder is a compact, lightweight camera that features many similarities to its XA45 predecessor, including UHD 4K capture, a 1/2.3" CMOS sensor, two XLR audio inputs, and one mini-HDMI output, making it suitable for the ENG category for documentary or journalism-style productions.

This streamlined model features a larger 3.5mm LCD capacitive touchscreen display, a higher resolution tiltable 0.36" OLED EVF, XF-AVC, and MP4 recording formats, OSD metadata recording, and fast USB-C video-only output with UVC support for livestreaming to a computer.

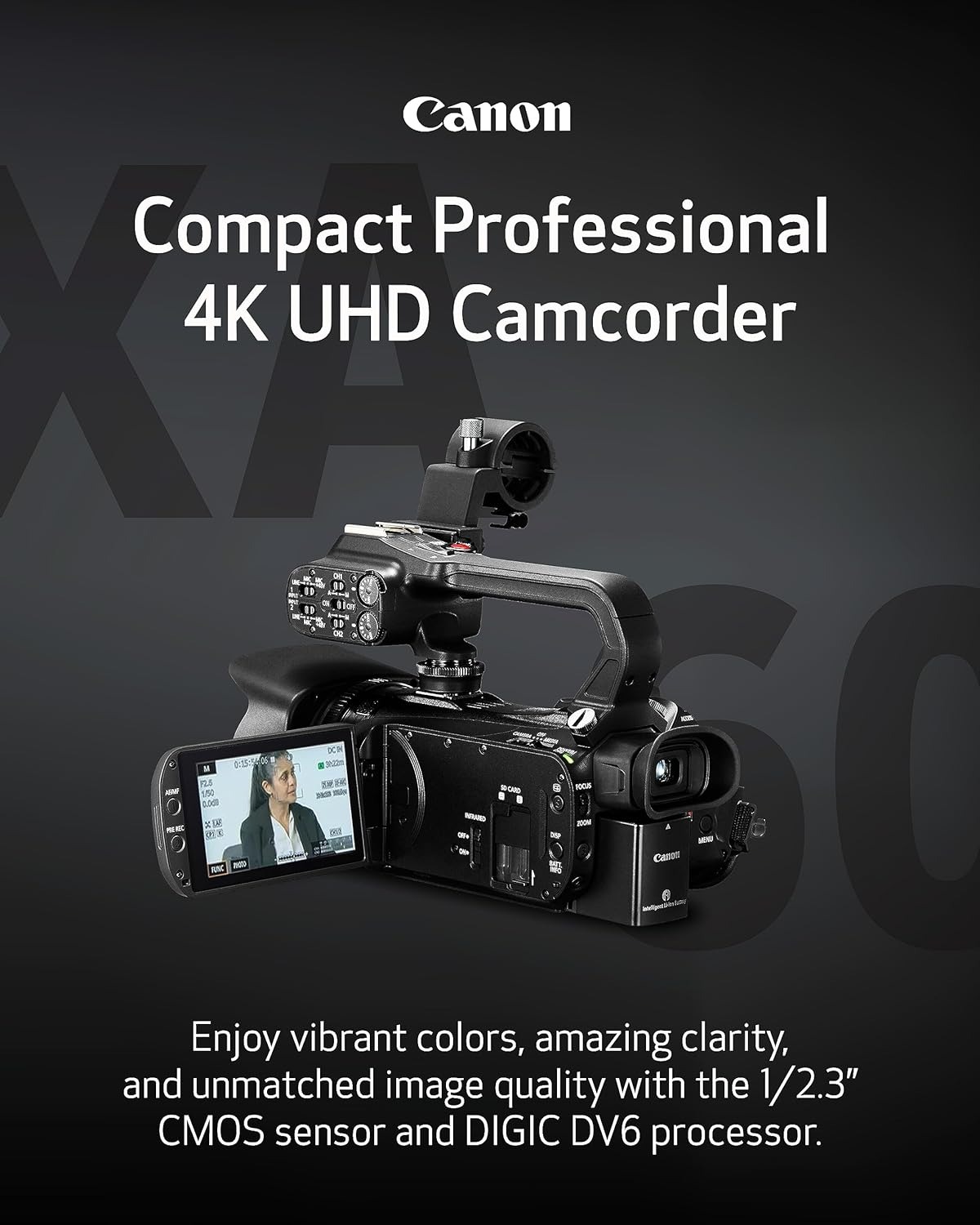

Canon 4K Sensor

A 4K sensor and DIGIC DV6 image processor deliver crisp, sharp UHD images, and an 8-blade iris achieves cinema-style out-of-focus highlights. Frame your shot with the ultrabright 3.5" LCD or use the built-in OLED electronic viewfinder (EVF).

On-Screen Display (OSD) "Time Stamp" Recording

OSD recording embeds date, time, timecode, and other data into your original camera files, effectively "time stamping" the information into each frame of video, a requirement for legal and law enforcement videographers.

UVC Livestreaming

Stream HD video directly from the camera via UVC1 to a Windows or macOS computer. Audio output through USB is not supported.

Professional Audio Controls

Two XLR terminals on a detachable handle plus 4-channel linear PCM bring a suite of pro audio options.

4K 20x Optical Zoom Lens

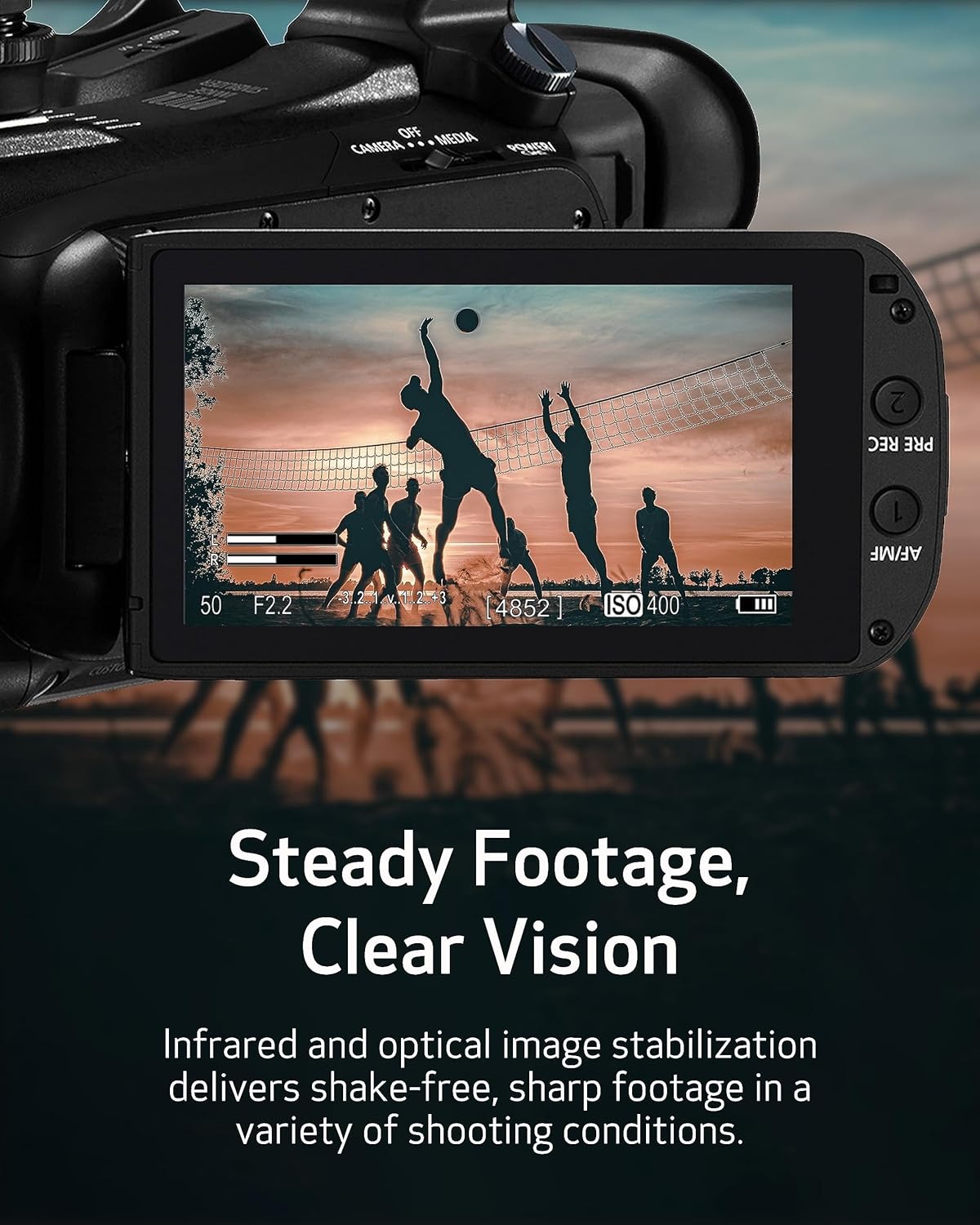

The Canon lens covers a 29.3mm wide angle (35mm equivalent) with a powerful 612mm reach. Digital zoom boosts the 20x optical zoom to 800x magnification. To minimize camera shake, the camera provides Canon's Dynamic IS 5-axis image stabilization with dynamic mode, resulting in clear, sharp motion video.

Specifications:

• Sensor Size: 1/2.3 Inch CMOS
• Zoom Ratio Focal Length (35mm Equivalent): 20x (29.3mm-601mm)-4K UHD, (30.5mm-627mm)-Full HD Only
• ND Filter: Auto Gradation ND
• Autofocus System: Hybrid AF
• Best Recording Quality (Resolution, FPS, color space): 4K UHD (3840 x 2160) 25P YCC 420
• Full HD Recording Quality: Full HD (1920 x 1080) 50P YCC420
• Recording File Formats Bit Depth: XF-AVC (8 bit) MP4 (8 bit)

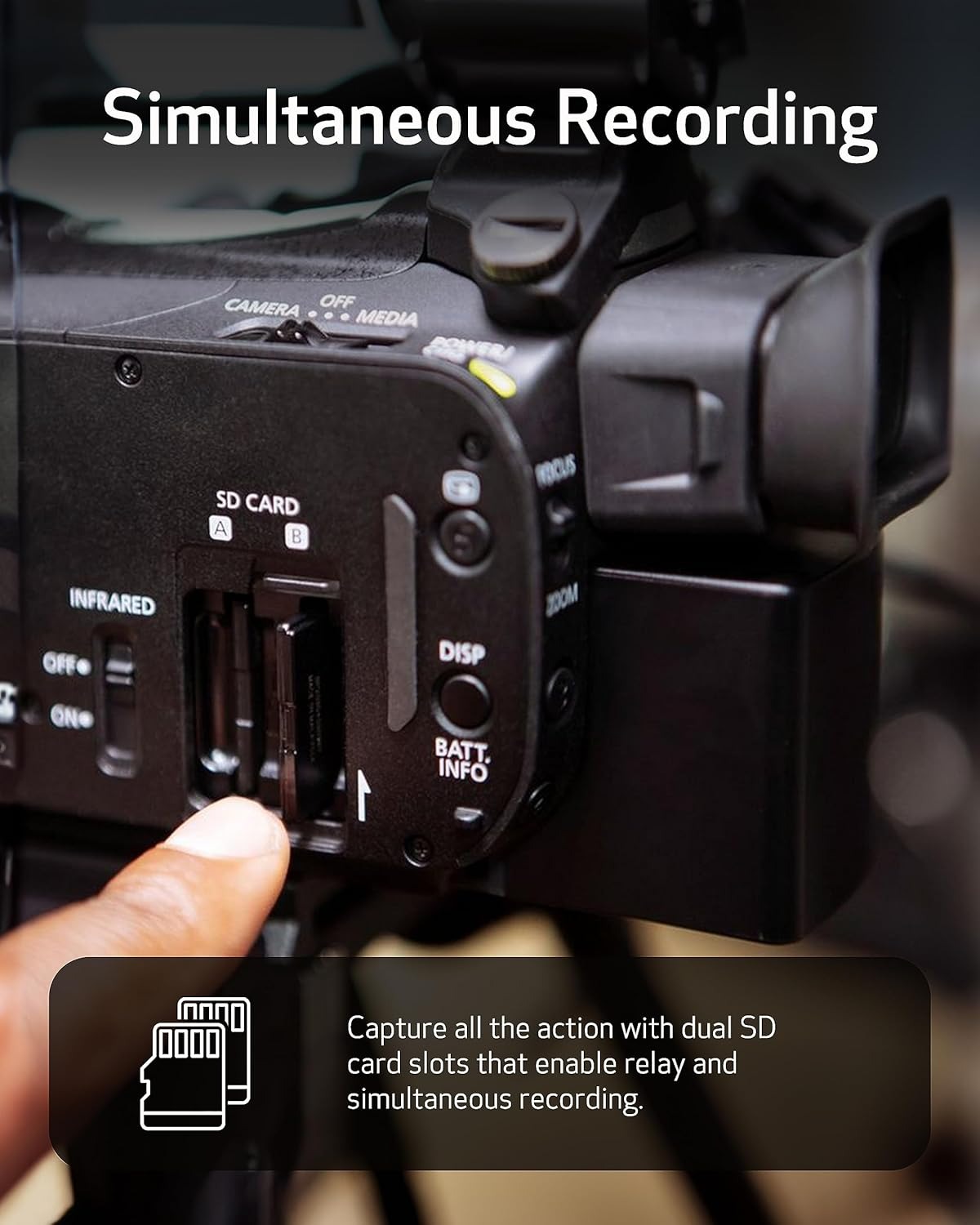

• Media Type, recording time (highest quality, 32GB card): SD Card x 2 (25 Minutes)
• Packaged Battery Type (Continuous Record Time): BP-820
• Screen Size (inch): 3.5" LCD capacitive touch screen
• EVF Specification: 0.36" OLED Tilting EVF
• Dimensions (mm): Dimensions 130 x 180 x 231
• Weight (kg) (With battery): 1.13kg
• Highest quality SDI Output, 50i, SDI output format: N.A
• Network Capability: Nil
• Infra Red: Yes
