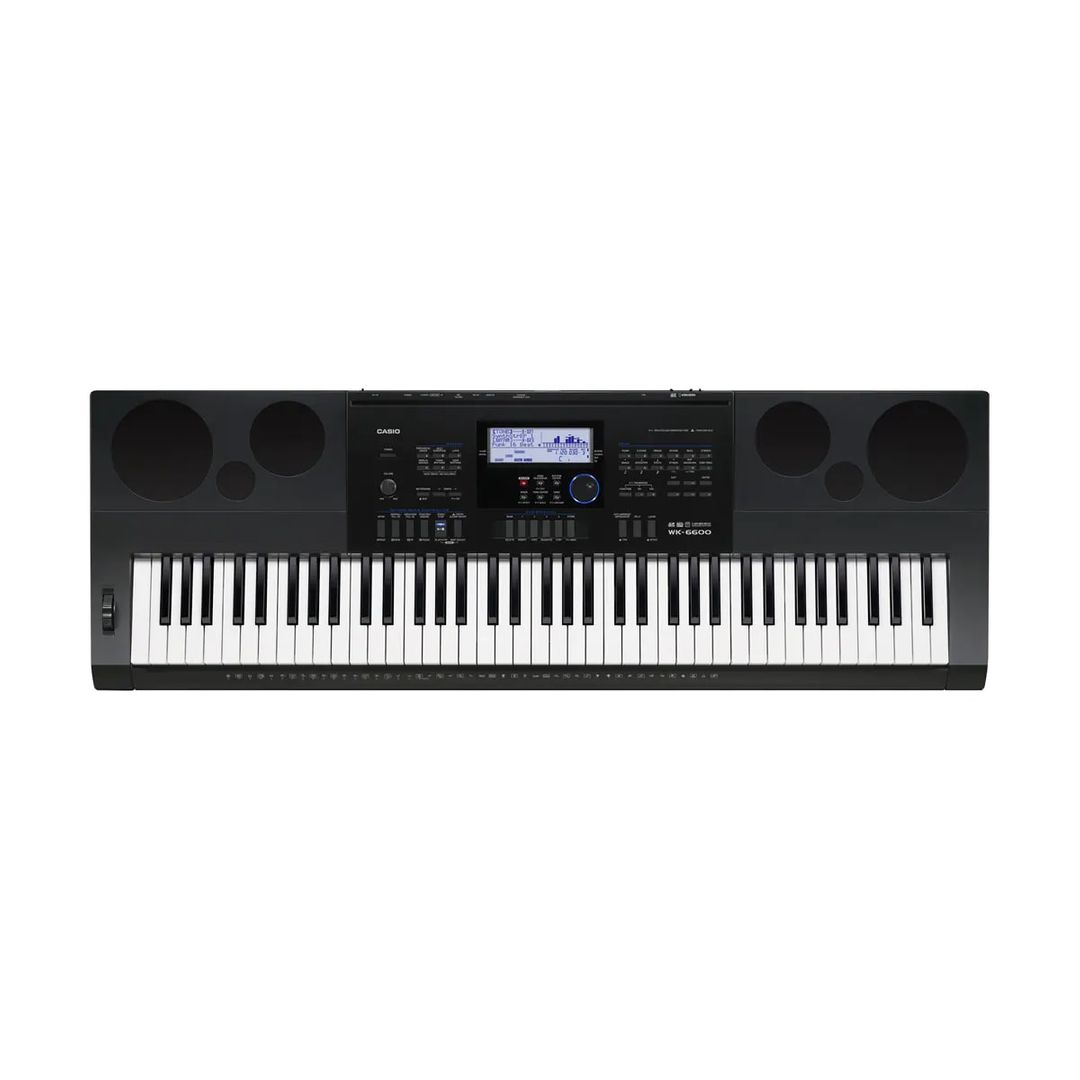

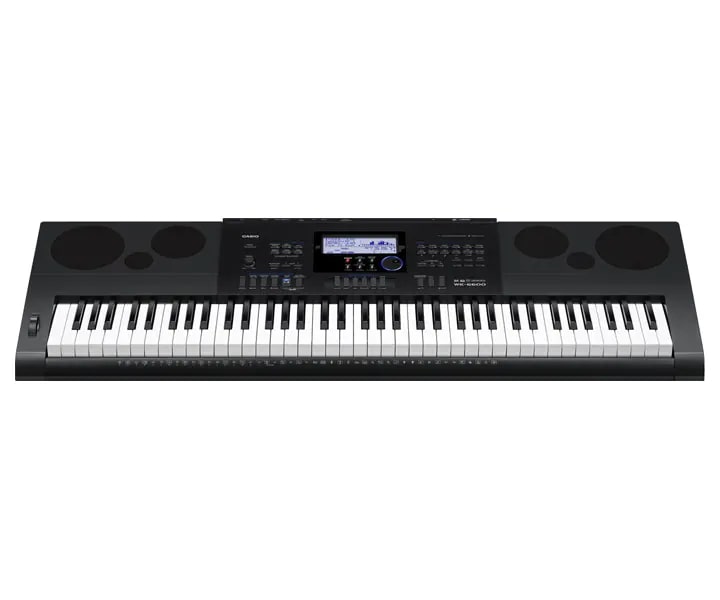

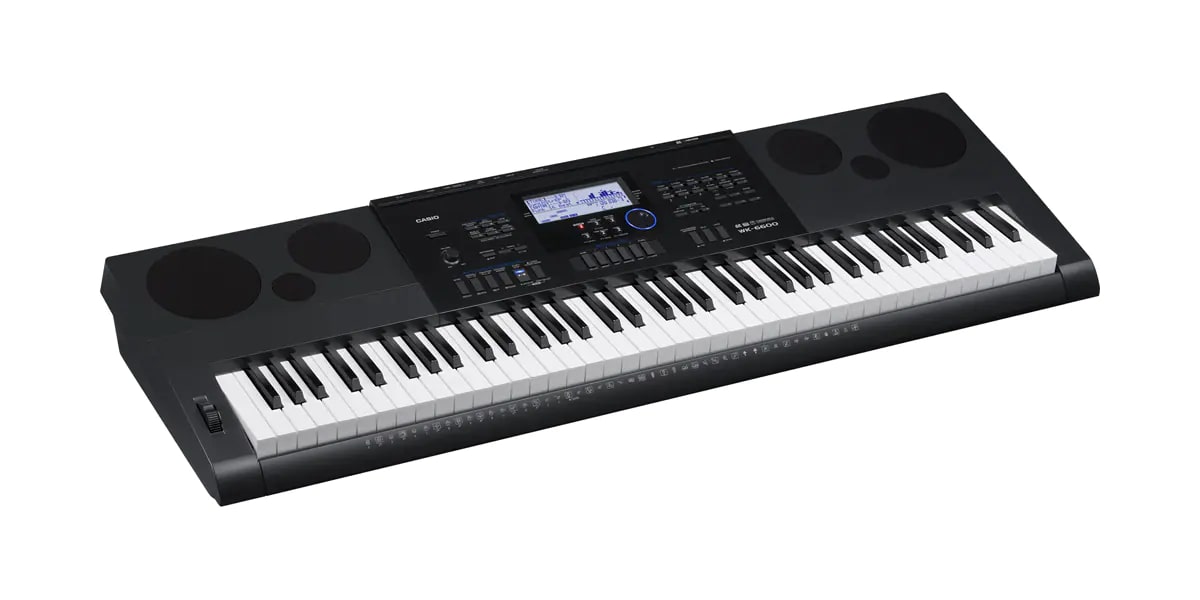

Casio WK-6600 76 Keys Digital Piano Keyboard with Adapter, SD Memory Card Slot, Equalizer, Tone Editor and 210 Preset Rhythms and Auto-Accompaniment (Black)

Sequencer and mixer functions for total musical creation support

Song Sequencer
The Song Sequencer provides 16 tracks plus one system track that supports recording of up to five songs and a total of approximately 12,000 notes. Each individual musical instrument part can be recorded to a different track for real multi-track recording capabilities. A full selection of editing tools include event insert, event delete, event copy, quantize, a locator feature for selecting the range of notes to be edited, and more. A step recording function also lets you input notes by specifying the length and pitch. Completed recordings can be converted to SMF (Standard MIDI File) format and stored to an SD memory card.


32-channel Mixer
Button operation can be used for individual simultaneous adjustment of volume, pan, reverb send, and other parameters. Sound input from an external source via the MIC IN terminal can also be adjusted as desired.

Rhythm Editor

Rhythm Editor lets you combine instrument parts from multiple built-in rhythms, turn individual instrument parts on or off, and adjust volume, pan, reverb, and other parameters to create your own original rhythms. You can even create original rhythms for NORMAL, FILL IN, INTRO, and ENDING accompaniment patterns.

You can store up to 10 original rhythms in memory for instant recall whenever you need them.

Effector and everything else you need to create exactly the sound you want

Multiple Digital Effects
Built-in effects include reverb (10 types), chorus (5 types), and DSP (100 types using 46 effect types including delay, phaser, flanger, wah, rotary, and more). You can apply different effects to a tone to create exactly the sound you want. By adjusting the parameters of the DSP effect types, you can create original DSP effects and store up to 100 original types in memory for later recall.


Equalizer

Incorporates five selectable frequency characteristics,including “Bright” for a lively sound emphasizing the treble range and “Powerful” with a stress on volume.

Registration

A simple operation saves the current setup, including tone, rhythm, and other settings for instant recall when you need them.*You even can save tones to which effector effects are being applied. Recalling a registration instantly changes the digital keyboard's setup, making this a great tool for live stage performances.


Tone Editor

Tone Editor can be used to adjust attack time, release time, cut off, vibrato, reverb, chorus, DSP, and other parameters as desired. You can create distinctively original tones for performances and music creation sessions.

Arpeggiator

With the arpeggiator, you can play various arpeggios and other phrases automatically by simply pressing keys on the keyboard. You can select from 150 different arpeggiato types, including playing arpeggios from a fingered chord, guitar phrases, and more.

The expandability to configure an ideal musical environment

SD Memory Card Slot
Song sequencer, tone editor, and other data can be saved to an SD or SDHC memory card. SMF (Standard MIDI File) data stored on an SD or SDHC memory card can be played back on the digital keyboard.


Input/ Output Terminals
Different input/output terminals are provided to meet a variety of different needs: line out terminals (L/MONO, R) for connection of the mixer of a stage PA system or other devices, a MIC IN terminal for connection of a musical instrument or microphone, an audio in terminal (AUDIO IN) for audio device input that can be output through the speakers, and more.

USB Port
The USB port provides easy computer and MIDI send/receive connection. It also enables quick and simple transfer of song sequencer, pattern sequencer, tone editor and other data, as well as audio data recorded to an SD memory card from an audio device between the digital keyboard and a computer. Download of a special Data Manager 6.1 application is required in order to transfer data to a computer.*



True musical instrument quality, simple operation

AHL Sound Source

The sound source is pre-programmed with digital samples of acoustic musical instruments recorded using the most advanced digital technology.


Thanks to CASIO original sound technology, the AHL sound source is capable of reproducing all of the natural smoothness of the original waveform.

700 Built-in Tones and 10 User Tones

The AHL sound source delivers a lineup of 670 different built-in tones. You also can store up to 10 of your own original tones for instant recall whenever you need them.

210 Preset Rhythms and Auto Accompaniment

A total of 210 preset rhythms cover a wide range of musical genres, from rock and pops, to jazz, Latin, piano pieces, and more. Simply select the built-in rhythm you want and Auto Accompaniment provides you with backup that is the next best thing to having a professional band at your disposal.

Large Dial

A large operation dial really comes in handy during music creation using sequencer functions and mixer functions.

Display

The display shows the currently selected tone name and rhythm name, along with a wealth of other information. On the sequencer screen, for example, you can check the current status and volume level of each of the 16 tracks, and other setting information at a glance.

Piano-Style Keyboard and Touch Response

The keyboard is designed and engineered to provide a realistic piano experience. Just like a grand piano keyboard, Touch Response causes sound that is output to change in accordance with the amount of pressure applied to the keys.


High-output 2-Way Bass Reflex Speakers

A 6W+6W high-output bass reflex 2-way 4-speaker system delivers rich sound from low range to high. The speakers can be used as high-quality monitoring speakers during performances and music creation sessions.

Pitch Bend Wheel

The pitch bender wheel makes it easy to add realistic sounding guitar choking, sax bending, and other effects to keyboard play.


Music Presets

Music presets provide one-touch access to Auto Accompaniment, tone, reverb, and other settings that are configured in accordance with representative chord progressions. A total of 305 presets let you easily configure the keyboard for a wide variety of different musical styles. In addition to built-in presets, you can create your own original presets (user presets) and store them in memory for later recall.





Specifications

Number of Keys
76

Sound Source
AHL (Dual-element)

Number of Tones
700

Automatic Accompaniment
Yes

Recorder
[Song Sequencer]
17 tracks (System track + 16 multi tracks), 5 songs
Approximately 12,000 notes (5 songs total)
Real-time recording, Step recording, Song edit, Track edit, Event edit


Amplifiers
6W + 6W

Power consumption
18W

Weight
7.2 kg

Touch Response
2 sensitivity levels, off

Maximum Polyphony
48

Number of Rhythms/Patterns
210

Demonstration Songs
5

Speaker
12cm x 2 + 3cm x 2


Power Supply
2-way
[Batteries]
D-size alkaline batteries x 6
Approximatery 4 hours

[AC Adaptor]
AD-A12150LW (DC 12V)



Included Accessories
AC adaptor (AD-A12150LW), Music stand


Key Features

Effects
Reverb (10 types)
Chorus (5 types)
DSP (100 types)
User DSP (100 types)
EQ (5 types)

Octave Shift
-2 octaves ~ 0 ~ +2 octaves

Tuning Control
A4 = 415.5 Hz ~ 440.0 Hz ~ 465.9 Hz

Arpeggiator
150 types

Registration
32 setups (4 sets x 8 banks)

Auto Harmonize
12 types

Metronome
0, 2, 3, 4, 5, 6 beats; tempo range: 30 to 255


Pitch Bend Wheel
Yes

Scales
Equal temperament + 16 variations, Fine Tune

Music Presets
305 presets

One Touch Presets
Yes

Mixer
32 channels

LCD
LCD with backlight

Others

Others
・Auto Power Off

Input/ Out Terminals

LINE OUT
2 (L / MONO, R), Standard jack

USB port
Type B

AUDIO IN
Stereo mini jack

MIC IN
Standard jack

PEDAL
・Sustain/Assignable：Standard jack (sustain, sostenuto, soft, rhythm)

PHONES/OUTPUT
Stereo standard jack

Extended Functions

MIDI
Yes (Using the USB port): GM level 1 compatible
