[CLEARANCE] Noyafa NF-825TMR V1 Electric Wire Detector Tracer Pen with Network Cable Finder with Adjustable Sensitivity, Socket Testing, Ethernet Cable Locator, NCV Induction, and 700mAh Rechargeable Battery - Style - Version 1

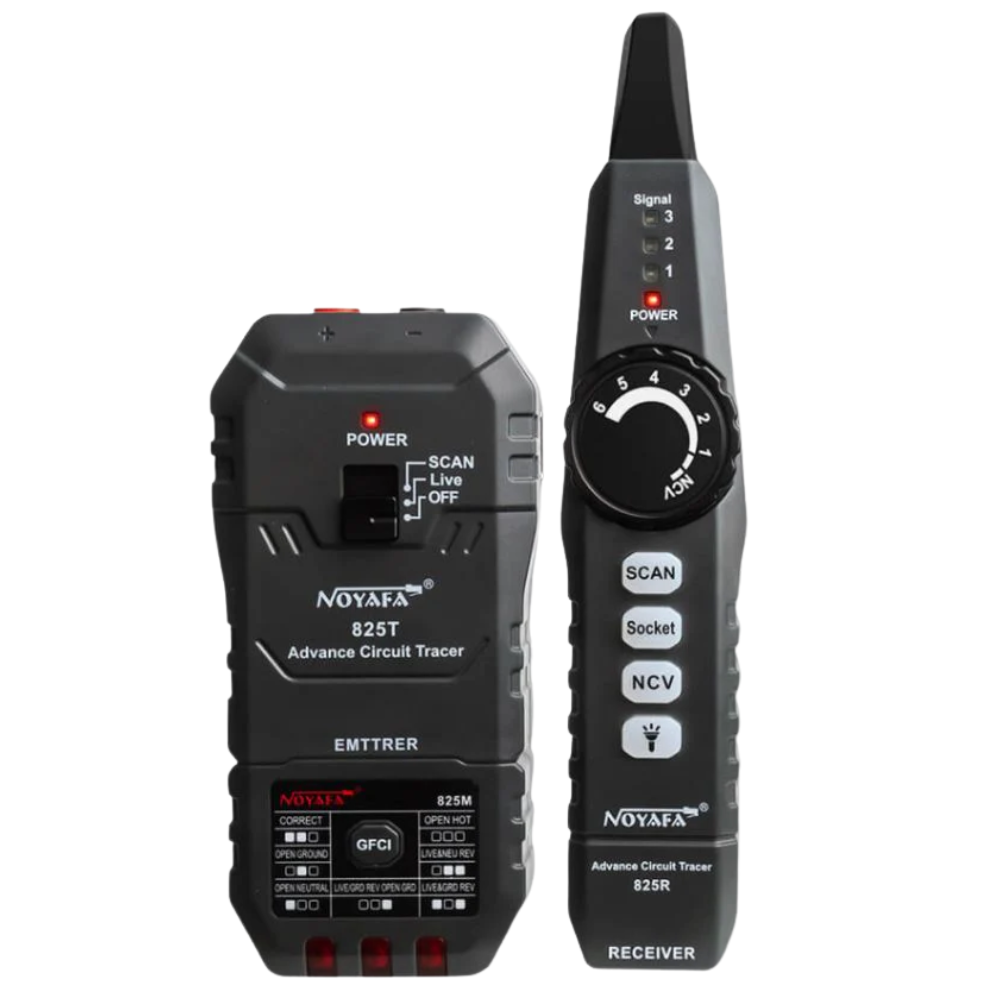

Noyafa Electric Wire Detector Tracer Pen with Network Cable Finder

NF-825TMR (Version 1)

Product Parameters:

Trace AC Power Cable

• Trace Power Voltage Range: AC 90V-250V
• Interface type: Alligator clip
• Transmitter Distance: 200m
• Transmitter Frequency: 157KHZ
• Detecting Depth: 0-0.5m

Network cable testing

• Cable type: CAT5/CAT6
• Network Interface type: RJ45
• Transmitter Frequency: 455KHz
• Transmitter Distance : 600m

Air Circuit Breaker Tracking Socket Cable

• Detecting Depth: 2-3cm

Socket Cable Sequence Test

• Testing Voltage Range: AC 90V-250V, 50/60Hz

• NCV Detecting: AC 90V-1000V, 50/60Hz
• LED Lamp: Yes
• Power supply: 7.4V 700mA Lithium Battery
• Power Adapter Spec: DC 5V/1A Type-C
• Working Temperature: 0-122 °F (0-50°C)
• Working Humidity: ≤90% no condensation
• Storage Temperature: 14-122°F (-10-50°C)

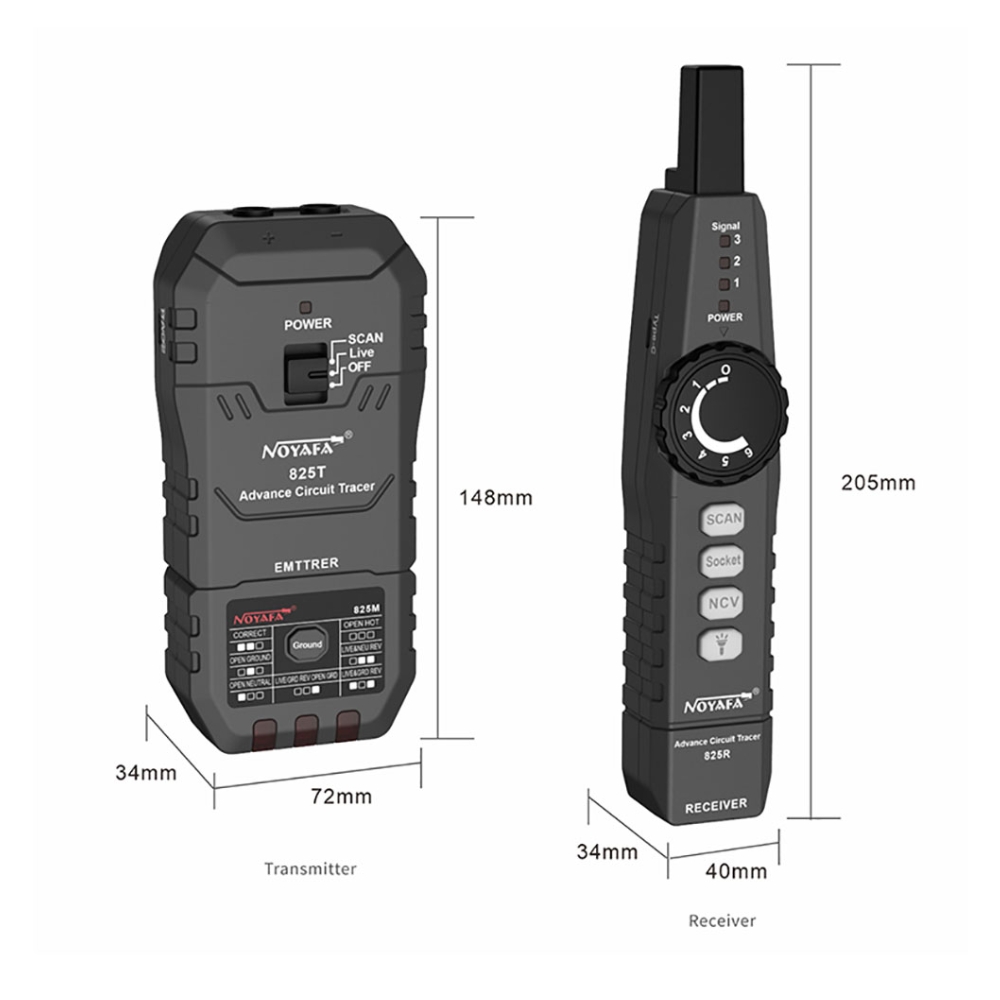

• Transmitter Size: 72 X 34 X 148mm
• Receiver Size: 40 X 34 X 205mm

_______________________________________

NF-825TMR (Version 2)

Product Parameters:

Trace AC Power Cable

• Trace power voltage range: AC 90V-250V
• Strong electricity output interface: Dedicated power cord adapter interface
• Transmitter Distance: 300m
• Transmitter Frequency: 155.5KHz
• Detecting Depth: 0-0.5m

Network Cable Testing

• Cable type: CAT5/CAT6
• Network Interface type: RJ45
• Transmitter Frequency: 155.5KHz
• Transmitter Distance : 300m

Air Circuit Breaker Tracking Socket Cable

• Detecting Depth: 0-3cm

Socket Cable Sequence Test

• Testing Voltage Range: AC 90V-250V, 50/60Hz

• NCV Detecting: AC 90V-1000V, 50/60HZ
• LED Lamp: Yes

Power supply:

• Emitter: 7.4V 700mA Lithium Battery
• Receiver: 3.7V 1500mA Lithium Battery

• Power Adapter Spec: DC 5V/1A Type-C
• Working Temperature: 0-122 °F (0-50°C)
• Working Humidity: ≤90% no condensation
• Storage Temperature: 14-122°F (-10-50°C)
• Transmitter Size: 72 X 34 X 148mm
• Receiver Size: 40 X 34 X 205mm

_______________________________________

 Main Features:

• Anti-interference CAT5/CAT6 cable tracing
• Trace AC Power cable direction
• DC5V1A Type- rechargeable
• Socket phase sequence test
• Track Air Circuit Breaker
• LED Light
• NCV
