Description:
- Visualizing your cinematography is intuitive and easy with the monitor's 5.5" screen with 2800 cd/m² brightness and 1000:1 contrast ratio.
- Upload your own customized 3D LUTs using the USB-C input. Power is delivered to the V5 via its NP-F battery plate or DC input port.

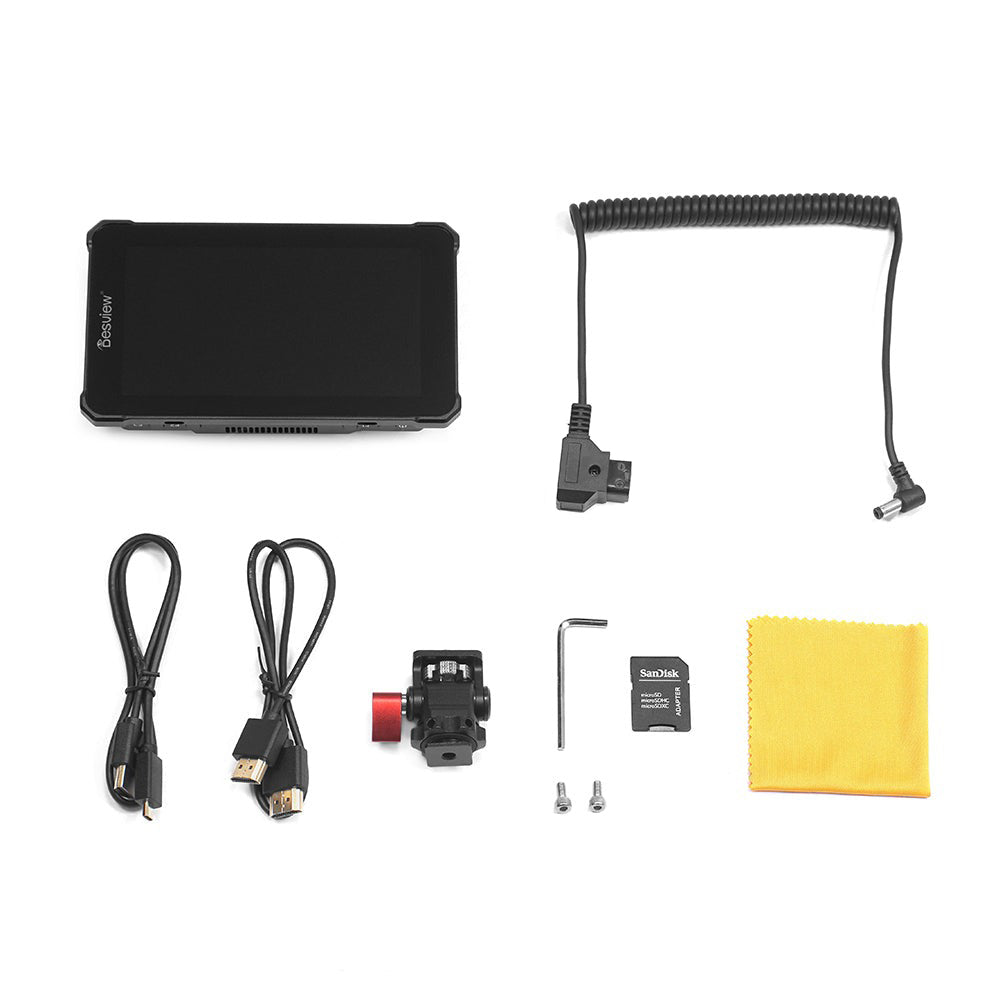

- Included with the monitor are HDMI cables, a power adapter cable, 32GB SD card for firmware updates, TF card cover, and a tiltable monitor mount compatible with its 1/4"-20 threads.
Innovative Recording Function, Supports MP4 1080P Format Recording
- Integrating real-time recording and screen monitoring with SLR cameras/camcorders, and can also be used as a separate clip player. It is greatly efficient and ideal for photographers.
New Playback Function, Monitoring The Real-Time Shooting Contents
- What you see is what you get, you can check the effect in time once the recording is completed
4K HDMI Input/Output, Lossless High-Definition Transmission
- Supporting HDMI signal lossless input/output, which brings richer images and smoother videos
2800 Nits Ultra High Brightness, No Fear of Strong Light
- Provide clear monitoring display in any environment with 2800 Nits ultra high brightness
- The 99.5%DCI-P3 wide color gamut coverage perfectly produces accurate colors
- The 10-bit color depth makes the display color reproduction more accurate, the image quality more delicate
Custom 3D-LUT, Monitoring Real-Time Effect
- Built-in multiple sets of LUT files, up to 150 custom files can be loaded and stored, which can be deleted separately to achieve switching preview
All-Aluminum Body Makes it Scratch-Resistant And Drop-Resistant
- Made of aviation aluminum, the body is thin and light, and the anti-collision corners can effectively protect it against collisions.
Brand New UI Menu
- Advanced auxiliary monitoring function, and graphical operation menu make shooting easier than before
Key Features:
-
Playback function, real-time monitoring
-
Upgraded UI menu for advanced monitoring functions
-
SD card slot supports firmware updates
-
Upload 3D LUTs via USB-C port
-
99.5% DCI-P3 color gamut
-
Two 1/4"-20 mounting threads, tilting monitor mount
-
DC input port, NP-F battery plate
-
3.5mm stereo headphone input for audio monitoring
-
MP4 video file format, 48 kHz audio sample rate
Video Assist Functions
-
Gamma Curve
-
Histogram
-
Vectorscope
-
Grid
-
Anamorphic
-
Mark Ratio
-
Zoom
-
HDR Monitoring
-
Color Temperature
-
False Color
-
Focus Peaking
-
Monochrome
-
Zebra
-
Center Marker
-
Safe Area
Specifications:
-
Brand: Desview
-
Model Name: V5
-
Product Type: On-Camera Video Monitor
-
Panel Type: IPS-Type LCD
-
Display Size: 5.5" / 14.0 cm
-
Screen Area: 4.76 x 2.68" / 120.96 x 68.04 mm
-
Resolution: 1920 x 1080
-
Aspect Ratio: 16:9
-
Viewing Angle
-
Horizontal: 178°
-
Vertical: 178°
-
-
Touchscreen: Yes
-
Maximum Brightness: 2800 nits / cd/m2
-
Contrast Ratio: 1000:1
-
HDR Compatibility: None
-
Pixels Per Inch (ppi): 400 ppi
-
Color Gamut: 99.5% DCI-P3
-
Real-Time LUT Monitoring: SDR, HDR
-
Image Controls: Anamorphic De-Squeeze, Color Temperature Selection, False Color, Focus Peaking, Histogram, Screen Markers, Vectorscope, Zebra
-
Media/Memory Card Slot: Single Slot: SD/SDHC/SDXC
-
Mounting: 2 x 1/4"-20 Female
-
DC Input Power: 6.5 to 16.8 VDC
-
Battery Type: 1x L-Series
-
Power Consumption: 12W
Other Details:
-

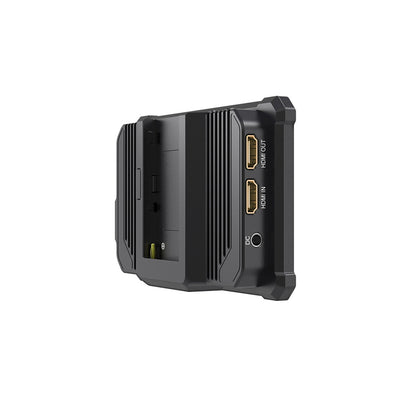

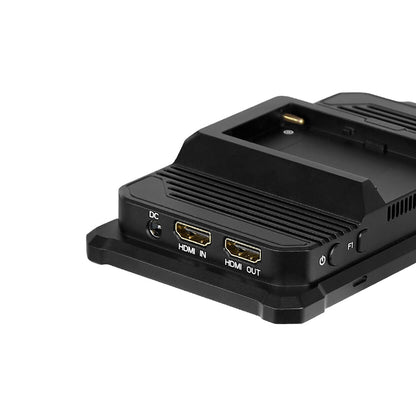

Video I/O:
-
1x HDMI Input
-
1x HDMI Output
-
-
Video Format:
-
HDMI
-
DCI 4K: 25/24/23.98
-
UHD 4K: 30/25/24
-
1080p: 60/59.94/50/30/29.97/25/24/23.98
-
1080i: 60/59.94/50
-
720p: 60/59.94/50
-
-
Audio I/O: 1x 1/8" / 3.5 mm Headphone Output
-
Power I/O: 1x Barrel (16.8 VDC) Input
-
Other I/O: 1x USB-C (LUT Upload) Input
