Key Features
- Full HD 1080p Touchscreen Display
- DCI 4K24/UHD 4K30 HDMI Input & Output
- 3D LUT Import via SD Card Slot
- Waveform, Zebra, Audio Meters & More
- Multiple Anamorphic Ratio Display Modes

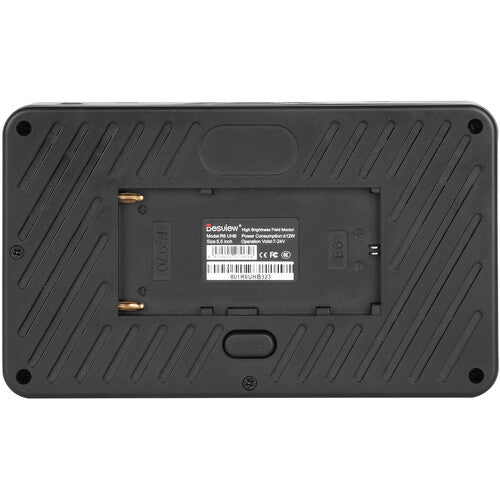

- Combo L-Series & LP-E6 Battery Plate
- Headphone Jack
- Built-In Cooling Fan
- Shoe Mount Included

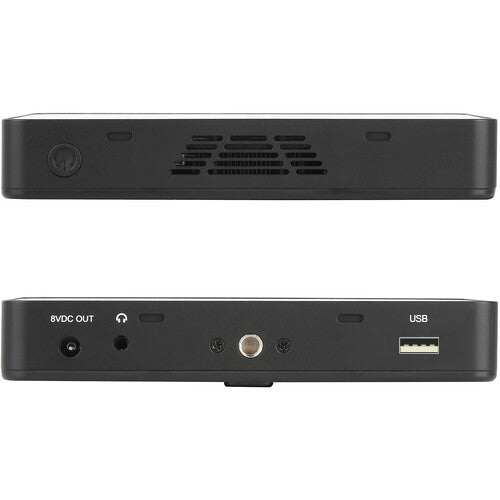

- 7 to 24V Input & 8V Output Power Port
Software Monitoring Features
- False-color
- False-color ARRI
- Zebra
- Luminance waveform
- RGB waveform
- Luminance histogram
- RGB histogram
- Focus peaking
- Safety marker
- Center marker
- Audio meters
- Color temperature adjust
- Zoom
- Pixel-to-pixel
- Display flip
- Grid line overlay
- Anamorphic mode: 1.33x, 1.5x, 1.66x, 1.79, 2.0
HDR Support
- The monitor supports SDR and HDR monitoring, including HLG and PQ
LUT Support
- The R6 UHB supports uploading LUTs via the built-in SD card slot, and it comes with an SD card that is preloaded with multiple LUTs
Video Format
HDMI
- DCI 4K: 24
- UHD 4K: 30/25/24
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080PsF: 30/29.97/25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50
- 576p: 50
- 576i: 50
- 480p: 60/59.94
- 480i: 60/59.94
Desview R6 UHB Specs
Display
- Panel Type: IPS-Type LCD
- Display Size: 5.5" / 14.0 cm
- Resolution: 1920 x 1080
- Aspect Ratio: 16:9
- Viewing Angle:
- Horizontal: 178°
- Vertical: 178°
- Touchscreen: Yes
- Maximum Brightness: 2800 cd/m2
- Contrast Ratio: 1100:1
- Bit Depth / Color Support: 8-Bit (16.7 Million Colors)
- HDR Compatibility: Yes
- Pixels Per Inch (ppi): 401 ppi
- Real-Time LUT Monitoring:
- SDR, HDR

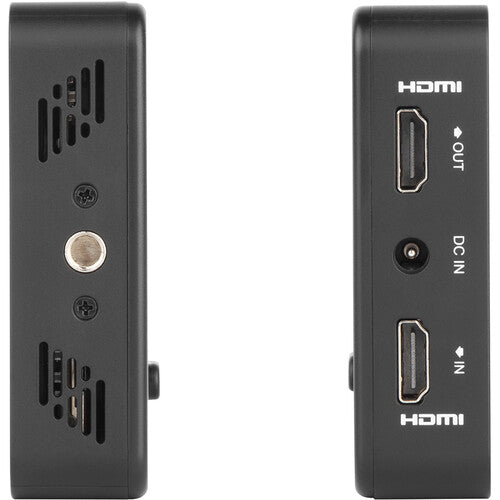

- I/O
- Video:
- 1x HDMI Type A Input
- 1x HDMI Type A Output
- Audio: 1 x 1/8" / 3.5 mm Headphone Output
- Built-In Speaker: None
- Power I/O: 1x Barrel Input
- Other I/O: 1x Proprietary
- Media/Memory Card Slot Single Slot: SD/SDHC/SDXC
- Wi-Fi: None
Format Support
- Video Format:HDMI
- DCI 4K: 24
- UHD 4K: 30/25/24
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080PsF: 30/29.97/25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50
- 576p: 50
- 576i: 50
- 480p: 60/59.94
- 480i: 60/59.94
Power
- DC Input Power: 7 to 24 VDC
- Battery Type: 1x LP-E6, L-Series
- Power Consumption: 12W
Mounting
- Mounting: 2x 1/4"-20 Female
Environmental
- Operating Temperature: 14 to 122°F / -10 to 50°C
General
- Material of Construction: Plastic, Polycarbonate
- Dimensions: 6 x 3.5 x 1" / 152 x 89 x 25 mm
- Weight: 0.5 lb / 240 g
