DESVIEW D21-HB MONITOR
Overview
Bright Multiview Monitoring

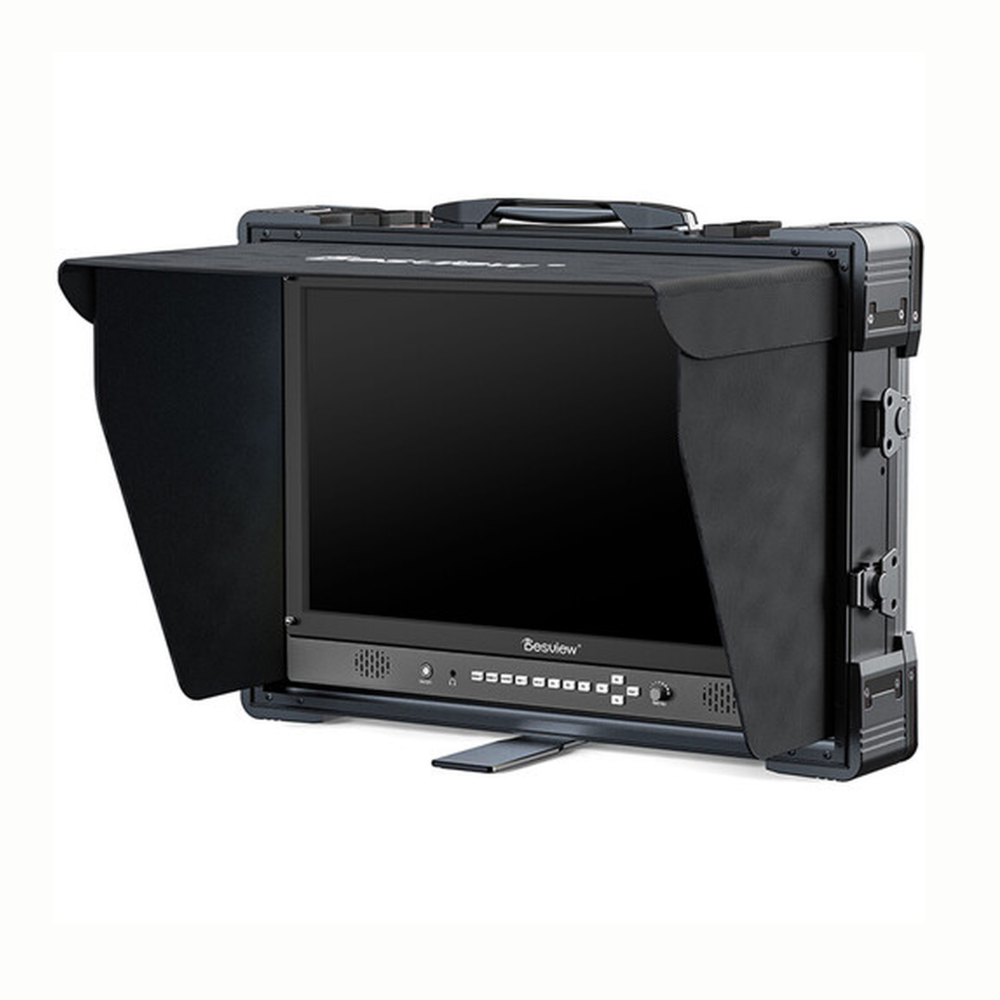

Bring bright, multiview monitoring to your set or location using the D21-HB 21.5" High-Bright Multiview Production Monitor with Case from Desview. Ideal for ENG, live broadcast, and mobile production, the D21-HB monitor provides 1000 cd/m² brightness, making it ideal for daylight viewing. It offers both horizontal and vertical multiview modes and PiP viewing. The D21-HB has both 3G-SDI and HDMI inputs and outputs, supports up to UHD 4K60 video input, and includes a protective aluminum case with corner bumpers.
High-Brightness Display
Offers 1000 cd/m² brightness for daylight viewing.
Features a 1920 x 1080 LCD with a contrast ratio of 1000:1.
Provides a wide 178° viewing angle both horizontally and vertically.
Up to UHD 4K60 Input
Supports multiple video formats up to UHD 4K60 via HDMI and 3G-SDI.
Three HDMI inputs and one HDMI output, two SDI inputs, and two SDI outputs.
Key Features
- 1920 x 1080 Display, up to 4K60 Input
- 1350 cd/m² Brightness, 1000:1 Contrast
- Horizontal/Vertical Multiview Modes, PiP
- 3 x HDMI In, 1 x Out | 2 x 3G-SDI In/Out
- DCI-P3 Color, 178° H/V Viewing Angle
- Built-In & Custom 3D LUT Importing

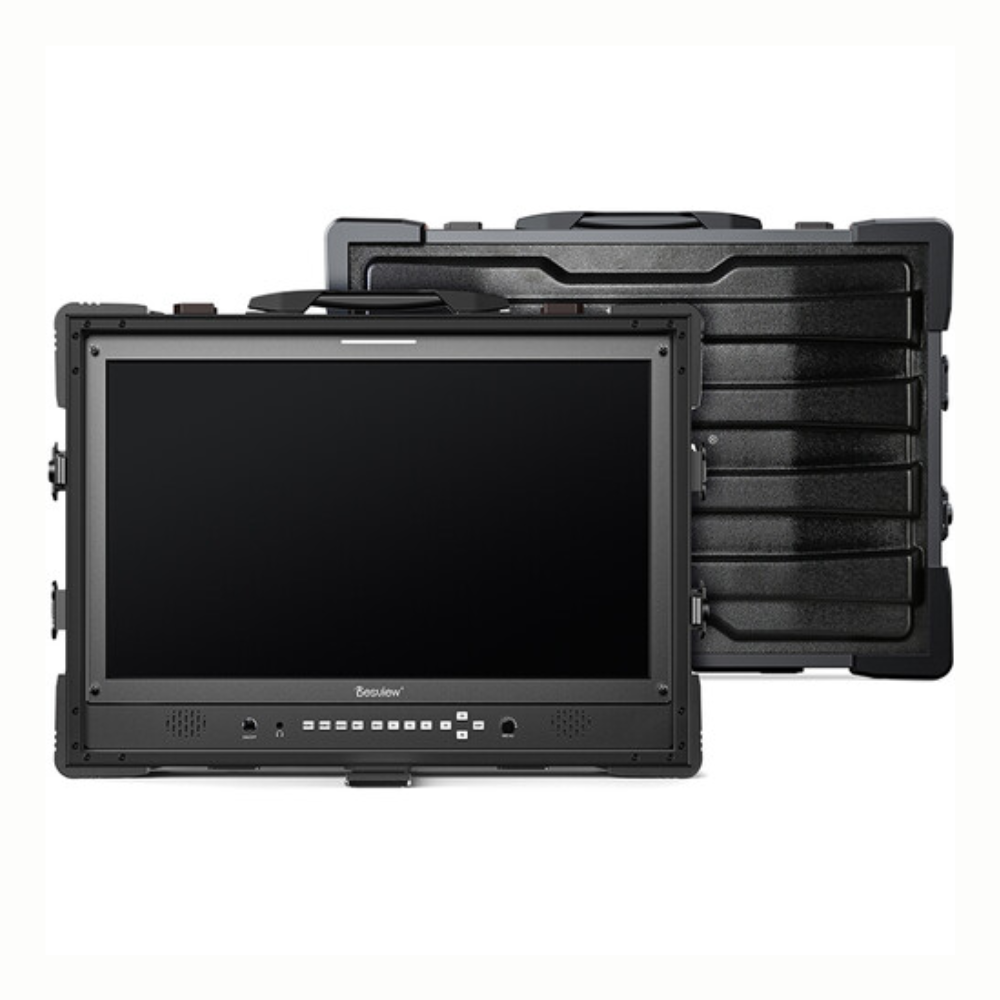

- Protective Aluminum Case, Corner Bumpers
- HDMI & SDI Waveform Monitoring
- Focus Peaking, False Color & Image Tools
- AC, 4-Pin XLR, V-Mount Battery Power
- 60 Frames per second
Specification
● Screen Display
● Display screen size: 21.5 Inch
● Display screen division rate: 1920*1080
● Point distance: 0.08265(H)mm x 0.24795(V)mm
● Show the ratio: 16: 9
● Brightness: 1000Nits
● Contrast: 1000: 1
● Backlight source: LED
● Dark colour: 8+2bit
● Number of colours: 1670ten thousand
● Perspectives: 178° H/178°V; 89°/89° (L/R)89°/89° (U/D)
● Pixel density: 102 PPI
● Refresh rate: 60Hz

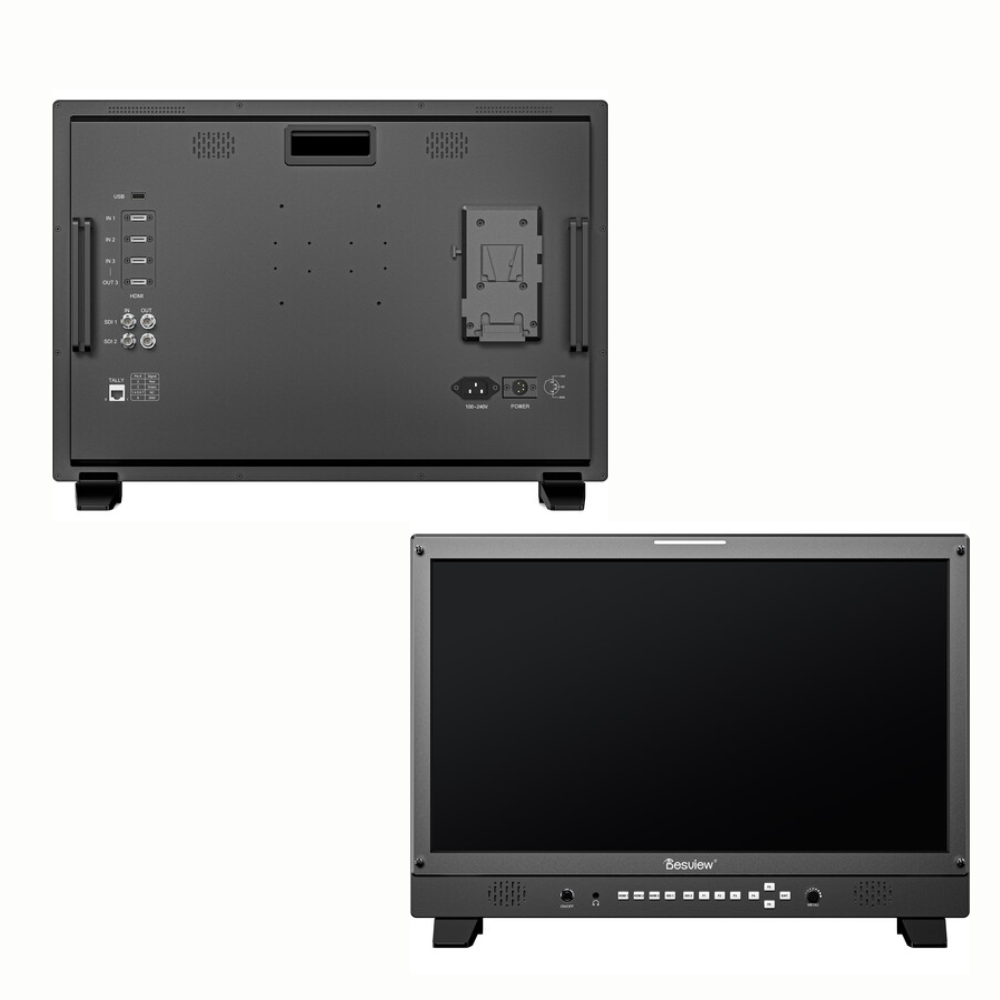

Port
● USB: Software upgrade
● HDMI IN1: Support 4K@60Hz and below input
● HDMI IN2: Support 4K@60Hz and below input
● HDMI IN3: Support 4K@60Hz and below input
● HDMI OUT3: Ring out the signal input by HDMI IN3
● SDI IN1: 3G-SDI supports 1080@60Hz and below signal input
● SDI IN2: 3G-SDI supports 1080@60Hz and below signal input
● SDI OUT1: Ring SDIN1 input signal
● SDI OUT2: Ring SDIN2 input signal
● Tally: Control the display of the monitor signal light
● AC Power Supply: Character interface, AC220V-240V
● Air plug: DC12V
● V-port battery buckle plate: V-port battery power supply
● Trumpet: Built-in8Q3W dual speakers
Button
● Power Switch: ON/OFF, power switch
● button, red light for power on Earphone: 3.5mm, stereo headphone jack
● HDMI 1, 2, 3: HDMI signal switching
● SDI 1, 2: SDI signal switching
● Customised key Fl: Be silent
● Customised key F2: Picture-in-picture
● Customised key F3:2 pictures
● Customised key F4:3 picture
● Customised key F5: 4 pictures
● Customised key F6:Turn the screen
● EXIT: Exit the key and display the input signal source
● MENU: Menu wave wheel (when there is no menu display, it fluctuates to the right to adjust the volume
Function
● Input Settings
● Multi-Window: Off, PIP Mode, PBP 2Win, PBP 3Win, PBP 4Win
● Main Win input: SDI1, SDI2, HDMI1, HDMI2, HDMI3
● Sub Wing input
● Sub Win3 input
● Sub Win4 input
● PIP Size: Small, Medium and Large
● PIP Position: Top Right, Top Left, Bottom Right, Bottom Left
● PIP Swap
● Exit
Assistant Function
● Single Color: Off, Red, Green, Blue, Gray
● Safe Area: Off, 80%, 85%, 90%, 93%, 95%
● Center Marker: Off,On
● Mark Ratio: Off, 4:3, 16:9, 16:10, 1.85:1, 2.35:1, 2.40:1
● Mark ratio transparency: Off, Low, High
● Marker Color: Red, Green, Blue, White, Gray
● Grid Lines: Off, 2×2, 3×3, 4×4, 5×5, 6×6, 7×7, 8×8
● Grid Line Color: Red, Green, Blue, White, Gray
● Exit
Wavestorm Setting
● Transparency: 0-3
● False Color: Off, Arri, Spectrum
● Peaking: Off, Weak, Average, Strong
● Zebra: 0-100
● Histogram: Off, Brightness, RGB
● Waveform: Off, Brightness, RGB
● Vectorscope: Off, On
● All wave: Off, On
● Exit
Color Setting
● WT: Off\Rec709\DCIPMT.2020\BMD Film 4K\Canon C-Log DJID-LogWanasonic Cine-D\ Panasonic V-Log
● HDR: Off\ HLG Rec709\HLGDCI-P3\HLGBT.2020WQ
● Color Temp: 5600K, 6500K, 9300K, User
● Brightness: 0-100
● Contrast: 0-100
● Hue:0-100
● Saturation: 0-100
● Sharpness: 0-100
● Exit
Hotkey Setting
● Fl: Custom
● F2: Custom
● F3: Custom
● F4: Custom
● F5: Custom
● F6: Custom
● Exit
Sound Settings
● Audio Metre: Off, 2, 8,16
● Be Silent: On, Off
● Volume: 0-100
● Audio Source: HDMI1, HDMI2, HDMI3, SDI1, SDI2
● Exit
System Setting
● Language: English, Simplified Chinese, Korean, German, Spanish Japanese, Frenchltalian, Russian
● OSD Position: Top Left, Bottom Left, Centre, Top Right, Bottom Right
● OSD Transparency: 0-100
● OSD Time Out: 0-100
● OSD Rotation: 0, 90,180, 270
● Backlight: 0-100
● USB Updata FW
● Reset
● Exit
