DJI Focus Pro Creator Combo

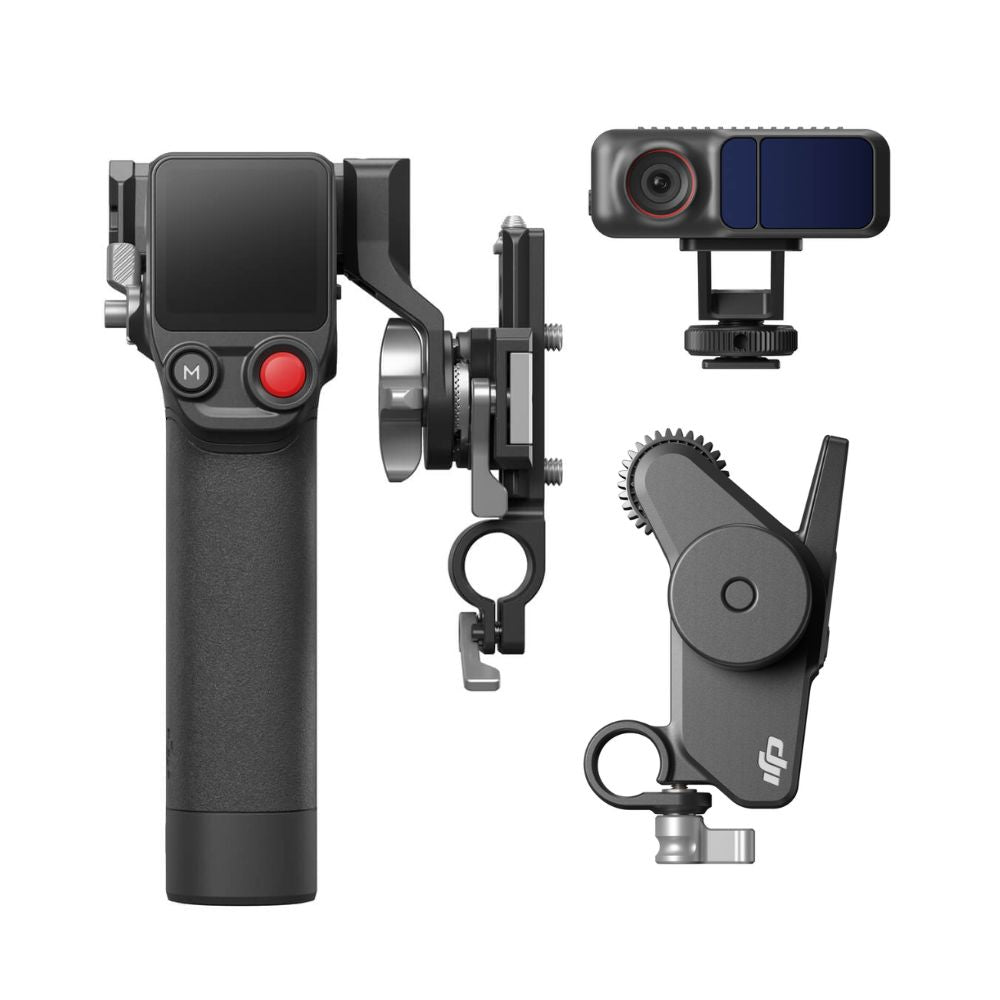

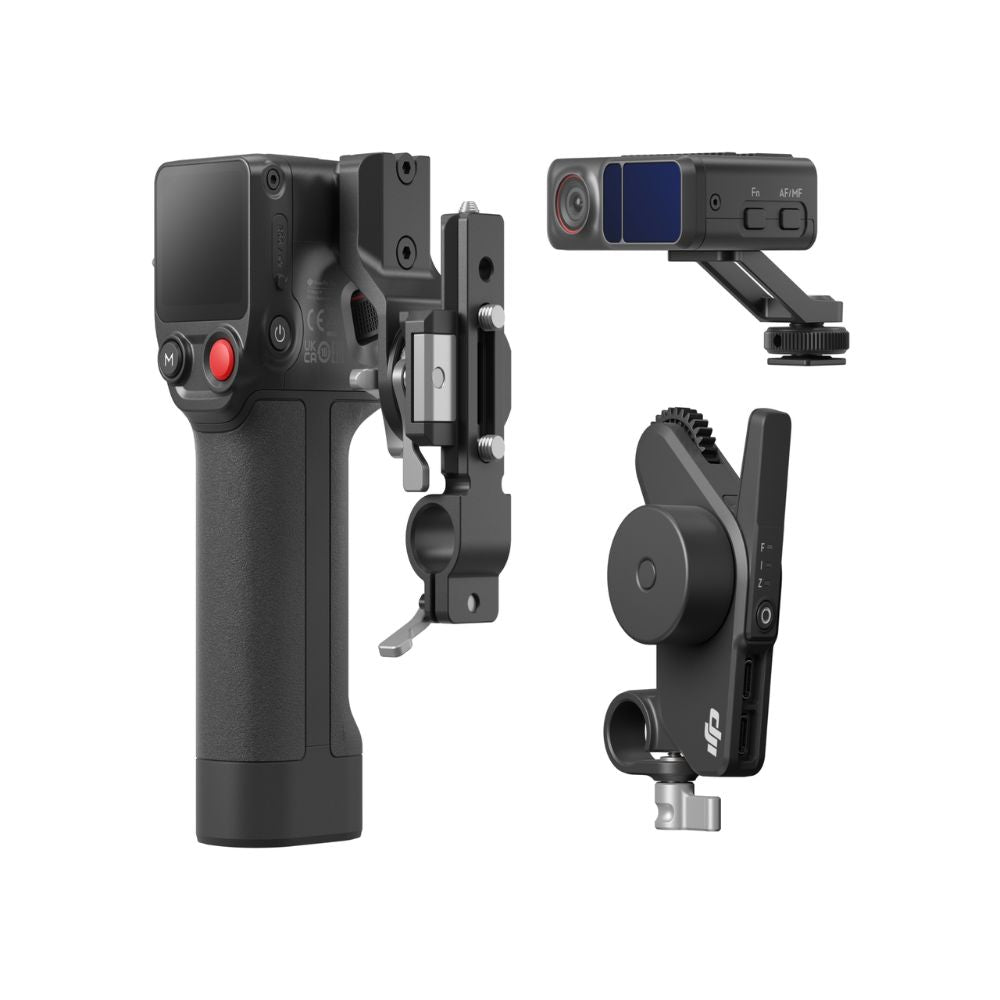

● Includes the LiDAR, Grip, Motor, and Carrying Case.
● The Grip features a system power supply, touchscreen operations, lens calibration and data storage, Bluetooth start/stop recording, and handheld shooting capabilities.
● When paired with the LiDAR and Motor, it offers an efficient autofocus and creative experience for solo cinematographers.
Compatible Device:
● DJI Focus Pro supports seamless interconnectivity with the DJI PRO ecosystem, such as Ronin stabilizers, DJI Transmission, Ronin 4D, and Inspire 3, to create an efficient and convenient professional film and television production experience. It can also be used independently with shooting equipment from other brands.
About Inclusions:

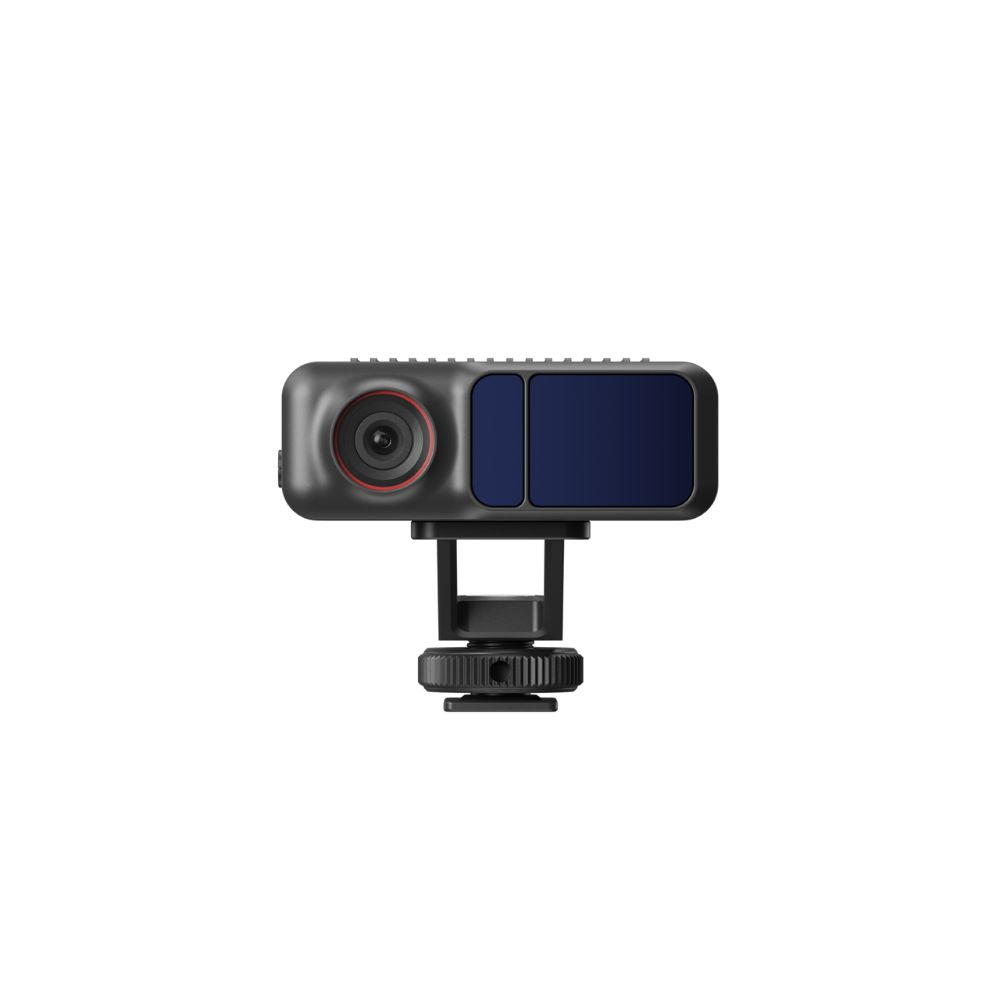

DJI Focus Pro LiDAR
● The LiDAR boasts 76,800 ranging points and a 20m max range. When paired with the DJI Focus Pro Motor, it can enable autofocus for manual lenses.
Specifications
● Ranging Points: 76,800
● Sensing Range: 0.5-20 m
● FOV: Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal) / Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)
● Frame Rate: 30fps
● Equivalent Focal Length: 30 mm (wide-angle mode)
● Ranging Accuracy: ±1% to 3% (affected by the distance)
● Power Consumption: Average approx. 6.3 W, max 6.8 W
● Input Voltage: 6.6-17.2 V
● Operating Temperature: -20° to 45° C (-4° to 113° F)
● Main Body Dimensions: 68×25×57 mm (L×W×H)
● Weight: 140 g

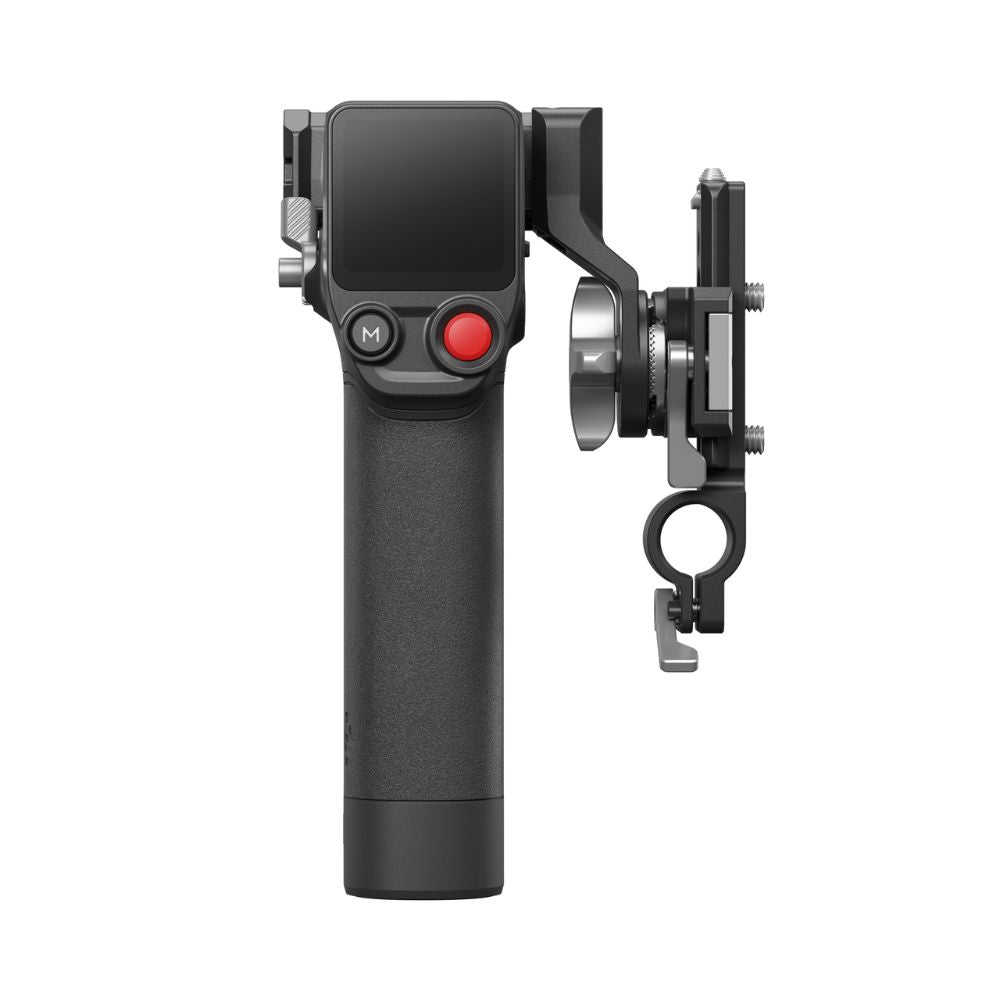

DJI Focus Pro Grip
● The grip is equipped with a magnetic damping dial and a 1.8-inch full-color touchscreen. When paired with the DJI Focus Pro LiDAR, the grip can enable autofocus for manual lenses.
Specifications
● Operating Frequency: 2.400-2.4835 GHz
● Main Body Dimensions: 59×73×162 mm (L×W×H)
● Main Body Weight: Approx. 482 g
● Mounting Method: Flexible mounting on either left or right side of the cage via NATO port
● Operating Time: Approx. 2.5 hours*
● * Measured in a 25° C (77° F) environment while simultaneously powering the grip screen, LiDAR, and a focus motor, with AF continuously on, and paired with a manual lens.

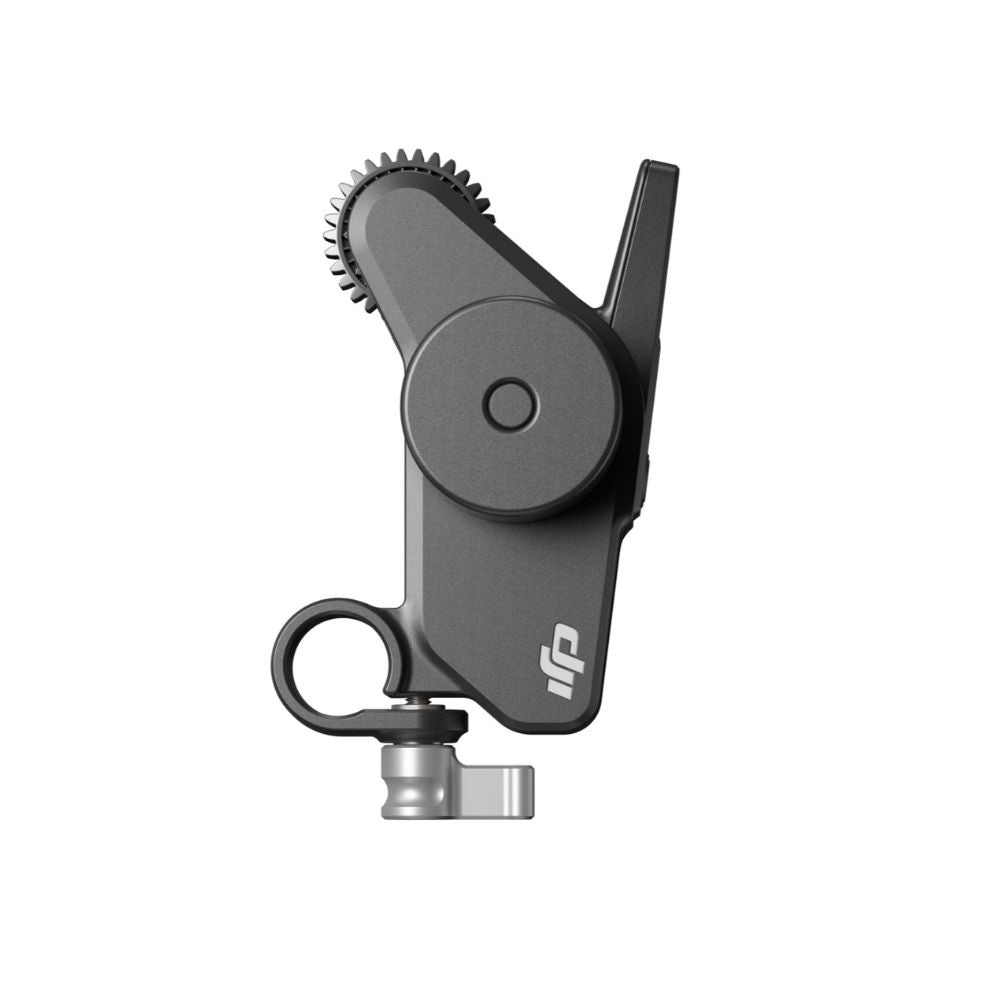

DJI Focus Pro Motor
● Motor speed increased by 30%; compatible with 15mm universal rods; built-in RF antenna; latency as low as 10 milliseconds.
Specifications
● 2.4GHz Transmitter Power (EIRP): < 20 dBm (CE/SRRC/MIC), < 26 dBm (FCC)
● 2.4GHz Transmission Distance: 160 m*/100 m**
● * Measured under FCC standard in an unobstructed environment free of interference.
● ** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference.
● Dimensions: 100×61×34 mm (L×W×H)
● Weight: 123 g
● Rod Diameter: 15 mm
● Output Gear Teeth: 30
● Output Gear Module: 0.8
