DESCRIPTION:
Osmo Action 4 Standard Combo
-
1/1.3″ Sensor & Low-Light Imaging
-
10-bit & D-Log M Color Performance
-
Deep-Freeze Resistant & Long-Lasting Battery Life
-
4K/120fps & 155º Ultra-Wide FOV
-
Magnetic Quick Release & Native Vertical Video
-
360° HorizonSteady
-
Waterproof up to 18m
-
Dual Full-Color Touchscreens
SPECIFICATIONS:
GENERAL
Waterproof
18 m without the Waterproof Case, 60 m with the Waterproof Case
Before use, close the battery compartment cover and the USB-C port cover, and tighten the Glass Lens Cover. It is recommended to install the Waterproof Case for long-duration underwater shooting or in environments with high water impact pressure. Osmo Action 4 and its Waterproof Case have an IP68 waterproof rating. Do not use the camera in hot springs or extreme underwater environments, or let it come into contact with corrosive or unknown liquids.

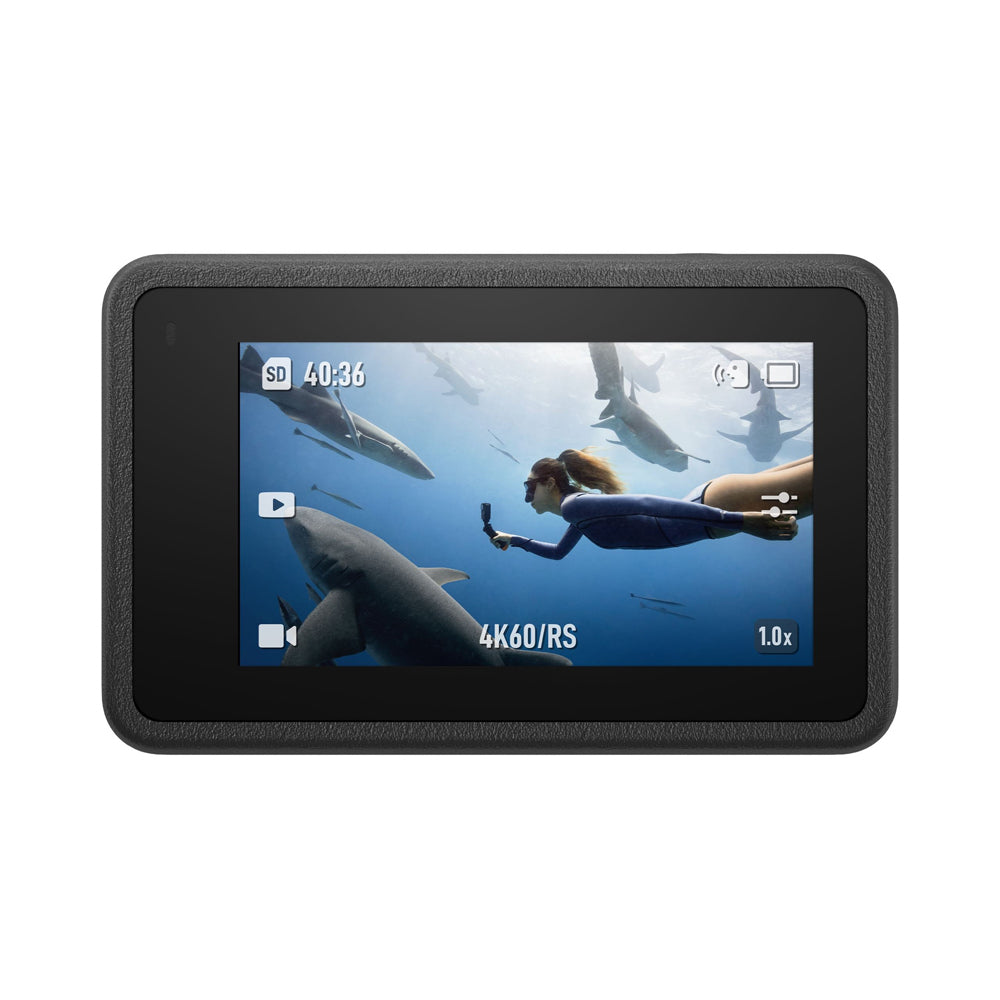

Touchscreens
-
Front Screen: 1.4-inch 323 ppi 320×320
-
Rear Screen: 2.25-inch 326 ppi 360×640
-
Front/Rear Screen Brightness: 750±50 cd/m²
Number of Microphones: 3
CAMERA
Sensor
- 1/1.3-inch CMOS
Lens
-
FOV: 155°
-
Aperture: f/2.8
-
Focus Range: 0.4 m to ∞
ISO Range
-
Photo: 100-12800
-
Video: 100-12800
Electronic Shutter Speed
-
Photo: 1/8000-30 s
-
Video: 1/8000 s to the limit of frames per second
Max Photo Resolution
- 3648×2736
Zoom
-
Digital Zoom
-
Photo: 4×
-
Video: Max 2×
-
Slow Motion/Timelapse: Not available
Still Photography Modes
-
Single: Approx. 10 MP
-
Countdown: Off/0.5/1/2/3/5/10 s
Standard Recording
-
4K (4:3): 3840×2880@24/25/30/48/50/60fps
-
4K (16:9): 3840×2160@100/120fps
-
4K (16:9): 3840×2160@24/25/30/48/50/60fps
-
2.7K (4:3): 2688×2016@24/25/30/48/50/60fps
-
2.7K (16:9): 2688×1512@100/120fps
-
2.7K (16:9): 2688×1512@24/25/30/48/50/60fps
-
1080p (16:9): 1920×1080@100/120/200/240fps
-
1080p (16:9): 1920×1080@24/25/30/48/50/60fps
Slow Motion
-
4K: 4× (120fps)
-
2.7K: 4× (120fps)
-
1080p: 8× (240fps), 4× (120fps)
Hyperlapse
-
4K/2.7K/1080p: Auto/×2/×5/×10/×15/×30
Timelapse
-
4K/2.7K/1080p@30fps
-
Intervals: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40 s
-
Duration: 5/10/20/30 mins, 1/2/3/5 hours, ∞
Stabilization
EIS
-
RockSteady 3.0
-
RockSteady 3.0+
-
HorizonBalancing
-
HorizonSteady
-
EIS is not supported in Slow Motion and Timelapse modes. HorizonSteady is only available when the video resolution is 1080p (16:9) or 2.7K (16:9) with a frame rate of 60fps or below. HorizonBalancing is only available when the video resolution is 1080p (16:9), 2.7K (16:9), or 4K (16:9) with a frame rate of 60 fps or below.
Max Video Bitrate: 130 Mbps
Supported File System: exFAT
Built-in Storage Capacity: The camera does not have built-in storage, but storage capacity can be expanded by inserting a microSD card.
Audio Recording: 48 kHz 16-bit; AAC
BATTERY
- Capacity: 1770 mAh
- Energy: 6.8 WhOperating Temperature: -20° to 45° C (-4° to 113° F)
-
Charging Temperature: 5° to 40° C (41° to 104° F)
-
Operating Time: 160 minutes (Tested at room temperature (25° C/77° F) and 1080p/24fps (16:9), with RockSteady on, Wi-Fi off, and screen off. This data is for reference only.)
CONNECTION
Wi-Fi Operating Frequency
-
2.400-2.4835 GHz
-
5.150-5.250 GHz
-
5.725-5.850 GHz
Wi-Fi Transmitter Power (EIRP)
-
2.4 GHz: < 15 dBm (FCC/CE/SRRC/MIC)
-
5.1 GHz: < 16 dBm (FCC/CE/SRRC/MIC)
-
5.8 GHz: < 14 dBm (FCC/CE/SRRC)
INCLUSIONS:
OSMO ACTION 4 STANDARD COMBO
- Osmo Action 4
- Extreme Battery
- Locking Screw
- Protective Frame
- Curved Adhesive Base
- Adapter Mount
- Type-C PD Cable

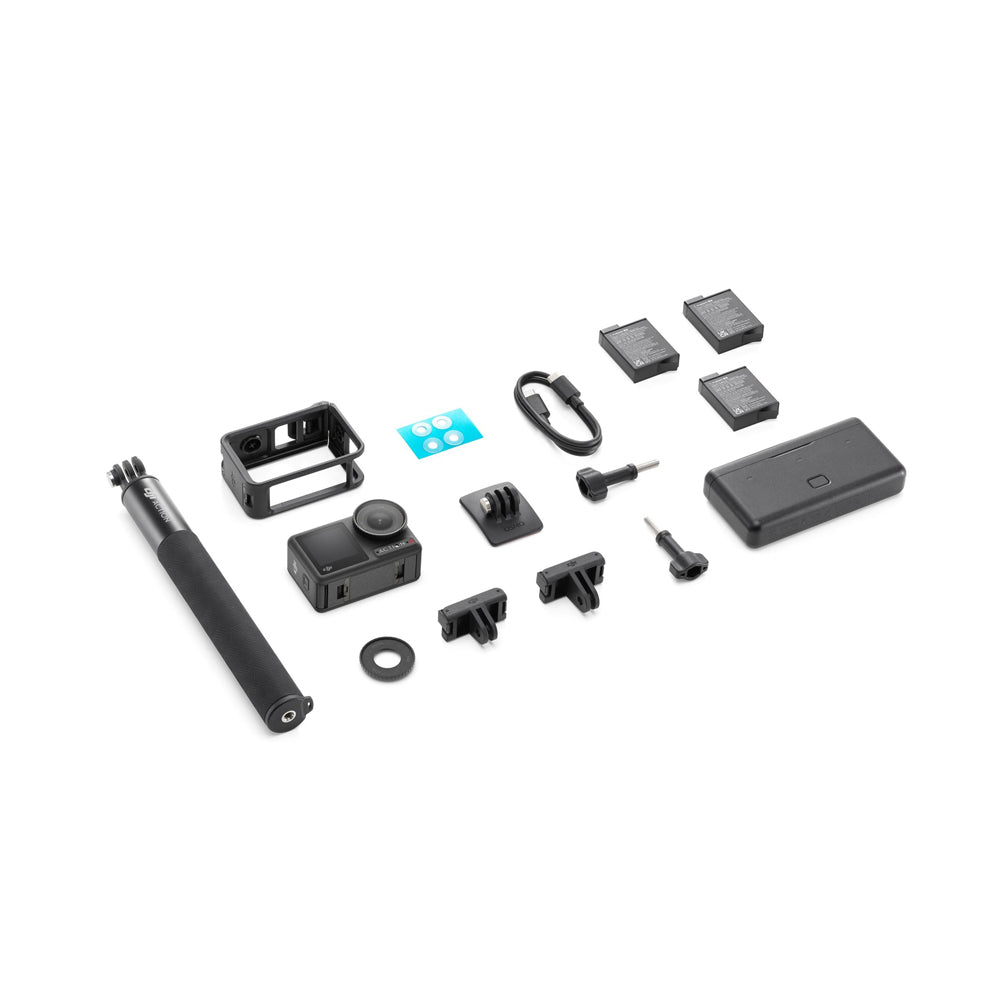

DJI OSMO ACTION 4 ADVENTURE COMBO
- Osmo Action 4
- Extreme Battery x3
- Battery Case
- 1.5 Extension Rod
- Locking Screw x2
- Protective Frame
- Curved Adhesive Base
- Adapter Mount
- Adapter Mount (Mini)
- Type-C PD Cable
