EBL

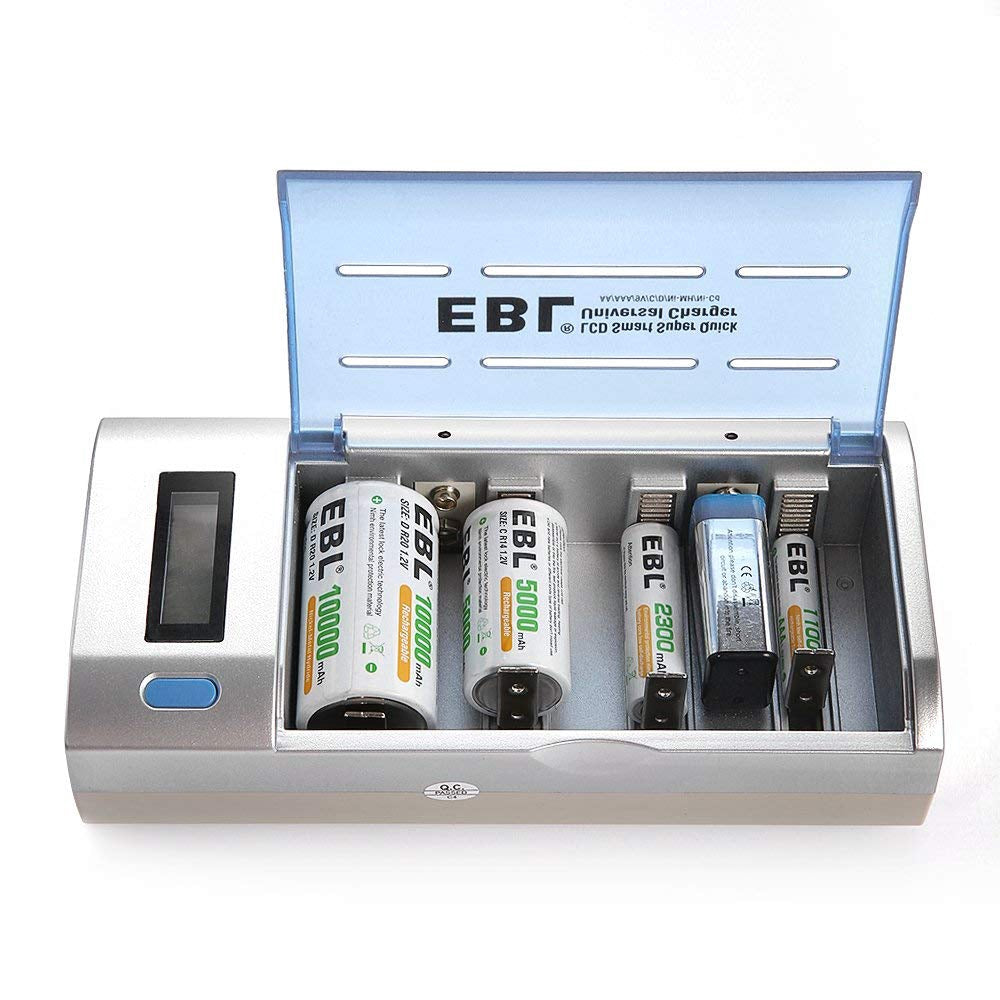

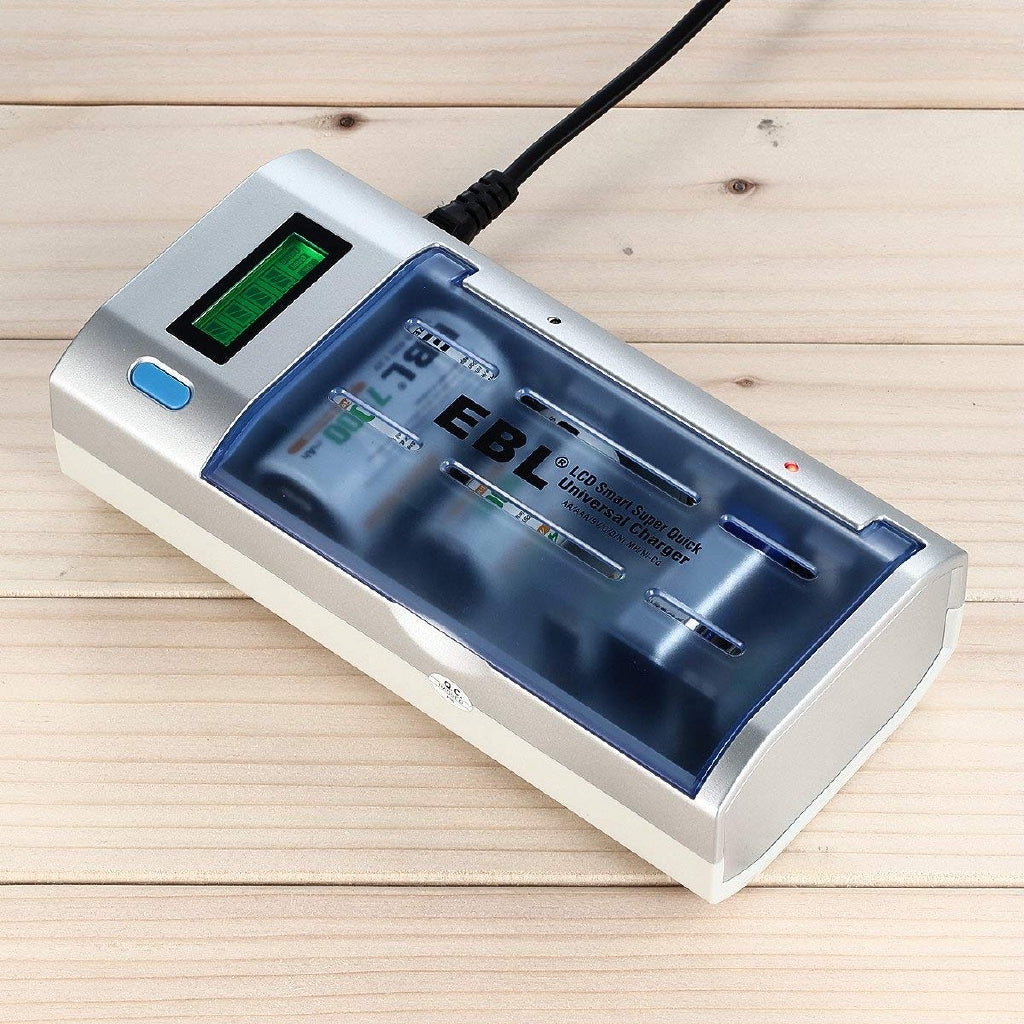

EBL LN-2605UR 4-Bay Universal Smart Battery Charger with Integrated Discharge Function & LCD Display for AA AAA C D 9V Rechargeable Ni-MH Ni-CD Batteries

Name: EBL LN-2605UR 4-Bay Universal Smart Battery Charger with Integrated Discharge Function & LCD Display for AA AAA C D 9V Rechargeable Ni-MH Ni-CD Batteries
Brand: EBL
SKU: EBL LN-2605UR
Price: 892.0 PHP
Availability: InStock

₱892.00 PHP

Sale Sold out

Tax included.

SKU:

Product variants

Features:

Ultra compatible 1-4 AA/AAA/C/D and 1-2 9V Ni-MH/Ni-Cd rechargeable batteries, independent charging slot, can charge different size batteries freely.
MCU controlled, adopts using -∆V intellectual cut-off charging method, automatically turn to trickle charge, prevent the batteries from over-voltage, over-current or over-heat.

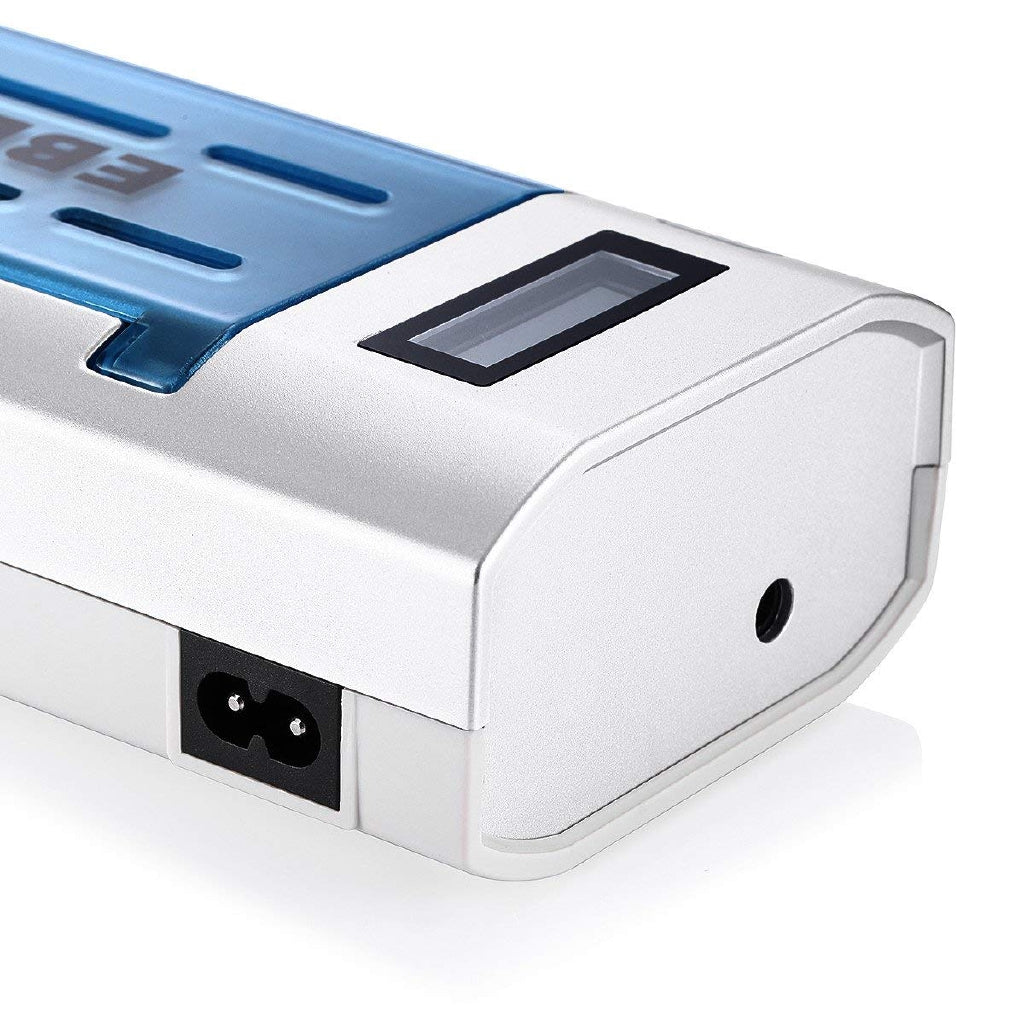

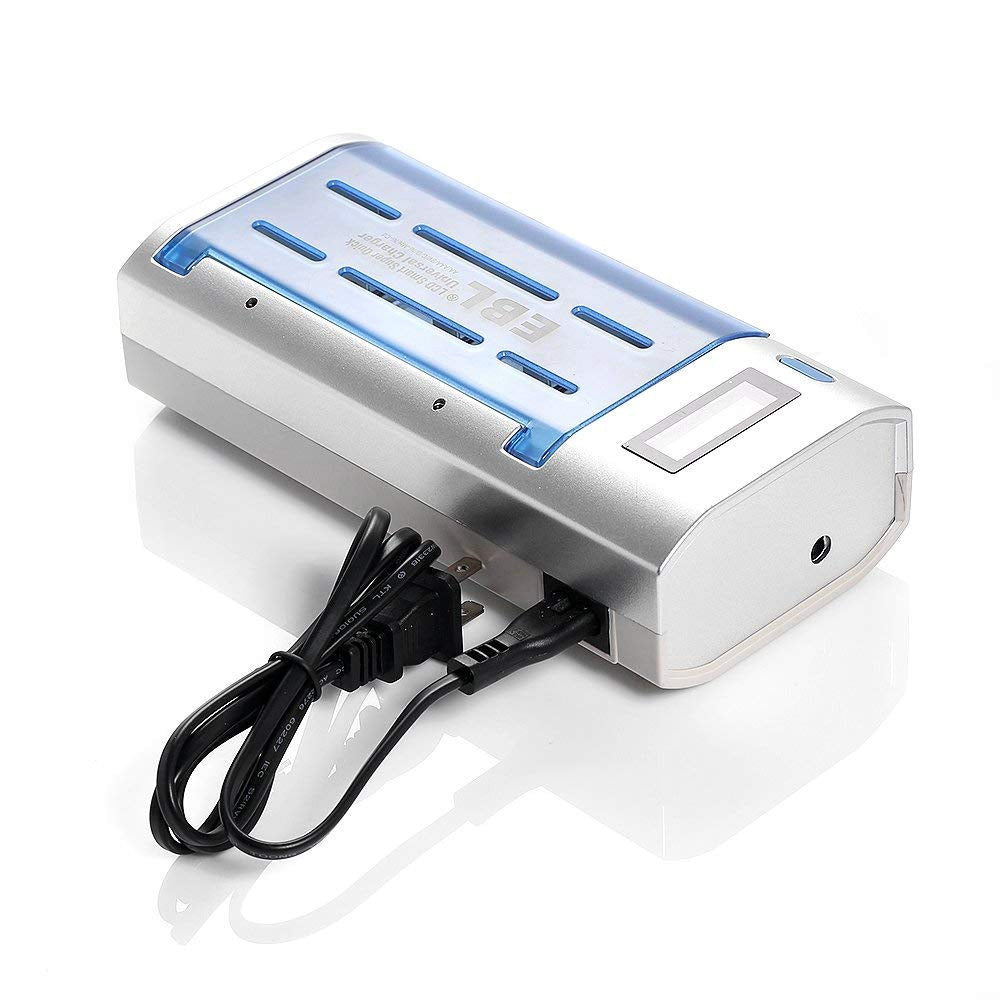

AC and DC input design (AC cable provided only), applied to worldwide voltage - AC 100-240V 50/60Hz, convenient everywhere.
Automatically stop charging when detecting improper input voltage, defective or short circuit or non rechargeable batteries..
Constant current charging mode would protect the batteries against current fluctuation and keep using the charger safely..

Specifications:

Input: AC 100-240V AC 50/60Hz,10W; DC 12V 800mA
Output: AA/AAA/C/D: 1.2V DC x 4 1000mA
6F22 9V: DC 30mA

Compatible Models

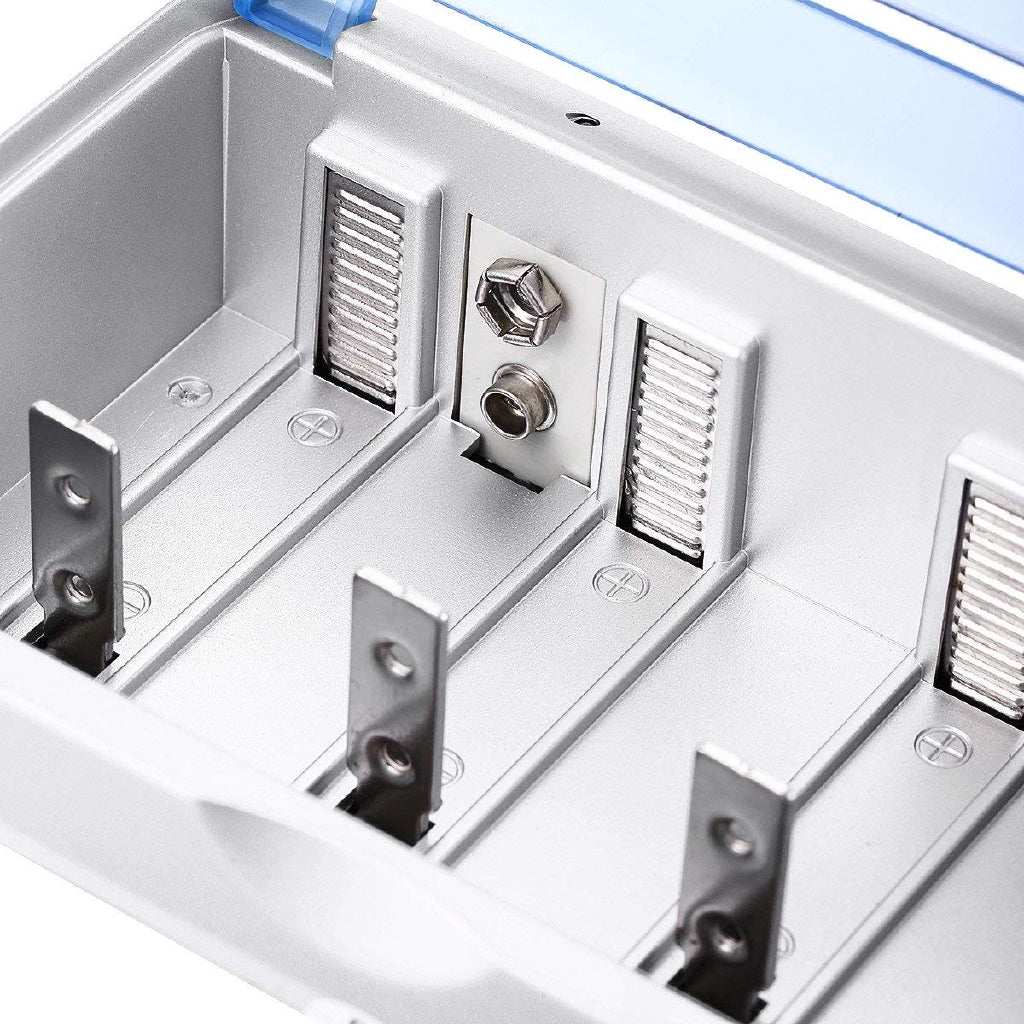

Independent charging slot, can charge different compatible batteries freely.
For Ni-MH Ni-CD rechargeable batteries: 1/2/3/4 AA, AAA, C, D and 1/2 9V batteries.

Environment Conditions
Using Environment: Temperature: 0-40℃; Humidity:≤85%
Storage Environment: Temperature: -10-40℃; Humidity:≤60%

Work Temperature:
Surface temperature of charger≤60℃
Surface temperature of battery≤45℃

Reasonable Circuit Layout - Worldwide Usage

Charging Time Table:
1pcs Battery Type (Ni-MH) Capacity Charging Time (approx)
AAA 500-1200mAh 1-3 hours
AA 1300-2800mAh 1.5-3.5 hours
C 1800-5000mAh 2-6 hours
D 1800-10000mAh 2-10 hours
9V 150-600mAh 5-20 hours

Patent Trickle Charge Mode

Unique Trickle Charge
Adopting -∆V intellectual cut-off charging method, automatically turn to trickle charge, overheat-detection to prevent over-charging, short circuit protection and reverse polarity protection.

Attention:
* Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the charger.
* Never mix charge different type and different capacity of batteries under the same LED indicator.
* Using environment: 0℃ to 40℃, it is normal phenomenon that the battery is warmer than room temperature when charging.
* Do not disassemble or reassemble the charger by yourself for safety reason.

MCU controlled, Safety Protected

Negative delta V (- ∆V) cut-off function (except for 9V batteries), overcharge protection, short circuit protection and non-rechargeable or bad cell detection make it more easier for usage.

One Button Discharge

EBL 906 battery charger can both recharge and discharge the batteries by switch the blue button below the LCD screen.
Press this button, and discharge batteries. Charger will turn to charging mode automatically after discharge completed.

How to change the mode of Charge & Discharge
Press the button for charging and discharging:

“CHG” -- Charging;
“DISCHG” -- Discharging;
“ERROR” -- install the battery incorrectly or the battery is broken one.
