Description:

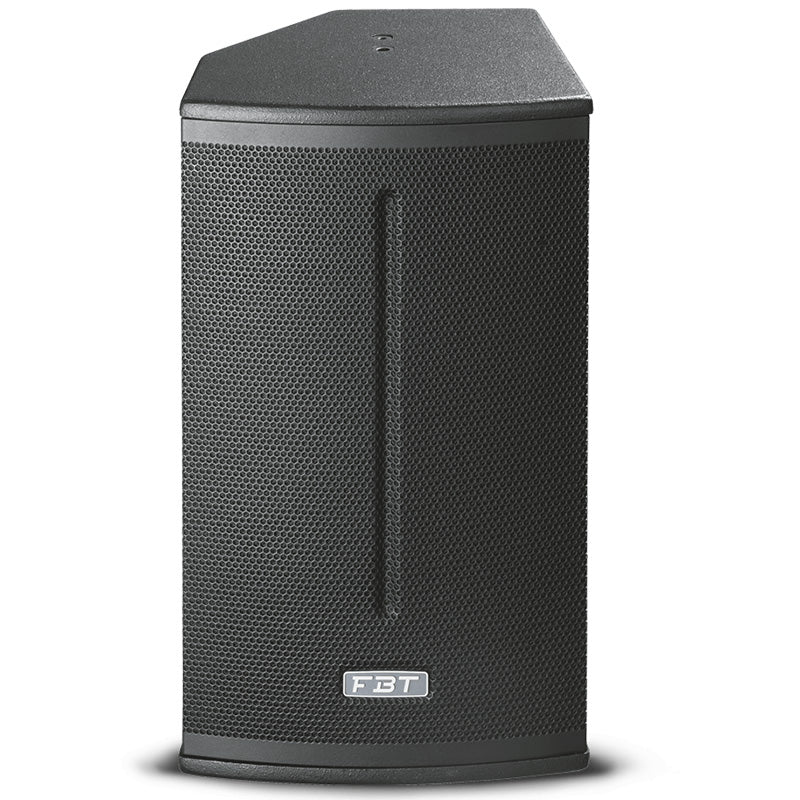

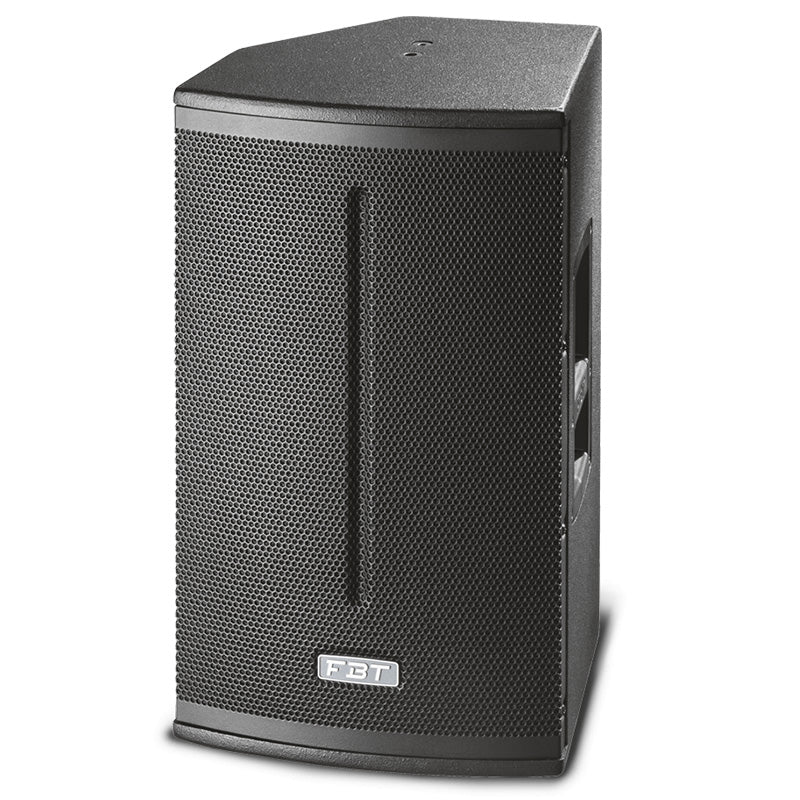

The FBT XPRO 115A series speakers with integrated 3-channels mixer feature lightweight, yet rugged gas injected molded plywood cabinet construction.
Available in black finish, the FBT XPRO 115A series speakers provide fixed installations with an elegant design that blends into any decoration.
The asymmetrical shape of the FBT XPRO 115A cabinet also allows use as a powered floor stage monitor.
The FBT XPRO 115A is two way design incorporating a 15” low frequency woofer and 1” HF compression driver coupled to a 80°H x 50°V rotatable constant directivity horn.
- With a frequency range of 42Hz - 20kHz the FBT XPRO 115A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 130dB.
- The bi-amplified FBT XPRO 115A active speaker feature a 1200W low frequency amp and a 300W high frequency amp.

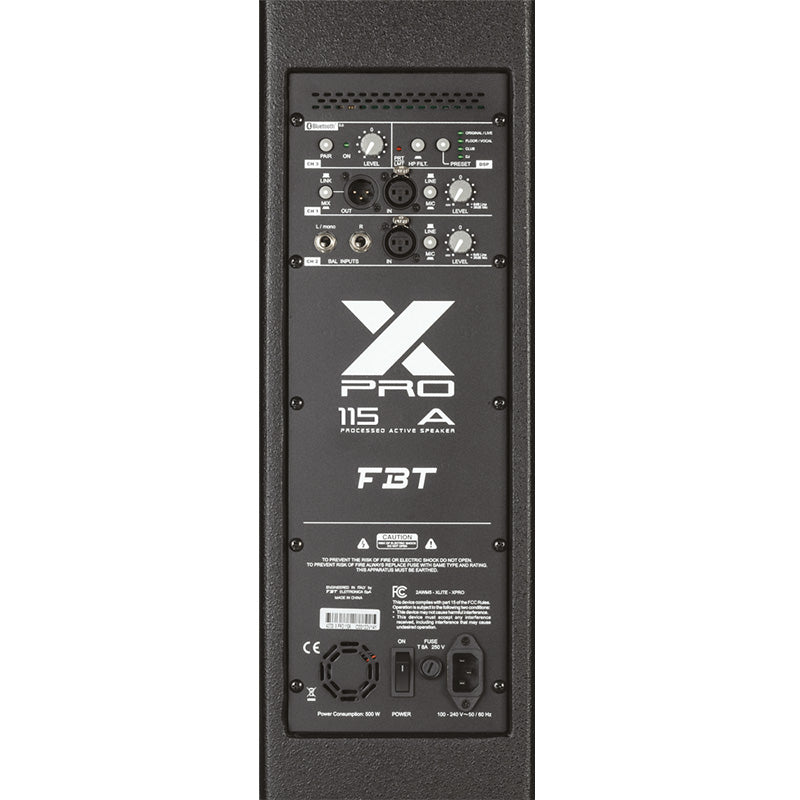

- The control panel features a three-channel mixer with two micro-line inputs, a stereo input and a dedicated channel for bluetooth 5.0; two xlr inputs, stereo input, xlr output with ch1 or mix link selector, hp filter, two mic-line selectors, dsp preset selector, bluetooth 5.0 with pairing led.
- 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT XPRO 115A speaker to be surface mounted on walls or ceilings.
- A standard 1.38” speaker stand socket allows the FBT XPRO 115A to be mounted on speaker stand.
-
2-way bi-amplified system in bass reflex
-
Plywood cabinet
-
Woofer custom 15” (LF) woofer / 2.5” voice coil
-
1” throat / 1,4” voice coil HF compression driver
-
1200/300W built-in amplifier max (LF/HF)
-
Bluetooth 5.0
-
3-channels mixer
-
4 DSP presets
-
80° H x 50° V rotatable constant directivity horn
-
35° or 45° monitor taper
-
Universal switching mode power supply 100-240Vac
-
M10 rigging points
Feature:
-
Configuration: 2 way
-
Build-In Amplifier LF/HF: 1200/300 W
-
Frequency Response: 42Hz - 20KHz
-
Low Frequency Woofer: 15- 2.5 coil
-
High Frequency Driver: 1 - 1.4 coil
-
Maximum SPL CONT/PEAK: 125/130 dB
-
Dispersion: 80°x50° rotatable
-
Input Impedance: 22 kOhm
-
Input Connector: XLR IN/OUT JACK ST
-
Power Cord: 9.8ft / 3mt
-
Net Dimension (WXHXD): 17,28 x 28,93 x 17,32 / 439 x 735 x 440
-
Net Weight: 48,50 lbs / 22 Kg
-
Transport Dimension (WXHXD): 21,06 x 31,88 x 21,06 / 535 x 810 x 535
-
Transport Weigth: 55,11 lbs / 25Kg
