Overview:
-
The FBT X-SUB 115SA , 1 x 15" bass-reflex design subwoofer, is the perfect low frequency extension and the ideal companion for the FBT X-LITE and FBT X-PRO series. Frequency response of 42Hz to 120Hz @ -6dB, maximum SPL of 135 dB peak, 1200W Class D amplifier.
-
Equipped with a 15\" (380mm) high excursion woofer and a 1200W RMS internal amplifier. It has a digital signal processor with 4 presets, allowing extensive customisation of low frequencies up to mid-high levels.
-
The FBT X-SUB 115SA feature 0,59\" birch plywood construction with scratch resistant black paint finish with M20 top mounted stand adapter, two FBT design aluminum handles and four optional 100mm/3,93\" transport wheels.
-

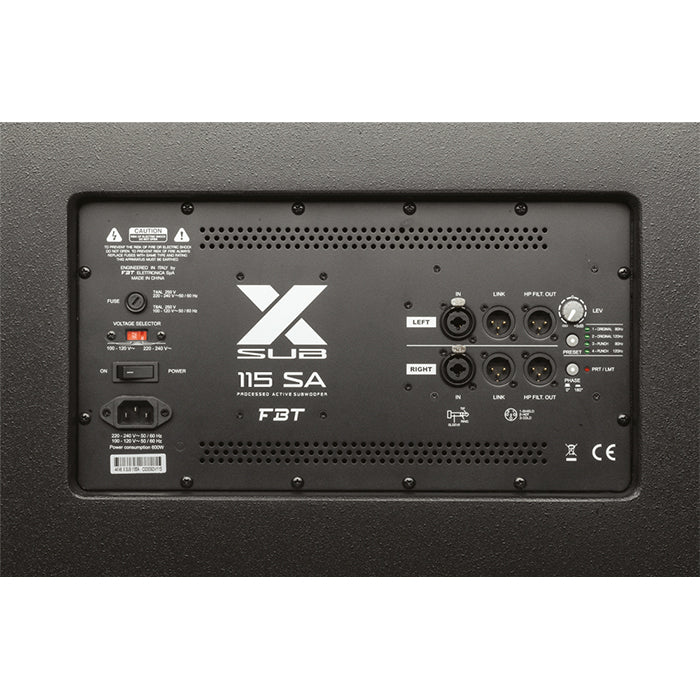

The control panel provides two channels with stereo combo XLR/jack in-outs, stereo XLR HP filter outs, level control, preset switch, 0°/180° phase reversal switch, prt-lmt led indicators.
Features:
-
Active Subwoofer
-
15" woofer / 3" voice coil
-
Frequency response 42Hz - 120Hz
-
4 DSP presets
-
1200W RMS Class D power amplifier
-
15mm / 0,59" birch plywood cabinet
-
Optional 100mm / 3,93" transport wheels
-
M20 stand pole mount
Specifications:
-
Configuration: bass reflex
-
Built-in Amplifier LF/HF:1200W
-
Frequency Response: 42Hz - 120Hz (@-6dB)
-
Low Frequency Woofer: 15” / 3” coil
-
Maximum SPL Cont/Peak: 135dB half space
-
Dispersion: omnidirectional
-
Input Impedance: 22 kOhm
-
Input Connector: XLR with loop
-
Power Cord: 9.8ft / 3mt
-
Net Dimension (WXHXD): 17,91 x 23,07 x 22,44 / 455 x 586 x 570
-
Net Weight: 66,13 lbs / 30kg
