Overview:
-

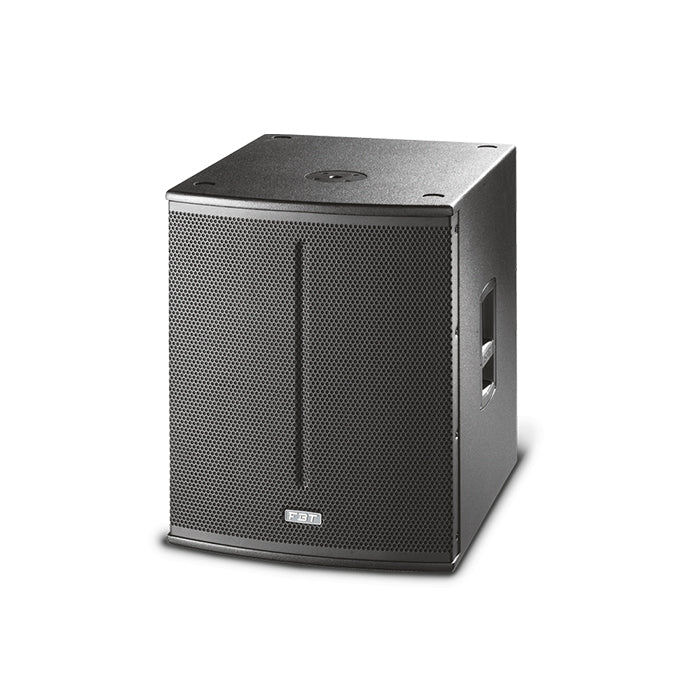

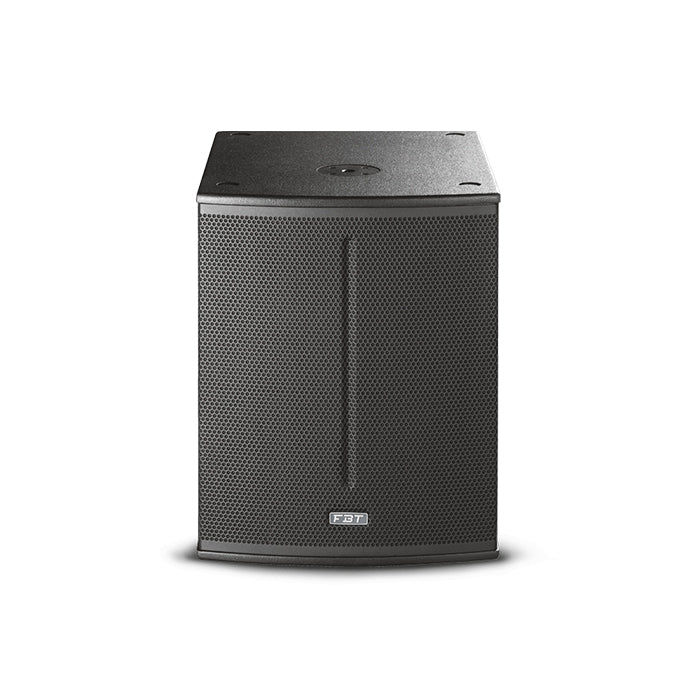

Loaded with a single 18\" heavy duty woofer, the X SUB 118SA is controlled by a 1200W Class D amplifier with DSP at 4 preset allowing perfect tailoring of the extended low frequency to the mid-high. The rugged plywood enclosure is built to withstand touring conditions, yet crafted with Italian style to suit the most elegant fixed installation. Finally, the M20 thread allows for pole mounting on a 3-way system design
Features:
-
Compact band pass subwoofer with great SPL and punch
-
460mm (18") high excursion woofer with 75mm (3") voice coil
-
Frequency response from 38Hz to 120Hz
-
1200Wrms class D amplifiers with switching power supply
-
DSP processor with 4 presets, two responses with 2 different cut-off frequencies
-

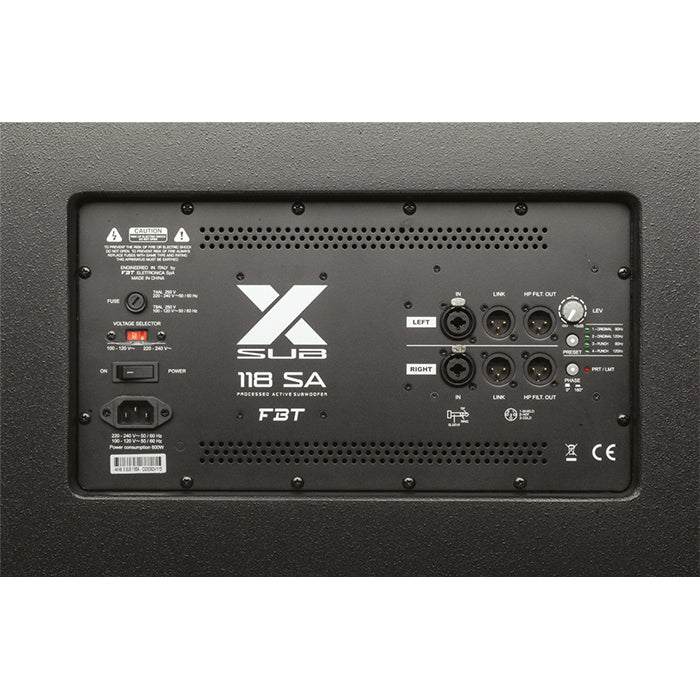

Control panel with XLR input and STEREO link, XLR Hi-Pass out STEREO, volume, presets, phase 0 ° -180 °
-
18mm birch plywood box with anti-scratch paint stand support
-
M20 and two FBT aluminum handles, optional 100mm wheels
-
Ideal for reinforcing and extending the low range of the X-Pro or X-Lite series
Specifications:
-
Configuration: Bass Reflex
-
Built-in Amplifier LF/HF:1200W
-
Frequency Response: 38Hz - 120Hz (@-6dB)
-
Low Frequency Woofer: 18” / 3” coil
-
Maximum SPL Cont/Peak: 136dB half space
-
Dispersion: omnidirectional
-
Input Impedance: 22 kOhm
-
Input Connector: XLR with loop
-
Power Cord: 9.8ft / 3mt
-
Net Dimension (WXHXD): 20.07 x 25.78 x 24.80 / 510 x 655 x 630
-
Net Weight: 74.95 lbs / 34kg
