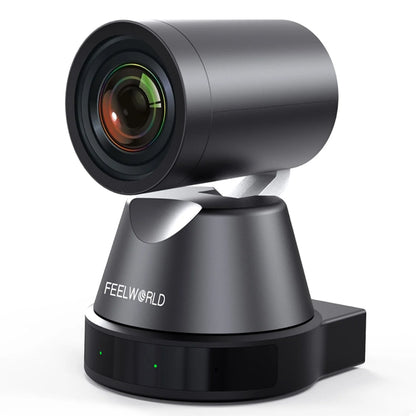

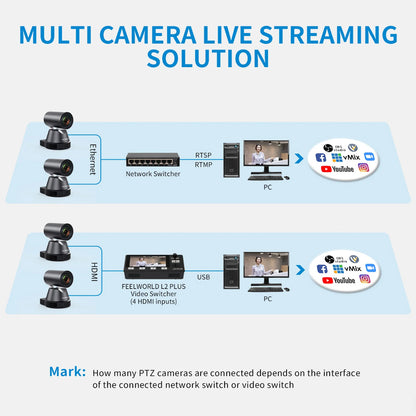

Capture UHD 4K video and live stream it to remote audiences in classrooms, houses of worship, or presentation applications using this 4K12X UHD 4K HDMI/USB PTZ Camera from FeelWorld. Three video output options—HDMI, USB-C, and LAN ensure connectivity with your preexisting streaming interface. Its 1/2.8" CMOS sensor records a clear, high-quality image, while 340° of pan and 120° of tilt control offer a wide range of movement. Connect multiple 4K12X camera units to the L2 PLUS network video switcher for larger streaming applications.
Features:
- 8.51M megapixel high quality SONY CMOS sensor
- Up to 4K@30fps , presenting ultra clear and vivid image
- 12X optical zoom lens and 80.5° wide angle lens

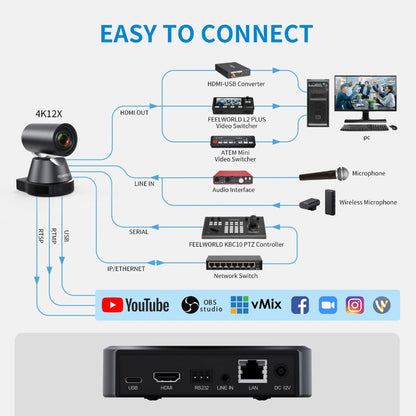

- Simultaneous HDMI, USB3.0, IP Streaming video out, easily for professional video production
- PoE(Power over Ethernet) supported
- Auto focus, smart frame capture everyone
- Supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
- Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
- High speed and silent pan/tilt, capture all the actions
- Multiple control protocol and network protocol
- Support real-time AI tracking and zone tracking
- Ideal for online education, live streaming, video conference, Tele-medicine, etc.
Full Specifications:
- Model: 4K12X
- Sensor: 1/2.8 inch high quality CMOS sensor
- Effective Pixels: 8.51 megapixel, 16：9
- View Angle: H：7.6°（N）～80.5°（W）
- Iris: F1.8 ～ F3.6
- Digital Zoom: 15X
- Optical Zoom: 12X
- Minimum Illumination: 0.5Lux(F1.8, AGC ON)
- DNR: 2D & 3D
- White Balance: Auto/Manual/One-push/Specified Color Temperature
- Focus: Auto/Manual/One-push
- Exposure: Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
- Iris Mode: F1.8 ～ F11, CLOSE
- Shutter Speed: 1/25～1/20000
- BLC: On/Off
- Dynamic Range: Off, 1 ～ 8
- Video Adjustment: Brightness, Chromaticity, Saturation, Contrast, Sharpness, Black And White Mode, Gamma Curve
- SNR: >50dB
- Interface: HDMI, LAN(POE), USB3.0, A-IN, RS232-IN, DC12V Power Supply
- Video Output: HDMI, USB3.0, LAN(support PoE)
- Video Compression Format: LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12
- Audio Interface: Double track 3.5mm linear input
- Audio Compression Format: AAC
- LAN Interface: 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output
- Control Interface: RS232-IN

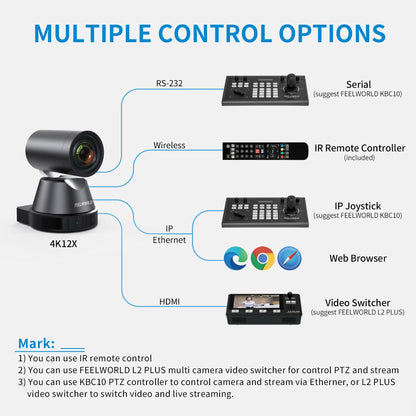

- Control Protocol: VISCA/Pelco-D/Pelco-P
- Serial Port Communication Protocols: VISCA/Pelco-D/Pelco-P
- USB Communication Protocols: UVC（Video Communication Protocol）, UAC（Audio Communication Protocol）
- Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote reboot, remote reset
- Power Supply: HEC3800 Power Socket(DC12V)
- Pan Rotation: -170°～+170°
- Tilt Rotation: -30°～+30°
- Pan Control Speed: 0.1 ～45°/sec
- Tilt Control Speed: 0.1～30°/sec
- Preset Speed: Pan: 45°/sec, Tilt: 30°/sec
- Preset Number: 255 presets(10 via remote control)
- HDMI: 4KP30/25,1080P60/59.94/50/30/29.97/25,720P60/59.94/50
- USB Main Stream: YUY2/NV12:1920×1080@10/5fps;1280×720@25/20/15/10/5fps;1024×576/800×600/800×448/640×360/ 480×270/320×180@30/25/20/15/10/5fps;
- USB Main Stream: MJPG/H264:3840x2160/2560×1440/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps
- USB Sub-stream: YUY2/NV12:1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps
- USB Sub-stream: MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps
- Input Voltage: 12V/1A
- Input Current: <1A
- Power Consumption: ≤12W
- Stored Temperature: -10℃～+70℃
- Storage Humidity: 20%～95%
- Working Temperature: -10℃～+50℃
- Working Humidity: 20%～80%
- Dimension (W*H*D): 130.46x118.44x165.34mm
- Unit Weight: 1.025kg
