SEETEC ATEM156-CO 15.6 Inch Live Streaming Broadcast Director Monitor Carry-on with 4 HDMI Input Output
Features:

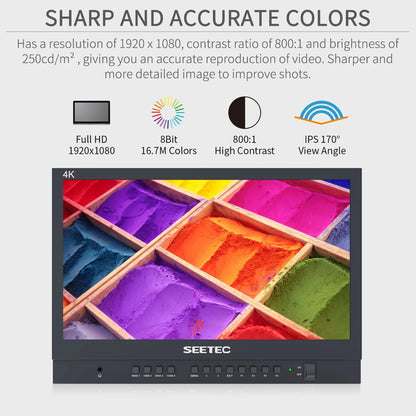

- 1920 x 1080 Resolution, 200 cd/m²
- 1 x HDMI & 4 x 3G-SDI Inputs
- 4 x 3G-SDI Outputs, 800:1 Contrast Ratio

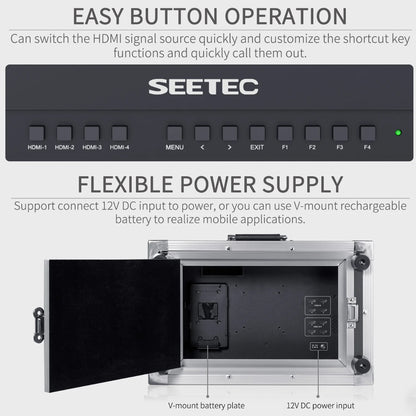

- V-Mount Battery Plate

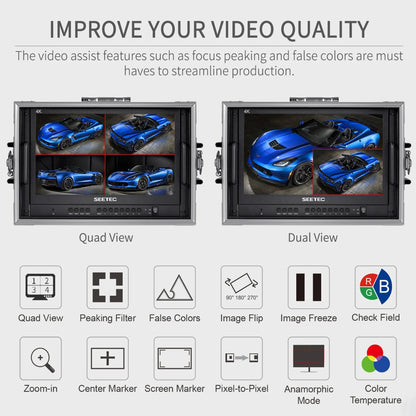

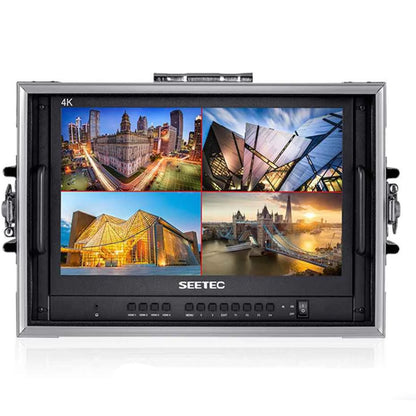

- Quad-Split Display
- 170° Viewing Angle
Specifications:
- Screen Size: 15.6"" IPS
- Color Depth: 16.7M colors (8-bits)
- Resolution: 1920×1080 pixels
- Pixel Pitch: 0.17925 (H) X 0.17925 (V) mm
- Aspect Ratio: 16:9
- Brightness: 250cd/m²
- Contrast Ratio: 800:1
- Backlight: LED
- Viewing Angle: 85°/85°(L/R) 85°/85°(U/D)

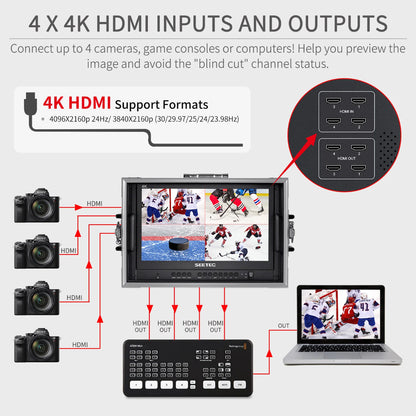

- Input: 4 X HDMI: HDMI (Support 4K 30Hz)
- Output: 4 X HDMI: HDMI (Support 4K 30Hz)
- Audio Out: 3.5mm Stereo Headphone
- HDMI Support Format: 480i/576i/480p/576p, 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98), 3840×2160p (30/25/24), 4096×2160p (24)
- Input Voltage: DC12～24V
- Power Consumption: ≤12W
- Working Temperature: -10°C~50°C
- Storage Temperature: -20°C~60°C
- Unit Size (mm): 372L×262H×28.4D (mm) (Without Aluminum Case)
- Unit Weight: 1.57kg (Without Aluminum Case)
