FEELWORLD CUT6 6 INCH CAMERA DSLR FIELD RECORDER MONITOR WITH TOUCH HDR HDMI 3D LUT LOOP OUT

Name: Feelworld CUT6 6" Screen Field On-Camera Monitor with Touchscreen Controls, 4K UHD HDMI and USB 2.0 Interface and Onboard Video Recorder for Professional Studio Videography
Brand: Feelworld
SKU: FEELWORLD CUT6
Price: 12499.0 PHP
Availability: InStock

FEELWORLD CUT6 - POWERFUL AND PORTABLE

The Feelworld CUT6 Camera Recorder Monitor is the first monitor released by Feelworld that integrates both monitoring and recording into the same portable chassis. It can record up to 1080P 30FPS HD video with custom LUTs via its built-in USB2.0 port. Ideal for photographers or creators looking to create relaxing and entertaining content for sharing on social media, the Feelworld CUT6 Camera Recorder Monitor can help creators finish their production with greater efficiency. The Feelworld CUT6 Camera Recorder Monitor features a 6-inch full HD touch screen which comes equipped with 4K HDMI input, HDMI loop-out LUT function, and provides a suite of professional monitoring and framing tools. Featuring a new menu layout, the Feelworld CUT6 Camera Recorder Monitor allows for easier operation to let you get the shot you need on the first try.

Display Spec.

Model: CUT6
Screen Size: 6" IPS
Resolution: 1920x1080 pixels
Pixel Pitch: 0.069 (H) × 0.069 (V) (mm)
Aspect Ratio: 16:9
Brightness: 450cd/m²
Contrast Ratio: 1000:1
Backlight LED Viewing Angle: 80°/80°(L/R), 80°/80°(U/D)

Input

1 X HDMI HDMI 2.0
1 X Micro SD Card SD Card Slot (LUT files and firmware update file import)

Output

1 X HDMI HDMI 1.4
1 X USB USB 2.0 Recording (supports the USB flash disk of FAT32 format)
1 X DC Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.
USB Recording Support Format: MP4 (1080P30)

HDMI Input Support Format

SMPTE：720p@50/60 | 1080i@50/60 | 1080p@24/30/50/60
VESA：1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×800@60 | 1280×1024@60 |1360×768@60 |1366×768@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60 |3840×2160@60 | 4096×2160@60

EXCELLENT 1920X1080 FULL HD SCREEN

View clearly and capture every detail with confidence. The Feelworld CUT6 Camera Recorder Monitor comes equipped with a 6-inch Full HD 1920x1080 high-resolution touch screen with 8-bit colour depth. It provides excellent detail giving you a clearer, richer colour in your images and videos.

COMPACT, PORTABLE, AND EASY TO HANDLE

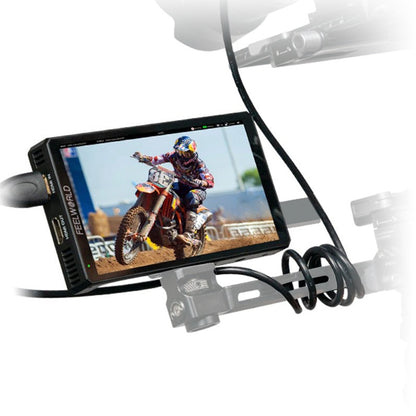

The body of the Feelworld CUT6 Camera Recorder Monitor is only 2.3cm thick and weighs only 230g. This means the Feelworld CUT6 Camera Recorder Monitor can be easily mounted on various camera racks. This monitor is perfect for use with a gimbal for on-site shooting and recording on the go.

FEELWORLD CUT6 MONITOR WITH USB2.0 REAL-TIME RECORDING

The difference between the Feelworld CUT6 Camera Recorder Monitor and other monitors is its included USB2.0 recording functionality. It records the video footage at up to 1080p 30FPS from compatible cameras, using MP4 format over HDMI. Just plug in a USB flash drive (supports FAT32 format) and click the red recording key to start recording.

RECORD WITH LUT EFFECTS TO ACCELERATE VIDEO PRODUCTION

When the LUT function is turned on, the Feelworld CUT6 recorder field monitor can record video with custom LUT effects. For simple content such as behind-the-scenes snippets, you can finish recording your video quickly, saving you both time and money.

SECONDARY EDITING FOR LIVE STREAMING

When you use a PTZ camera for live streaming, they can rarely record at the same time. If you use the camera to record and stream at the same time it will usually get too hot. That means you can only get the contents of live streaming from playback from your streaming platform or local recording by OBS. However, OBS records the images of the final platform, and the recording from the platform needs to be uploaded and then downloaded before editing. The Feelworld CUT6 Camera Recorder Monitor can not only be used as a field monitor, but also for secondary editing. On top of this, it can also be recorded with LUTs applied, which saves you the work of importing LUTs in the editing stage which improves work efficiency.

GREAT NEW USER INTERFACE AND TOUCH SCREEN FOR EASIER OPERATION

The Feelworld CUT6 Camera Recorder Monitor comes with a built-in touchscreen user interface that provides incredible control. You can use simple tap and swipe gestures to access important monitoring functions without having to use buttons. The new UI makes it more convenient than ever to operate various functions. You also can operate via a handy wheel on top of the monitor. The recording symbol is displayed on top of the screen with the recording time. The information displayed on the top of the screen will be hidden automatically after a short time to avoid obstruction during filming. To reenable this function, you can click anywhere on the screen to view the recording time or click the recording key again to end the recording.

THIS CUT6 FEELWORLD MONITOR HAS GREAT THERMAL PERFORMANCE

The built-in adjustable cooling fan keeps the Feelworld CUT6 Camera Recorder Monitor cool to allow optimal thermal efficiency during filming.

FEELWORLD CUT6 HAS A DC POWER SUPPLY

The Feelworld CUT6 Camera Recorder Monitor provides auxiliary power out (DC OUT 8.4V) allowing shooters to power their cameras. When paired with a battery adapter cable (Optional), the Feelworld CUT6 Camera Recorder Monitor extends camera run-time, while providing a more usable display. Barrel output for powering your camera with a separately available DC coupler via adapter (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic). More adapters are coming soon.

(Please note: since different brands and models of cameras require a different power supply for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, to use the camera normally, it is recommended to use a large-capacity fully charged battery known to be compatible with your camera)

FLEXIBLE POWER SUPPLY - FEELWORLD CUT6

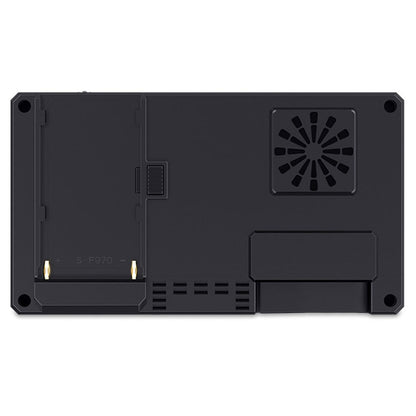

In addition to the DC 12V power input (for which you can use a 12V/1.5A adapter), on the rear of the Feelworld CUT6 Camera Recorder Monitor, there is also an F970 battery plate, which is compatible with Sony F970, F960, F950, F930, F770, F750, F730, F570, F550, F530 batteries.

(Please note: batteries not included)

HDMI LOOP-OUT LUT FUNCTIONALITY

After the LUT mode is activated, the HDMI output will feature the LUT by default, which can output a custom LUT image to other displays. When shooting on-set, you can output the image using LUTs to the director or client’s monitor for real-time monitoring by connecting a wireless device to allow the whole crew to monitor the footage.

TOUCH SCREEN OPERATING INSTRUCTIONS

When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "<" or ">" key.
On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
Click any space beside the menu to exit.
