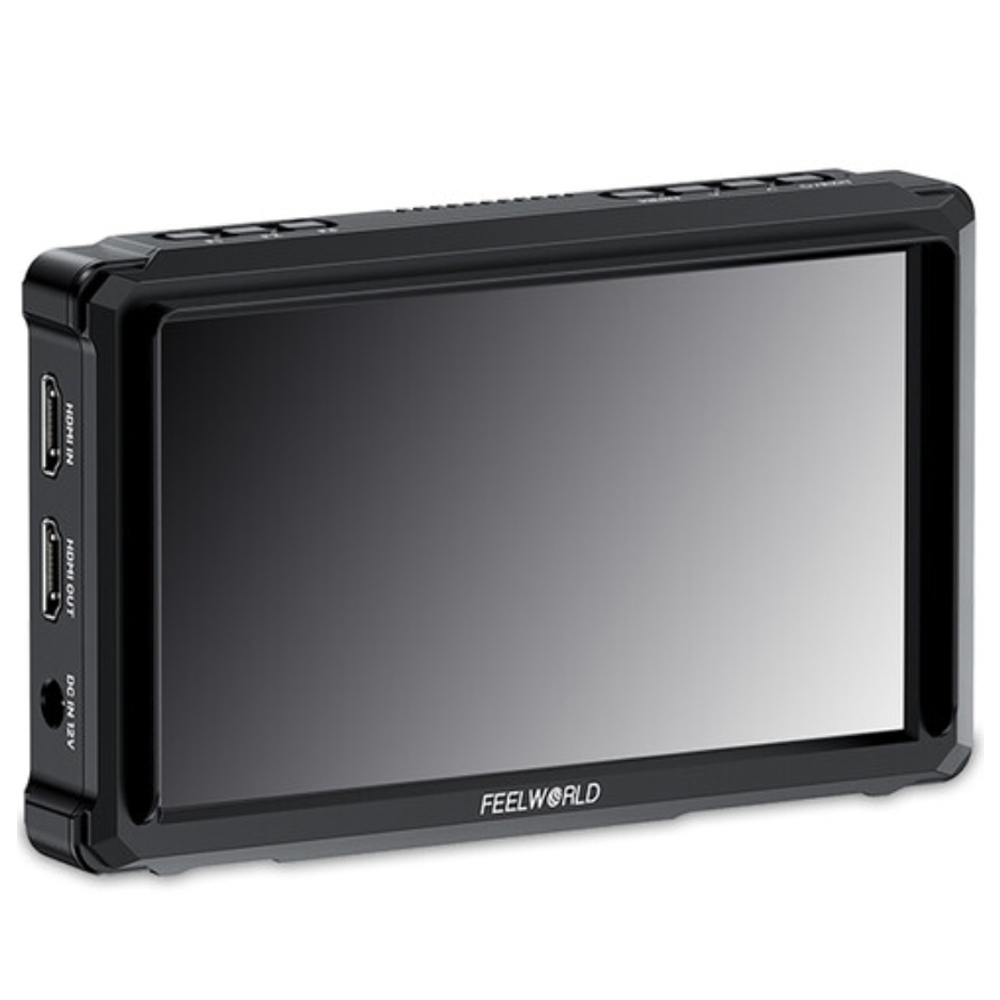

The FW568 PRO 6" High-Bright On-Camera 4K HDMI Monitor from FeelWorld features a 1920 x 1080 resolution display with a maximum brightness of 1200 cd/m². It supports HDMI input signals with resolutions up to DCI/UHD 4K60 and provides an HDMI output for connecting to wireless transmitters, larger on-set monitors, and other devices.
Features:
► 1920 x 1080 Display
► Up to DCI 4K HDMI Input; HDMI Output
► Custom 3D LUT Import via SD Card Slot
► High 1200 cd/m² Brightness
► USB-C L-Series/LP-E6 Power Input
► 8.4 VDC 2.1mm Barrel Power Output

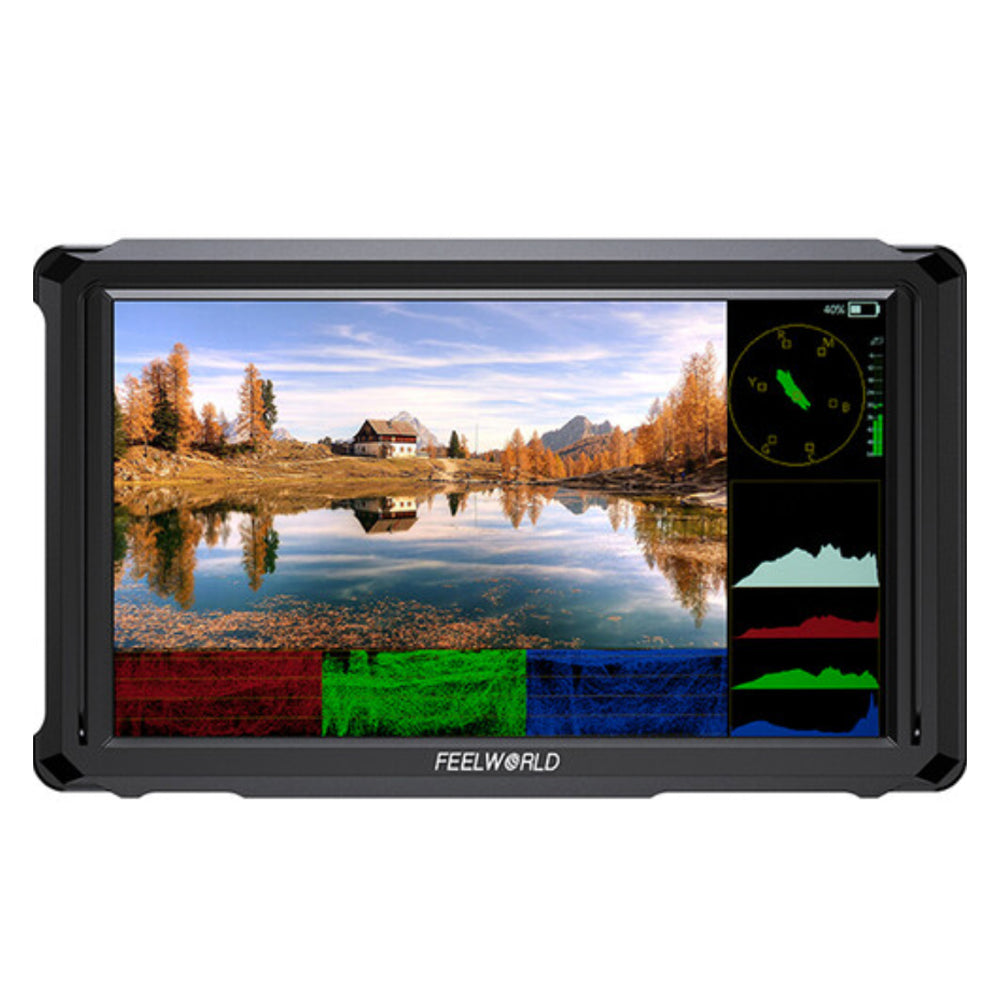

► Waveform, Vectorscope, Histogram & More
Specifications:
• Brand: FEELWORLD
• Model: FW568 PRO
• Type: On-Camera Video Monitor
• Panel Type: IPS-Type LCD
• Display Size: 6.0"" / 15.2 cm
• Native Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Viewing Angle:
- Horizontal: 160° (80/80)
- Vertical: 160° (80/80)
• Touchscreen: No
• Maximum Brightness: 1200 nits / cd/m2
• Contrast Ratio: 1000:1
• HDR Support: Yes
• LUT Support: Yes
• Video I/O
- 1x HDMI 2.0 Input
- 1x Mini-HDMI 2.0 Output
• Embedded Audio: HDMI
• Audio I/O: 1x 1/8"" / 3.5 mm Headphone Output
• Built-In Speaker: Mono
• Power I/O:
- 1x USB-C (5 VDC) Input
- 1x Barrel (12 VDC) Input
- 1x Barrel (8.4 VDC) Output
• Image Controls:
- Anamorphic De-Squeeze
- Check Field
- Color Temperature Selection
- Customizable Aspect Ratios
- False Color
- Focus Assist
- Histogram
- Image Flip
- Image Freeze
- Image Rotate
- Marker Color
- Over scan
- Screen Markers
- Under scan
- Vector scope
- Waveform
- Zebra
• Video Format
• HDMI
- DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
- UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50/30/29.97/25/24/23.98
- 480p
- 480i
- 576p
- 576i
• Gamma Curve: ARRI Log C, Sony S-Log 2, Sony S-Log 3, V-Log
• Input Power: 7 to 24 VDC

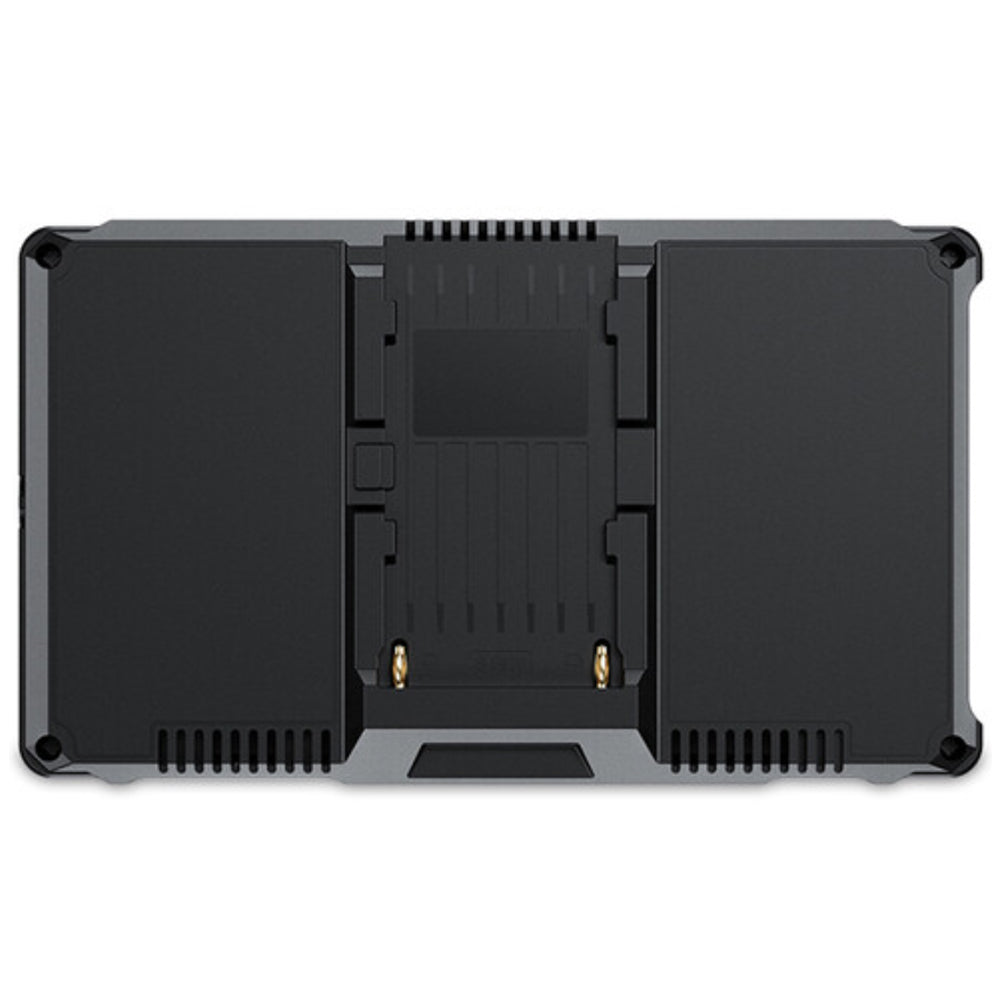

• Battery: 1x L-Series Mount on Fixed Plate
• Power Consumption: 11W (Maximum)
• Tripod/Accessory Mounting: Bottom/Left 1x Anti-Twist 1/4""-20 Female
