OVERVIEW

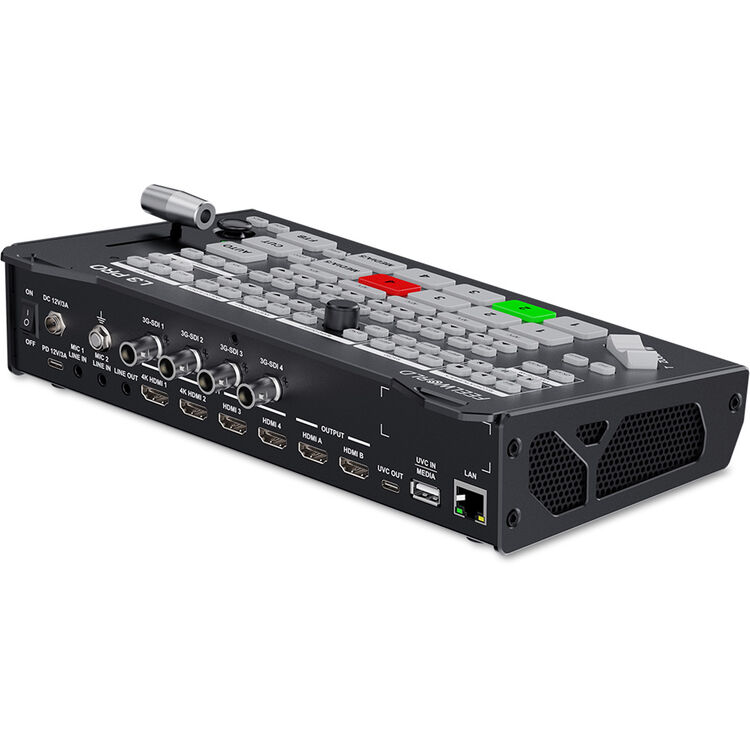

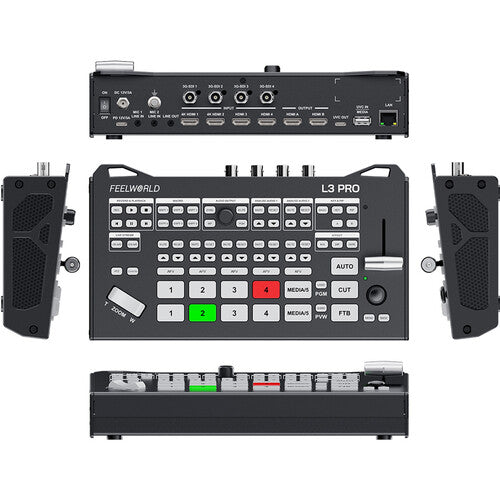

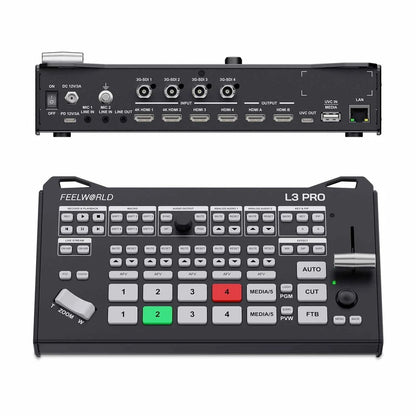

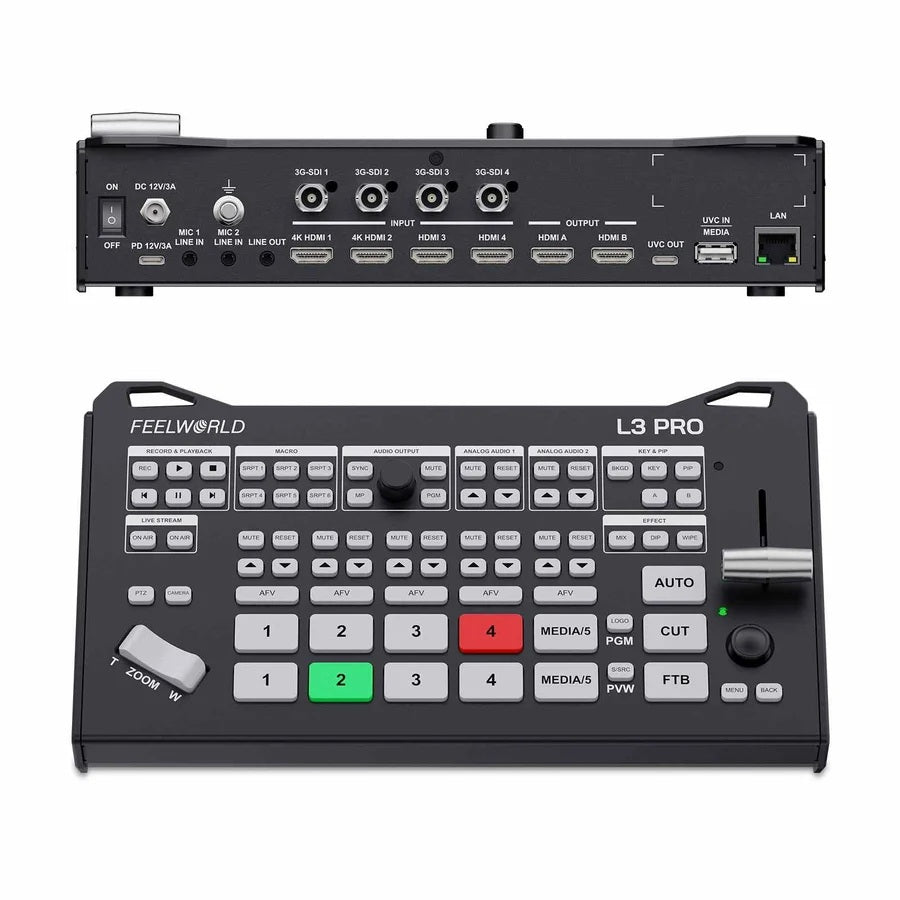

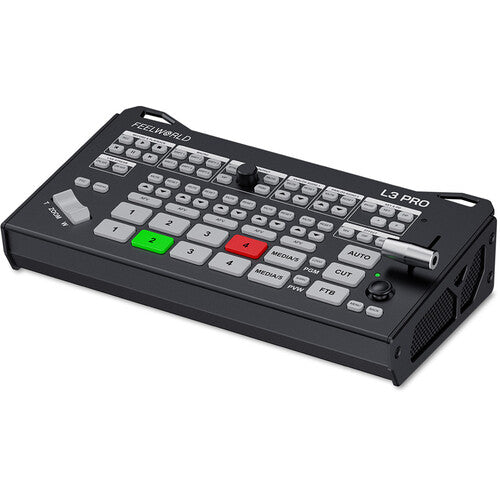

FEELWORLD L3 PRO is a professional video switcher for multi-camera production and live streaming. It supports 4×3G-SDI, 4×HDMI and UVC/MEDIA inputs, allowing cameras, computers and media sources to be switched in one workflow. Dual HDMI outputs support Multi-View monitoring and Program output.
Professional Video Effects and Switching

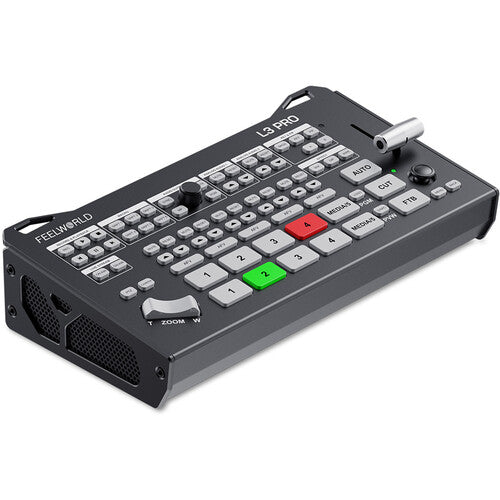

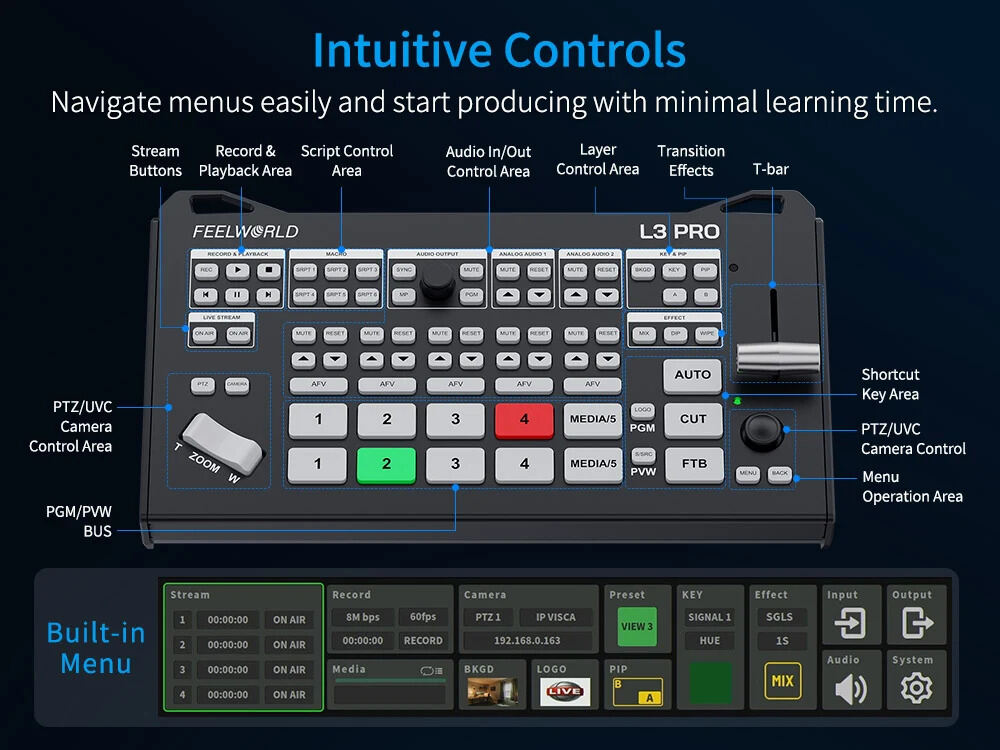

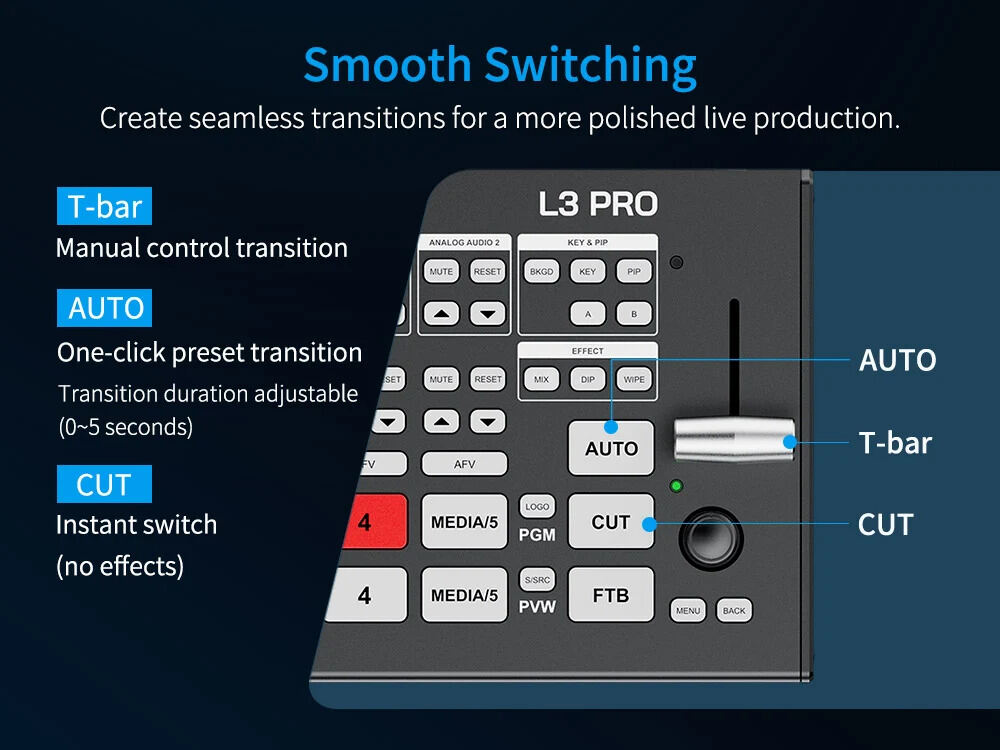

Create dynamic live productions with PGM/PVW switching, AUTO, CUT, FTB and T-Bar control. Features up to 16 transition effects, 8 PIP modes, Scale & Crop, Chroma Key, Luma Key and Logo Overlay for multi-camera streaming, green screen production and professional video mixing.
Stream, Recode and Play Media

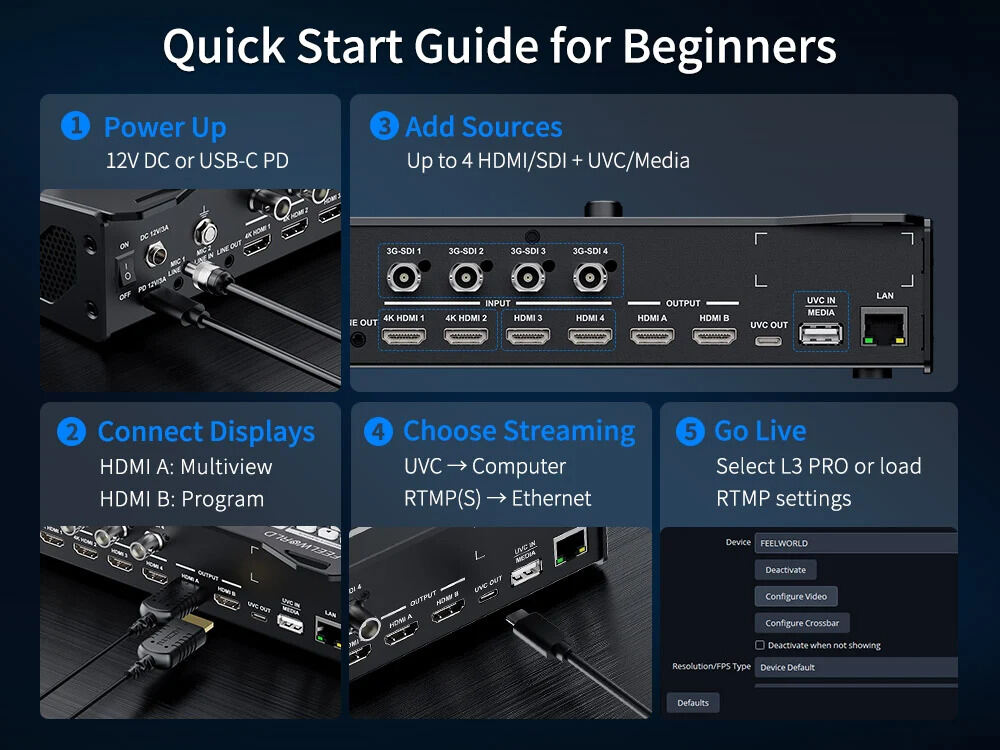

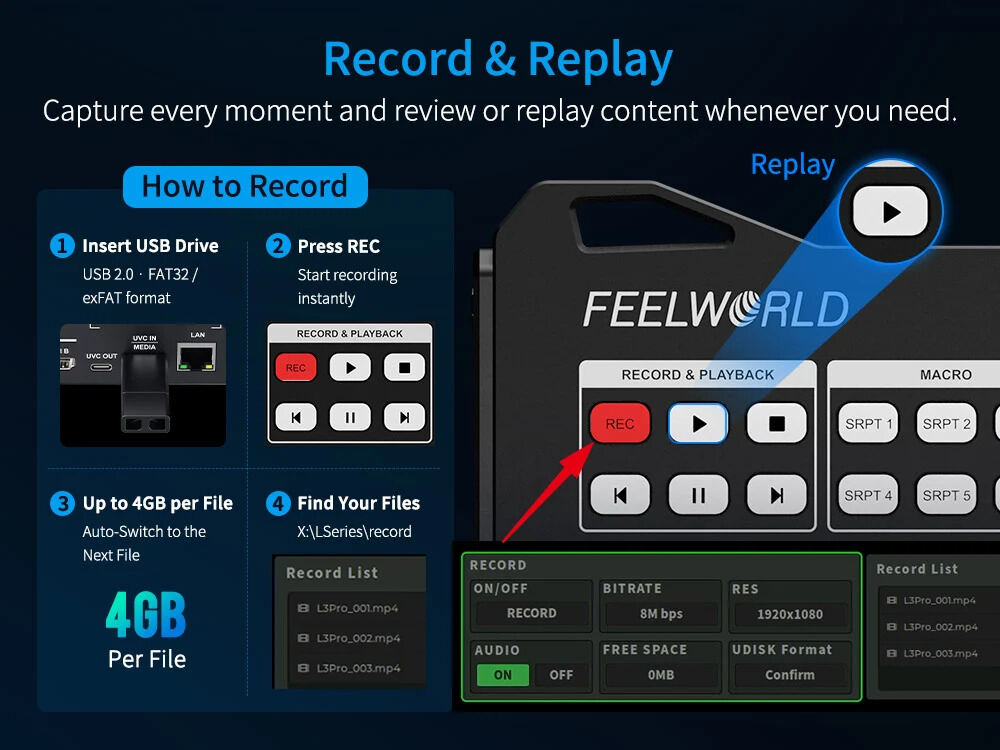

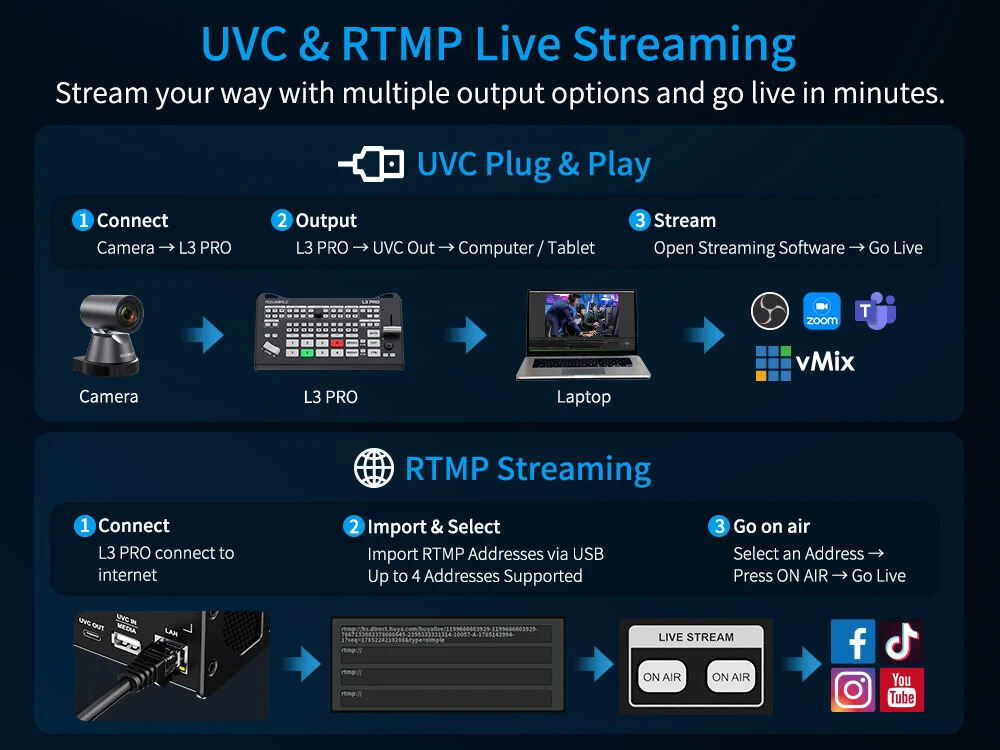

The USB-C UVC output connects to a computer for compatible live streaming software and platforms, while RTMP streaming supports network broadcasting. Record program output directly to USB storage in MP4 format and use media playback to add videos and other content to your live production workflow.
PTZ Control and 7 Channel Audio Mix

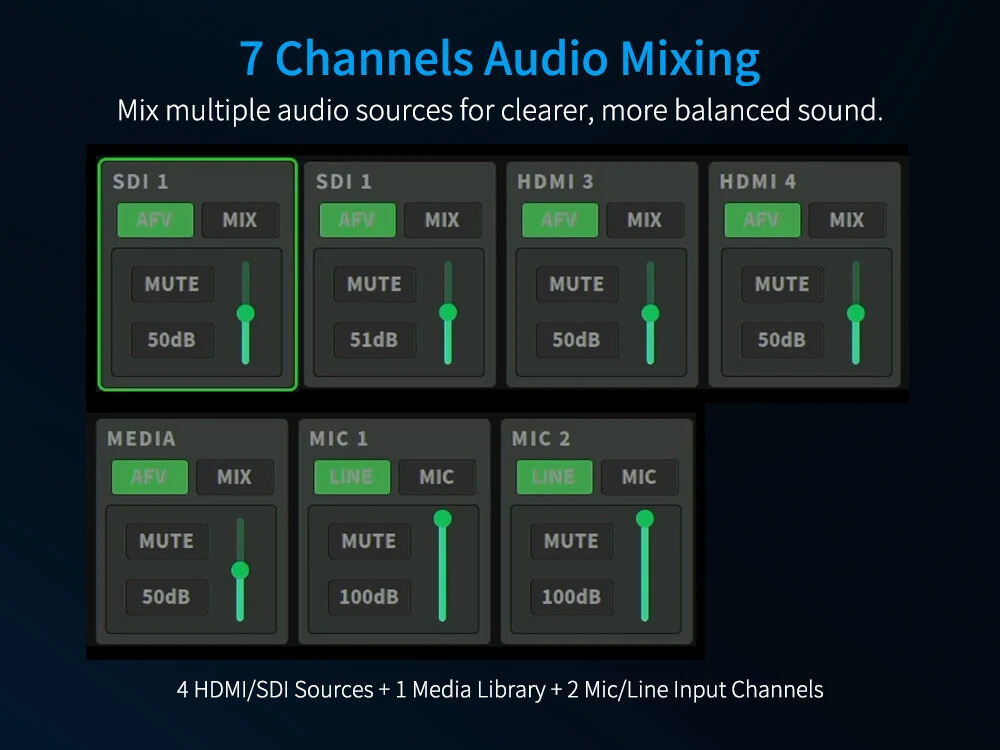

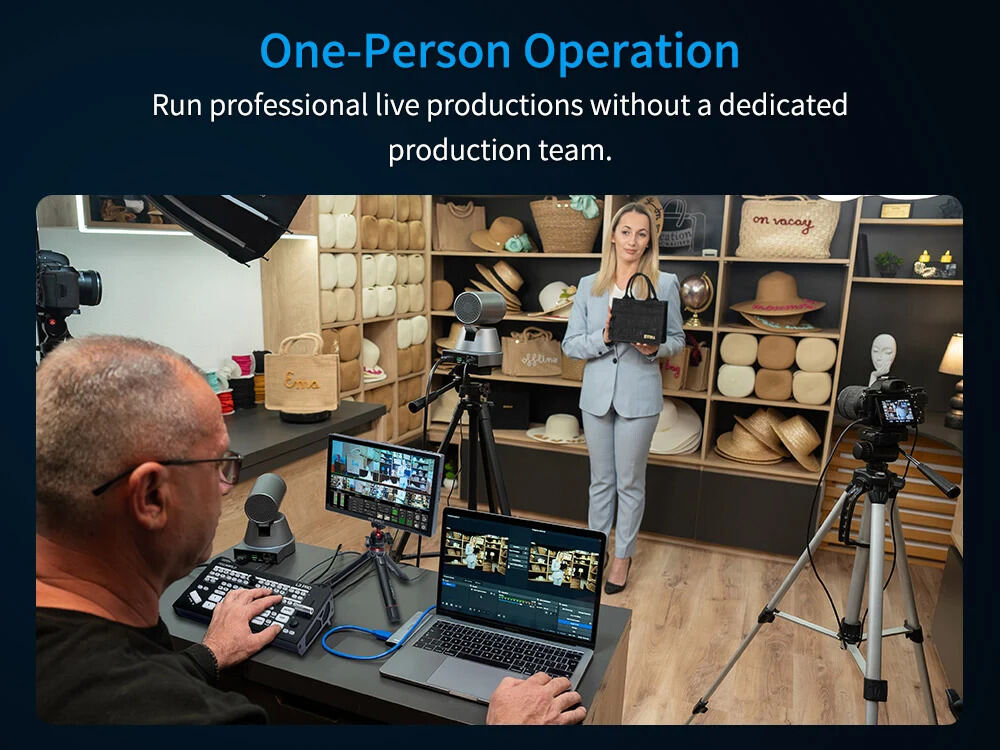

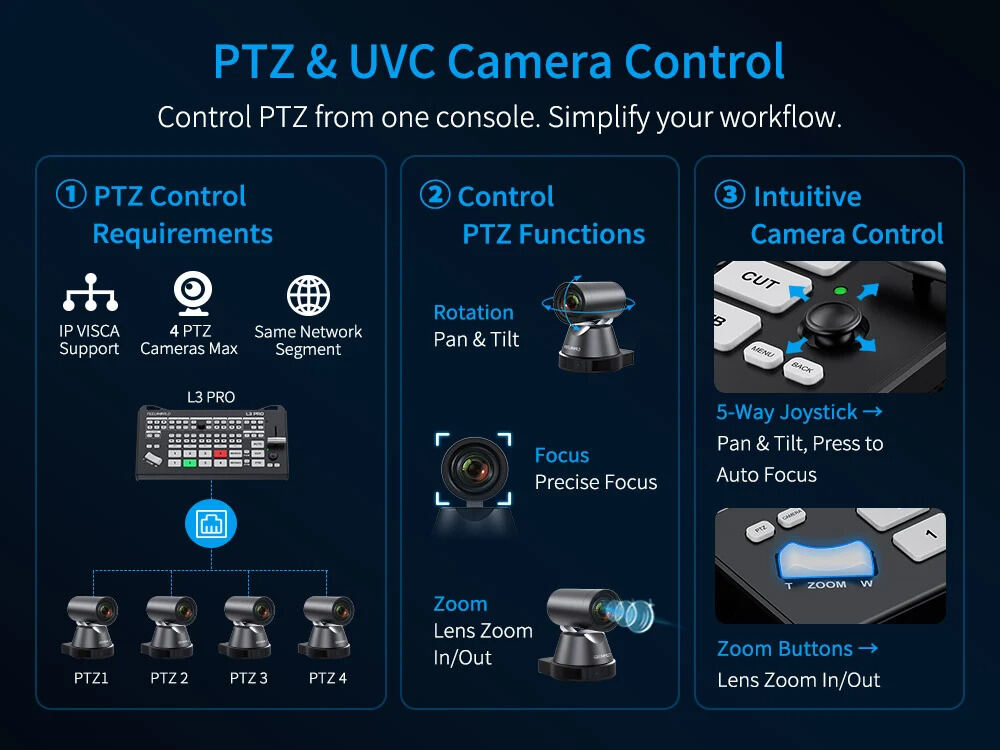

Control up to 4 PTZ cameras via IP VISCA using the built-in joystick and zoom control. The 7-channel audio mixer supports HDMI/SDI embedded audio, media audio and 2 MIC/LINE inputs, while Audio Follow Video helps keep audio and video switching synchronized.
Built for Live Streaming and Event

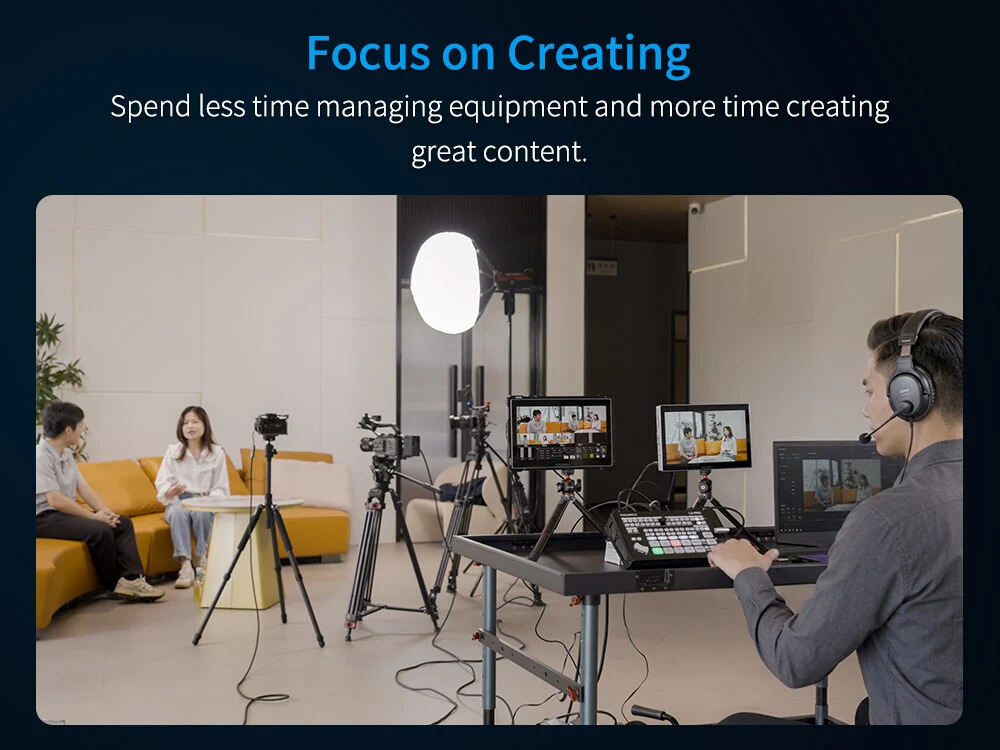

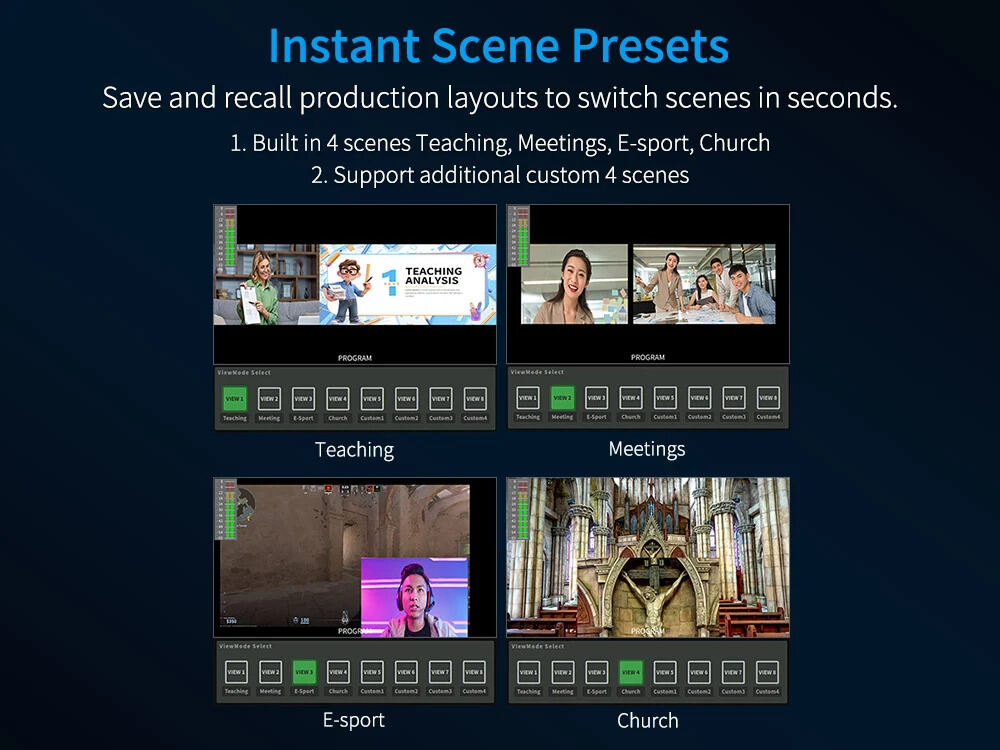

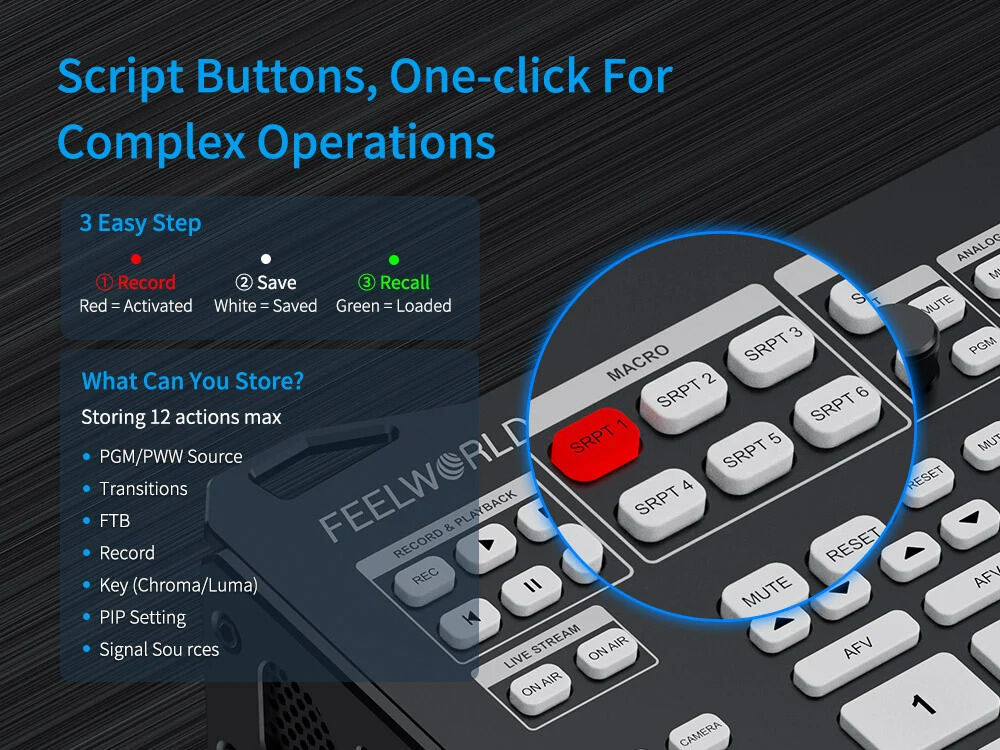

Ideal for live streamers, content creators, AV teams, broadcasters, educators and event producers. Suitable for streaming studios, meetings, teaching, church services, esports, sports events and presentations. Macro keys and preset scenes help simplify multi-camera workflows and create smoother, more professional live productions.
KEY FEATURES
-
Supports 4× 3G-SDI, 4× HDMI and UVC/Media inputs
-

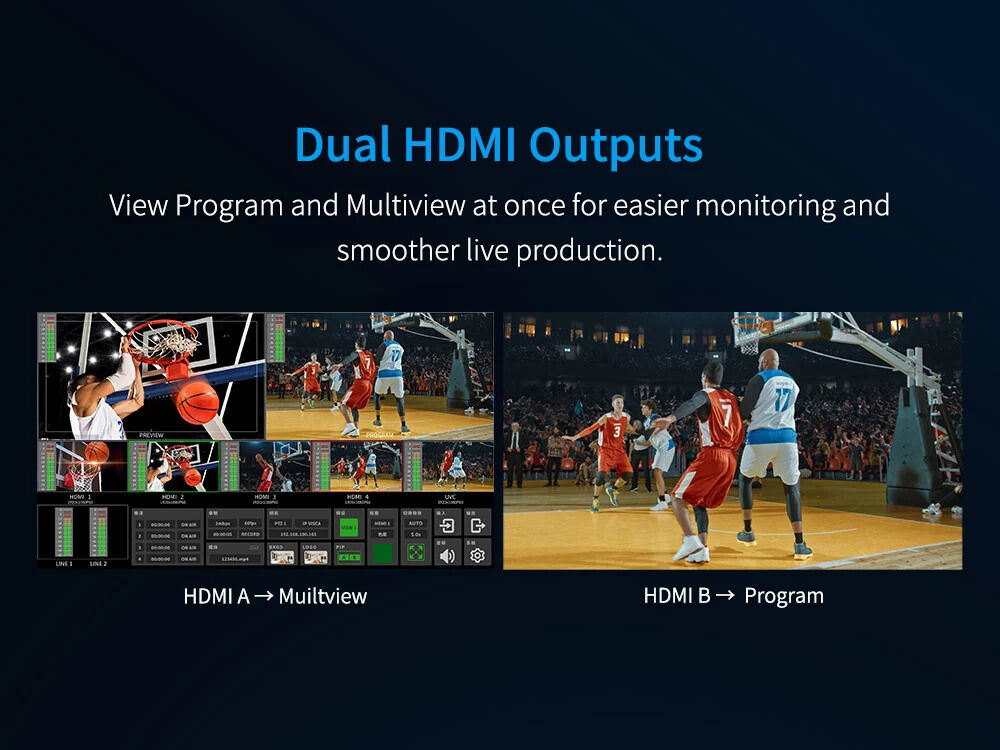

Dual HDMI outputs for Multi-View and Program
-
Supports PGM/PVW, AUTO, CUT, FTB and T-Bar
-

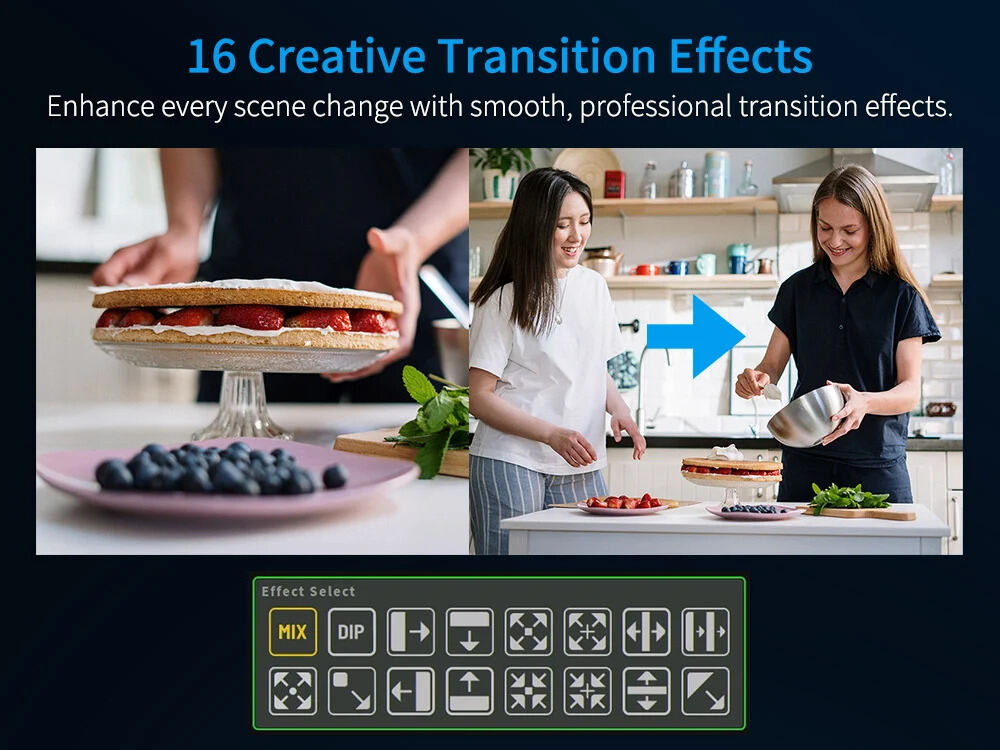

Up to 16 transition effects and 8 PIP modes
-
Supports Chroma Key, Luma Key and Logo Overlay
-
7-channel audio mixer with Audio Follow Video
-
Controls up to 4 PTZ cameras via IP VISCA

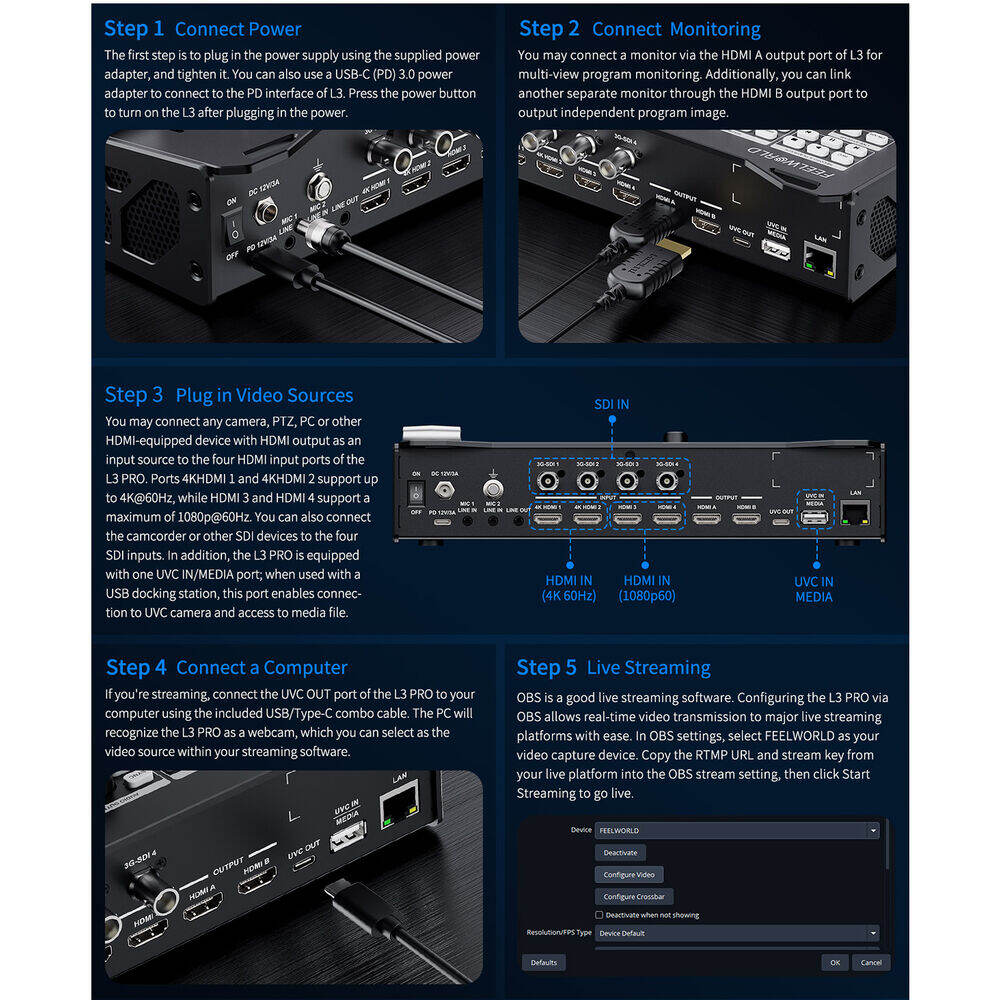

Instructions
SPECIFICATIONS
- Brand: FEELWORLD
- Model: L3 PRO
- Product Type: Multi-Format Video Switcher
- Video Inputs: 4× 3G-SDI, 4× HDMI, UVC/Media
- Video Outputs: Dual HDMI
- USB Output: USB-C UVC
- Streaming: RTMP
- Recording: MP4 to USB storage
- Transitions: Up to 16 effects
- PIP: 8 modes
- Video Effects: Scale & Crop, Chroma Key, Luma Key
- PTZ Control: Up to 4 cameras, IP VISCA
- Audio Mixer: 7 channels
- Audio Inputs: HDMI/SDI embedded, media, 2× MIC/LINE
- Control: Built-in joystick and zoom control
