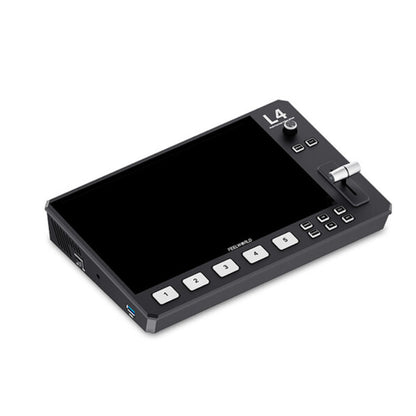

FEELWORLD L4
Multi-Format Video Switcher
Multi-cam Live Production
For large summit, culture show, Sports Event often need multi camera filming, FEELWORLD L4 is equipped with 4 HDMI and one SDI inputs,meet more professional needs. That means you can simultaneously connect 5 signal sources for different views, easy to handle various multi-cam live production.
Plug and Play, Take Your Video Contents to Next Level
L4 is for video creators or anyone who wants to make broadcast quality multi-camera programs simply and quickly from anywhere. You can live streaming to YouTube/Facebook/Instagram or using Skype or ZOOM for innovative business presentations.Best of all, L4 is plug and play, you don’t need to be a video professional to achieve great looking results.
Stream Live.Your Content.Your Way

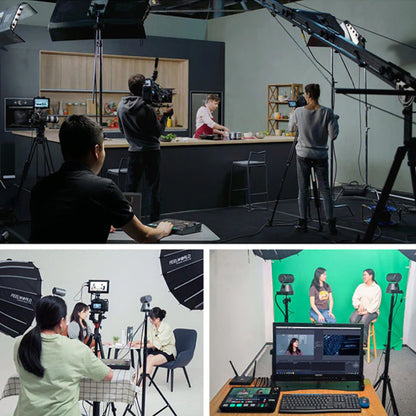

L4 is fit for wedding, church activity, sports events,E-class, live commerce and live concerts,ect .With its user-friendly large touch screen interface, intuitive and comfortable keys, you can easily master its functions in no time.

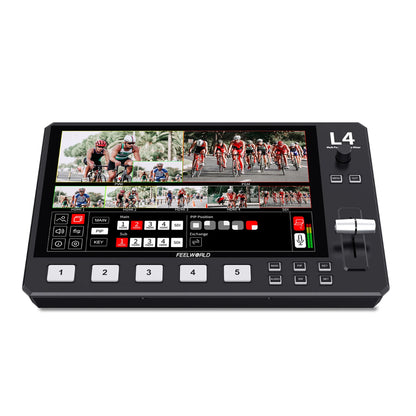

10.1-inch Touch Screen
Comfortable Monitoring and Easy Operation Anywhere the biggest advantage of L4 is its 10.1-inch LCD touch screen, you can preview all the signals, preset and program out picture in real time, you can also easy setup the menu,and the menu interface will not cover the other picture. All of operation can be finished via your finger tapping,it is very convenient and comfortable.
FEATURES:
-
10.1-inch touchscreen, real-time preview 5 input sources +PST + PGM and operation interface
-
Iconized touch operation, fast to learn; or buttons + knob operation
-
Compatible with HDMI and SDI signal source, meet professional needs
-
T-bar simply switch signal source or transition effects
-
USB 3.0 fast to live streaming
-
Embedded & Insert Audio with Sync
-
Chroma key + LOGO overlay,creating an exciting studio
-
Mix audio from multiple inputs
-
Configurable PIP video overlay * Supports 13 broadcasting transition effects
-
Remote control via PC/smartphone APP (Feelworld Live Plus)
Specifications:

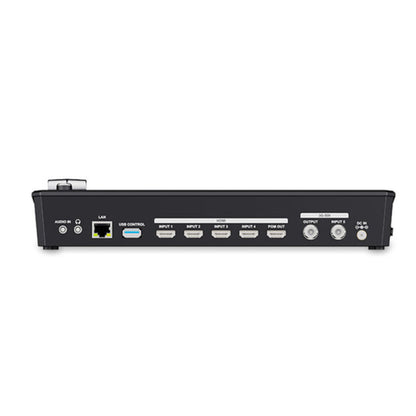

Input
-
Number of Video Input Sources
-
5
-
Video Inputs
-
4 x HDMI (1.4) Female
-
1 x BNC (HD-SDI) Female
Input Video Format
-
HDMI
-
UHD 4K at 23.98/24/25/30 fps
-
1080p at 24/30/50/60 fps
-
1080i at 50/60 fps
-
720p at 50/60 fps
-
WUXGA (1920 x 1200) at 60 fps
-
WUXGA+ (1680 x 1050) at 60 fps
-
UXGA (1600 x 1200) at 60 fps
-
WXGA+ (1440 x 900) at 60 fps
-
FWXGA (1366 x 768) at 60 fps
-
1360 x 768 at 60 fps
-
SXVGA (1280 x 1024) at 60 fps
-
WXGA (1280 x 800) at 60 fps
-
XGA (1024 x 768) at 60 fps
-
SDI
-
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
-
1080i at 50/59.94/60 fps
-
720p at 25/29.97/30/50/59.94/60 fps
Audio Inputs
-
1 x 1/8" / 3.5 mm TRS Stereo Analog Female
-
Embedded Audio Input
-
HDMI
-
SDI
-
Output
Video Output Channels
-
3
Video Outputs
-
1 x HDMI (1.4) Female
-
1 x USB-A (3.0) Female
-
1 x BNC (HD-SDI) Female (Monitor)
Output Video Format
-
HDMI
-
1080p at 25/30/50/60 fps
-
720p at 50/60 fps
-
1360 x 768 at 60 fps
-
SXGA (1280 x 1024) at 60 fps
-
1280 x 768 at 60 fps
-
XGA (1024 x 768) at 60 fps
-
USB-C
-
1080p at 25/30/50/60 fps
-
720p at 50/60 fps
-
SDI
-
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
-
1080i at 50/59.94/60 fps
-
720p at 25/29.97/30/50/59.94/60 fps
