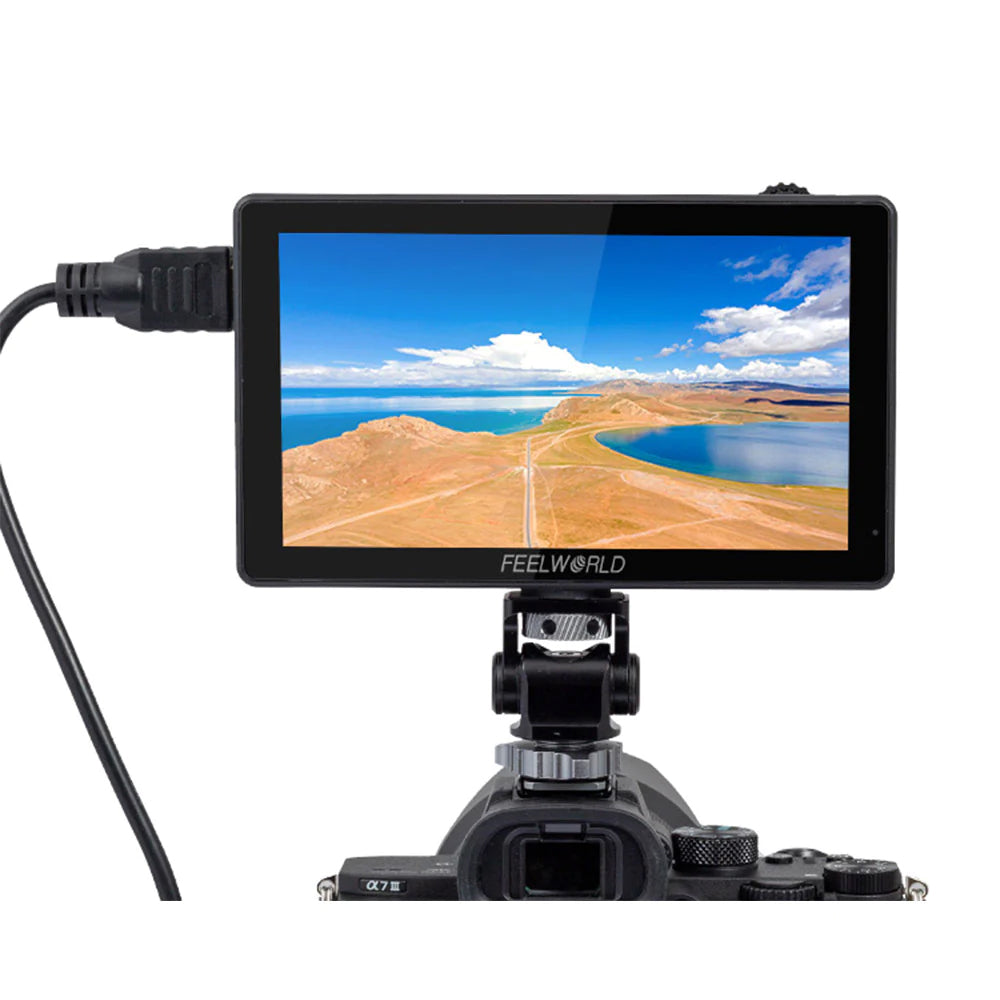

LUT5 3000 nit
5.5" Daylight Viewable Field Monitor
Overview:
- FEELWORLD LUT5 is a 5.5-inch ultra-high bright on-camera monitor, with 3000nit ultra-high brightness, the screen is clearly visible in the sun. Full HD LCD touch screen, easy to operate; supports HDMI signal 4K@30Hz, HDR monitoring, custom 3D LUT and other professional auxiliary composition tools. There is a F970 external install and powr kit on the rear of LUT5, which can install such as wireless transmission, LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables, , which is perfect for director monitoring, 1st AC to focus pulling in the film crew. The compact size and lightweight can be used with a gimbal to move quickly on set.
-
Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment. The kit has two cross slots, you can adjust the position of the external device by loosening the screws. When you don't need the kit, you can directly loosen the screws to remove the kit.
Features:
● Model: LUT5
● 5.5-inch Daylight Viewable Field Monitor
● 1920x1080 full HD IPS screen
● Touch screen menu operation, improve shooting efficiency
● Ultra-bright 3000nit, clearly visible in the sun
● Light sensor auto dimming
● Stereo Earphone output
● Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)
● Supports HDR monitoring, what you see is what you get
● DC 8V power out to power your DSLR camera or mirrorless camera
● Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment
● With Waveform, Vector scope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
Specifications:
-
Model: LUT5
-
Screen Size: 5.5" IPS
-
Resolution: 1920x1080 pixels
-
Pixel Pitch: 0.069 (L) x 0.069(W) (mm)
-
Aspect Ratio: 16:9
-
Brightness: 3000cd/m²
-
Contrast Ratio: 1000:1
-
Backlight: LED
-
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
-
Input: HDMI
-
Audio: 3.5mm Stereo Headphone
-
Input Voltage: DC7～24V
-
Power Consumption: ≤20W
-
Working Temperature: -20°C~70°C
-
Storage Temperature: -30°C~80°C
-
Install Way: 1/4"-20 Thread Socket ( Right, Bottom)
-
Unit Size: 142Lx86Hx28D(mm)
-
Unit Weight: 270g
-
Support 3D LUT Log to Rec.709, user 3D LUT Upload
-
Support Touch Menu
-
Parade (RGB, YUV, Y)
-
All Waves, Vector, RGB Histogram
-
Brightness Histogram, Embedded Audio
- Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
-
False Colors
-
Zebra Exposure (1%~100% adjustable)
-
Check Field (Red, Green, Blue, Gray)
-
Scan Mode (Under Scan, Over Scan)
-
Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag)
-
Image Flip (H, V, H/V)
-
Image Freeze, Center Marker
- Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1)
-
Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
-
Marker Color (red, green, blue, white, black, yellow)
-
Color Temperature Adjustment (5600K, 6500K, 9300K, user)
-
Nine Grid, Zoom (100%~500%)
-
Aspect Ratio , Pixel to Pixel
