Feelworld

Feelworld LUT6 6" Touchscreen Camera Field Monitor 1920 x 1080 Resolution with Tilt Arm, 4K HDMI In / Out, 2600 nits Ultra Bright, HDR 3D LUTs

Name: Feelworld LUT6 6" Touchscreen Camera Field Monitor 1920 x 1080 Resolution with Tilt Arm, 4K HDMI In / Out, 2600 nits Ultra Bright, HDR 3D LUTs
Brand: Feelworld
SKU: FEELWORLD LUT6
Price: 15399.0 PHP
Availability: InStock

₱15,399.00 PHP

~~₱20,998.00 PHP~~ ₱15,399.00 PHP

Sale Sold out

Tax included.

Product variants

Overview:

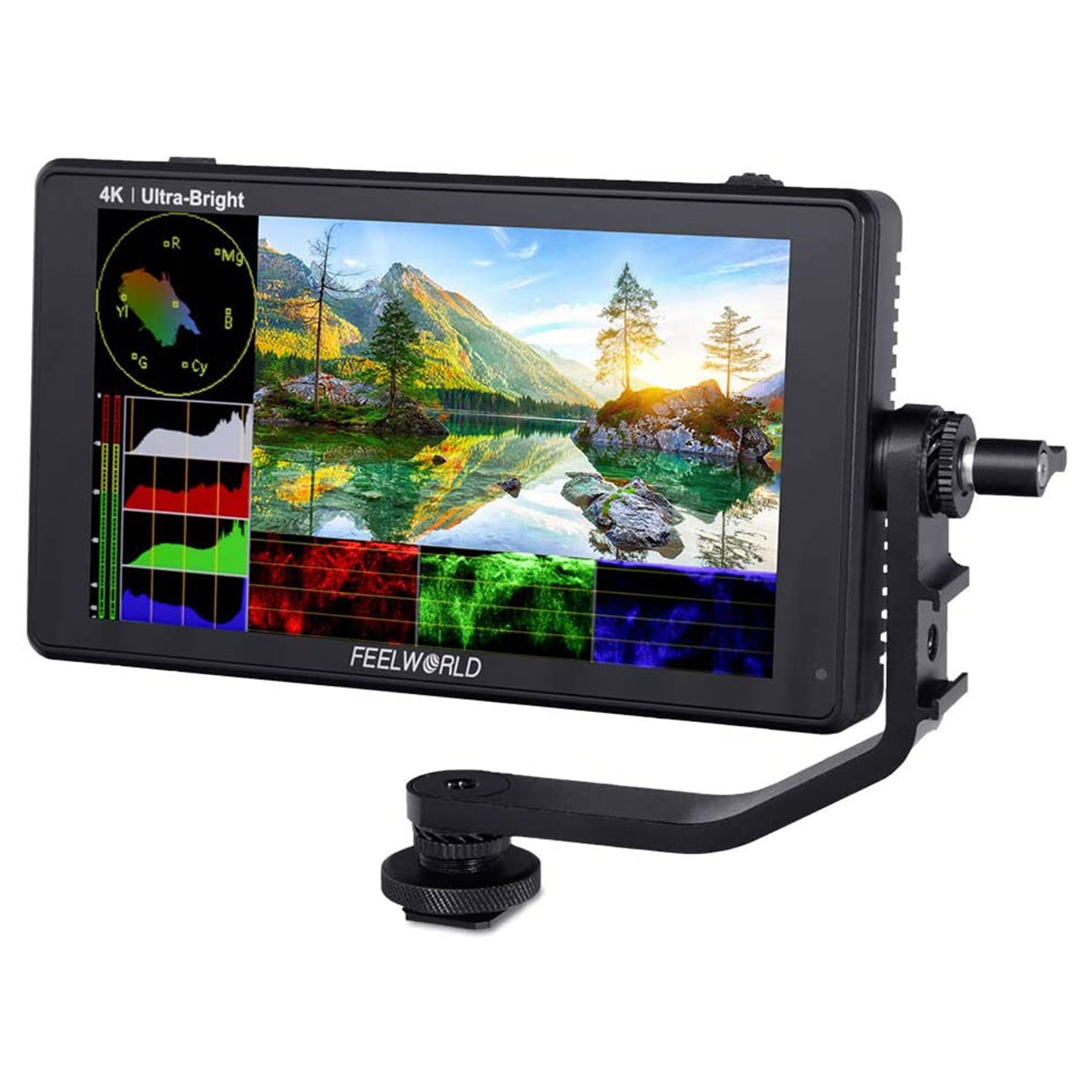

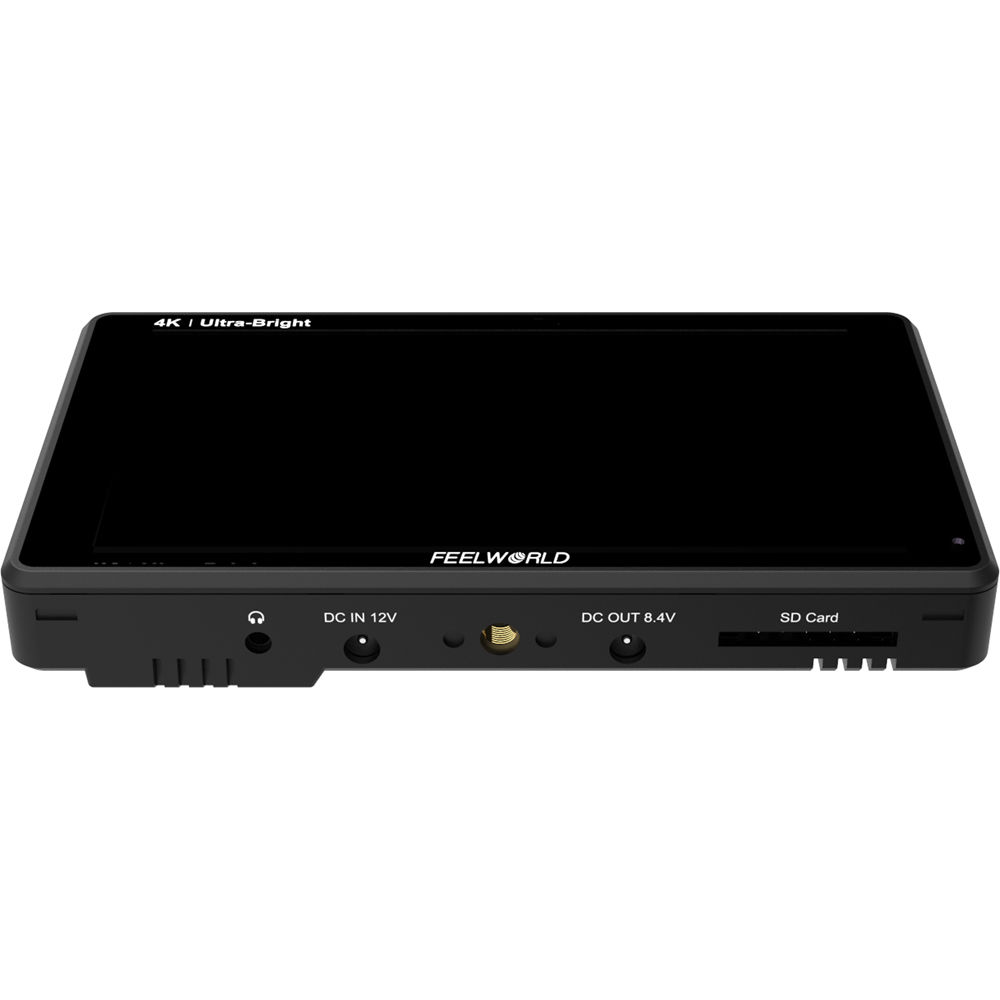

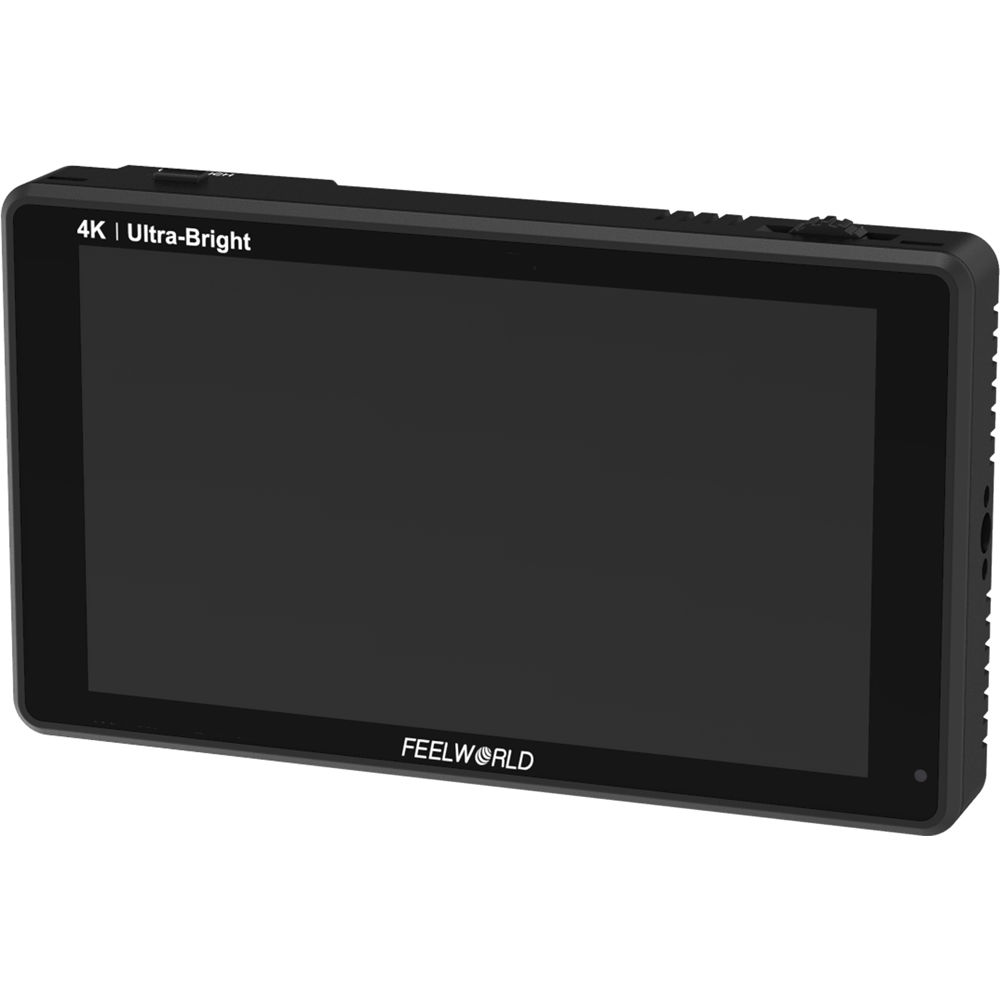

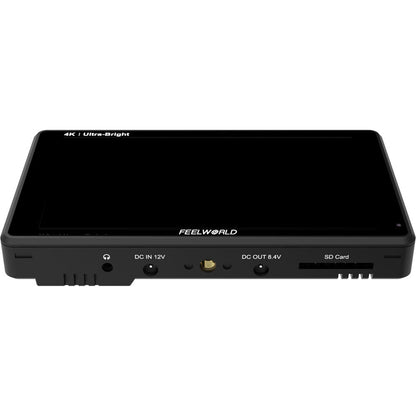

The Feelworld LUT6 equips filmmakers with the benefits of a large on-camera display without making the camera setup feel cumbersome. It is packed with high-end monitoring features in a small, lightweight package that can be connected to virtually any camera. The front features a large high resolution, daylight viewable LCD touchscreen, video connections on the left side and an SD card slot on the bottom, and space for an NP-F battery on the back. The outer frame features standard 1/4″ mount points on the bottom and right for attaching it to the camera and rig.

It displays your stills and monitoring content at superior color fidelity and 1920 x 1080 maximum resolution on a 6-inch display. The panel is made of optically bonded glass with an anti-reflective coating, which allows comfortable daytime field monitoring. The fully adjustable 2600nits screen is incredibly bright, making it perfect for shooting indoors or out. It is at almost 5 times the brightness of conventional field monitors and lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting.

The innovative touchscreen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There’s also an extensive range of settings all controlled from the large LCD. The LUT6 features built-in HLG 2020, HLG 709, HLG P3 HDR 3D LUTs, and Rec. 709 DeLog LUTs. This simplifies the complexities of shooting logs and HDR footage. Load up to 50 custom LUTs via an SD card slot to see what your image will look like when you apply a LUT in post-production.

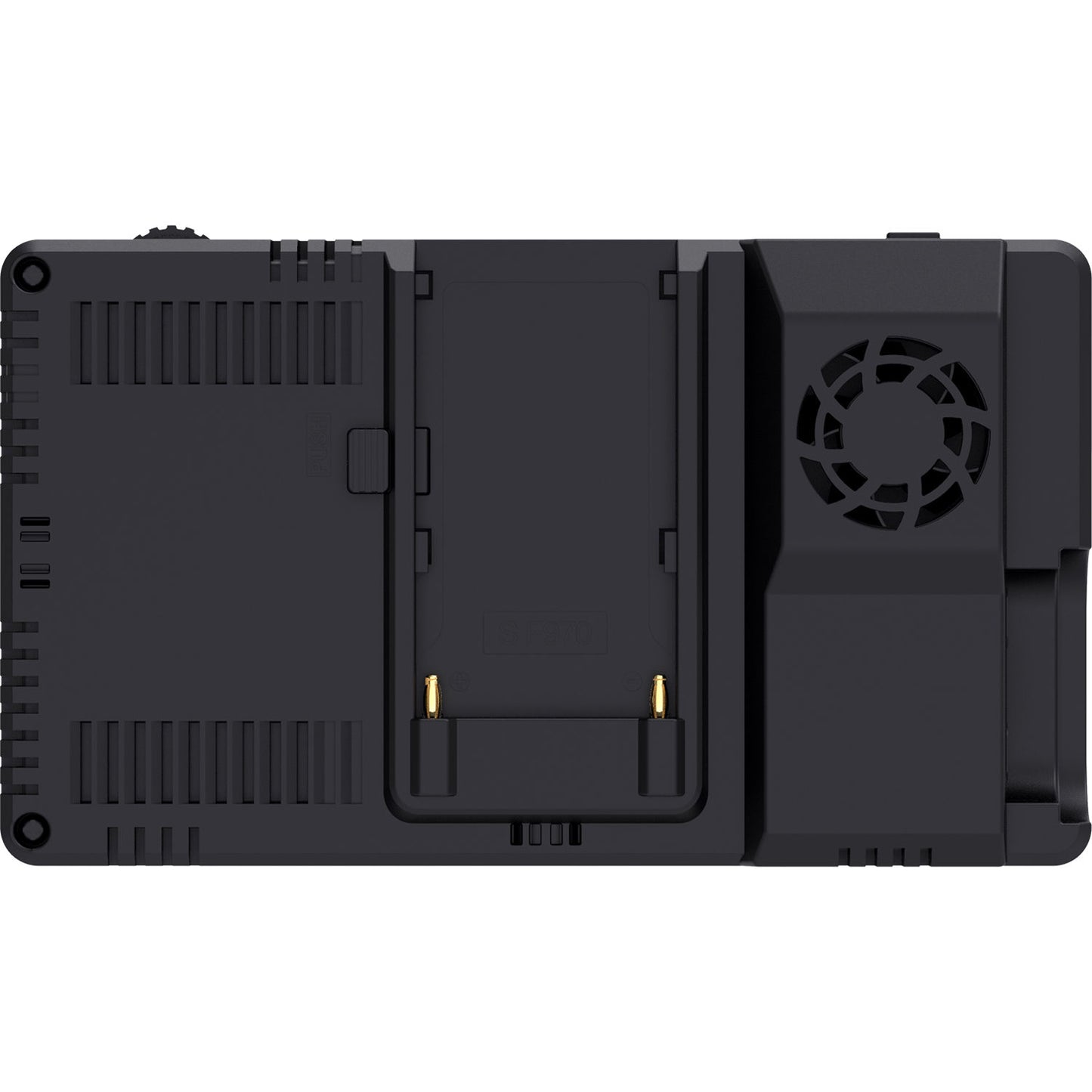

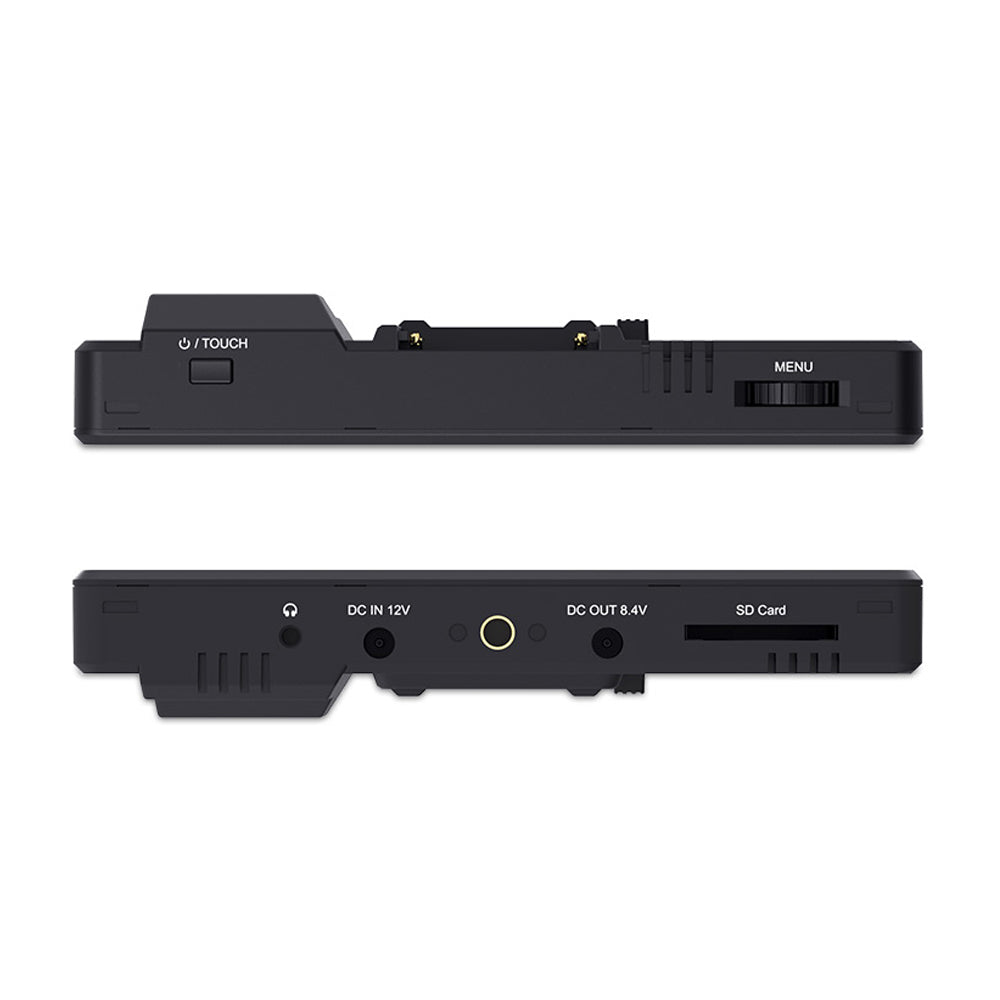

Connect to virtually any camera via the HDMI input, and at the same time, an HDMI loop output lets you connect to a larger display for simultaneous monitoring or to a wireless transmitter. There's also a 3.5mm stereo headphone jack for audio monitoring. The LUT6 offers a 1/4"-20 mounting thread on the bottom and one on the right. It has an integrated L-series battery plate and offers a 12 VDC power input port for continuous power. It also has a fan on the rear that turns on automatically depending on backlight brightness for optimal heat dissipation. When this feature is activated, the fan will turn on automatically if the backlight brightness goes above 80.

Specifications:

Display:

Model: LUT6

Screen Size: 6" IPS

Resolution: 1920x1080 pixels

Pixel Pitch: 0.069 (L) x 0.069 (W) (mm)

Aspect Ratio: 16:9

Brightness: 2600 cd/m²

Contrast Ratio: 1000:1

Backlight: LED

Dot Pitch: 0.069 x 0.069 mm

Pixels Per Inch (ppi): 368 ppi

Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

Input/Output:

Input: 1 x HDMI Type A Input

Output: 1 x HDMI Type A Loop Output

Audio: 3.5mm Stereo Headphone

Power I/O: 1 x Barrel Input

General:

Input Voltage: DC7～24V

Power Consumption: ≤16W

Working Temperature: -20°C~50°C

Storage Temperature: -30°C~60°C

Install Way: 1/4"-20 Thread Socket (Right, Bottom)

Battery Plate: F970 Battery Plate

Unit Size: 162Lx93.2Hx29D(mm)

Unit Weight: 300g

Battery Plate: Dual F970 Battery Plate

Mounting: 2 x 1/4"-20 Female
