Key Features
- 10.1" Full HD (1920×1200) IPS Touchscreen Display
- 1200 nits High Brightness for Outdoor Monitoring
- Dual 3G-SDI & Dual HDMI 2.0 Inputs/Outputs (Up to 4K 60Hz)

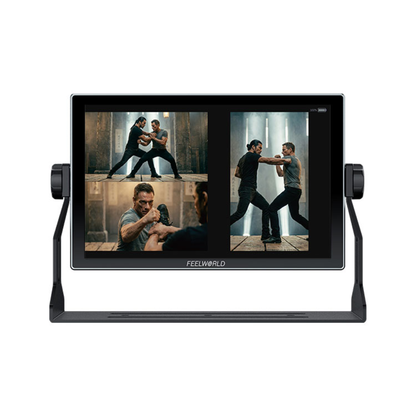

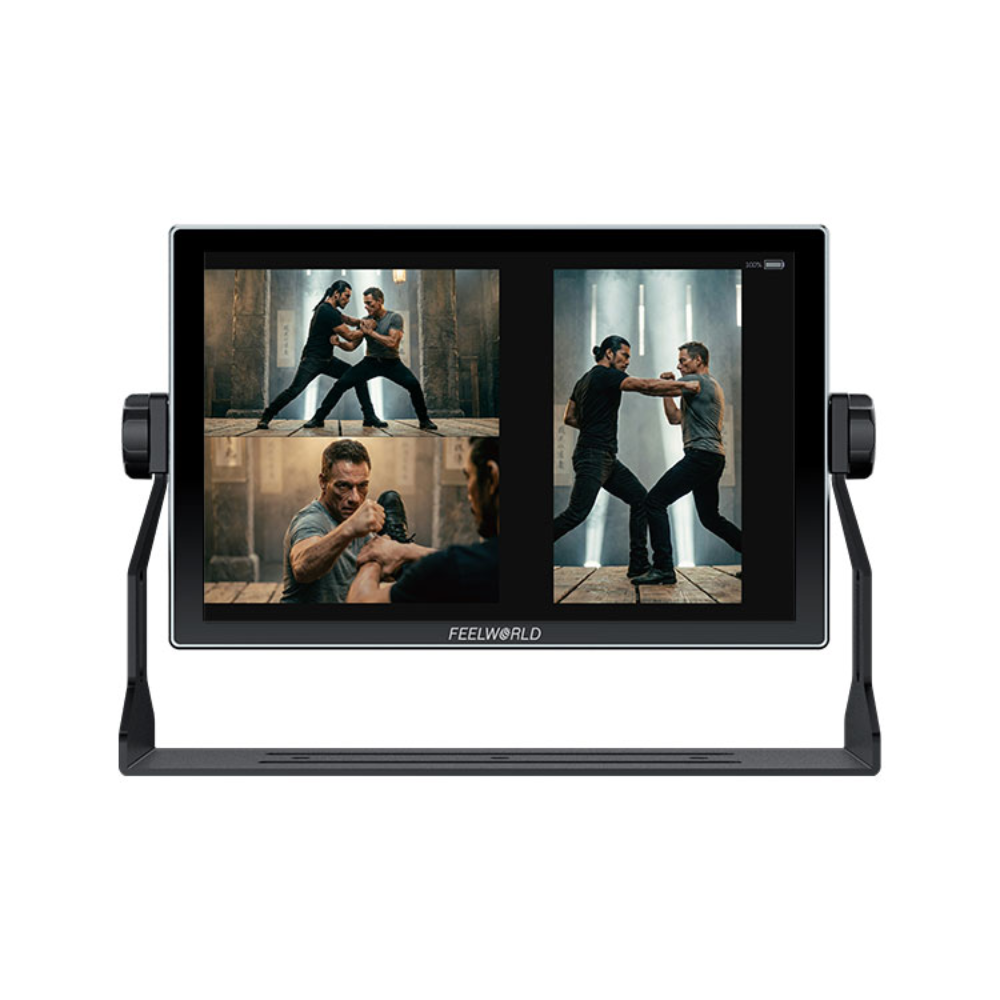

- Multiple screen modes (Single, PBP, PIP, Crop, Triple, Quad)
- 3-Color Tally Indicator for Live Production
- Built-in Waveform, Vector Scope, Histogram & Audio Meters
- Custom 3D LUT, preview film look
- Multiple power supply ways ( DC 5.5x2.1mm, LEMO 2pin, Dual NP-F battery slots)
Specifications
- Brand: FEELWORLD
- Model: M101S
- Product Type: Field Monitor
- Display Size: 10.1-inch IPS Touchscreen
- Resolution: 1920 × 1200
- Aspect Ratio: 16:10
- Brightness: 1200 cd/m²
- Contrast Ratio: 1500:1
- Color Depth: 10-bit (8-bit + 2FRC)
- Color Gamut: 95% DCI-P3
- Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
- Video Input: 2 × 3G-SDI, 2 × HDMI 2.0, 3.5mm Tally
- Video Output: 2 × 3G-SDI, 2 × HDMI 2.0
- Audio Output: 3.5mm Stereo Headphone Jack
- Storage: SD Card Slot (Firmware & LUT Import)
- Power Input: DC 12V (5.5 × 2.1mm), 2-Pin LEMO
- Battery Compatibility: Dual Sony NP-F Battery Slots
- Power Consumption: 24W
- Housing Material: CNC Aluminum Alloy
What's in the box?
- 1x Monitor
- 1x HDMI Cable
- 1x Micro HDMI Cable
- 1x SDI Cable
- 1x Tally Connector
- 1x U-shape Bracket
- 1x Quick Start Guide
