Features:
- 1/2.9"" 2.07MP CMOS Sensor

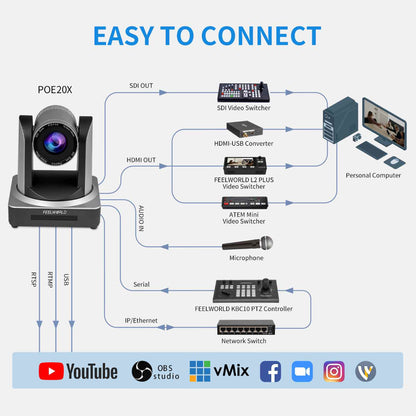

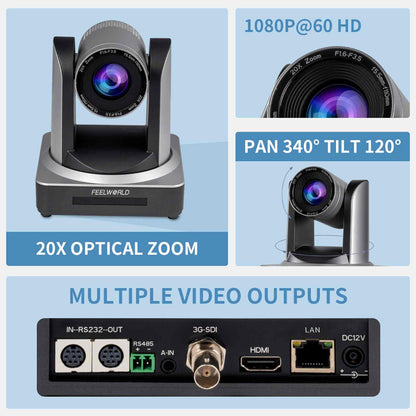

- Simultaneous 3G-SDI, HDMI & LAN Out
- Supports up to 1080p60 Video
- 20x Optical Zoom, 3.3 to 54.7° FOV
- ±170° Pan, -30 to 90° Tilt Range
- PoE Support
- Embedded Audio & 3.5mm Stereo Analog In
- MJPEG/H.264/H.265/NDI/NDI|HX Streaming
Full Specifications:
- Model: POE20X
- Sensor: 1/2.9 inch high quality CMOS sensor
- Effective Pixels: 2.07 megapixel, 16：9
- Output Resolutions: 720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60
- View Angle: 3.3°～ 54.7°
- Focus Length: f＝5.5～110mm
- AV: F1.6 ～ F3.5
- Optical Zoom: 20X
- Minimum Illumination: 0.5 lux （F1.8, AGC ON）
- DNR: 2D & 3D
- White Balance: Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
- Focus: Auto / Manual/ One Push Focus
- Exposure: Auto / Manual
- BLC: On/Off
- WDR: OFF/Dynamic level adjustment
- Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
- SNR: >55dB
- Video Interface: HDMI, 3G-SDI, LAN(support PoE)
- Image Code Stream: Double stream outputs simultaneously
- Video Compression Format: H.264, H.265
- Audio Interface: Double track 3.5mm linear input
- Audio Compression Format: AAC、MP3、G.711A

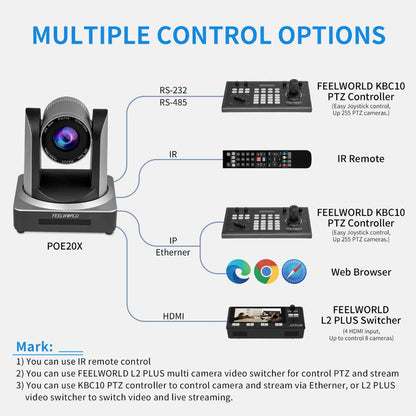

- Control Interface: RS232 (IN/OUT), RS485
- Control Protocol: VISCA/Pelco-D/Pelco-P
- HD IP Interface: 100M IP port（10/100BASE-TX)
- Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VSICA
- Power Interface: HEC3800 outlet (DC12V)
- Pan Rotation: -170°～+170°
- Tilt Rotation: -30°～+90°
- Pan Control Speed: 0.1 ～60°/sec
- Tilt Control Speed: 0.1～30°/sec
- Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
- Preset Number: 255 presets (10 presets via remote control)
- HDMI/SDI Video Out: 1080P60/50/30/25/59.94/29.97；1080i60/50/59.94；720P60/50/59.94
- USB 2.0 Video Output: 320x240|352x288|640x360|640x480|704x576|704x480|720x576|800x448|800x600|960x540|1024x576|1024x768|1280x720|1920x1080P30/25/20/15/10/5
- Input Voltage: 12V/1.5A
- Power Consumption: Maximum: 12W
- Stored Temperature: -40℃～+70℃
- Storage Humidity: 20%～90%
- Working Temperature: -10℃～+50℃
- Working Humidity: 20%～80%
- Dimension (W*H*D): 150mm×150mm×167.5mm
- Unit Weight: 1.4kg
